Arducam

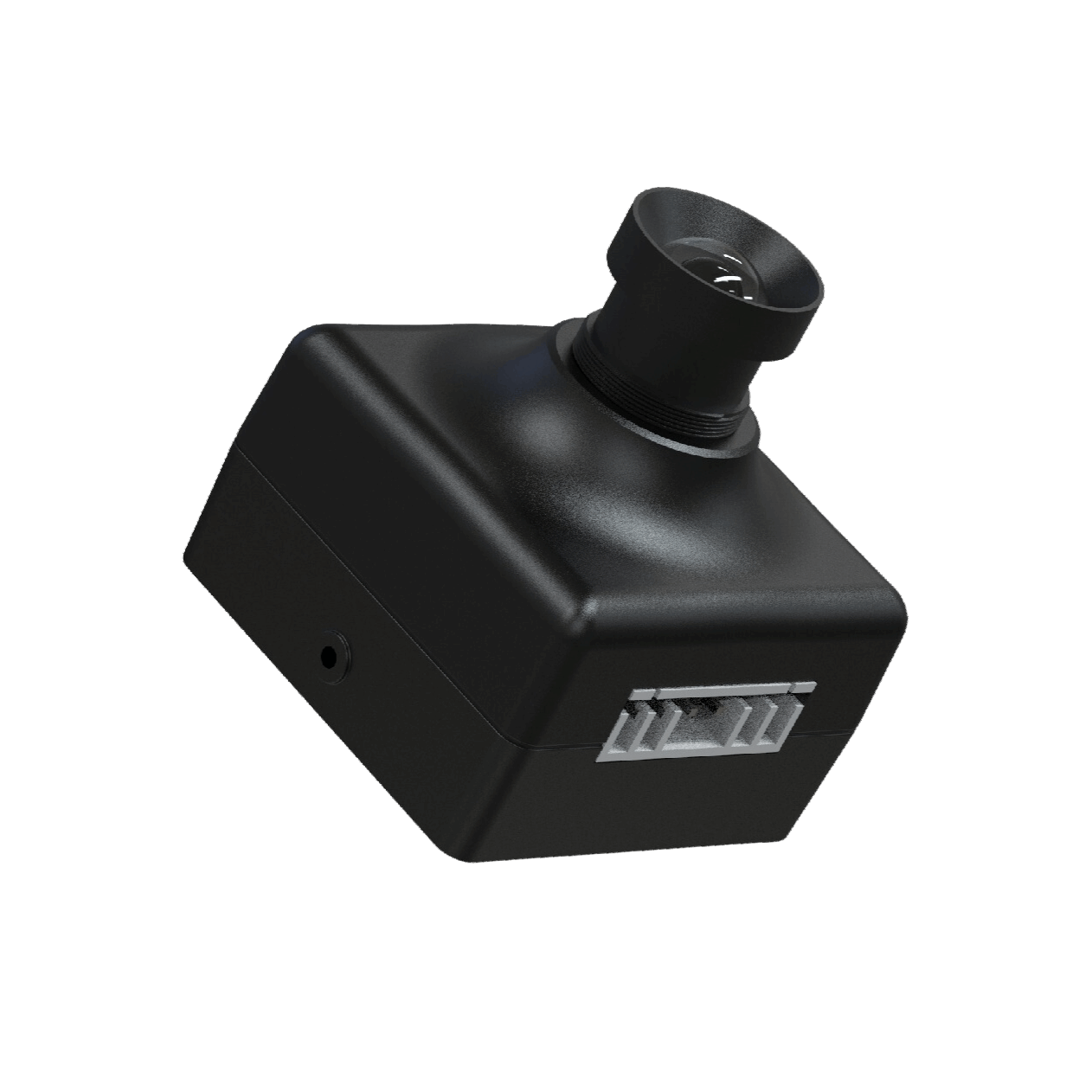

Arducam Mega 5MP SPI Camera Module with M12 Lens (NoIR)

SKU: B0437

Regular price £39.99 GBP
Regular price Sale price £39.99 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Night Vision: Includes an M12 lens with NoIR that is capable of capturing images in extra low light scenarios.

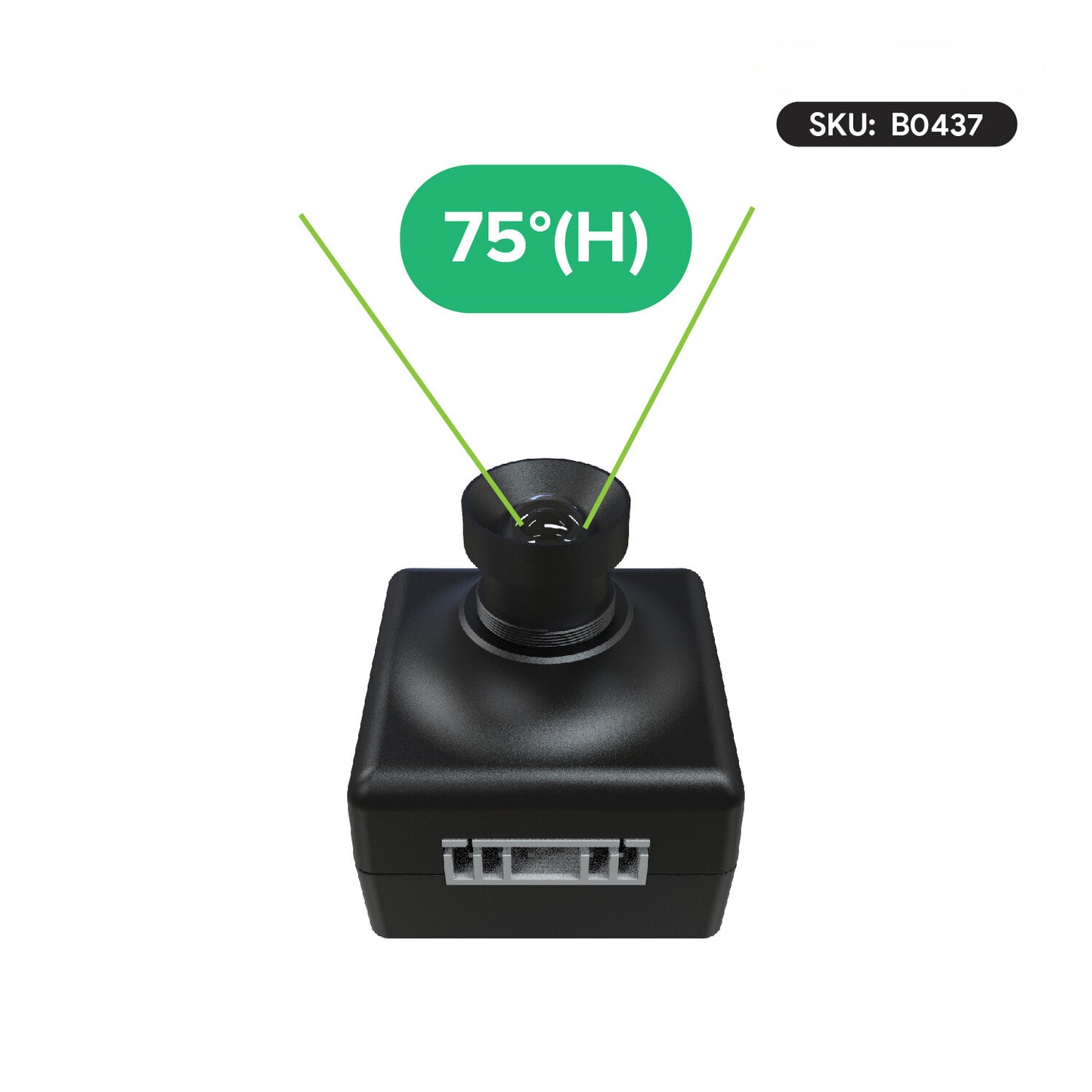

  • Interchangeable Lens: Supplied with an alterable M12 lens with a 75-degree HFOV, it can be replaced by any M12 lens suitable for the default lens mount.
  • Powerful Image Quality: 5MP resolution to capture that are clearer and sharper images.
  • Low Power Consumption: Including quick sleep and quick wake-up within the speed of 94ms. The power consumption can be as little as 200mW.
  • Multicam Capability: This camera can run 4 cameras sequentially on a single MCU (Microcontroller) via an Adapter Board.
  • High-Level Control: The camera's API access provides top-tier commands, enabling you to manage it with ease, similar to operating a DSLR camera via a series of button clicks.
  • Open Source SDK: The software development kit (SDK) with an MIT license is completely open-source. It features a streamlined architecture that includes a hardware abstraction layer, allowing for easy integration of a new microcontroller unit (MCU) without requiring extensive effort or modifications.
  • Flexible Compatibility: Suitable for any microcontroller that has a standard SPI interface.

Are you looking for a camera to pair with your microcontroller? Whether that is an Arduino, Raspberry Pi Pico or any other microcontroller, this camera works with all microcontrollers that have an SPI interface.

With its M12 lens, this product has NoIR, which means it is the optimal camera for night vision in the 5MP variants of Arducam Mega. If these specifications aren't what you require (night vision and/or 5MP), we recommend the 3MP version, B0400, for a fixed focus and stock lens. Otherwise, we recommend the B0434, which includes an interchangeable M12 lens and a resolution of 3MP.

If those options do not suit your application and you require an autofocus version, then the B0401 would be our next recommendation.

We also offer a version that is capable of IR:  B0436

Already have the camera? See Arducams Quick Start Guide.

Item Type
Mega
Optical Size 1/4"
Speed 8Mhz
Number of Effective Pixels 2592 × 1944
Power Supply 3.3V/5V
Interface SPI (4-wire)
Shutter Type Rolling Shutter
Spectrum Colour
Power Consumption (Idle/Working) 182mW-650mW
Field of View 90°(D ) x 75°(H) x 56.4°(V)
F.NO. F2.8
Lens Type M12 Lens (Distortion<1.53%)
EFL/BFL 2.8mm/2.6mm
IR Sensitivity Integral IR-cut filter, visible light only
Focus Distance 8cm-INF
Electric Current (Idle/Working) 55mA-154mA
Output Format RGB/YUV/JPEG
Camera Board Size 33 x 33 x 17mm

What is a microcontroller?

A microcontroller is a small/miniature computer that contains a single integrated circuit chip. The chip is engineered to control specific devices and is generally limited to performing only one specific task. A standard microcontroller incorporates a processor, memory, and input/output (I/O) peripherals.
