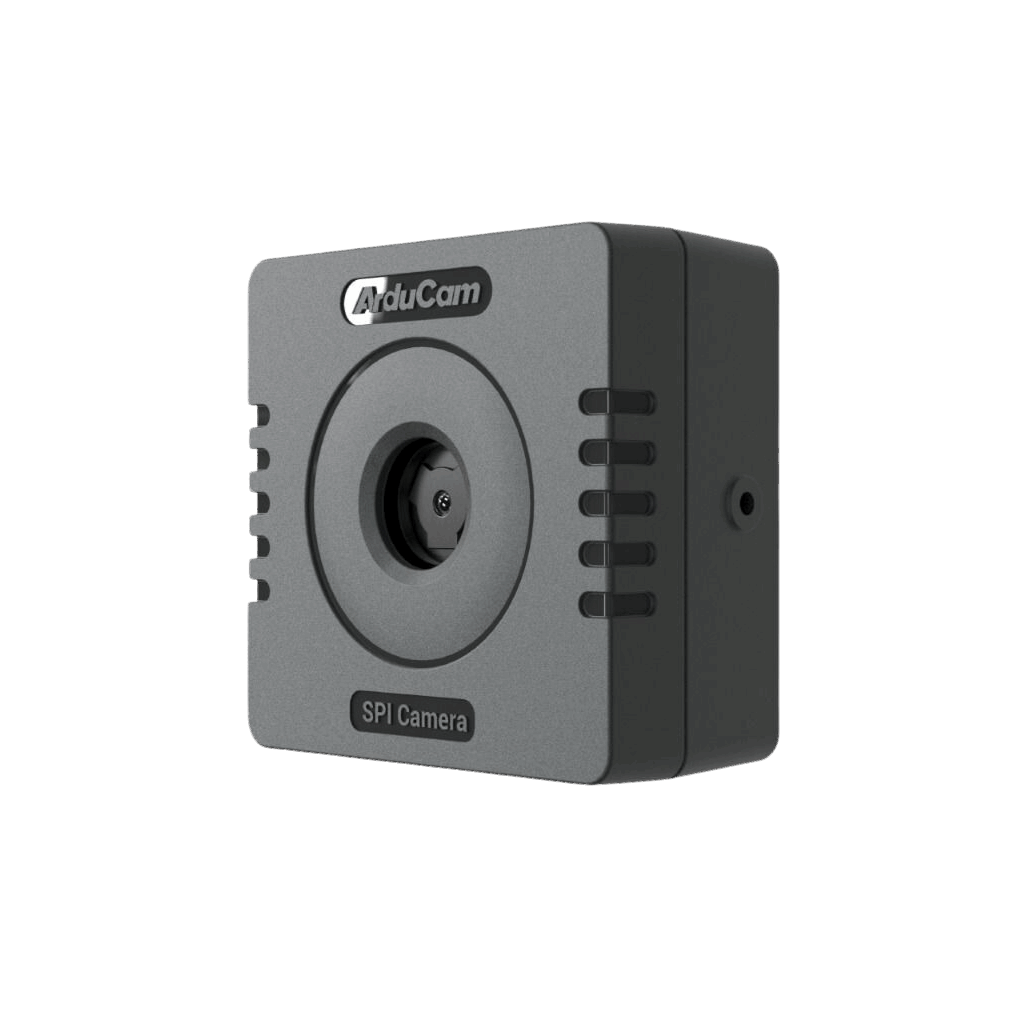

Arducam Mega 5MP Autofocus SPI Camera Module
SKU: B0401
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Low Power Consumption: Including quick sleep and quick wake-up within the speed of 42ms. The power consumption can be as little as 200mW.

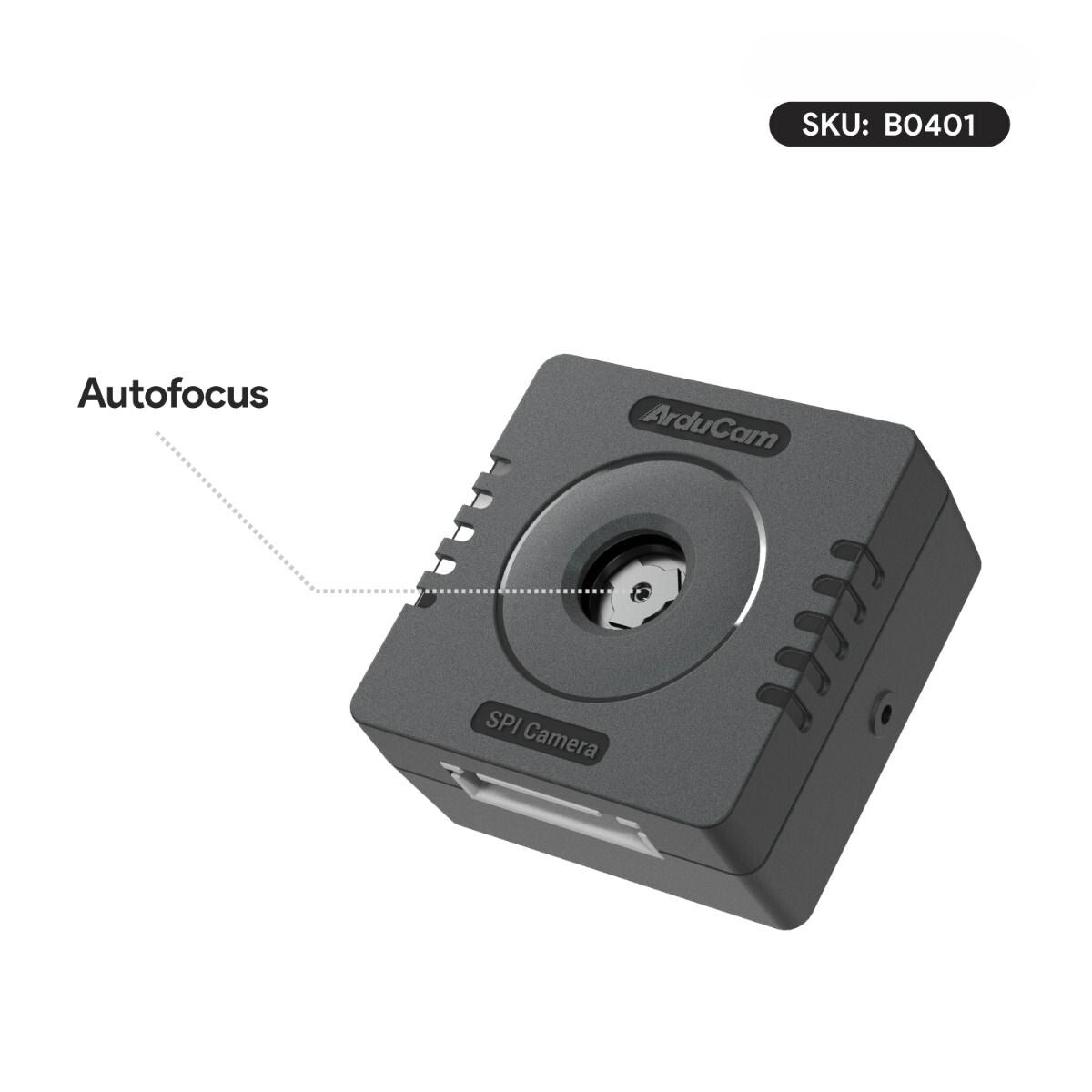

- Autofocus Lens: It contains a programmable autofocus function for contrasting distance photography.
- Powerful Image Quality: 5MP resolution to capture that are clearer and sharper images.
- Flexible Compatibility: Suitable for any microcontroller that has a standard SPI interface.
- Multicam Capability: This camera can run 4 cameras sequentially on a single MCU (Microcontroller) via an Adapter Board.
- High-Level Control: The camera's API access provides top-tier commands, enabling you to manage it with ease, similar to operating a DSLR camera via a series of button clicks.
- Open Source SDK: The software development kit (SDK) with an MIT license is completely open-source. It features a streamlined architecture that includes a hardware abstraction layer, allowing for easy integration of a new microcontroller unit (MCU) without requiring extensive effort or modifications.
Similar to the B0400, it boasts the capability of pairing with any microcontroller with an SPI interface; however, what differentiates this from its 3MP version is its autofocus lens, allowing a much more flexible experience by removing the limited feature of manual focus.
Already have the camera? See Arducams Quick Start Guide.
Item Type |
Mega |
---|---|
Optical Size | 1/4" |
Speed | 8Mhz |
Number of Effective Pixels | 2592 x 1944 |
Power Supply | 3.3V/5V |

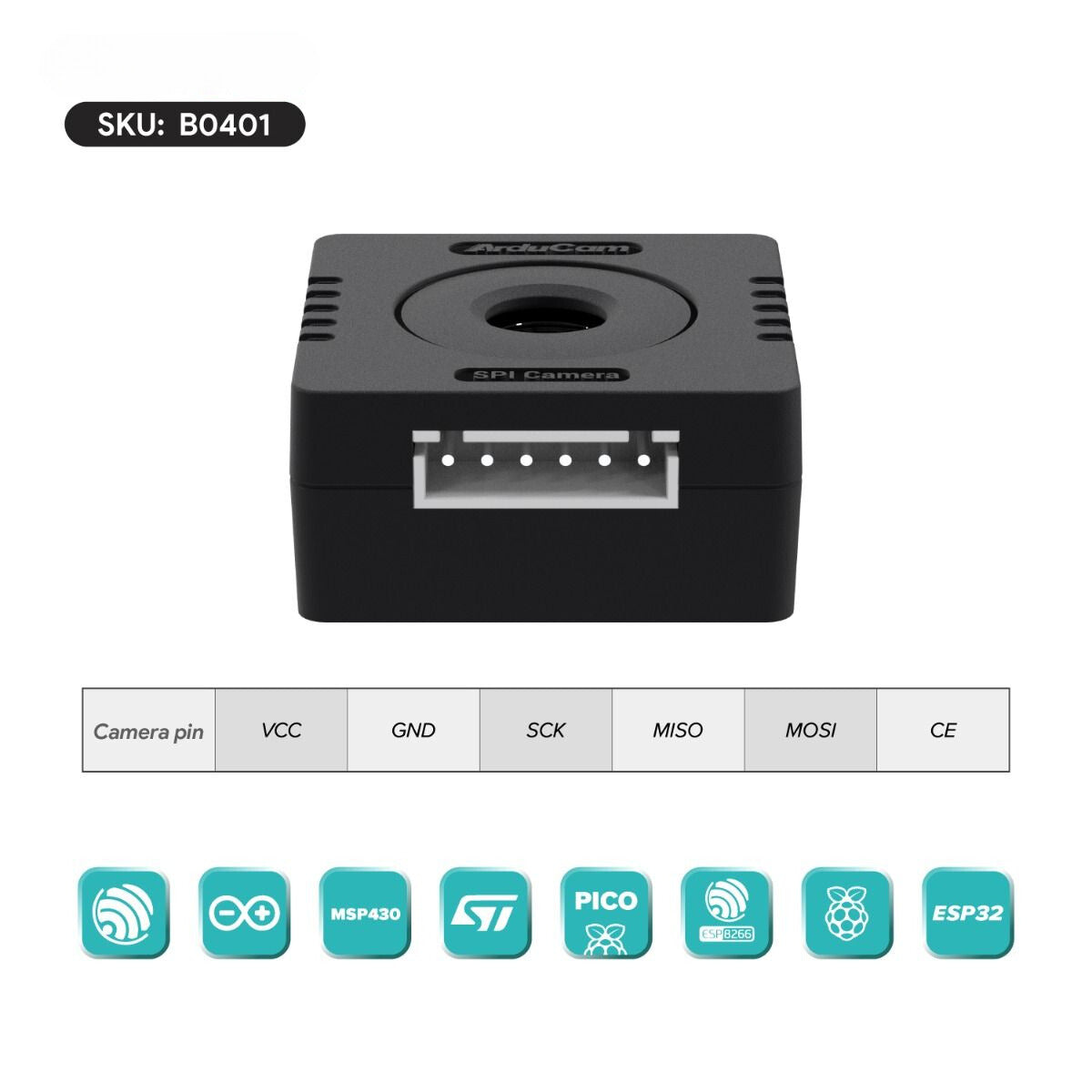

Interface | SPI (4-wire) |
Shutter Type | Rolling Shutter |
Spectrum | Colour |
Power Consumption (Idle/Working) | 182mW-650mW |
Field of View | 68.75° (D) |
F.NO. | F2.0 |
Lens Type | Stock Lens |
Focal Length | 3.3mm |
Focus Distance | 8cm-INF |
Electric Current (Idle/Working) | 55mA-154mA |
Output Format | RGB/YUV/JPEG |
Camera Board Size | 33 x 33 x 17mm |
What is a microcontroller?
A microcontroller is a small/miniature computer that contains a single integrated circuit chip. The chip is engineered to control specific devices and is generally limited to performing only one specific task. A standard microcontroller incorporates a processor, memory, and input/output (I/O) peripherals.
