Arducam Mega 5MP SPI Camera Module with M12 Lens
SKU: B0436
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
-
Interchangeable Lens: Supplied with an alterable M12 lens with a 75-degree HFOV, it can be replaced by any M12 lens suitable for the default lens mount.
- Powerful Image Quality: 5MP resolution to capture that are clearer and sharper images.
- Low Power Consumption: Including quick sleep and quick wake-up within the speed of 94ms. The power consumption can be as little as 200mW.
- Multicam Capability: This camera can run 4 cameras sequentially on a single MCU (Microcontroller) via an Adapter Board.
- High-Level Control: The camera's API access provides top-tier commands, enabling you to manage it with ease, similar to operating a DSLR camera via a series of button clicks.
- Open Source SDK: The software development kit (SDK) with an MIT license is completely open-source. It features a streamlined architecture that includes a hardware abstraction layer, allowing for easy integration of a new microcontroller unit (MCU) without requiring extensive effort or modifications.
- Flexible Compatibility: Suitable for any microcontroller that has a standard SPI interface.
Are you looking for a camera to pair with your microcontroller? Whether that is an Arduino, Raspberry Pi Pico or any other microcontroller, this camera works with all microcontrollers that have an SPI interface.
The Arducam Mega series also includes another variant with similar specs, the B0401, that is capable of reaching 5MP and features an autofocus lens instead of an M12 lens. If your applications require an SPI camera that has the ability to autofocus, then the B0401 is the camera for you.
We also offer a version that is capable of NoIR: B0437
Already have the camera? See Arducams Quick Start Guide.
| Item Type |
Mega |
|---|---|
| Optical Size | 1/4" |
| Speed | 8Mhz |
| Number of Effective Pixels | 2592 × 1944 |
| Power Supply | 3.3V/5V |
| Interface | SPI (4-wire) |
| Shutter Type | Rolling Shutter |
| Spectrum | Colour |
| Power Consumption (Idle/Working) | 182mW-650mW |

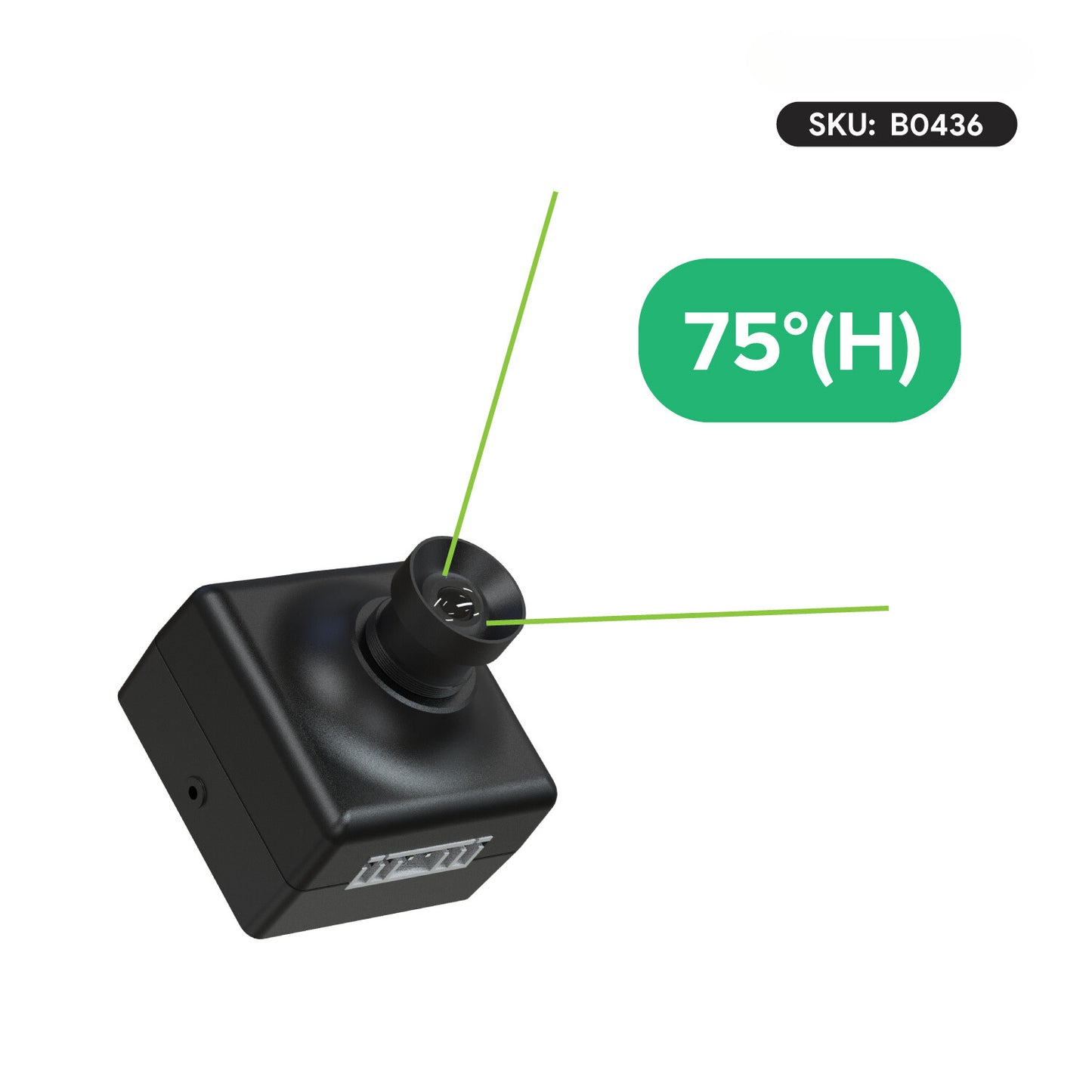

| Field of View | 90°(D ) x 75°(H) x 56.4°(V) |
| F.NO. | F2.8 |
| Lens Type | M12 Lens (Distortion<1.53%) |
| EFL/BFL | 2.8mm/2.6mm |
| IR Sensitivity | Integral IR-cut filter, visible light only |
| Focus Distance | 8cm-INF |
| Electric Current (Idle/Working) | 55mA-154mA |
| Output Format | RGB/YUV/JPEG |
| Camera Board Size | 33 x 33 x 17mm |
What is a microcontroller?
A microcontroller is a small/miniature computer that contains a single integrated circuit chip. The chip is engineered to control specific devices and is generally limited to performing only one specific task. A standard microcontroller incorporates a processor, memory, and input/output (I/O) peripherals.
