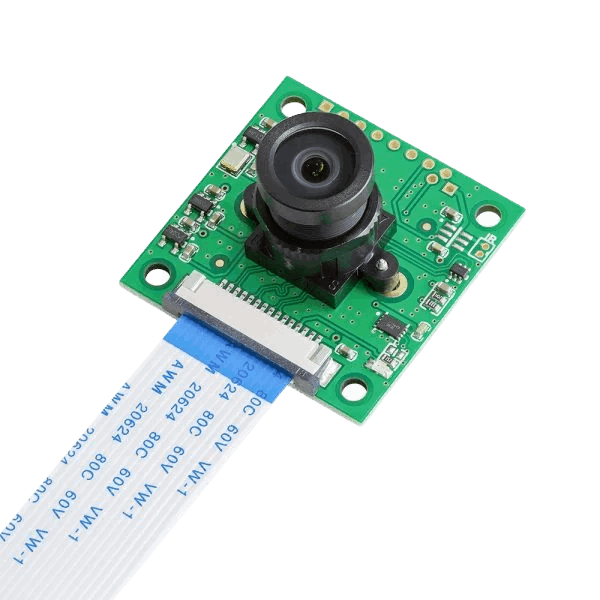

Arducam 8MP NoIR Camera Module for Raspberry Pi
SKU: B0152
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0152 |
|---|---|
| Sensor | Sony IMX219 |
| Sensor Size |
1/4” (4.6 mm diagonal) |
|
Resolution |
8MP 3280 × 2464 |
| Video | 1080p47, 1640 × 1232p41 and 640 × 480p206 |
| Focus Type | Manual Focus |
| Lens Type | M12 Lens |
| Focal Length |
1.8mm |
| F.NO | F2.4 |
| Field of View (FOV) | 100°(H) |
| Pixel Size | 1.12µm |
| Peak Current |
300mA |
| Dimension | 36mm × 36mm |
| Supported Platforms | Raspberry Pi 4, 3B+, 3, 2, B+, B, A, |
Overview
-
Without IR-cut filter: NoIR, with external light sources like IR LED illuminators
-
Interchangeable M12 Lens: You can replace the M12 lens to tailor your optics for your chosen application/solution, currently installed with LS1820
- Native to Raspberry Pi: No need to install an additional driver
- Highly Compatible: supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps
If you require a CS lens version, see the B0153.
For the Motorised IR-cut filter version, see the B0154.
ArduCAM has unveiled a new camera compatible with Raspberry Pi and features an 8MP NOIR (No Infrared) image sensor from Sony IMX219. This camera can capture static images with a resolution of 3280 x 2464 pixels. Designed as a supplementary option to the official Raspberry Pi camera, it caters to the diverse requirements of lens mount, field of view (FOV), and depth of field (DOF).

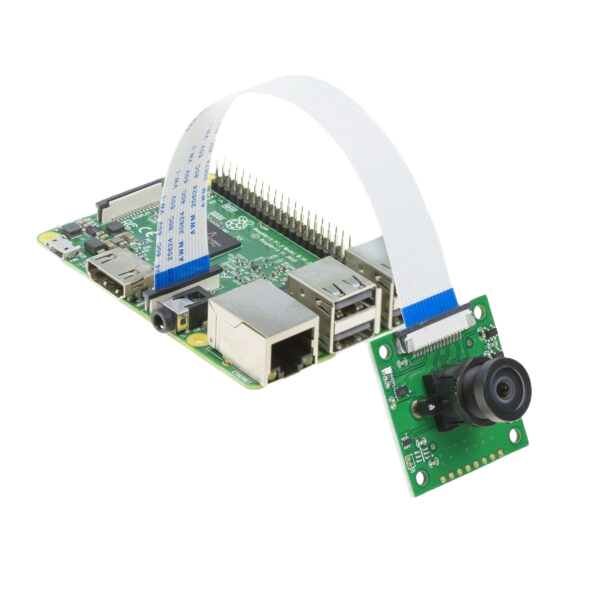

The connection to Raspberry Pi is established through one of the two compact sockets located on the upper surface of the board. These two sockets are 2 × 4-lane MIPI DSI/CSI connectors, which are specifically designed for integration with cameras.
Looking for a different lens to use with this camera? See our full range of M12 Lenses.
Documentation
Package Contents
- 1 × 8MP IMX219 NoIR Camera Module for Raspberry Pi (Uses the M12 Lens - LS1820)
- 1 ×15cm 15pin FPC cable
Example Applications
- Mobile Phones, Tablets, Toys
- Other battery-powered products
- Robot Vision, Machine Vision
- Home Security Solution
- Various Raspberry Pi platforms
- Digital still cameras and more
