Arducam

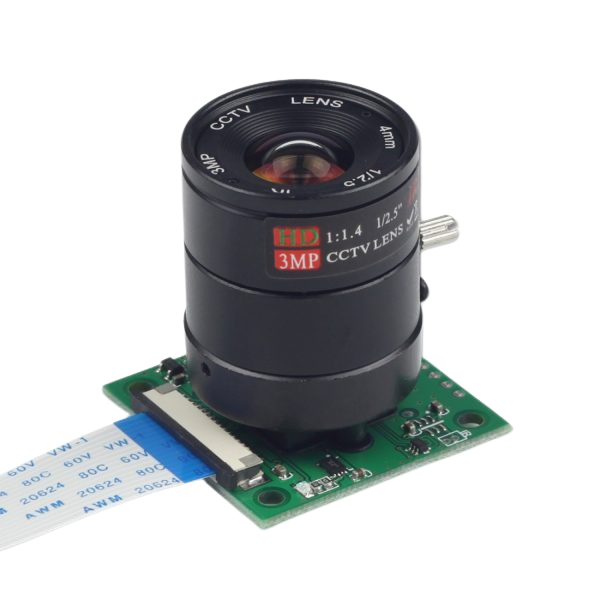

Arducam 8MP NoIR Camera Module with CS Lens for Raspberry Pi

SKU: B0153

£60.00 GBP
£60.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

 Specification

Camera Specs
 B0153
Sensor Sony IMX219
Sensor Size
 1/4” (4.6 mm diagonal)
Resolution
 8MP 3280 × 2464
Video 1080p47, 1640 × 1232p41 and 640 × 480p206
IR Sensitivity Without IR-cut filter, sensitive to IR light
Focus Type Manual Focus
Lens Type CS Lens
Focal Length
 4mm
F.NO F1.4
Field of View (FOV) 70°(H)
Pixel Size 1.12µm
Peak Current
 300mA
Dimension 36mm × 36mm
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B, A,

Overview

  • Without IR-cut filter: NoIR, with external light sources like IR LED illuminators
  • Interchangeable CS Lens: You can replace the CS lens to tailor your optics for your chosen application/solution, currently installed with LS-2718CS
  • Native to Raspberry Pi: No need to install an additional driver
  • Highly Compatible: supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps

If you require an M12 lens version, see the B0152.

ArduCAM has unveiled a new camera compatible with Raspberry Pi and features an 8MP NOIR (No Infrared) image sensor from Sony IMX219. This camera can capture static images with a resolution of 3280 x 2464 pixels. Designed as a supplementary option to the official Raspberry Pi camera, it caters to the diverse requirements of lens mount, field of view (FOV), and depth of field (DOF).

The connection to Raspberry Pi is established through one of the two compact sockets located on the upper surface of the board. These two sockets are 2 × 4-lane MIPI DSI/CSI connectors, which are specifically designed for integration with cameras.

Documentation

IMX219 Sensor Datasheet

Package Contents

  • 1 × 8MP IMX219 NoIR Camera Module for Raspberry Pi (Uses the CS Lens - LS-2718CS)
  • 1 ×15cm 15pin FPC cable

Example Applications

  • Mobile Phones, Tablets, Toys
  • Other battery-powered products
  • Robot Vision, Machine Vision
  • Home Security Solution
  • Various Raspberry Pi platforms
  • Digital still cameras and more
