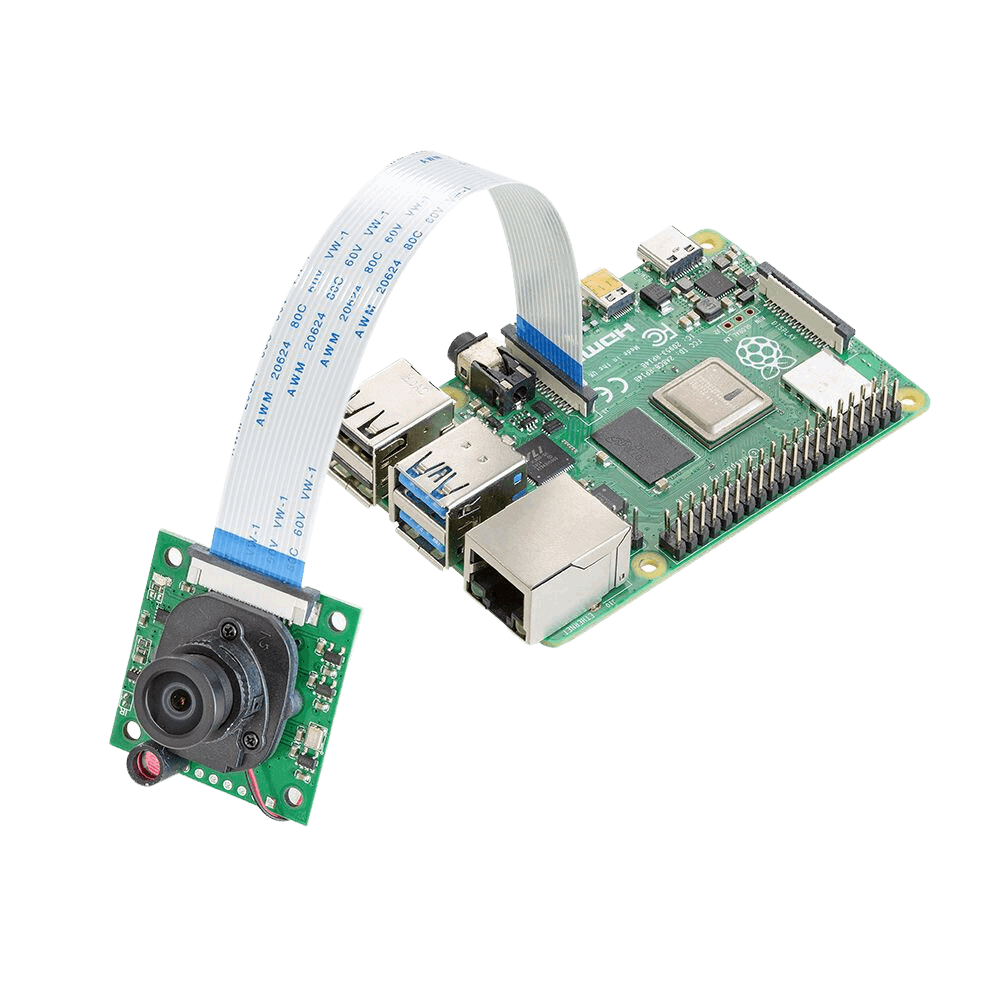

• 8MP IMX219 camera module with Motorised IR cut filter connected to a raspberry pi computer

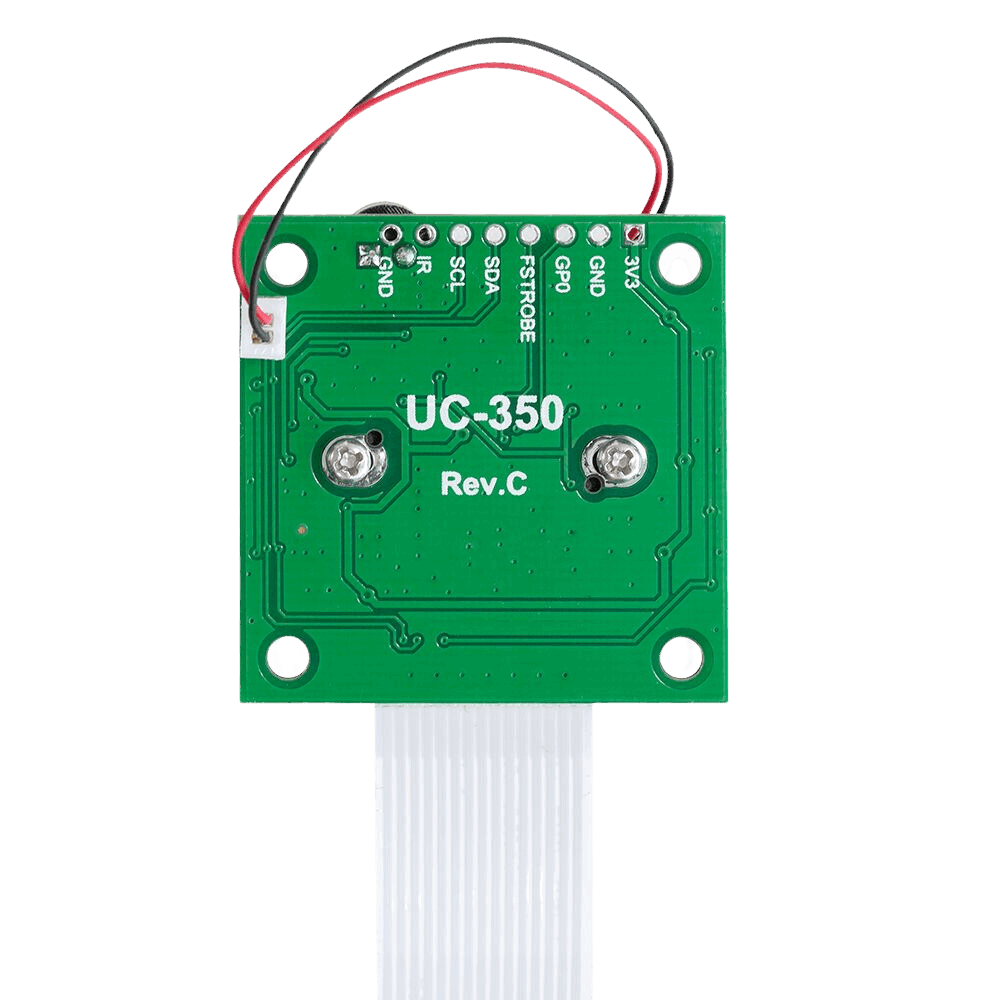

  • Back of the B0154 8MP IMX219 camera module

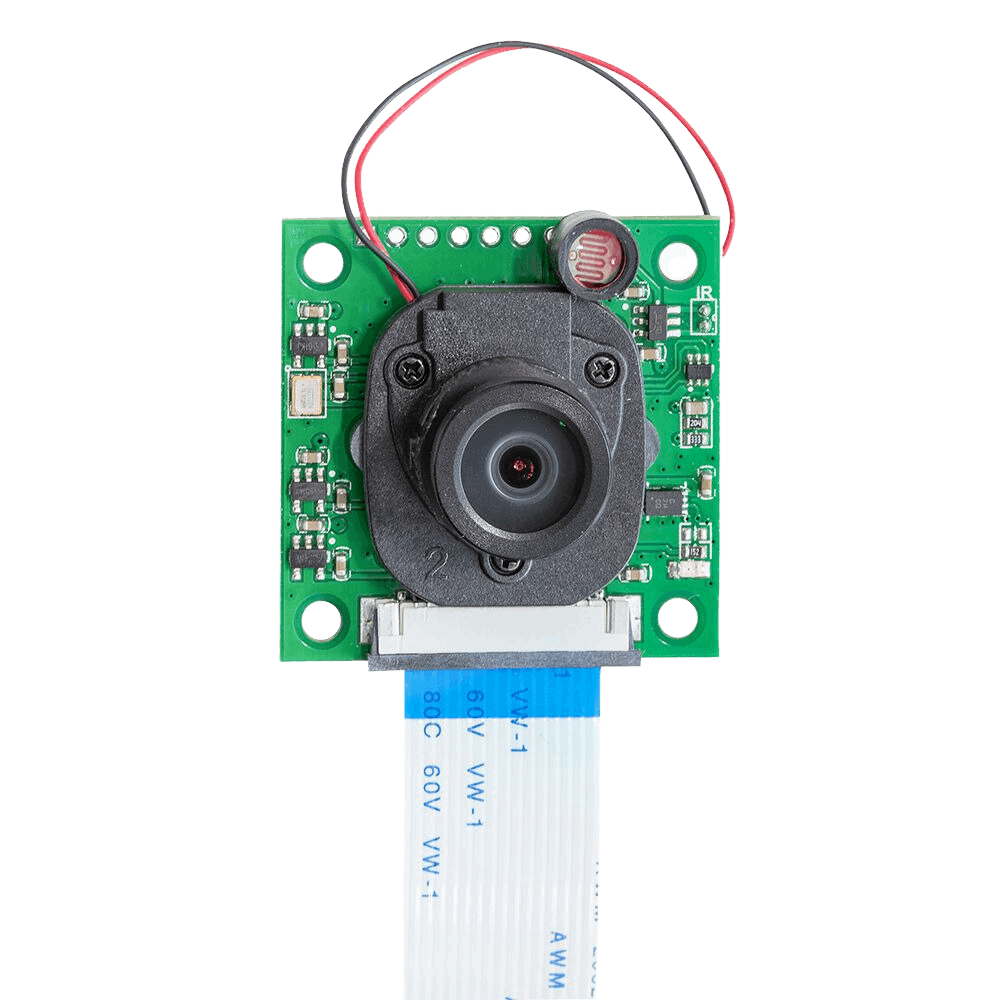

  • Top view of the B0154 8MP IMX219 camera module

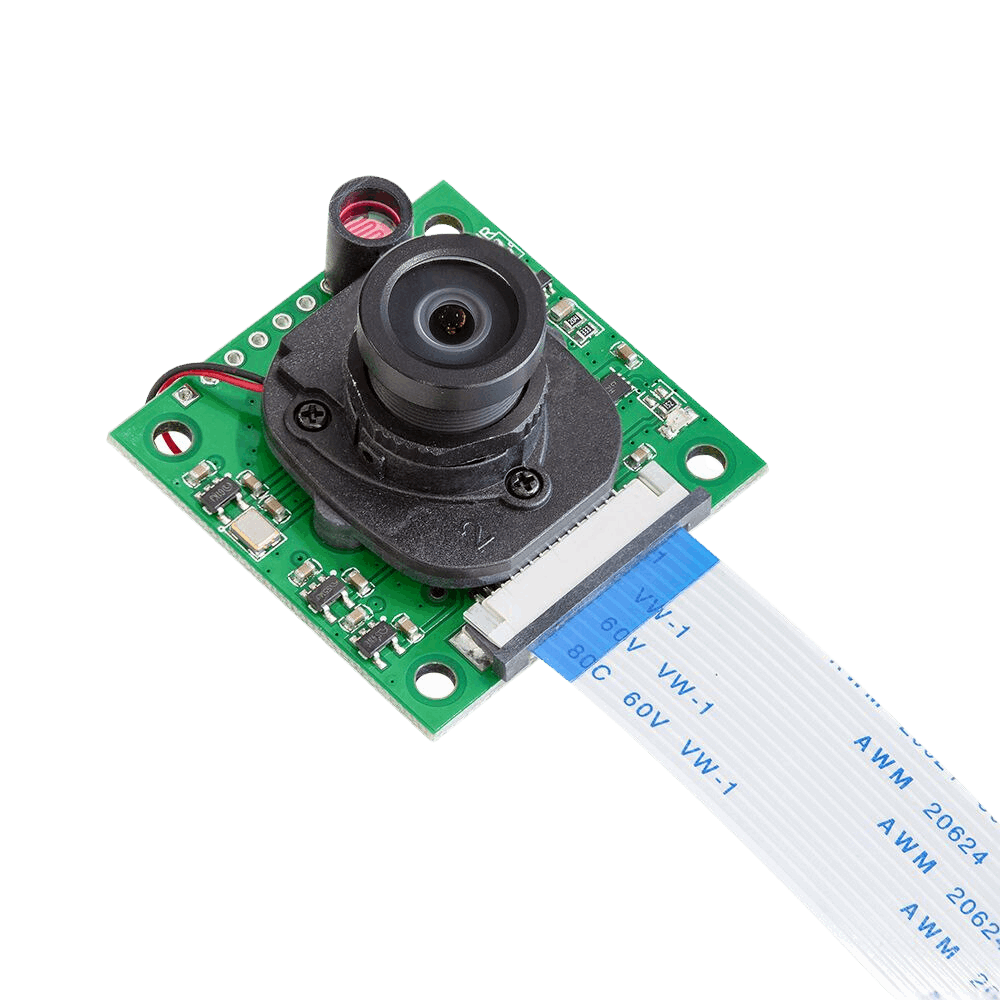

  • Image of the B0154 camera module
  • Image of Mario and Luigi captured with the B0154 camera module
  • Night image of Mario and Luigi captured with the B0154 camera module
1 7

Arducam

Arducam 8MP Camera Module with Motorised IR-cut filter for RPi

SKU: B0154

£60.00 GBP
£60.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

 Specification

Camera Specs
 B0154
Sensor Sony IMX219
Sensor Size
 1/4” (4.6 mm diagonal)
Resolution
 8MP 3280 × 2464
Video 1080p47, 1640 × 1232p41 and 640 × 480p206
Focus Type Manual Focus
Lens Type M12 Lens
Focal Length
 1.8mm
F.NO F2.4
Field of View (FOV) 100°(H)
Pixel Size 1.12µm
Peak Current
 300mA
Dimension 36mm × 36mm
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B, A,

Overview

  • Day N Night Ready: Equipped with a Motorised IR-cut filter for imaging in any light conditions
  • Interchangeable M12 Lens: You can replace the M12 lens to tailor your optics for your chosen application/solution, currently installed with LS1820
  • Native to Raspberry Pi: No need to install an additional driver
  • Highly Compatible: supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps

Do you require a CS lens version? See the B0153 (This is without a motorised IR-cut filter).
Looking for solely a NoIR M12 version without the motorised IR-cut filter, see the B0152.

The B0154 8MP camera module has a motorised IR cut filter to support daylight and nighttime. It also contains a replaceable lens, enabling you to change to various M12 lenses that suit your application. It is designed to be connected to the Raspberry Pi ( Versions 3, 3B+ and 4) via a dedicated standard CSi interface and supports the latest Raspberry Pi OS Bullseye (January 28th 2022 and later) and libcamera apps.

ArduCAM has unveiled a new camera compatible with Raspberry Pi and features an 8MP NOIR (No Infrared) image sensor from Sony IMX219. This camera can capture static images with a resolution of 3280 x 2464 pixels. Designed as a supplementary option to the official Raspberry Pi camera, it caters to the diverse requirements of lens mount, field of view (FOV), and depth of field (DOF).

If you are using this camera module with the Raspberry Pi Zero/ Zero W, you will need a different cable, the B0087

Looking for a different lens to use with this camera?  See our full range of M12 Lenses.

Lens Specification

Lens Specs
 M40180H10
Focus Type
 Manual Focus
Focal Length 1.8mm
F Number F2.4
Field of View (D/H/V) 125° / 100° / 75°
IR Filter 650 IR filter
Lens Mount M12 Mount

Documentation

IMX219 Sensor Datasheet

Package Contents

  • 1 × 8MP IMX219 Camera Module with Motorised IR-cut filter for Raspberry Pi (Uses the M12 Lens - LS1820)
  • 1 ×15cm 15pin FPC cable

Example Applications

  • Mobile Phones, PDA's, Toys
  • Other battery-powered products
  • Recording in slow motion
  • Wildlife Photography
  • Home Security, Intercoms
  • Machine Vision, etc.
