Arducam 1MP NoIR Camera Module for NVIDIA Jetson Nano

SKU: B0223

Regular price £52.00 GBP
Regular price Sale price £52.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

 Specification

Camera Specs
B0223
Sensor Omnivision OV9281 Monochrome Sensor
Sensor Size
1/4”
Resolution
1MP 1280 x 800
Video RAW8/RAW10: 1280x800@80fps, 1280x720@80fps, 640x400@240fps
Video (NVIDIA Orin NX) 1280x800@80fps, 1280x720@80fps, 640x400@240fps
Focus Type Fixed Focus
Lens Type Stock Lens
Pixel Size 3μm
Focus Distance 30mm to ∞ (infinity)
Field of View (FOV) 130°(D) 110 °(H) 90°(V)
IR Sensitivity
No IR filter, sensitive to IR
Output Format 8/10-bit BW RAW
Output Interface 2-lane MIPI serial output

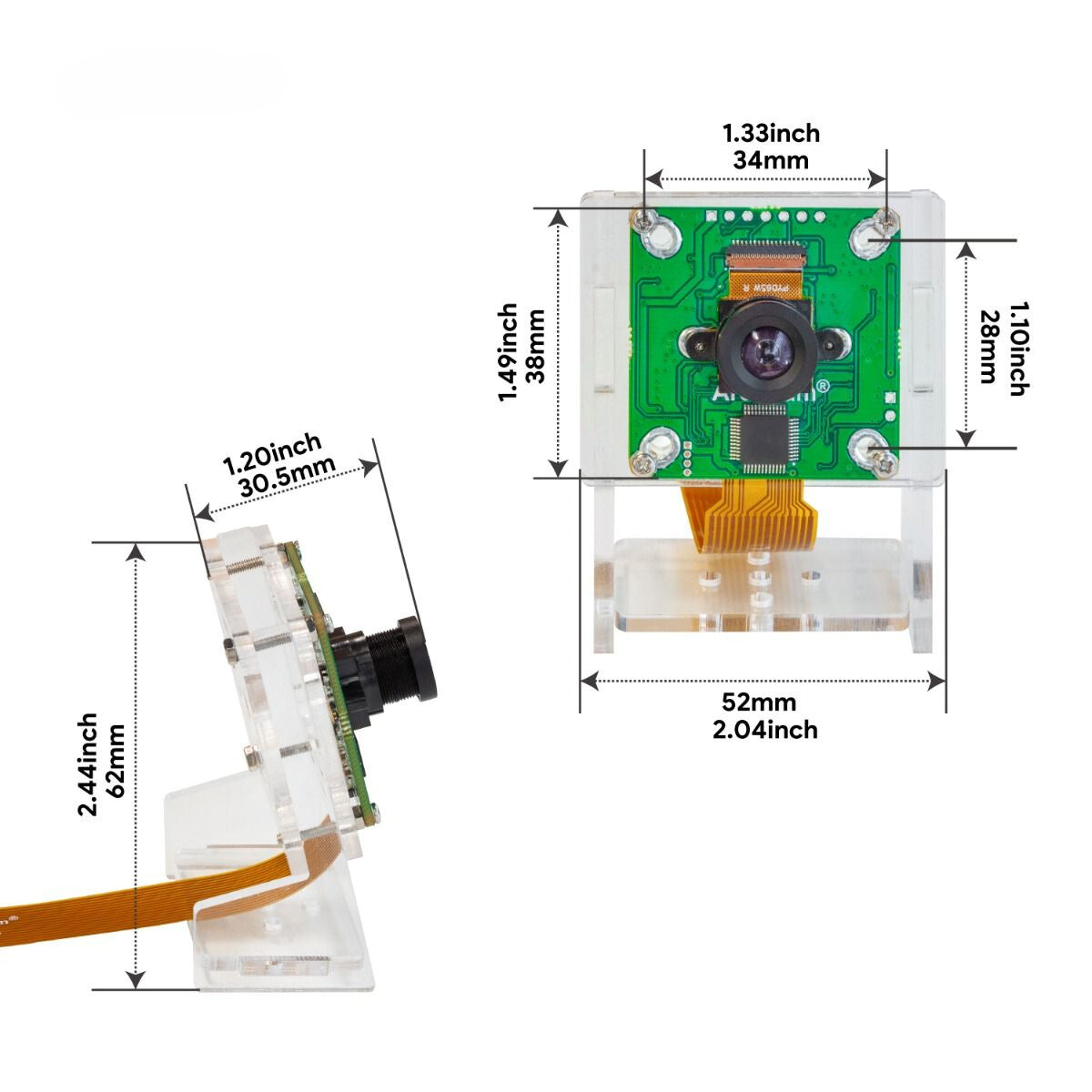

Dimension 40mm × 40mm
Supported Platforms NVIDIA Jetson Nano, Xavier NX, AGX Orin, Orin Nano and Orin NX

Overview

  • Jetvariety: The Nvidia Jetson platform V4L2 kernel camera driver framework which can support any MIPI cameras Arducam provides.
  • Global Shutter: Shoot high-speed moving objects in crisp, sharp images
  • IR Sensitivity: NoIR, sensitive to IR light. For IR-cut filter version see: B0161

Arducam has introduced the OV9281 global shutter monochrome (B&W) 1280x800 resolution MIPI camera module for Jetson Nano. The camera module is equipped with a 1/4-inch Omnivision OV9281 image sensor that utilises OmniPixel3-GS™ technology. This technology enables the provision of full-frame, sub-sampled, and windowed 8/10-bit MIPI images. With a 1-lane MIPI bus, the camera module can operate at up to 120fps in full resolution, while offering complete user control over image quality.

Thanks to its global shutter and impressive low-light sensitivity, the OV9281 camera module is suitable for various applications such as gesture detection, head and eye tracking, as well as depth and motion detection.

With the implementation of Project Jetvariety, the Jetson Nano's high-speed CSI-2 connector now supports the connection of various camera modules including Arducam's OV9281 camera modules. The Jetvariety Project aims to provide a solution to add support to the camera modules that are currently beyond the NVIDIA support. Those camera modules are either V4L2 compliant or NVIDIA Argus API compliant.

Equipped with NoIR (No Infrared) technology, this embedded camera module stands out with its remarkable ability to capture high-quality images in low-light environments. Unlike standard cameras, this NoIR camera can detect both visible and infrared light, making it an ideal choice for situations with limited lighting. By removing the infrared filter, this camera module excels in applications such as nighttime surveillance and astrophotography, providing innovative solutions to overcome the limitations of traditional cameras.

For the Raspberry Pi NoIR version, see the B0206 (OV7251) or if you require an IR filter see the B0161 (OV7251).

Driver Features

  • Supports Gray, Y10, Y16
  • Supports standard V4L2 framework, Video Nodes, and Controls (Exposure, Gain and depending on camera parameters)
  • Supports External Trigger Global Shutter Camera
  • Supports Single Line Driver Installation Command
  • Supports OpenCV Friendly and Provides Source Code Demonstration
  • Supports Dual Camera Synchronization

Documentation

Sensor Datasheet for OV9281
Acrylic Bracket Assembly Guide

Package Contents

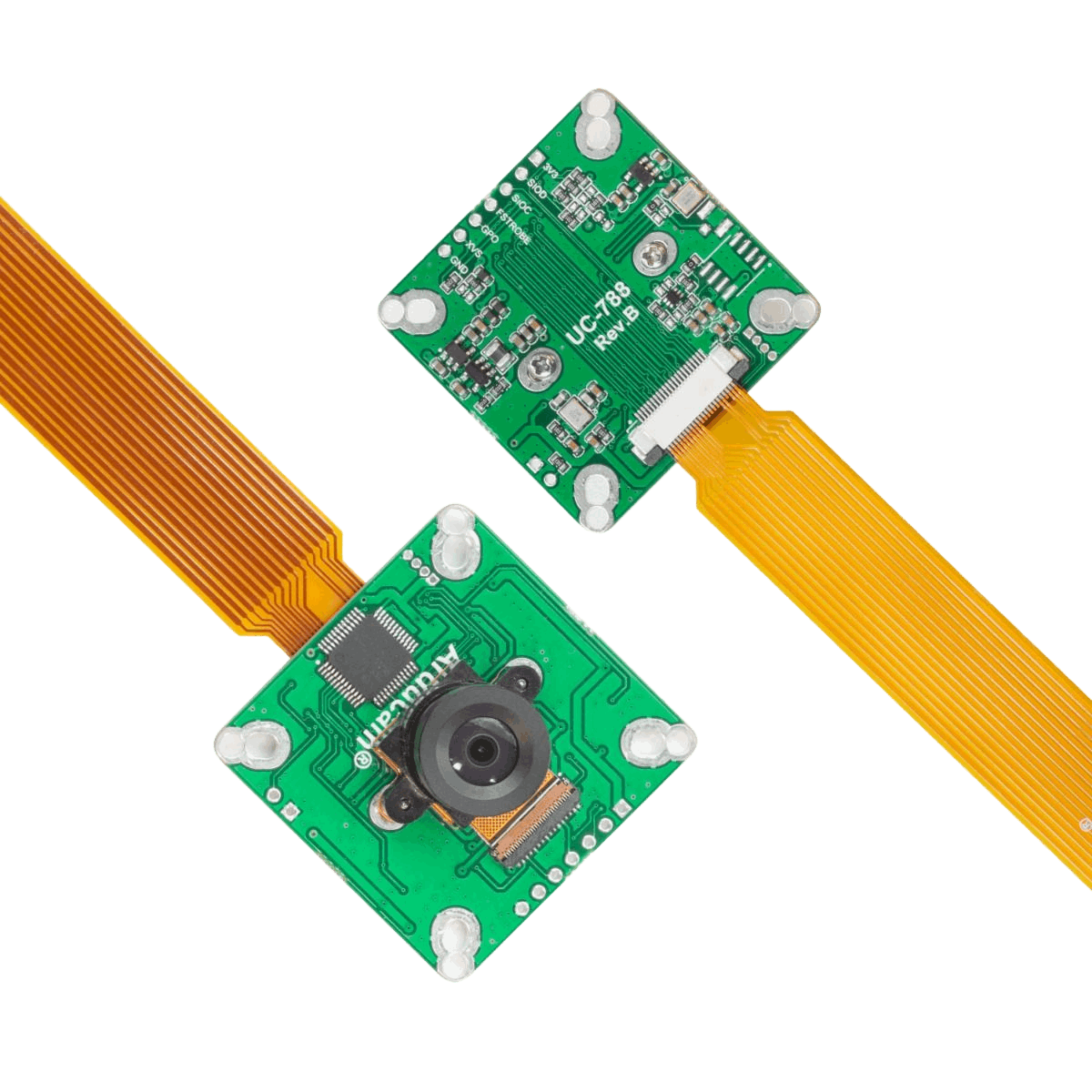

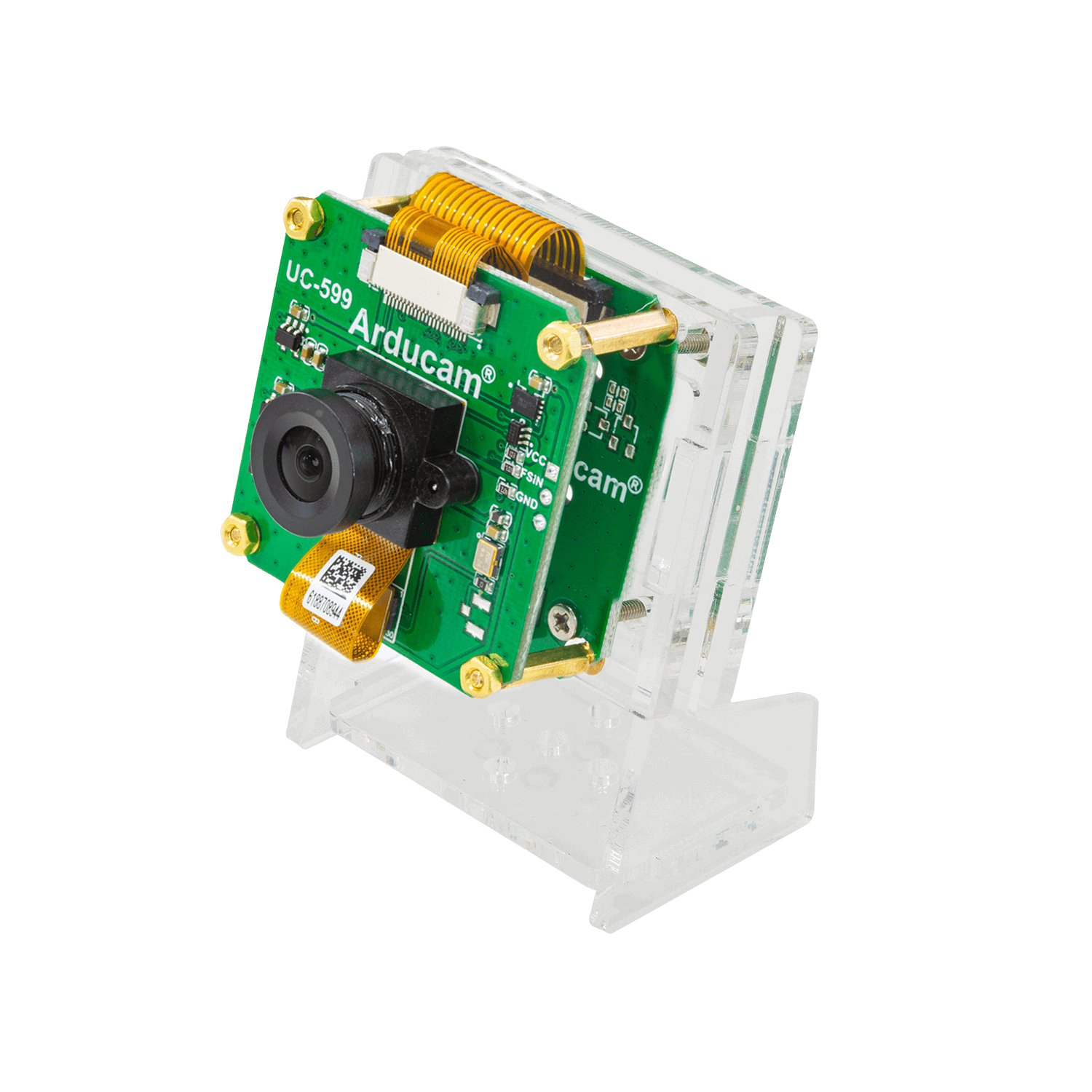

  • 1 × Arducam OV9281 1MP Mono Global Shutter MIPI Camera

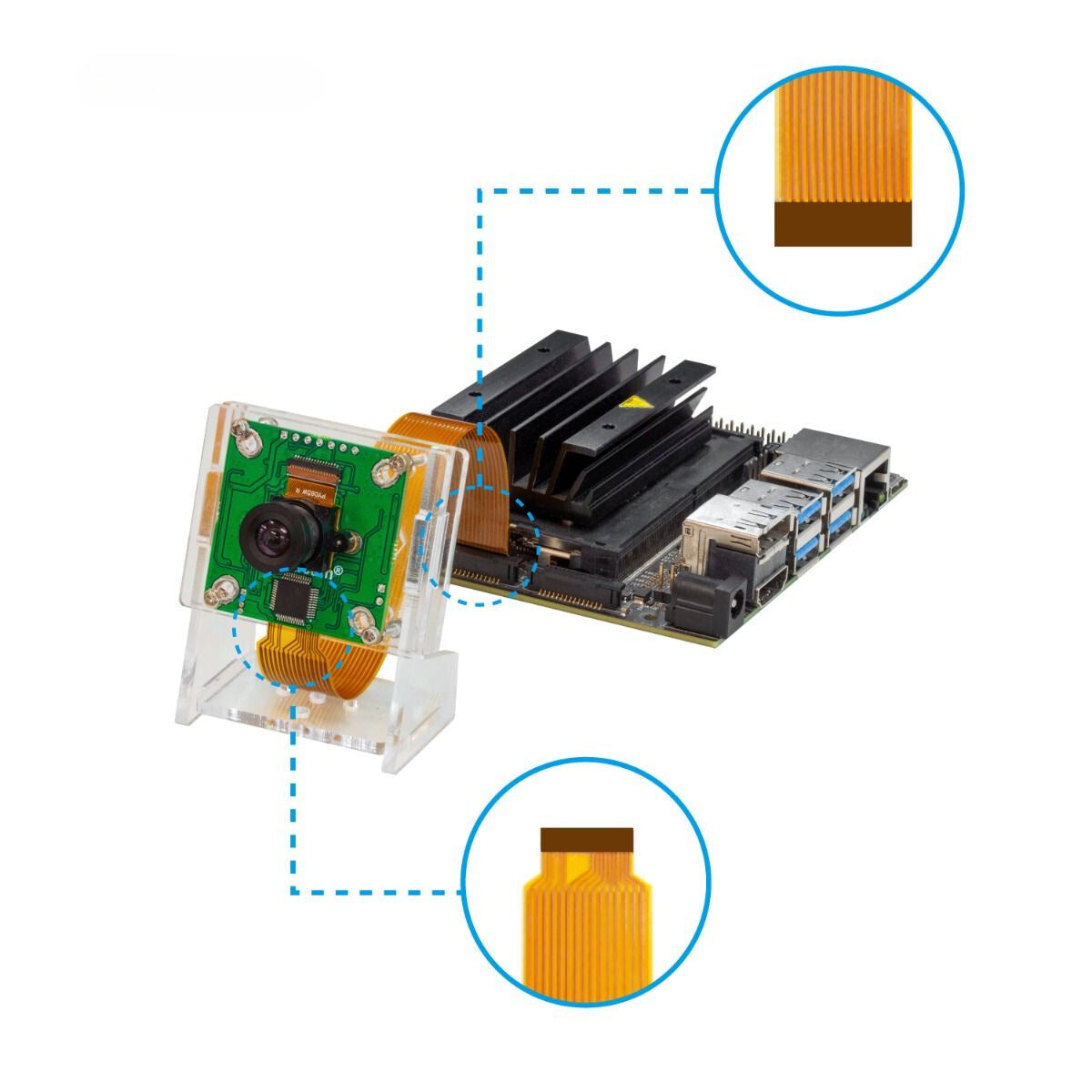

  • 1 × 15mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

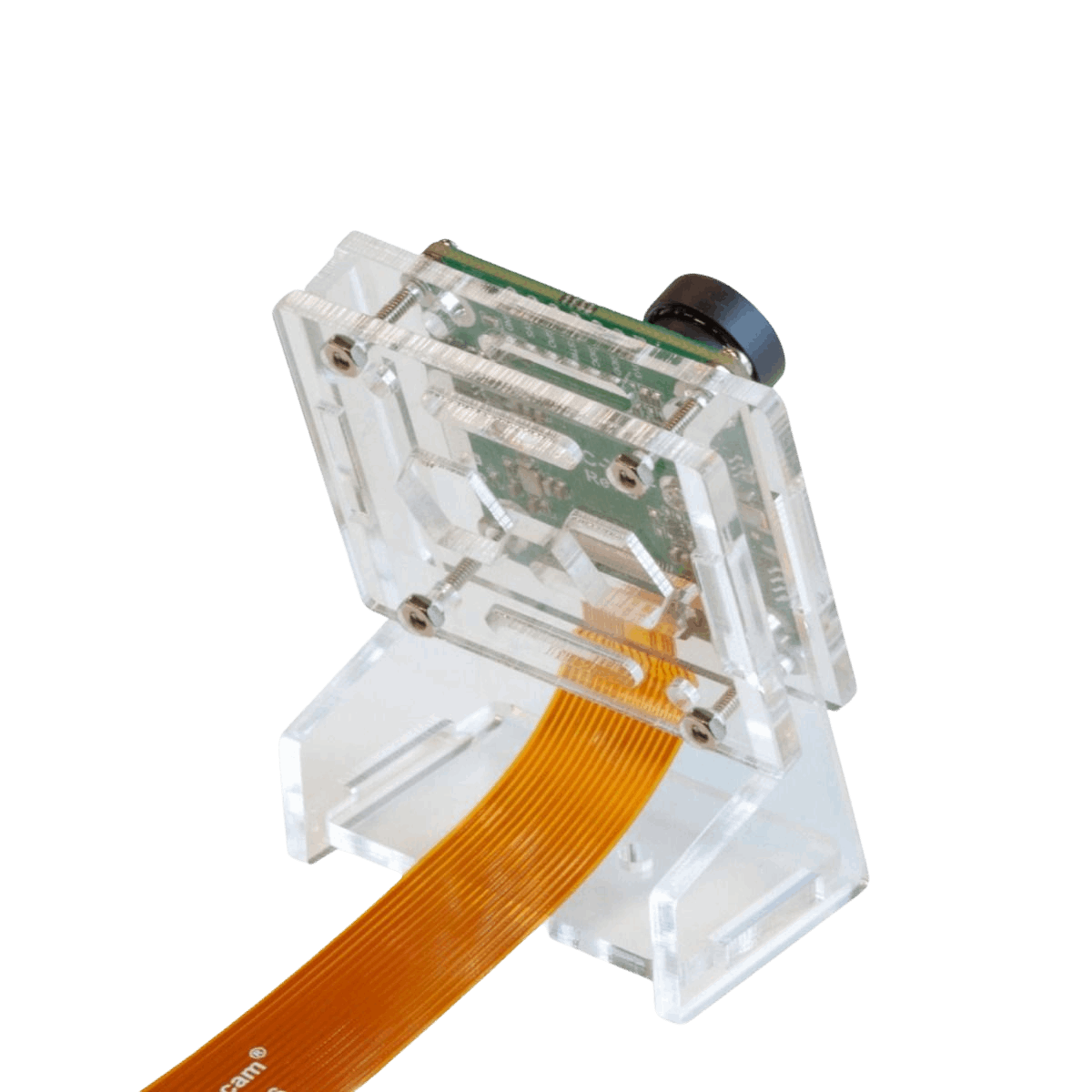

  • 1 × Acrylic case for the camera module

Example Applications

  • Gesture Detection
  • Head and Eye tracking
  • Various battery-powered products
  • Depth and motion tracking
  • CCTV, Home Security System
  • Nature Camera/Photography
