Luxonis

OAK-D SR PoE

SKU: OAK-D-SR-POE

Group 11 Contact Sales for Pricing

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

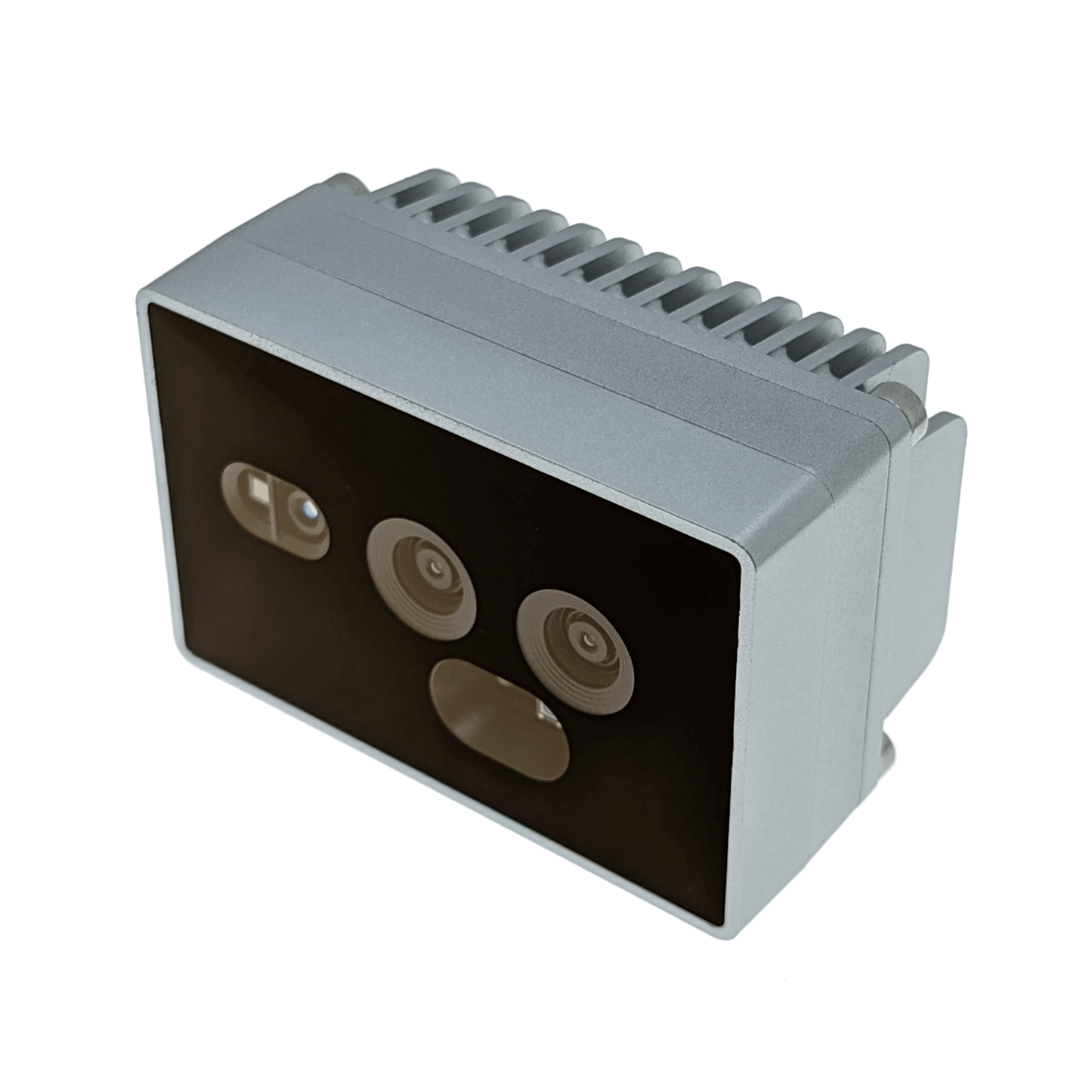

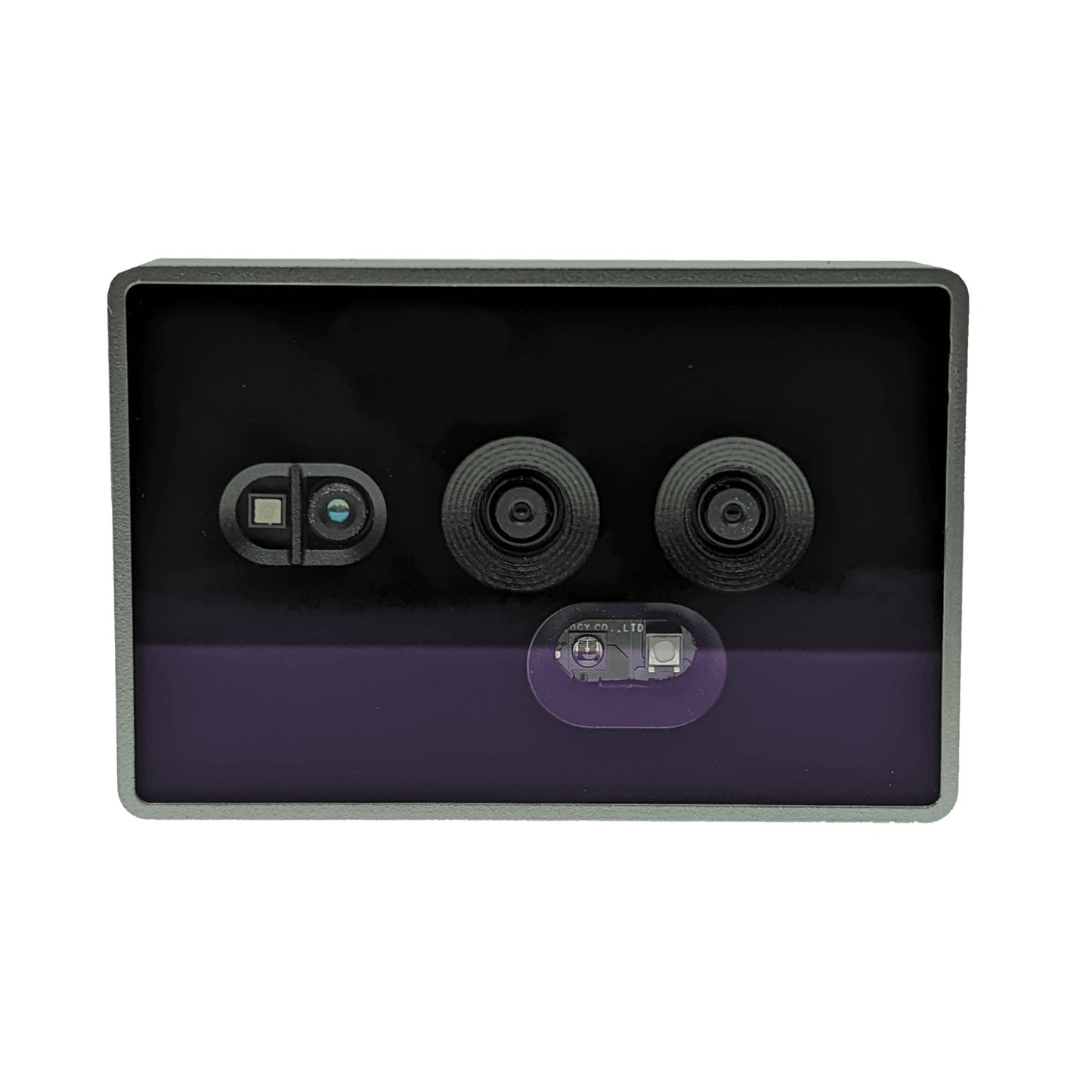

The OAK-D-SR is designed to offer better short-range accuracy than the standard OAK-D camera. It is an ideal solution for applications that require detailed and accurate depth perception in close range, such as automated manufacturing and quality control. It uses a Time of Flight (ToF) VGA sensor, which allows accurate measurement of the depth of objects in a scene, improving low-light performance and focusing accuracy.

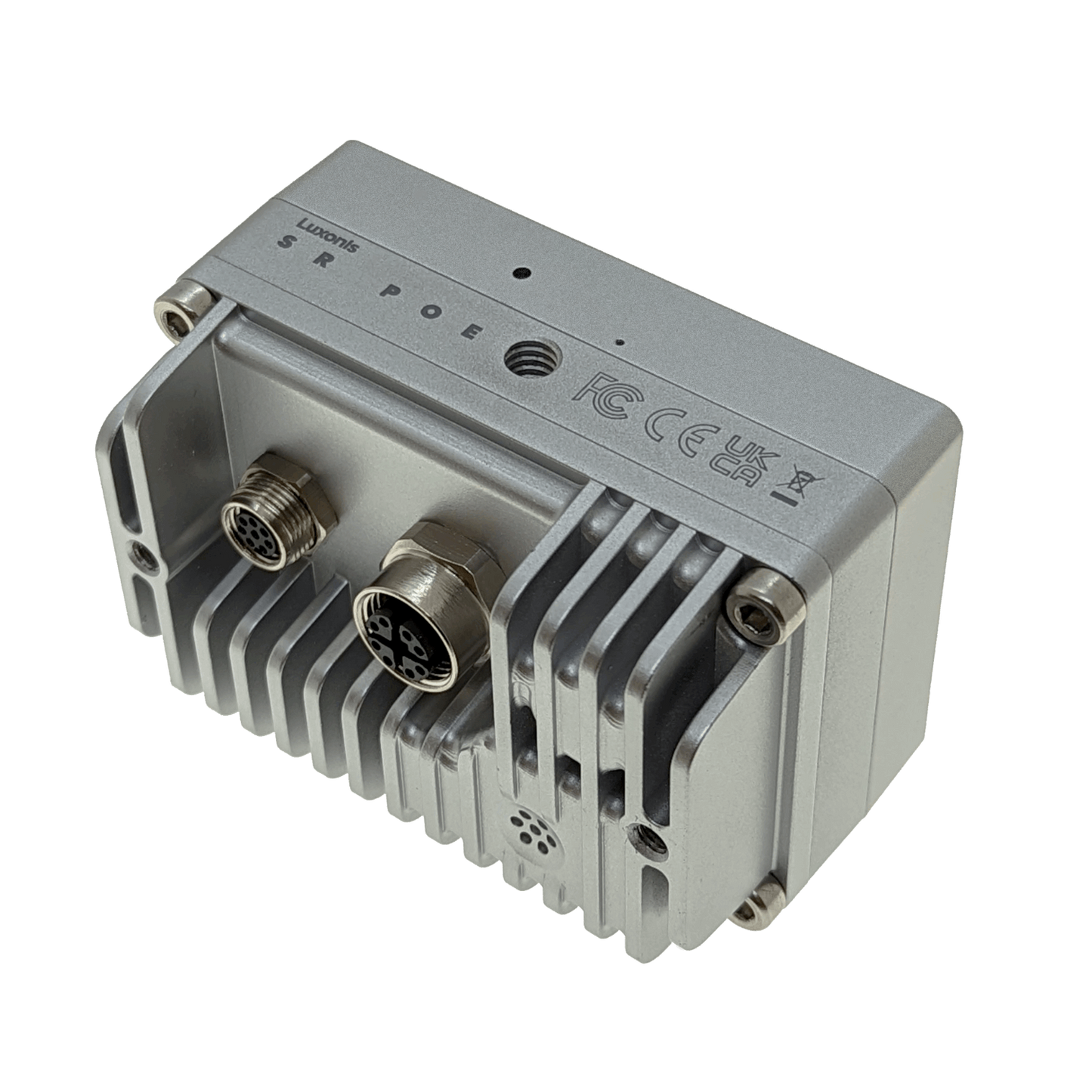

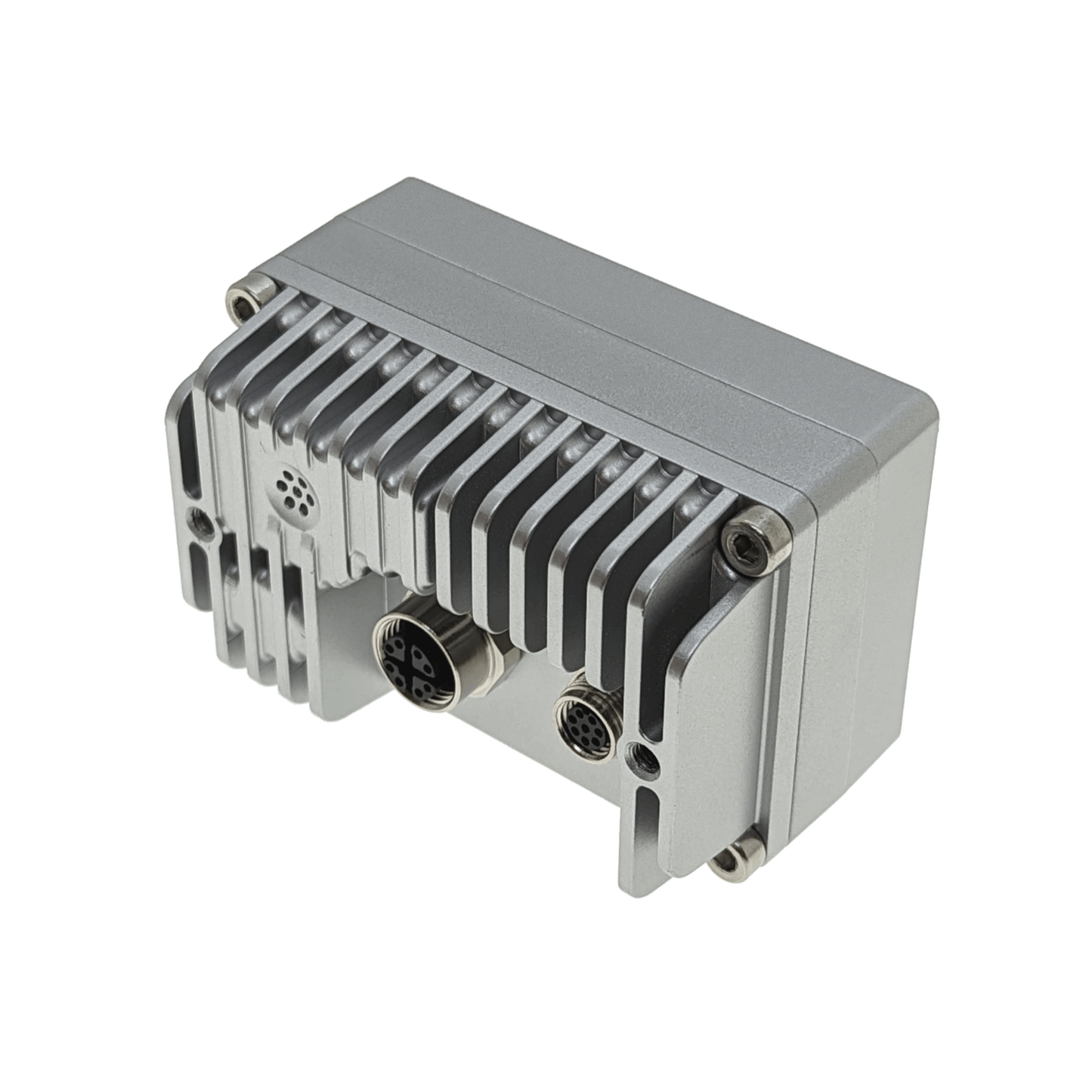

The PoE connection enables the cameras to communicate with other computers using networking protocols such as TCP, UDP, HTTP, MQTT etc. With the device flash memory on our PoE models, you can also run your programs in standalone mode. Furthermore, our OAK PoE cameras are housed in a rugged, IP-rated enclosure that is required for industrial and outdoor use. Instead of using less-industrial RJ45, this OAK camera has an industrial M12 PoE connector, and it also has an additional M8 connector for IO connectivity (USB2, FSIN, STROBE, 5V/GND, GPIO).

If you require a longer range, see our OAK-D LR.

Key Features:

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom-architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
  • Object tracking: 2D and 3D tracking with ObjectTracker node



Sensor
OV9782
DFOV / HFOV / VFOV 89.5° / 80° / 55°
Resolution 1MP (1280x800)
Focus Fixed-Focus: 19.6 cm - ∞
Max Framerate 60 FPS

Note: The early access OAK-D-SR-POEs came with 2x monochrome OV9282 instead of 2x colour OV9782.
