Luxonis

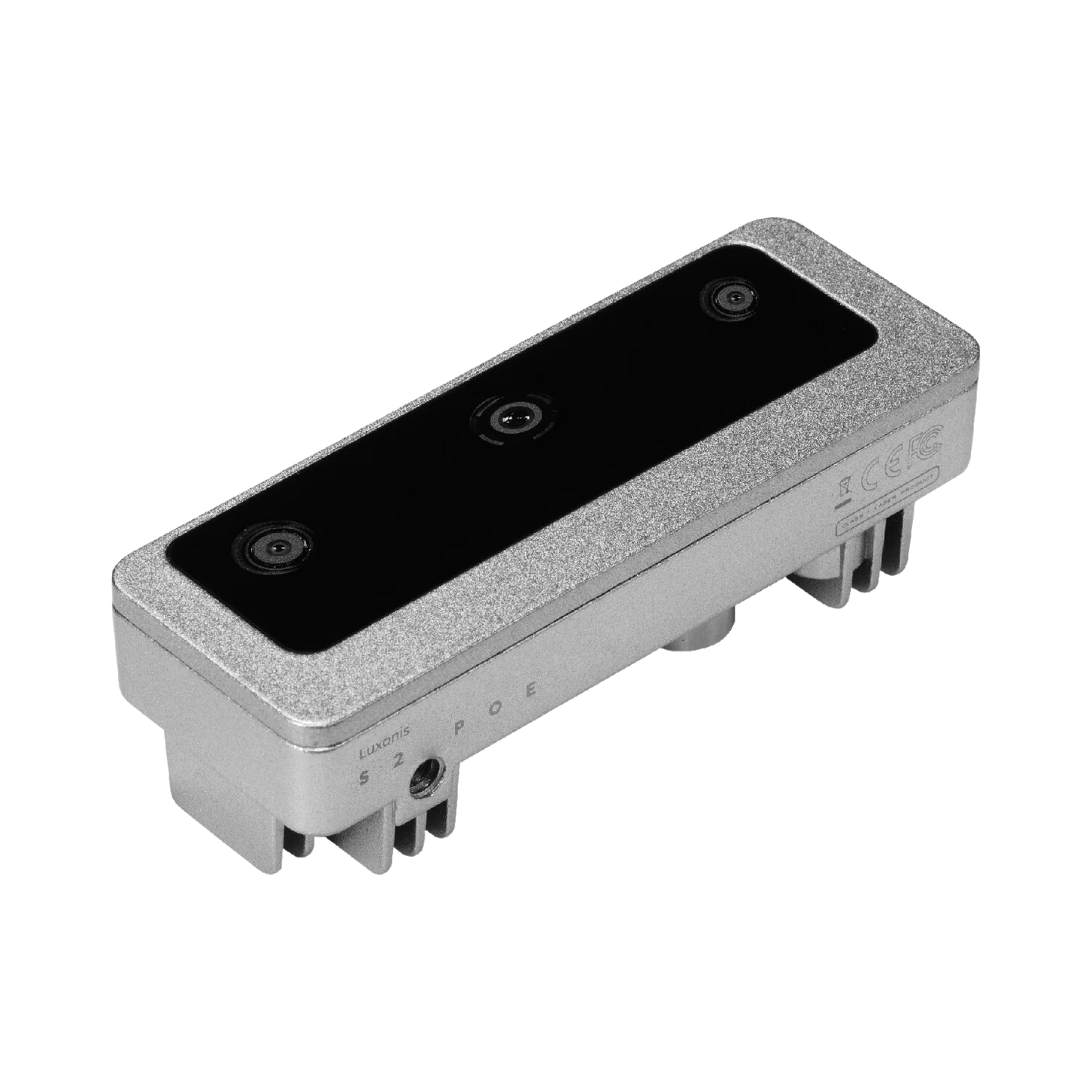

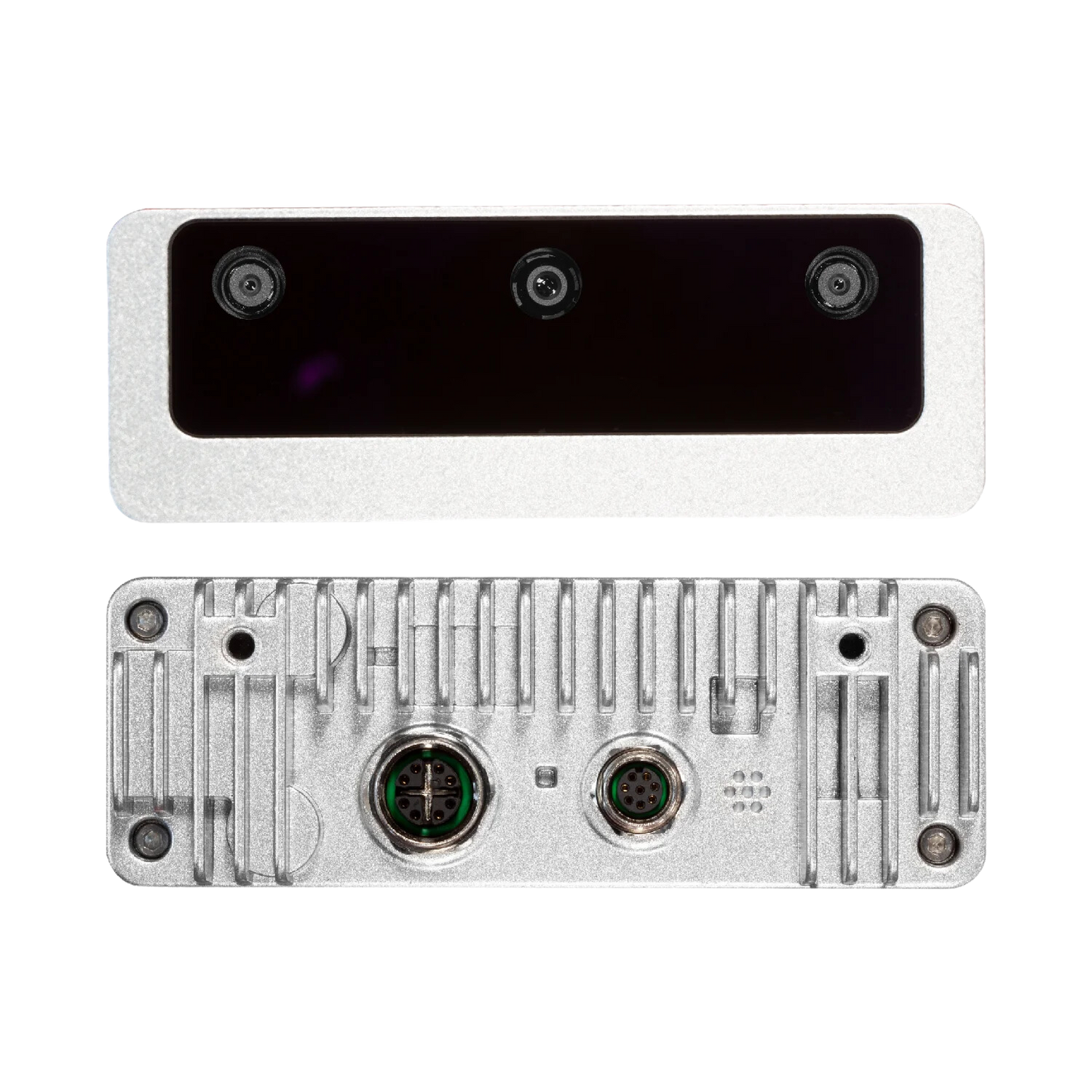

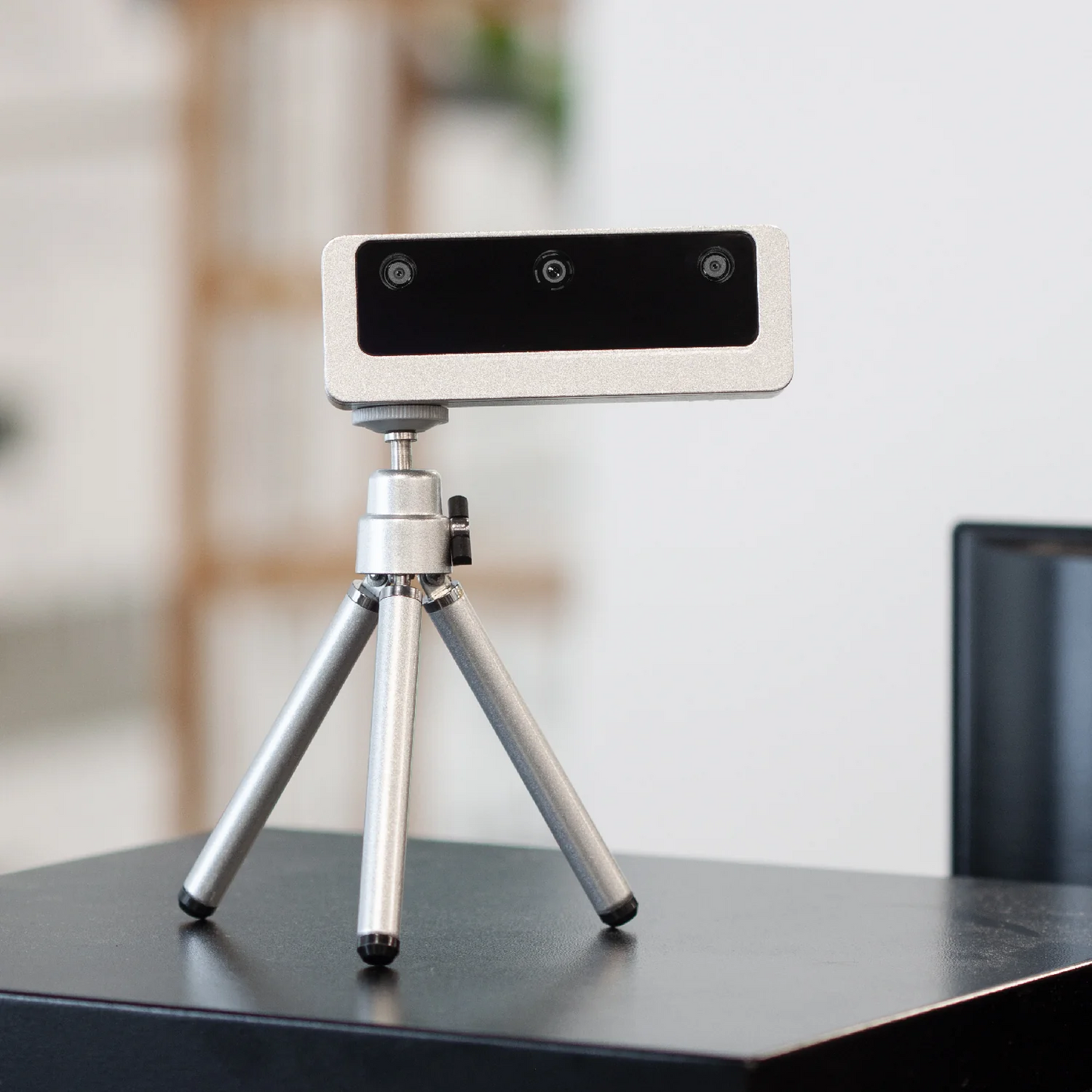

OAK-D S2 PoE

SKU: OAK-D-S2-POE-AF

Focus Options
Group 11 Contact Sales for Pricing

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

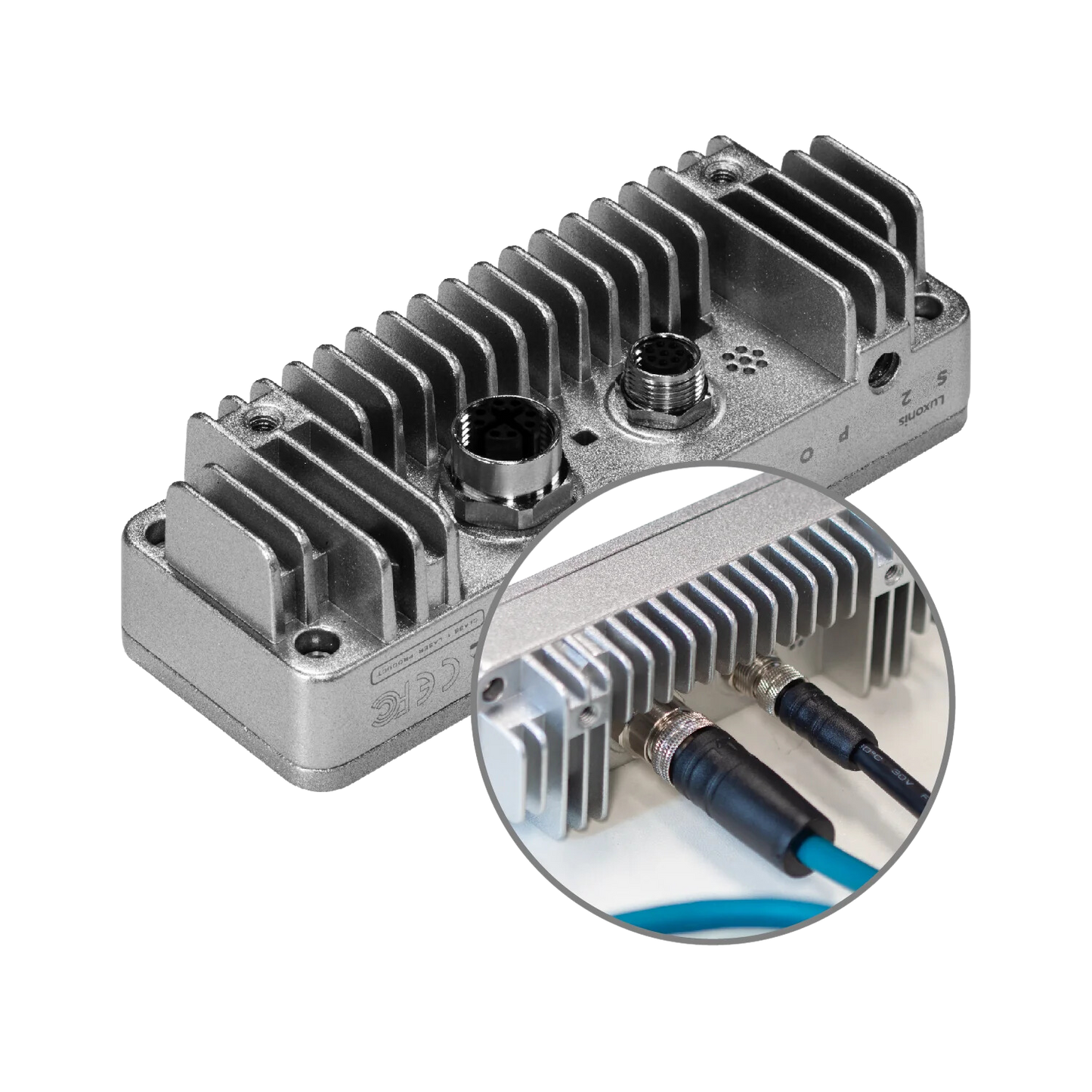

The PoE line has been upgraded to the series 2, featuring a more durable and sturdy body rated IP65, an industrial M12 Ethernet connector, stand-alone mode with built-in flash memory, new options for CCM and many other enhancements.

Through networking protocols (TCP, UDP, HTTP, MQTT, etc.), the cameras can communicate with other computers when connected to a PoE source. You can also execute your programmes in an independent mode thanks to the device's flash memory, which is a characteristic of our PoE models. Additionally, this OAK camera has an additional M8 connector for IO connectivity (USB2, FSIN, STROBE, 5V/GND, GPIO).

Key Features:

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom-architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG -4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
  • IMU (Either BMI270 6-axis or BNO086 9-axis sensor)
  • Object tracking: 2D and 3D tracking with ObjectTracker node
  • Dimensions: 111 x 40 x 31.3mm
  • Weight: 184g

Two variant options are available:

Auto-Focus - For capturing objects within the range of 8 cm to 50 cm from the device (refer to the video), it is advisable to utilise auto-focus cameras. However, if required, the DepthAI API can be employed to adjust the focus position to a specific setting manually.

Fixed-Focus - For applications that involve heavy vibrations, such as drones, lawnmowers, or vehicles (refer to the video), fixed-focus cameras are recommended to ensure optimal performance.

We also offer a version which includes Wide Field of View: OAK-D W POE

Central RGB Camera:


Auto-Focus

Fixed-Focus

Sensor

IMX378

IMX378

FOV (D/H/V)

78° / 66° / 54°

81° /69° / 55°

Resolution

12MP (4032x3040)

12MP (4032x3040)

Focus

AF: 8cm - ∞

FF: 50cm - ∞

Max Framerate

60 FPS

60 FPS




Stereo Pair Cameras:

Sensor

OV9282

DFOV / HFOV / VFOV

89.5° / 80° / 55°

Resolution

1MP (1280x800)

Focus

FF: 19.6cm - ∞

Max Framerate

120 FPS
