Luxonis

OAK-1 PoE

SKU: OAK-1-PoE-AF

Regular price $324.00 USD
Regular price Sale price $324.00 USD
Sale Sold out
Focus Type

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

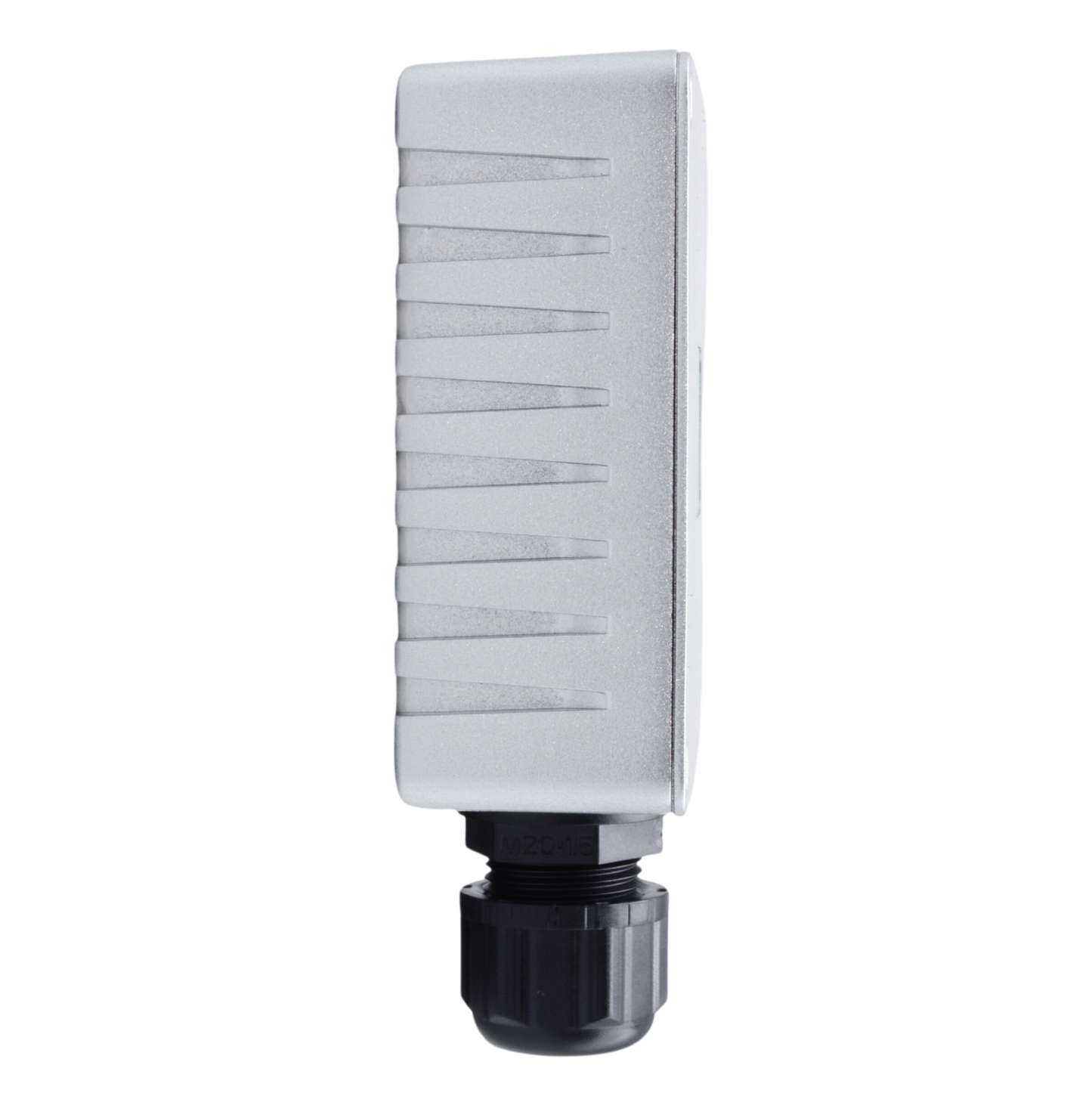

This is the PoE ruggedised version of the OAK-1. It has an IP67-rated enclosure designed to withstand harsh environments. It contains an RJ45 ethernet connector used for both power and communication. The OAK-1 PoE is a 12MP AI camera that contains built-in computer vision and neural network inferencing. It can take high-resolution pictures, run personalised AI models, and carry out complex computer vision operations.

The PoE connection enables the cameras to communicate with other computers using networking protocols such as TCP, UDP, HTTP, MQTT etc. With the device flash memory on our PoE models, you can also run your programs in standalone mode. Furthermore, our OAK PoE cameras are housed in a rugged, IP-rated enclosure that is required for industrial and outdoor use.

Key Features:

  • 16GB internal storage (eMMC)
  • Rugged IP67-rated enclosure
  • RJ45 for both power delivery and communication
  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom-architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Object tracking: 2D tracking with ObjectTracker node
  • Dimensions: 82 x 114 x 32mm
  • Weight: 294g

Two variant options are available:

Auto-Focus - For capturing objects within the range of 8 cm to 50 cm from the device (refer to the video), it is advisable to utilise auto-focus cameras. However, if required, the DepthAI API can be employed to adjust the focus position to a specific setting manually.

Fixed-Focus - For applications that involve heavy vibrations, such as drones, lawnmowers, or vehicles (refer to the video), fixed-focus cameras are recommended to ensure optimal performance.

Camera Module Specifications

Camera Specs
Colour Camera
Sensor
IMX378 (PY004 AF, PY052 FF)
DFOV / HFOV / VFOV
81°/69°/55°
Resolution 12MP (4056x3040)
Focus Auto-Focus: 8cm - ∞
Max Framerate 60 FPS
F Number 1.8 ±5%
Sensor Size
1/2.3"
Effective Focal Length 4.81mm
Distortion < 1% AF, < 1.5% FF
Pixel Size 1.55µm x 1.55µm
