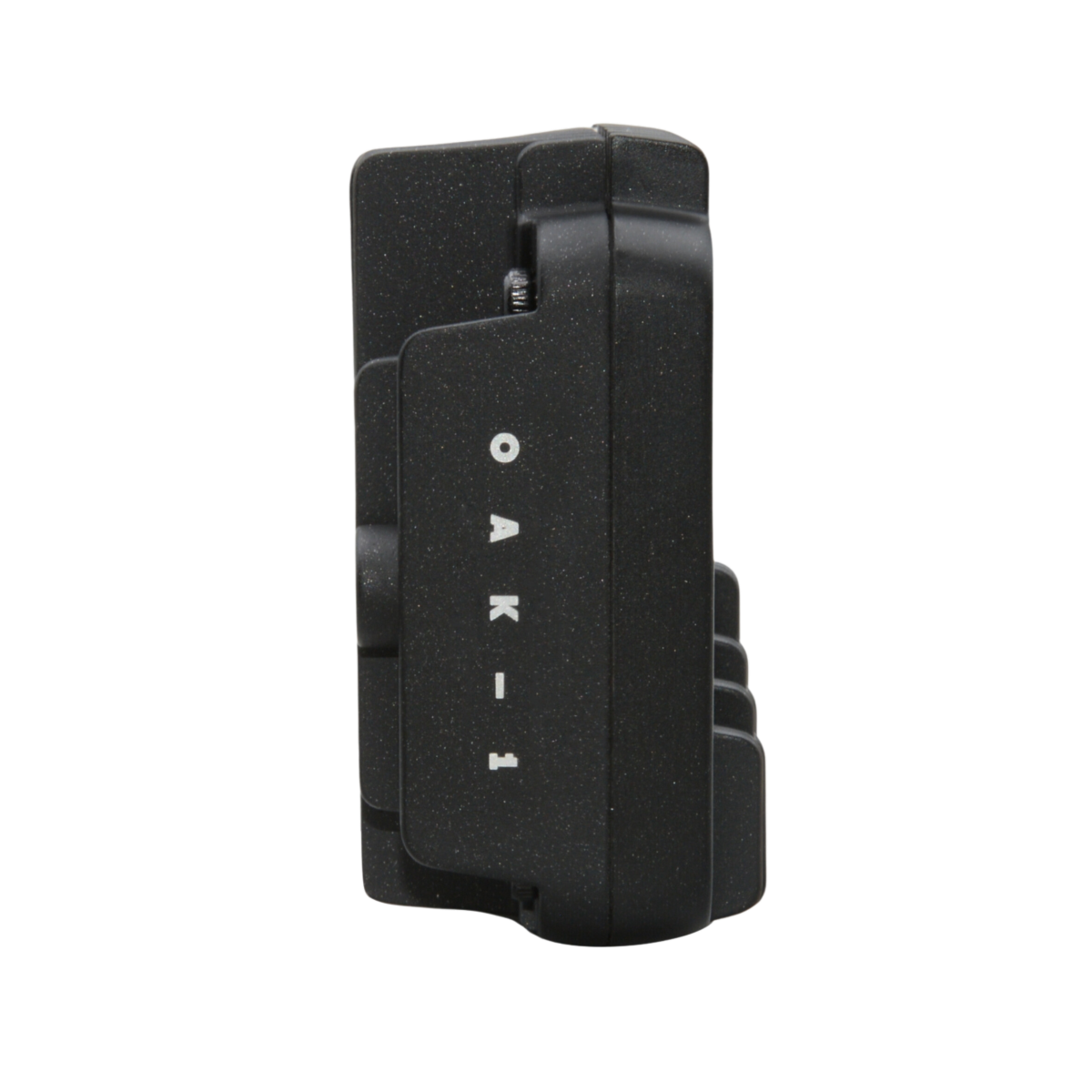

The OAK-1 is a 12MP AI camera with built-in computer vision and neural network inferencing. It can take high-resolution pictures, run personalised AI models, and carry out complex computer vision operations. Both power and USB3 connectivity are provided by USB-C. The OAK-1 provides RVC2 core processing capacity in the smallest possible form factor for all applications where depth perception is not required.

Looking for a camera with depth-sensing capabilities? View our full range of 3D Cameras.

Three variant options are available:

Auto-Focus - For capturing objects within the range of 8cm to 50cm from the device (refer to the video), it is advisable to utilise auto-focus cameras. However, if required, the DepthAI API can be employed to adjust the focus position to a specific setting manually.

Fixed-Focus - For applications that involve heavy vibrations, such as drones, lawnmowers, or vehicles (refer to the video), fixed-focus cameras are recommended to ensure optimal performance.

OV9782Fixed-focus cameras that contain the unique OV9782 sensor.

If you require a wider FOV, check out the OAK-1 W.

Key Features:

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom-architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Object tracking: 2D tracking with ObjectTracker node
  • USB2 / USB3 for power delivery and communication
  • Dimension: 36x54.5x27.8 mm
  • Weight: 53.1g
Header IMX378 Auto-Focus
IMX378 Fixed-Focus
OV9782 (Global)
Sensor
IMX378
IMX378
OV9782
FOV (D/H/V)
78° / 66° / 54° 82° / 69° / 55° 89.5° / 80° / 55°
Resolution
12MP (4056x3040)
12MP (4056x3040)
1MP(1280x800)
Focus
AF: 8cm - ∞ FF: 50cm -
FF: 50cm - ∞
Max Framerate
60 FPS
60 FPS
120 FPS
