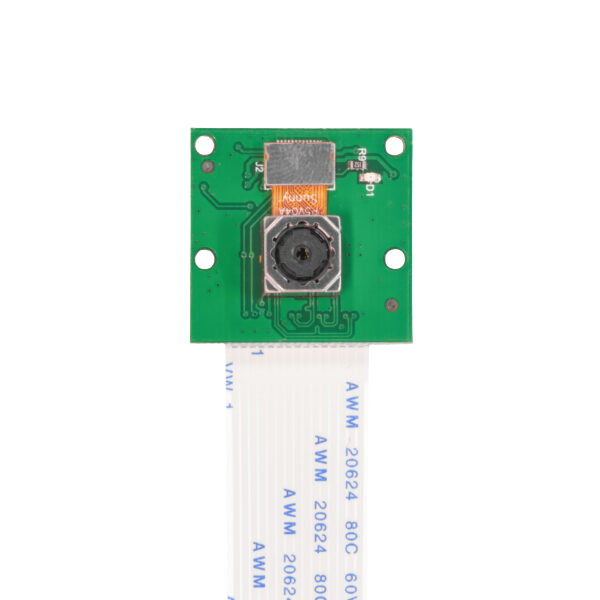

• top view of theArducam 5MP Octoprint Autofocus camera - B0176R

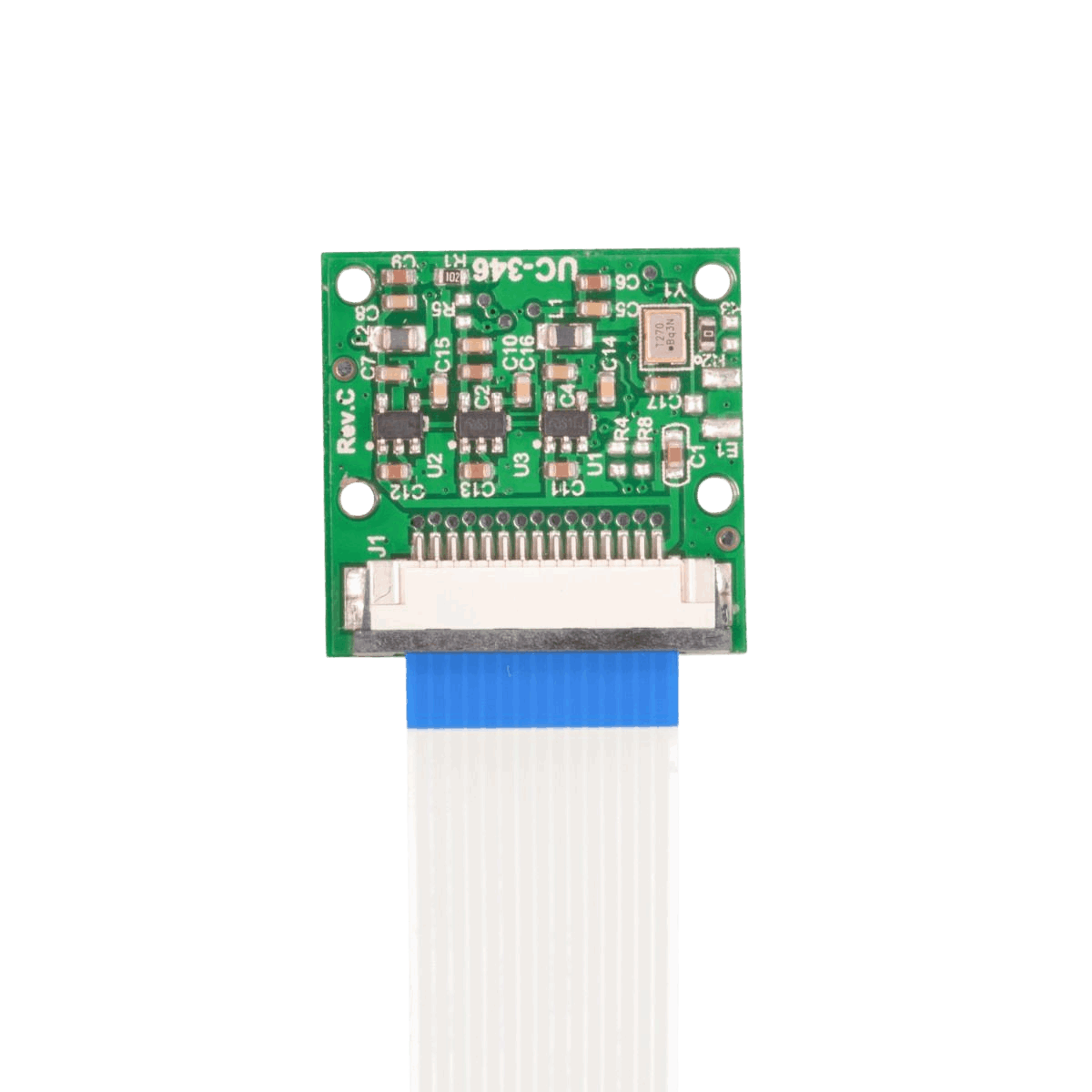

  • bottom view of theArducam 5MP Octoprint Autofocus camera - B0176R

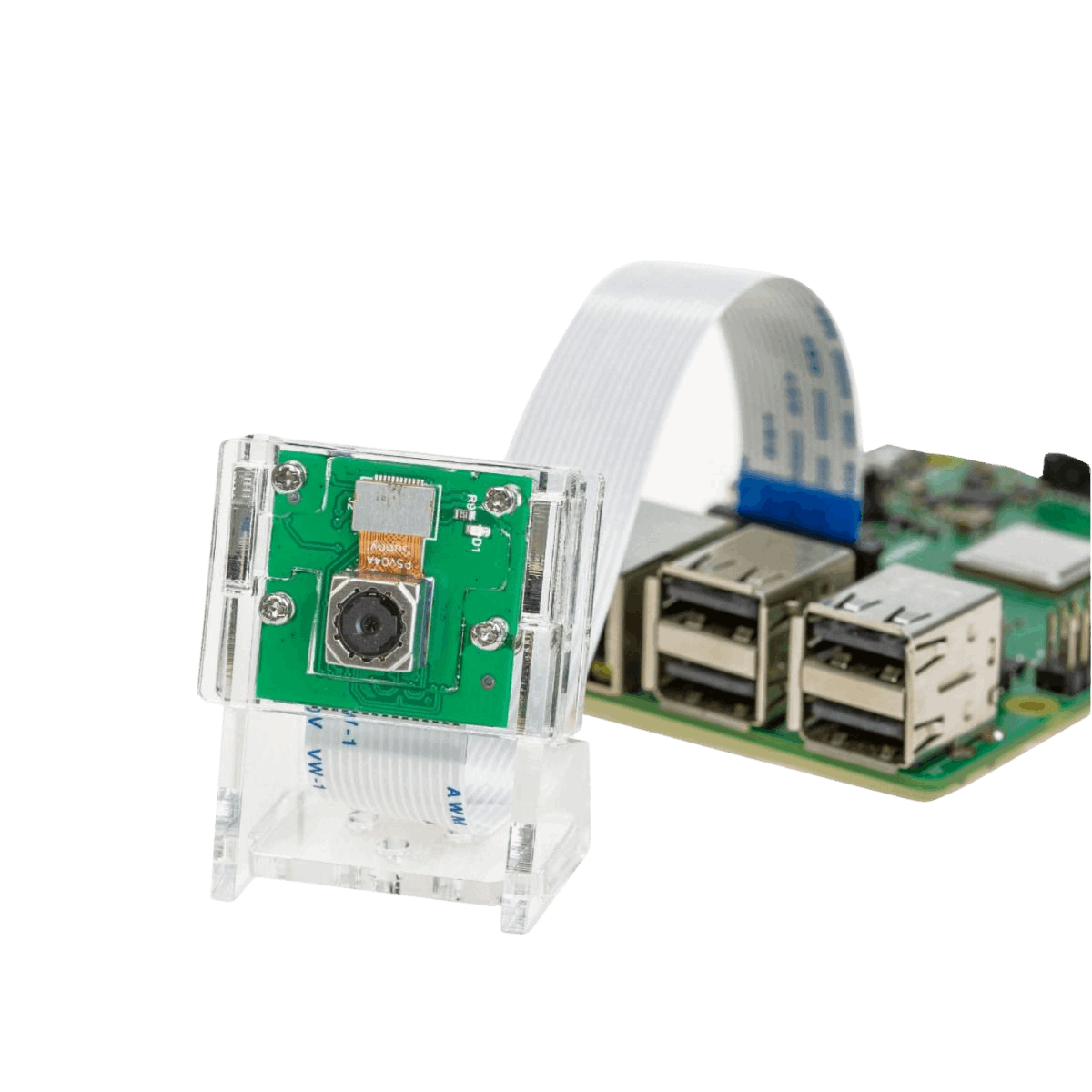

  • Raspberry pi connected with the Arducam 5MP Octoprint Autofocus camera - B0176R

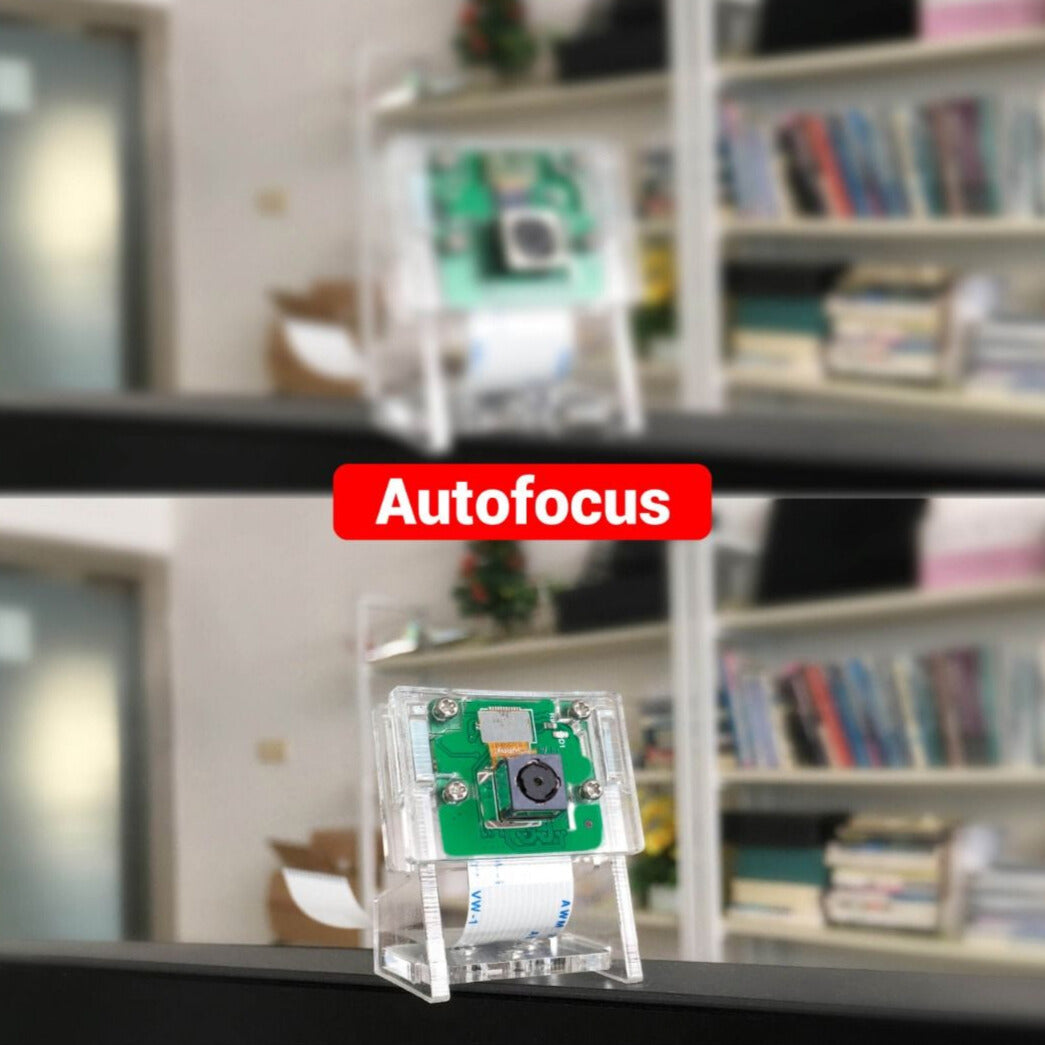

  • Sample image showing the use of autofocus on the B0167R
1 5

Arducam

Arducam 5MP Octoprint Octopi Autofocus Webcam for Raspberry Pi

SKU: B0176R

£20.00 GBP
£20.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs
 B0176R
Sensor Omnivision OV5647 Sensor
Sensor Size
 1/4"
Resolution
 5MP 2592×1944
Video 1080p 30 fps, 720p 60fps, 480p 90fps
Field of View (FOV)
 64°(H), 48°(V)
IR Sensitivity Integral IR filter, visible light only
Lens Type Stock Lens
Focus Distance 50mm to ∞ (infinity)
Focus Type Motorised Focus (autofocus)
Pixel Size 1.4μm
Full-frame SLR lens equivalent 35mm
Peaking Current 300mA
Dimension 24 × 25mm
Supported Platforms Raspberry Pi 4, 3B+, 3, 2, B+, B, A, Zero and more

Overview

  • Adjustable Distance: control the focal length with the software-controlled moveable lens
  • Motorised Focus: fine-tune the focus with its autofocus capability and the autofocus Python scripts powered by OpenCV
  • Manual Calibration: control the precise manual focus with the 'UP' and 'DOWN' arrow keys
  • Highly compatible: utilising the 5MP OV5647 sensor enables a vast range of supporting OS like Raspbian, OctoPi, MotionEye, Kali, Ubuntu and more

Arducam recognises the significance of focus and has introduced a motorised focus camera for Raspberry Pi. Unlike the official camera modules with fixed-focus lenses that are either glued or require manual adjustment, this Arducam camera module allows you to have control over the focus through software. With this camera, you can zoom in closer and capture the exact perspective you desire.

The majority of 3D models require several hours to complete the printing process, which means it may be necessary for you to step away from the 3D printer during this time. By utilizing an Arducam camera, you can closely monitor the progress of your 3D printing project. Unlike most cameras that are not designed specifically for 3D printing software, Arducam provides the necessary support to address any installation or setup issues that may arise.

Important Note
Raspberry Pi Zero and Raspberry Pi Compute Module need 15-pin to 22-pin FPC cable to work.

Documentation

OV5647 Sensor Datasheet
Quick Start Guide for Motorised Focus Camera with OctoPi software (B0176R)
Solution on Octoprint - Arducam Documents

For more upgraded solutions:

Arducam 8MP V2 Autofocus Drop-in Camera Module for Raspbery Pi and NVIDIA Jetson (B0182)
Arducam 12MP HQ Autofocus Camera Module for Raspberry Pi (B0272)

Package Contents

  • 1 × Arducam 5MP OV5647 camera board with motorised lens for Raspberry Pi
  • 1 × 5.9"(15cm) flex ribbon cable for Raspberry Pi Model A&B series (Pi Zero cable not included)
  • 1 × 139.4"(100cm) flex ribbon cable for Raspberry Pi Model A&B series (Pi Zero cable not included)
  • 2 × Manuals

Example Applications

  • Home Surveillance, Security
  • IoT cameras
  • OctoPrint and Monitoring 3D Printer
  • Drones and other Battery-powered products
  • Usable in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
  • Machine Vision, Robot Vision, Automation
