Arducam 12MP Motorised Focus HQ Camera for Raspberry Pi

Name: Arducam 12MP Motorised Focus HQ Camera for Raspberry Pi
Brand: Arducam
SKU: B0272
Price: 90.0 GBP
Availability: InStock

SKU: B0272

£90.00 GBP

Sale Sold out

Product variants

Quantity

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Specification

Camera Specs	B0272
Sensor	Sony IMX477 Exmor RS sensor
Sensor Size	1/2.3” (7.9mm diagonal)
Resolution	12.3MP 4056 × 3040
Video	2028 × 1080p50, 2028 × 1520p40 and 1332 × 990p120
Pixel Size	1.55μm
Dimension	38mm × 38mm
IR Sensitivity	Integral IR-cut Filter, visible light only
Supported Platforms	Raspberry Pi 4, 3B+, 3A+, 3, 2, 2B, B+, B, A and more

Overview

Achieve precise focus control effortlessly: Adjust the focus to perfection by simply using the arrow keys on your keyboard
Automate your focus: By utilising the OpenCV examples, you can easily adjust the focus automatically
Native to Raspberry Pi: No need to install an additional driver
Highly Compatible: supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps

The Arducam High-Quality motorized focus camera module is designed to provide a more convenient and precise focusing experience. With its integrated motor, you can now control the focus of the camera using software, eliminating the need to manually adjust the lens. Whether it's through keyboard keys or OpenCV, you have the flexibility to remotely control the focusing process of your HQ camera.

Experience enhanced focus control with the same 12MP High-Quality Camera, eliminating the need for touching the lens.

If you require the Jetson Nano version, see the B0273.

Lens Specification

Lens Specs
Focus Type	Motorised Focus
Focal Length	3.9mm
F Number	F2.8
Field of View (D/H/V)	75°(H)
MOD	0.3mm
Back Focal Length	4.49mm
Lens Mount	M12 Mount
Lens Dimension	Φ14×18.67mm

Eletrical & Mechanical Specification

Electrical & Mechanical

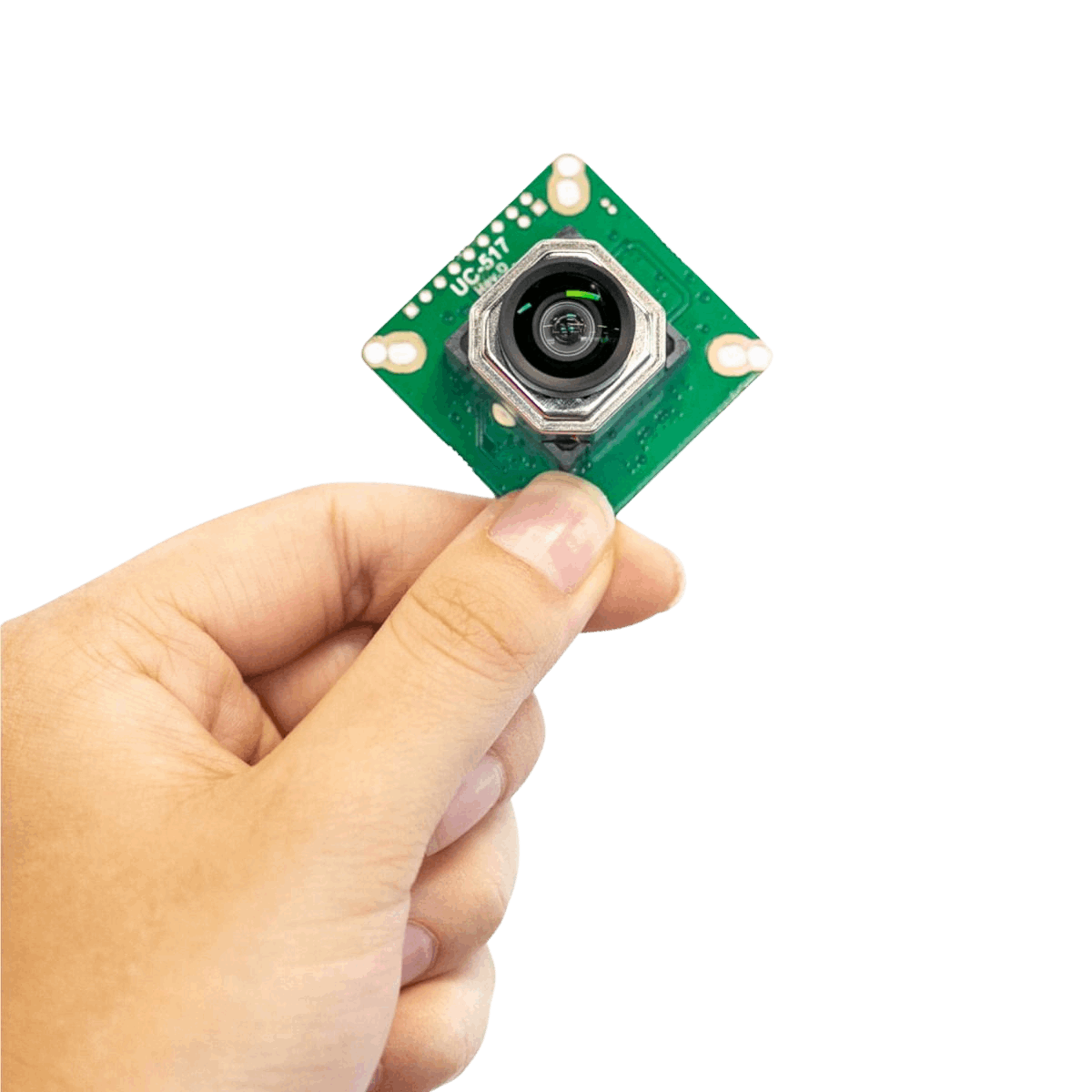

Camera Board Size	38 x 38mm
Hole Pitch	Compatible with 29mm, 30mm, 34mm
Power Requirement	With Motorised Motor: 3.3V/500mA Max Without Motorised Motor: 3.3V/300mA Max
Peaking Current	300mA

Important Notes

It's not recommended to replace the default lens on the camera module, speak to us to find out more.

Our camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customisation. Here is why:

Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.
Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performances of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

Documentation

IMX477 Sensor Datasheet
Raspberry Pi Camera Autofocus: The Complete Guide
Quick Start Guide - 12MP Motorised Focus Camera Module
3D Drawing
3D Drawing Case

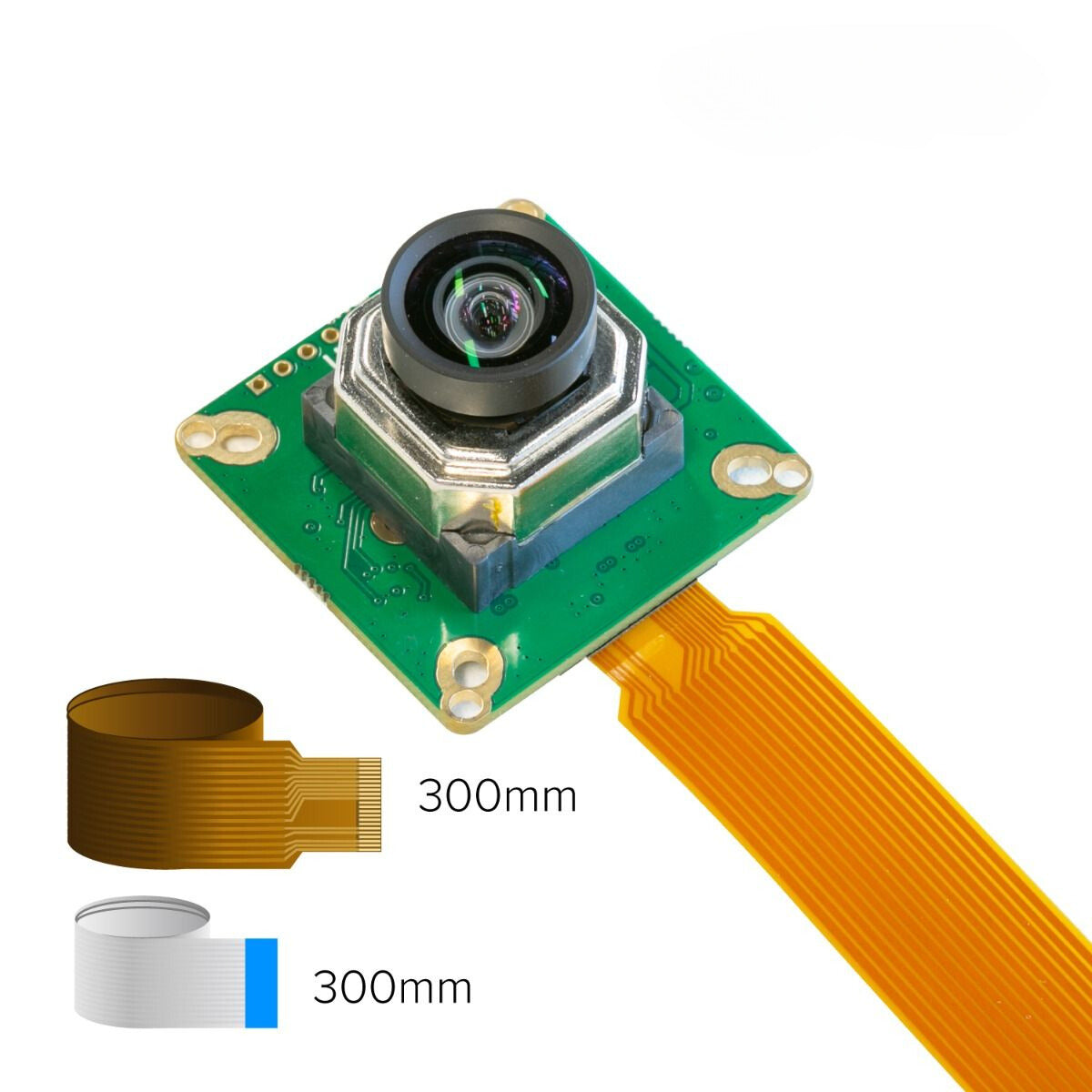

Package Contents

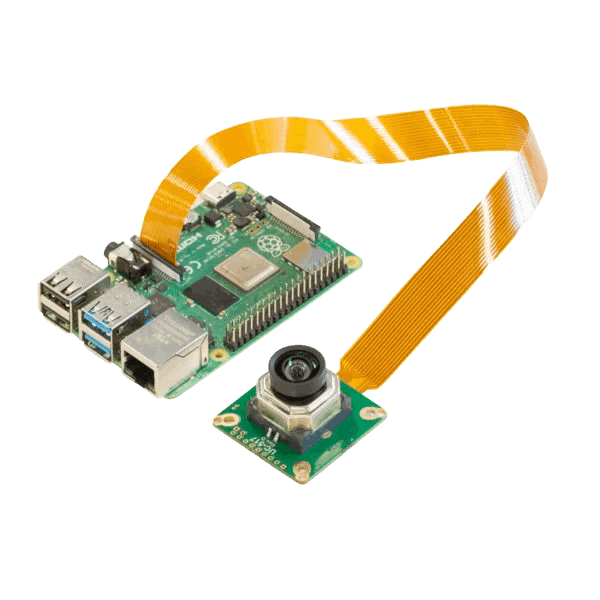

1 × Arducam 12.3MP Motorized Focus High-Quality Camera for Raspberry Pi with lens

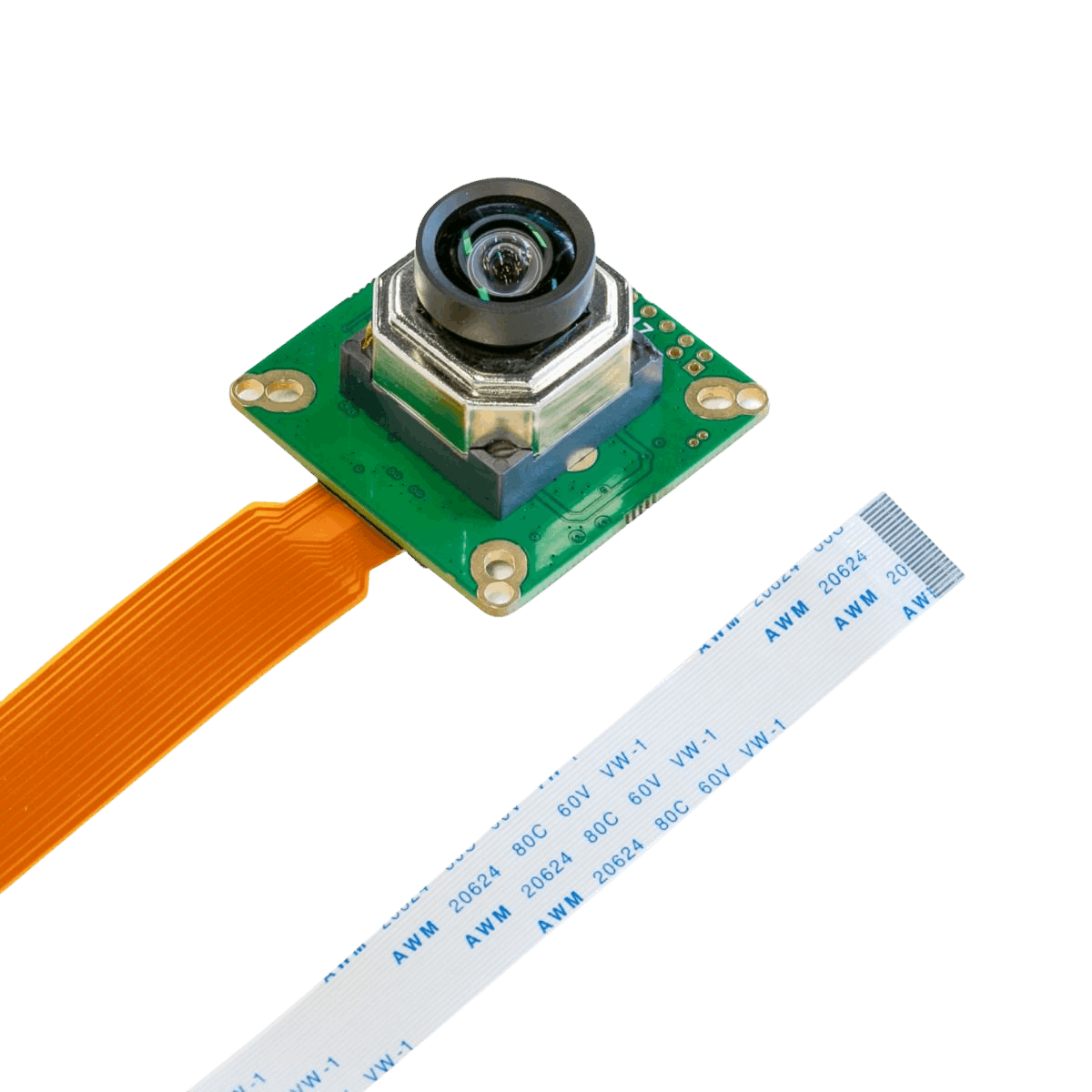

1 × 300mm 15pin-22pin flex ribbon cable for Raspberry Pi normal variants (Model As and Bs)

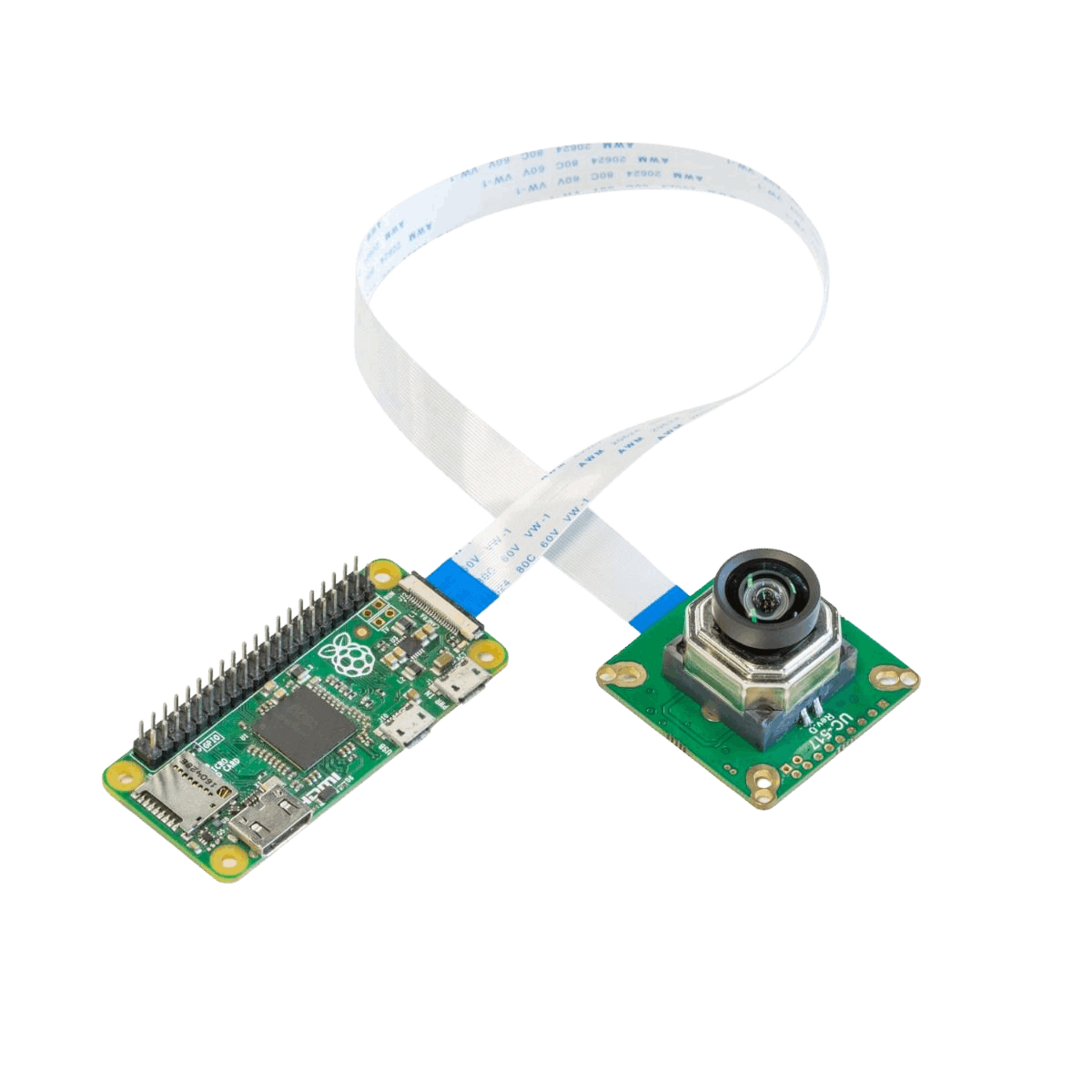

1 × 300mm 22pin-22pin flex ribbon cable for Raspberry Pi Zero and Compute Module
