Arducam 12.3MP*2 Synchronised Stereo Camera Bundle Kit with CS Lens for Raspberry Pi

SKU: B0265R

Regular price £225.00 GBP
Regular price Sale price £225.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

Camera Specs
B0265R
Sensor Sony IMX477 Exmor RS sensor
Sensor Size
1/2.3"
Output/CSI-2 Speed x1 CSI-2 2-lane Output Port/1.0 Gbps/Lane
Output Formats RAW8/RAW10/RAW12
ISP Support Supported by Raspberry Pi
External Trigger Not Supported
Frame Rates 120fps@1332x990, 50fps@2028 × 1080, 40fps@2028 × 1520, 10fps@4056 × 3040
Pixel Size 1.55µm
Resolution 12MP 4056×3040
Sensor Size 1/2.3"
Camera Interface 2-lane MIPI CSI-2
Camera Board Size 38mm x 38mm
Camarray Hat Size 65mm x 56mm
Lens Mount CS-Mount
Focal Length 6mm
Field of View (FOV) 65° (H)
IR Sensitivity Integral IR Cut filter, visible light
Back Focal Length 7.53mm
F Number Max F1.2

Overview

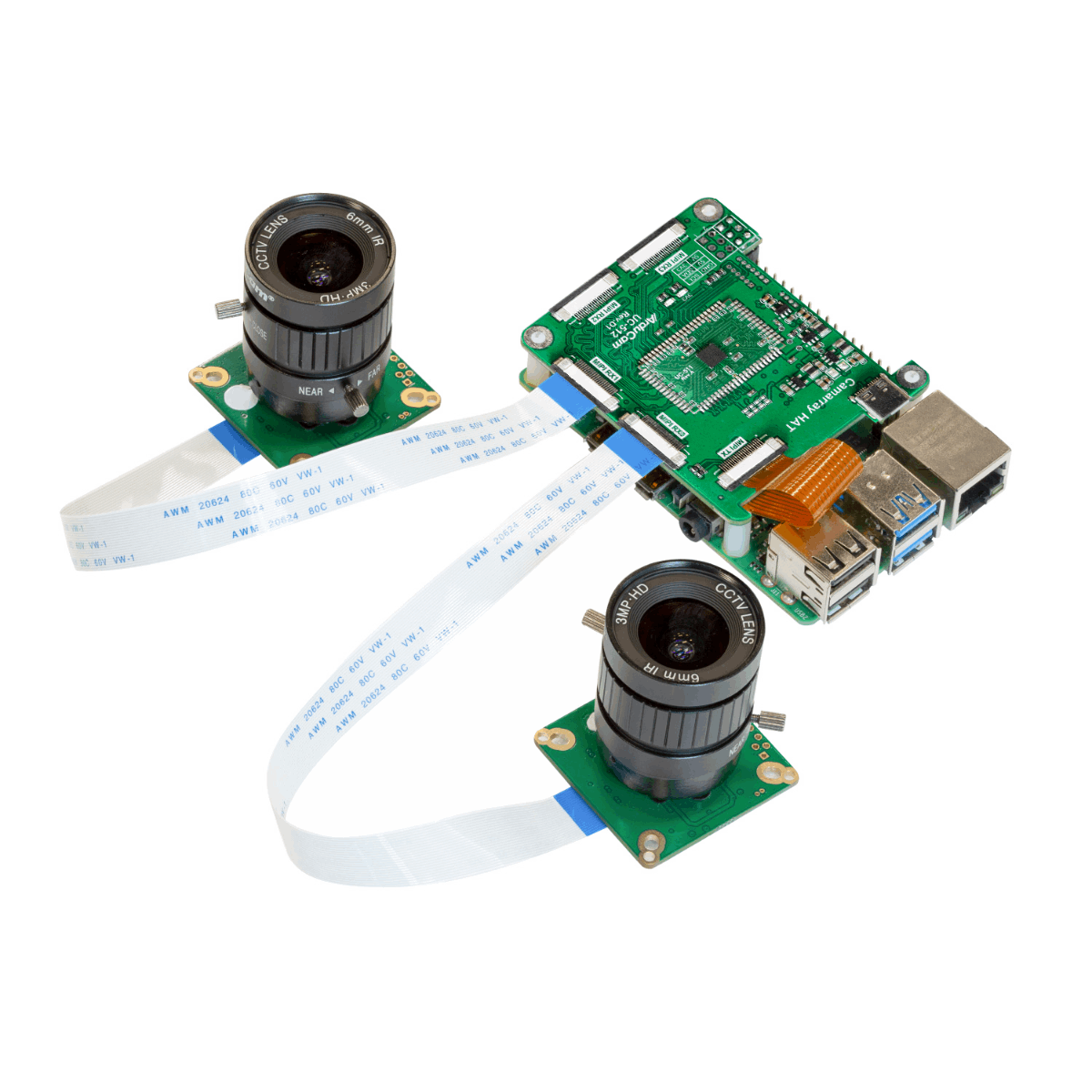

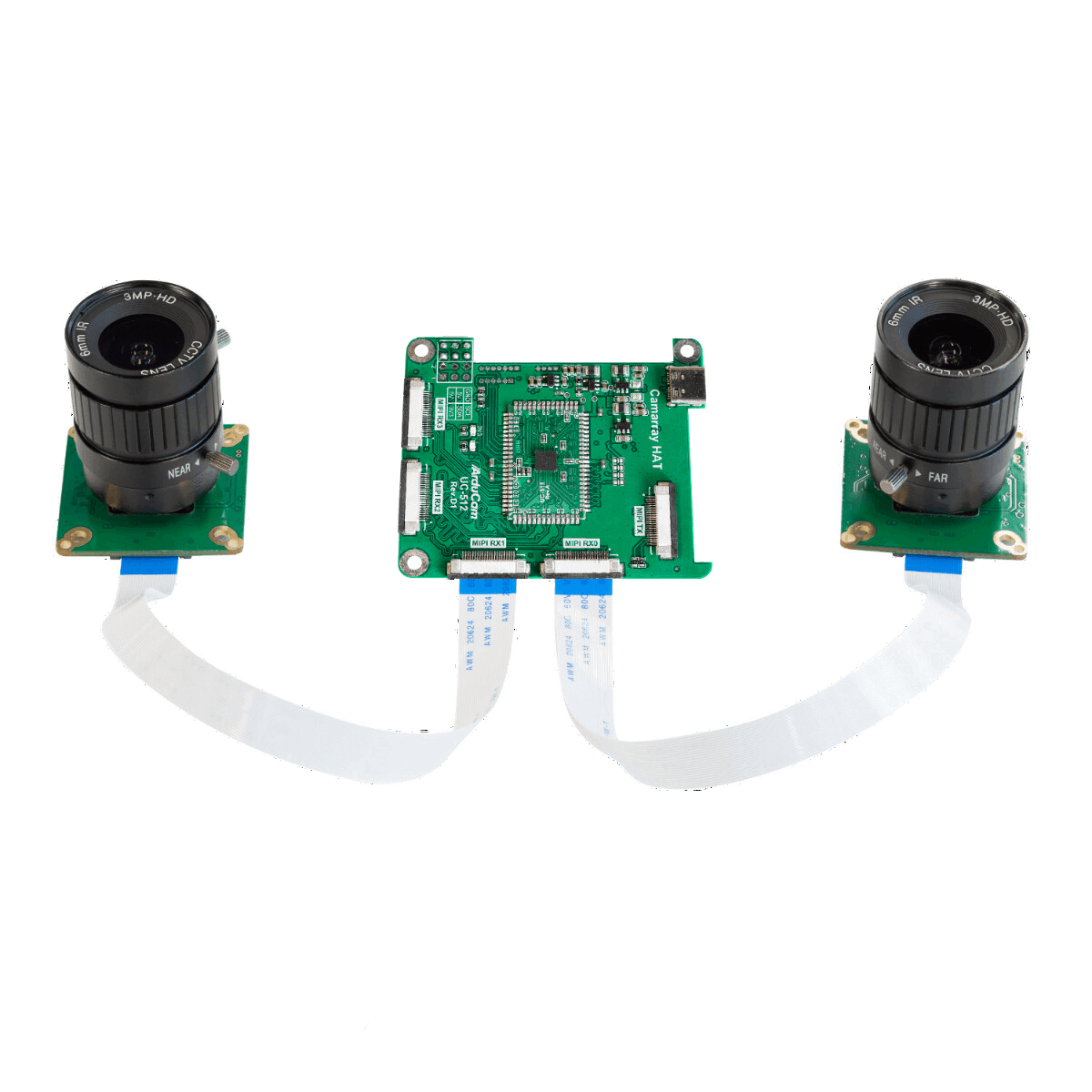

Two 12MP Camera Modules can operate simultaneously through a single MIPI CSI-2 camera slot connection on a Raspberry Pi with this Arducam 12MP Synchronised Stereo Camera Bundle Kit. It is made up of an Arducam stereo camera HAT and two 12MP High-Quality camera modules.

The ArduChip turns on the stereo camera HAT to make the dual camera connection appear to be a single camera so that the Raspberry Pi would accept it. This bundle can be used to create a stereo camera system for applications involving depth perception or to improve an existing IMX219 stereo setup.

The Raspberry Pi cannot be used with only one camera module from the bundle kit; the Camarray HAT is necessary. The camera bundle kit differs from the full spelling in that it is compressed with half spelling (to ensure the same resolution after compositing, the resolution of each camera is compressed by half in the horizontal direction, but the field of vision remains the same). The image effect is better since it can use the official ISP, AWB, AE, and other functionalities.

This bundle can’t work with Jetson Nano. Please check Jetson Nano/Xavier NX Version: B0265N

Important Notes

  • The Raspberry Pi Board is not included.
  • A single camera module in the bundle kit does NOT work alone with the Raspberry Pi, the Camarray HAT is required.
  • This camera module supports the Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps.

Documentation

IMX477 Sensor Datasheet

Package Contents

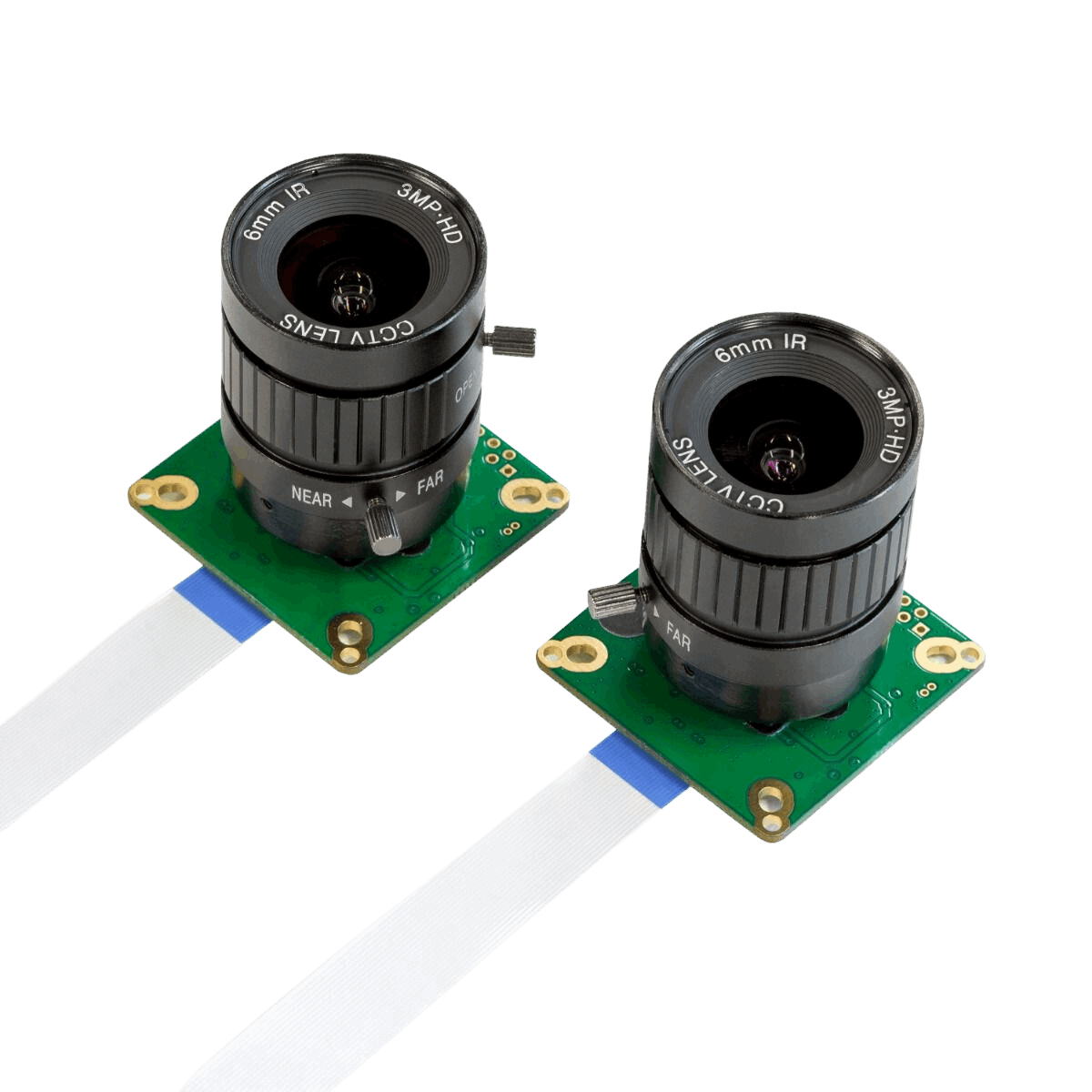

  • 2 × Arducam 12.3MP colour camera module mounted with CS lens

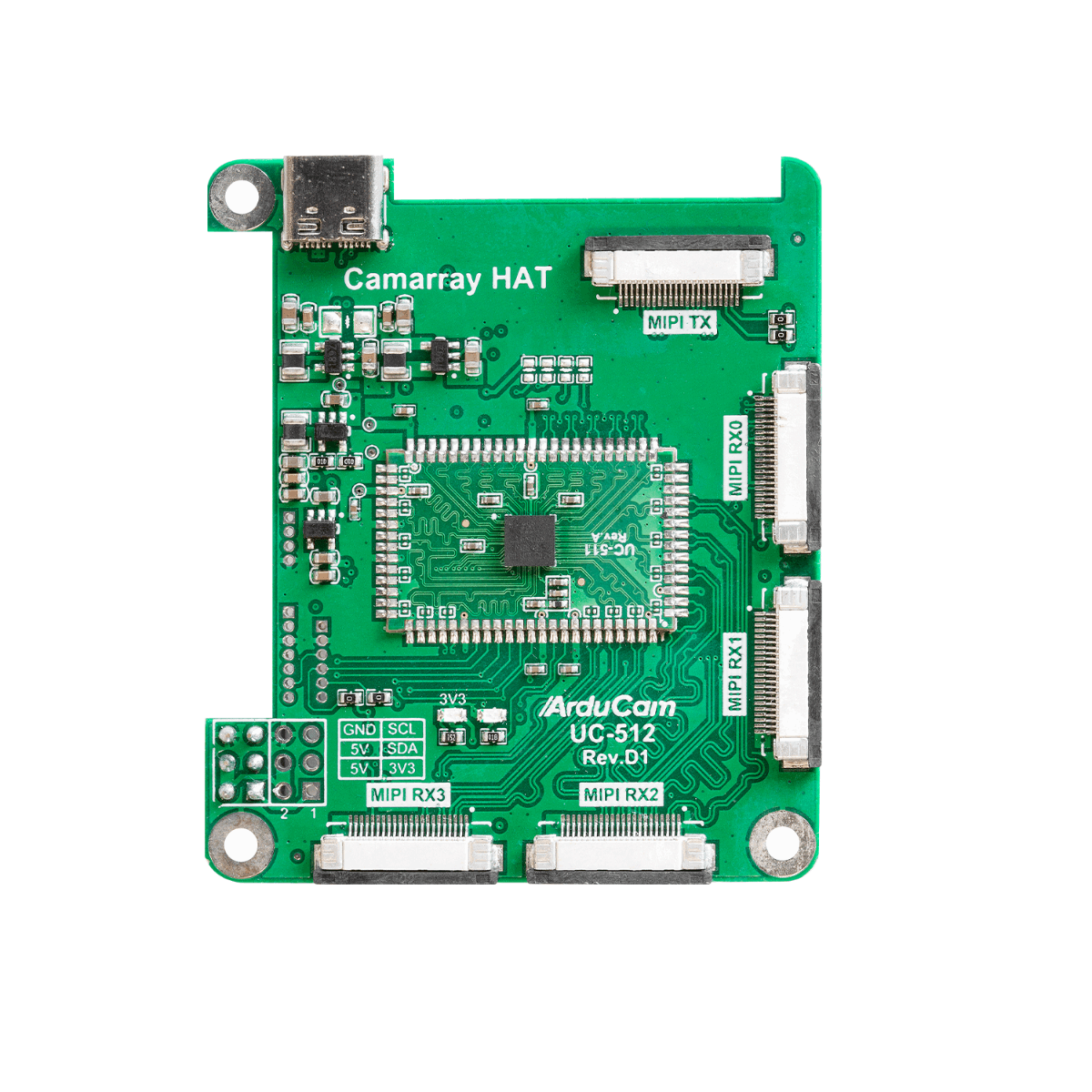

  • 1 × Arducam Camarray Stereo Camera HAT
  • 2 × 150mm/6inch 22pin to 22pin camera cables
  • 1 × 80mm/3.15inch 22pin to 22pin camera cable for Pi Zero
  • 1 × 73mm/2.87inch 15pin to 22pin camera cable
  • 4 × M2.5*10mm Nylon Hex Standoffs
  • 4 × M2.5 Nylon Nuts
  • 4 × M2.5*6mm Nylon Screws

Example Applications

  • Robot Navigation
  • Object Tracking
  • 3D measuring
  • 3D reconstruction
  • Depth-related vision applications, etc
