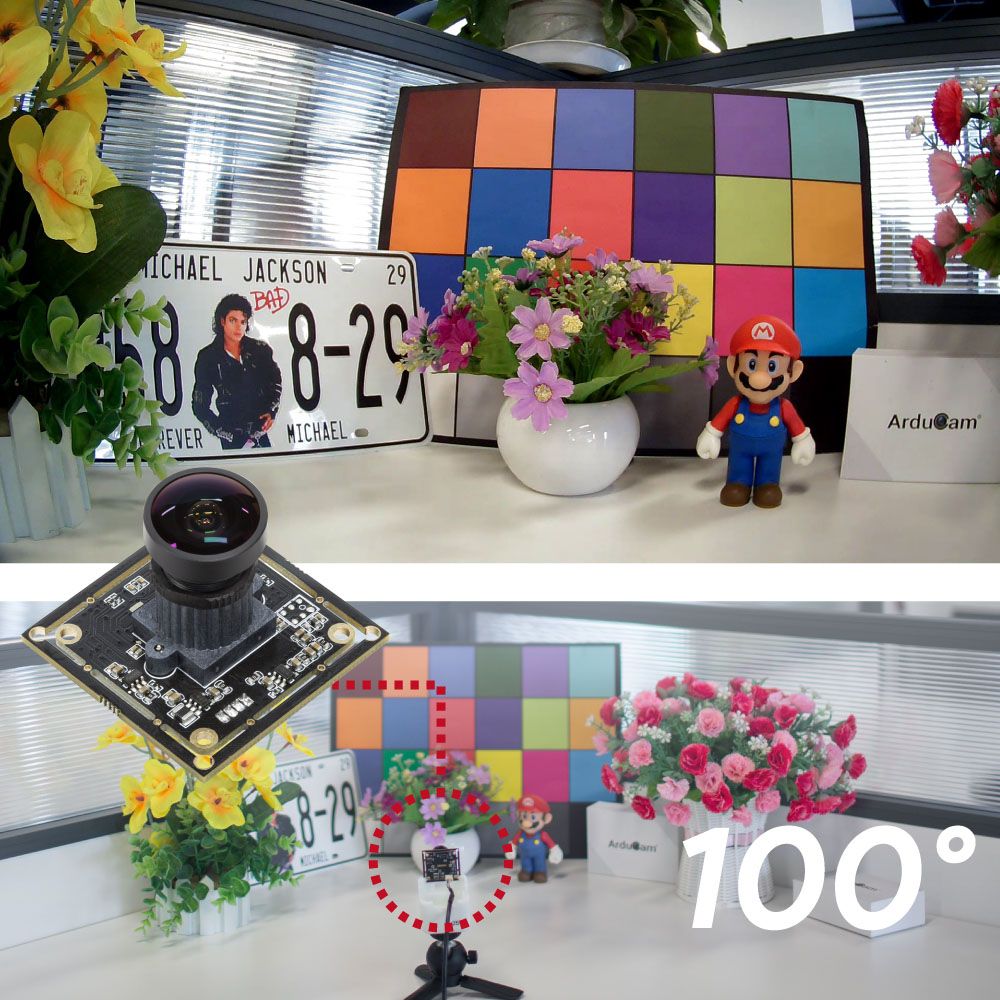

2MP Low Light Wide Angle UVC Camera Module with Microphone
SKU: B0200
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Overview
The B0200 is a new core member of the Arducam UVC collection. It has a resolution of 2MP with a 1/2.8" Sony IMX291 image sensor, that interfaces with UVC compliant USB 2.0. Rest assured, there is no need to worry about installing the driver anymore! This camera is designed to work seamlessly with the native UVC drivers of Windows, Linux, and Mac. Therefore, there is no requirement for any additional drivers to be installed.
The camera equipped with SONY's 2MP IMX291 colour CMOS sensor boasts an impressive 80DB wide dynamic range, allowing for a wider angle of view and clearer visual experience both during the day and at night. Additionally, the sensor is capable of capturing images in extremely low light conditions, with a minimum illumination of just 0.001Lux.
Key Features
| Camera Specs |
B0200 |
|---|---|
| Sensor | Sony IMX291 CMOS |
| Sensor Size |
1/2.8" |
| Resolution | 2MP 1945 × 1109 |
| Data Format |
MJPG/YUY2/H.264 |
| Pixel Size |
2.9µm |
| Frame Rates | H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 48 |
| Minimum Illumination |
0.001Lux |
|
Field of View |
100°(D) |
| Lens Mount |
M12 |
| Focus Range |
3.3ft (1m) to infinity |
| IR Sensitivity |
Intragral IR filter, only visible light |
|
Auto Control |
Saturation, Contrast, Acutance, White balance, Exposure |
| Audio | Single microphone (optional dual channel) |
| Input Voltage |
DC 5V |
| Working Current |
MAX 300mA |
| Operating Temperature |
-4°F~158°F (-20°C~+70°C) |
| Cable Length |
Default 1m, or optional 2m, 3m and 5m |
| System Compatibility |
Windows, Linux, Mac with UVC |
Example Applications
- Home video surveillance system
- Day&night low light vision security camera system
- Robotics
- Machine Vision
