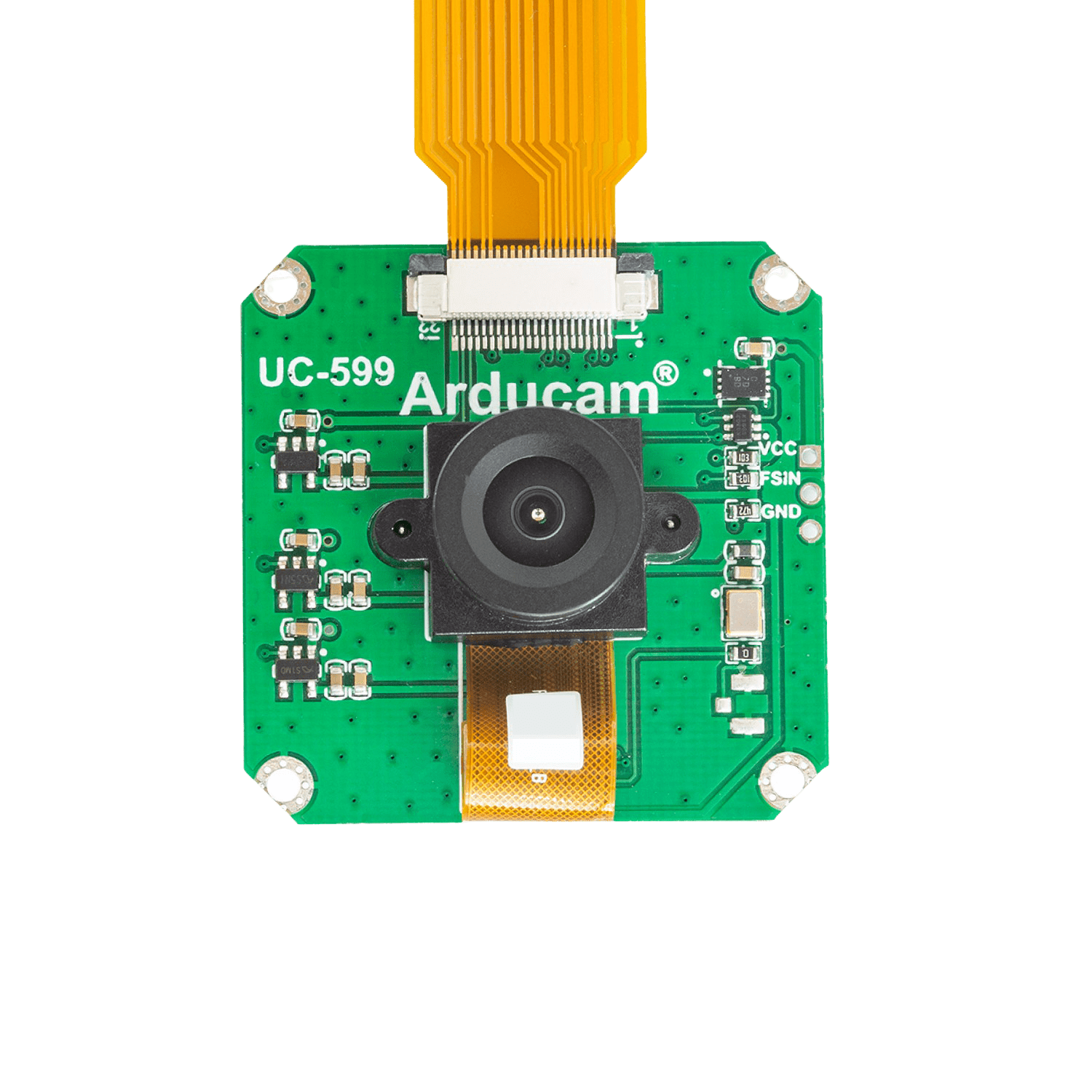

Arducam 1MP NoIR Camera Module For Raspberry Pi
SKU: B0224
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0224 |
|---|---|
| Sensor | Omnivision OV9281 Monochrome Sensor |
| Sensor Size |
1/4" |
|
Resolution |
1MP 1280×800 |
| Video | 1280×800@120fps |
| Focus Type | Manual Focus |
| Lens Type | M12 Lens |
| Pixel Size | 3μm |
| Focal Length | 2.8mm |
| F.NO | F2.8 |
| Focus Distance | 30cm to ∞ (infinity) |
| Field of View (FOV) | 130°(D), 110°(H), 90°(V) |
| IR Sensitivity |
No IR filter, sensitive to IR |
| Peak Current |
300mA |
| Output Format | 8/10-bit BW RAW |
| Output Interface | 2-lane MIPI serial |
| Dimension | 40mm × 40mm |
| Supported Platforms | Raspberry Pi 4, 3B+, 3, 2, B+, B, A and Raspberry Pi Zero |
Overview
-
Seamless Integration: Native to Raspberry Pi and doesn't require any additional drivers (Debian version: 11 'bullseye')
- Easy to Use: Just enable the overlay to make it work
- Global Shutter: Shoot high-speed moving objects in crisp, sharp images
-
IR Sensitivity: NoIR, sensitive to IR light.

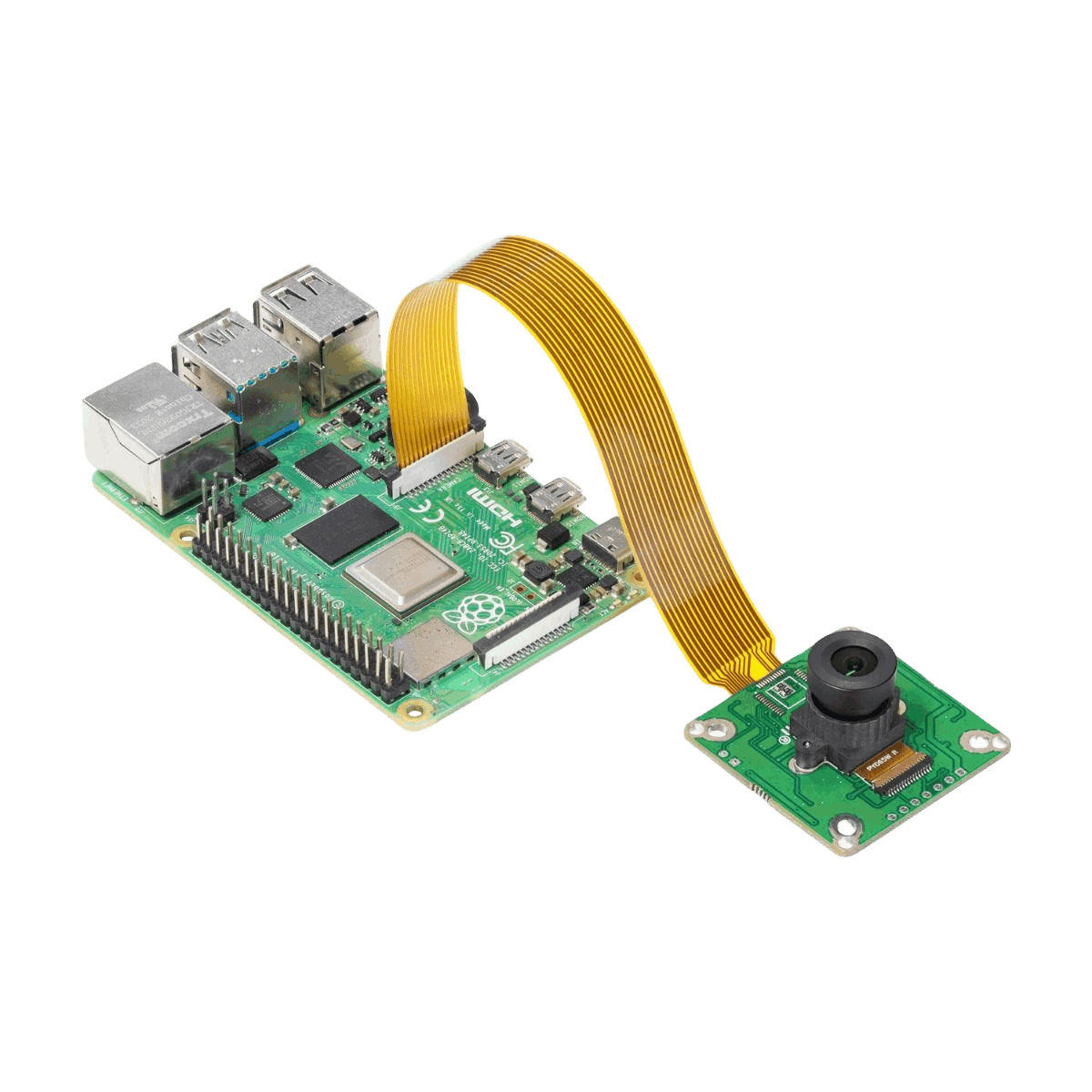

The Arducam OV9281 monochrome global shutter camera module is designed specifically for Raspberry Pi boards. With a resolution of 1280×800, this camera module (Rev.B) can be effortlessly connected to the RPi's CSI-2 camera interface without needing any extra hardware. It is fully compatible with the official V4L2 camera driver, allowing easy setup by simply enabling the overlay. Thanks to its global shutter and impressive low-light sensitivity, this camera module is well-suited for a wide range of applications, including gesture detection, head and eye tracking, as well as depth and motion detection.
Equipped with NoIR (No Infrared) technology, this embedded camera module stands out with its remarkable ability to capture high-quality images in low-light environments. Unlike standard cameras, this NoIR camera can detect both visible and infrared light, making it an ideal choice for situations with limited lighting. By removing the infrared filter, this camera module excels in applications such as nighttime surveillance and astrophotography, providing innovative solutions to overcome the limitations of traditional cameras.
Alternative Options
- NVIDIA Jetson Nano edition: B0223
Documentation
Package Contents

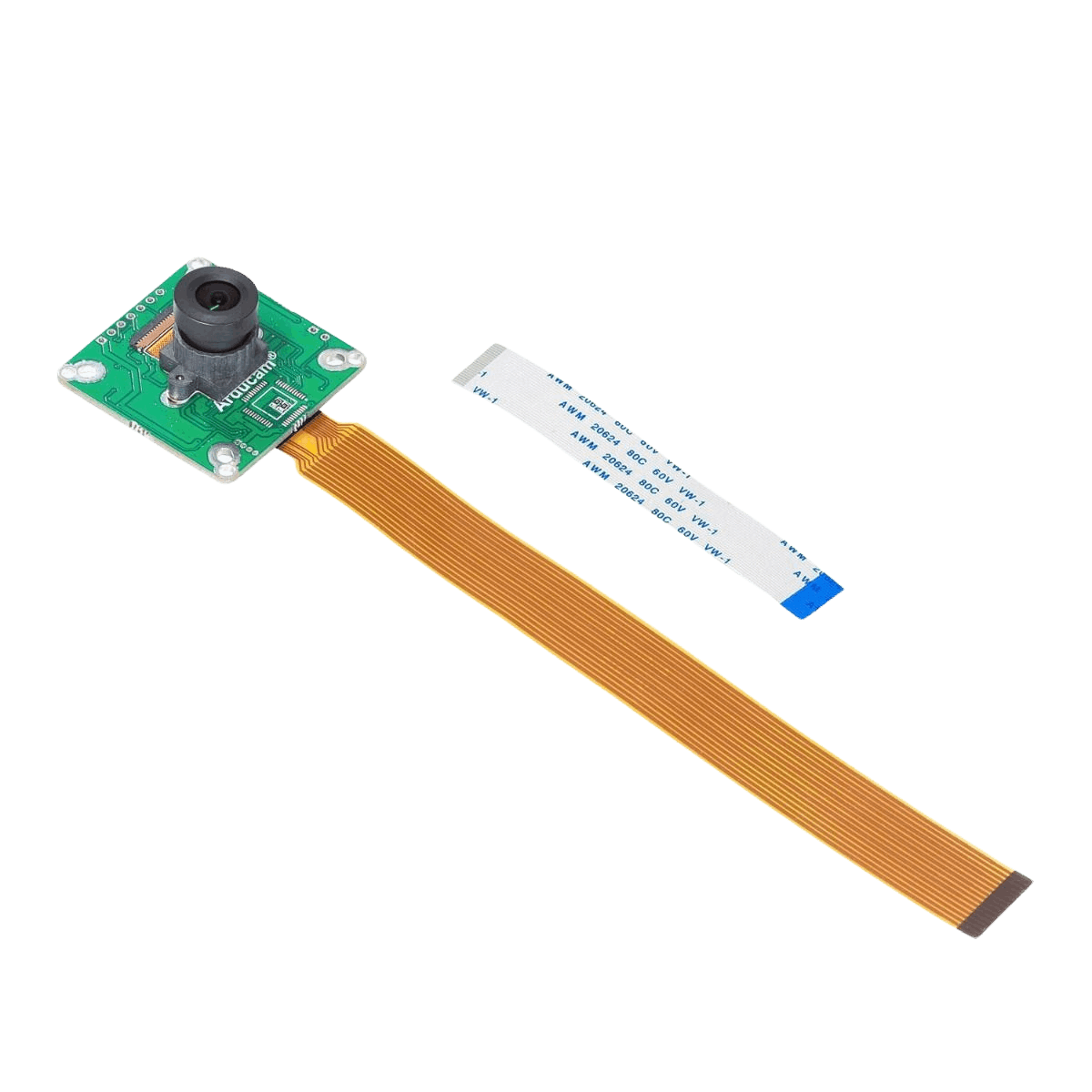

- 1 × Arducam OV9281 1MP Monochrome Global Shutter NoIR Camera Module with 130deg M12 Mount Lens
- 1 × 150mm 15pin to 22pin 0.5mm pitch FPC cable
- 1 × 80mm 22pin 0.5mm pitch FPC cable
Example Applications
- Gesture Detection
- Head and Eye tracking
- Various battery-powered products
- Depth and motion tracking
- CCTV, Home Security System
- Machine Vision, Robot Vision and automation
