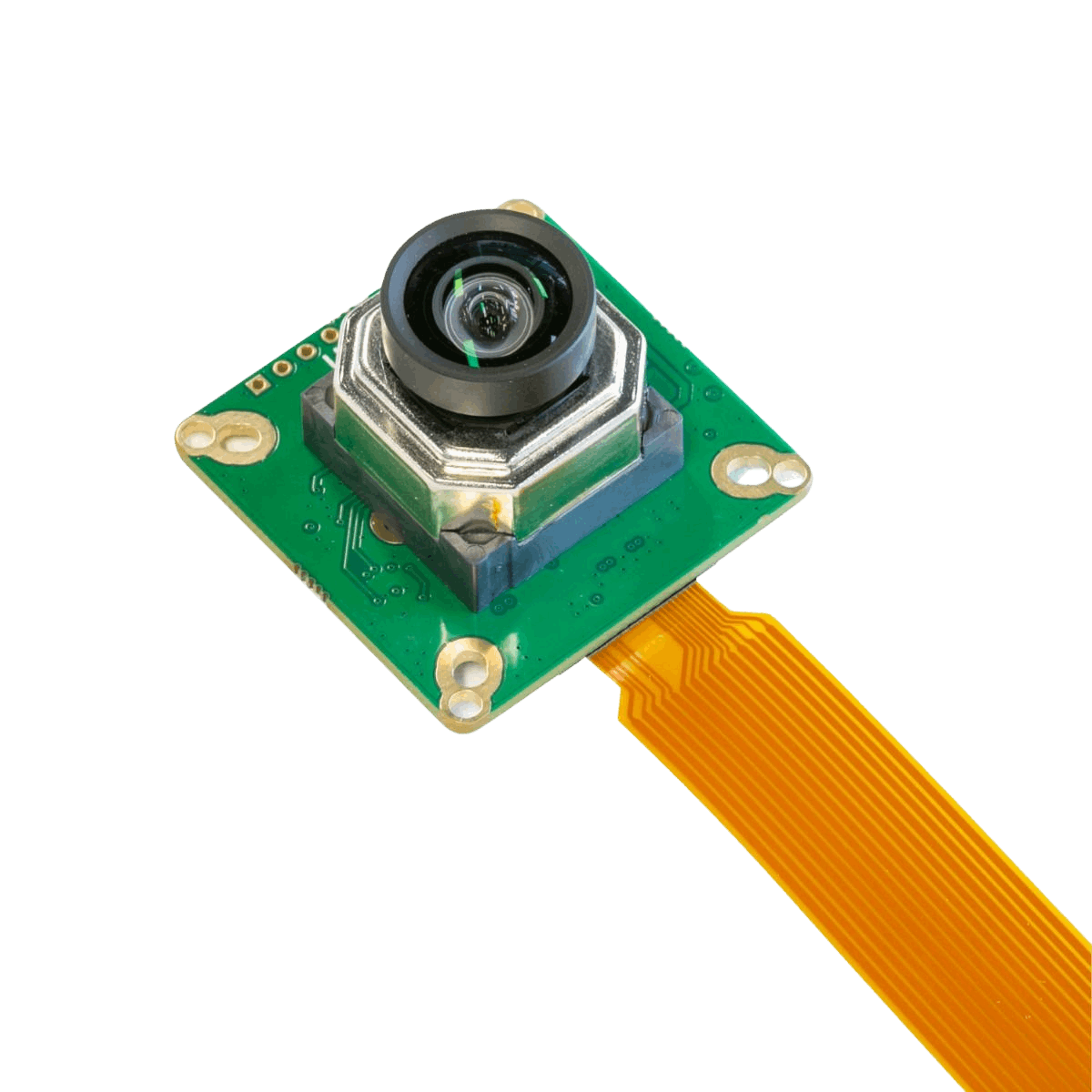

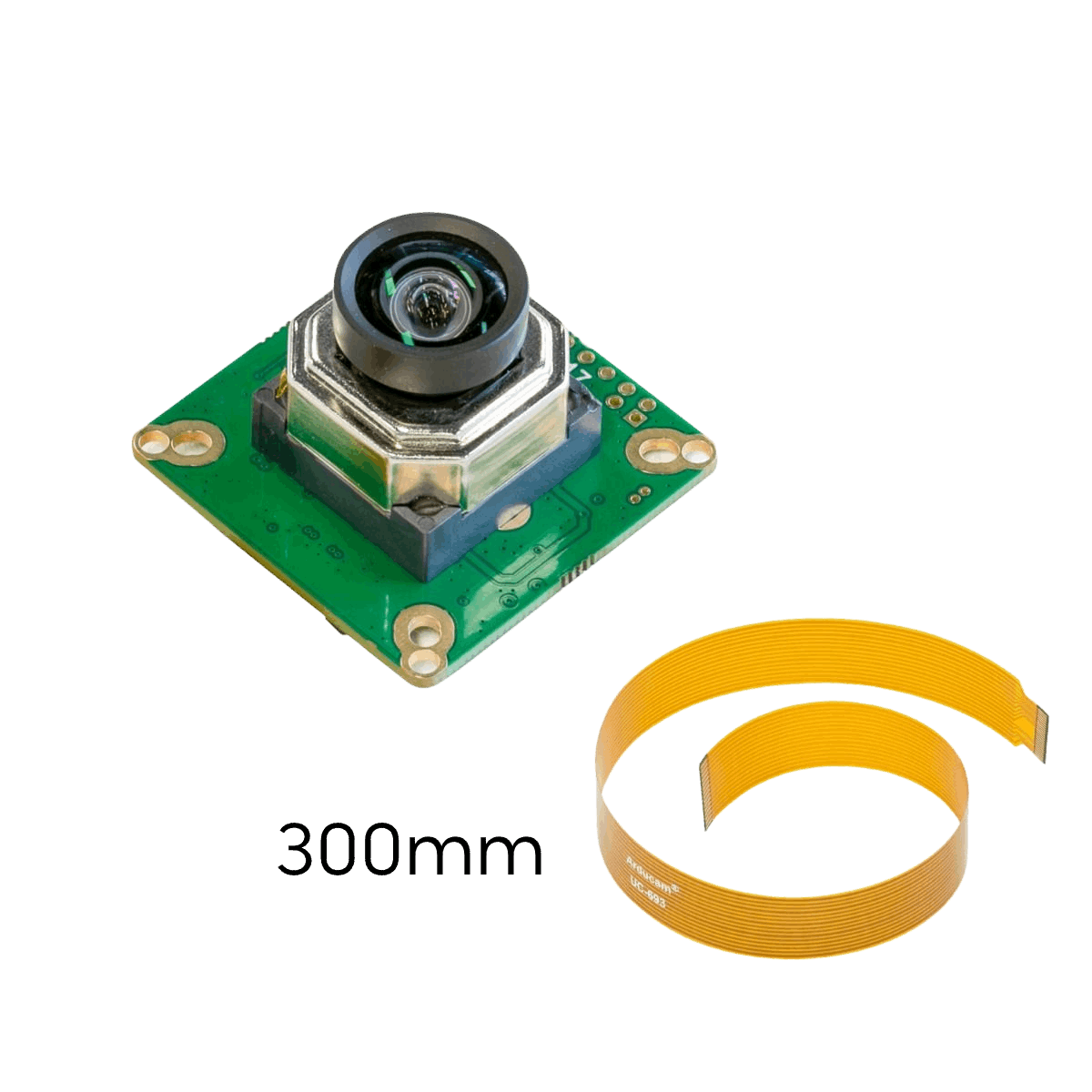

Arducam 12MP Motorised Focus HQ camera for Jetson Nano/Xavier NX
SKU: B0273
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Specification
| Camera Specs |
B0342 |
|---|---|
| Sensor | Sony IMX477 Sensor |
| Sensor Size |
1/2.3” (7.857mm diagonal) |
|
Resolution |
12.3MP 3280 × 2464 |
| Video (NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin) |
L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fp L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Field of View (FOV) |
75°(H) |
| Pixel Size | 1.55µm |
| Focus Type | Motorised |
| Focal Length |
3.9mm |
| Lens Type |
M12 Lens |
| F.NO | F2.8 |

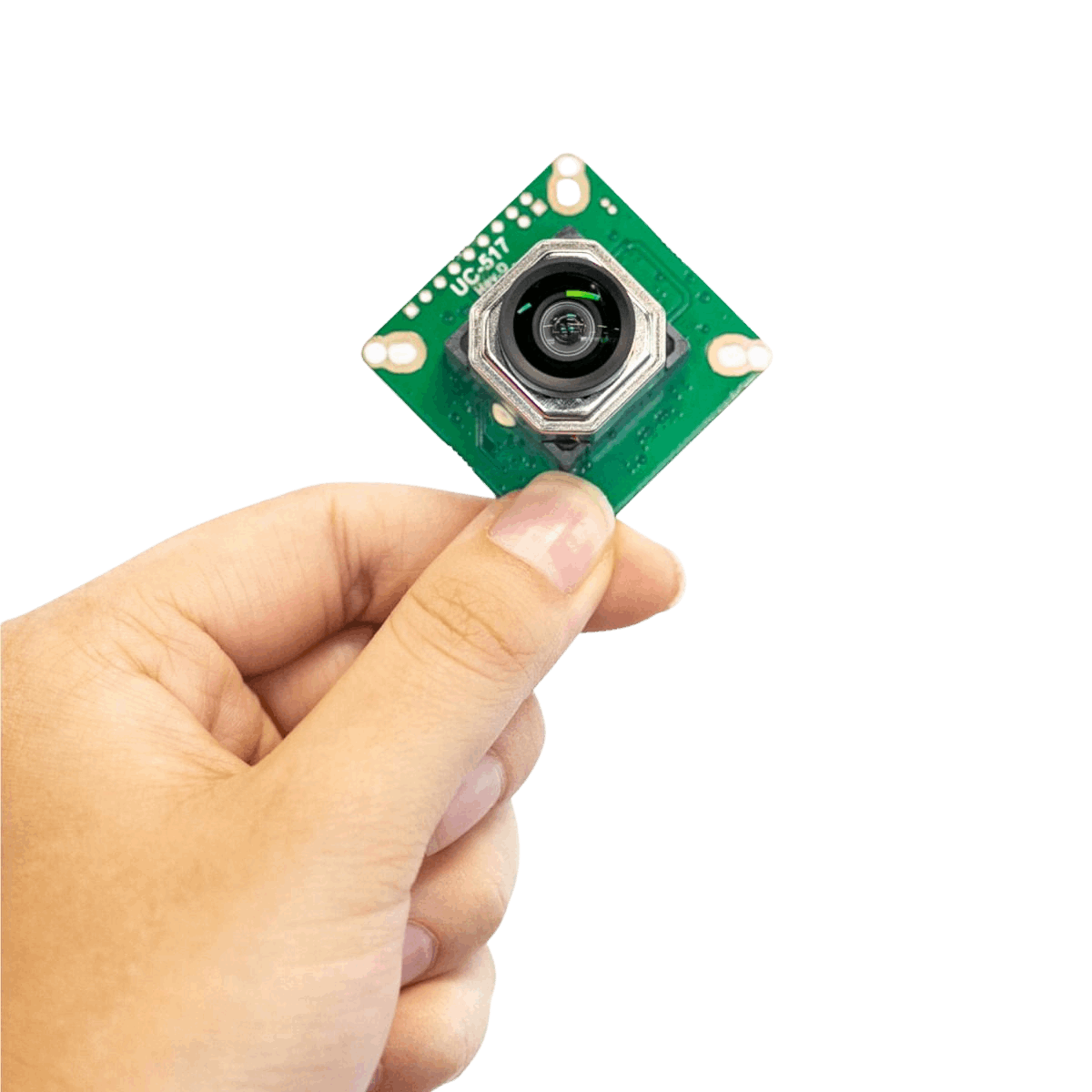

| Dimension | 38 × 38mm |
Overview
- Motorised Focus: The autofocus can be programmed and controlled through software
- Simple Controls: Python- OpenCV software supports the use of arrow keys ("up" and "down") to adjust the focus

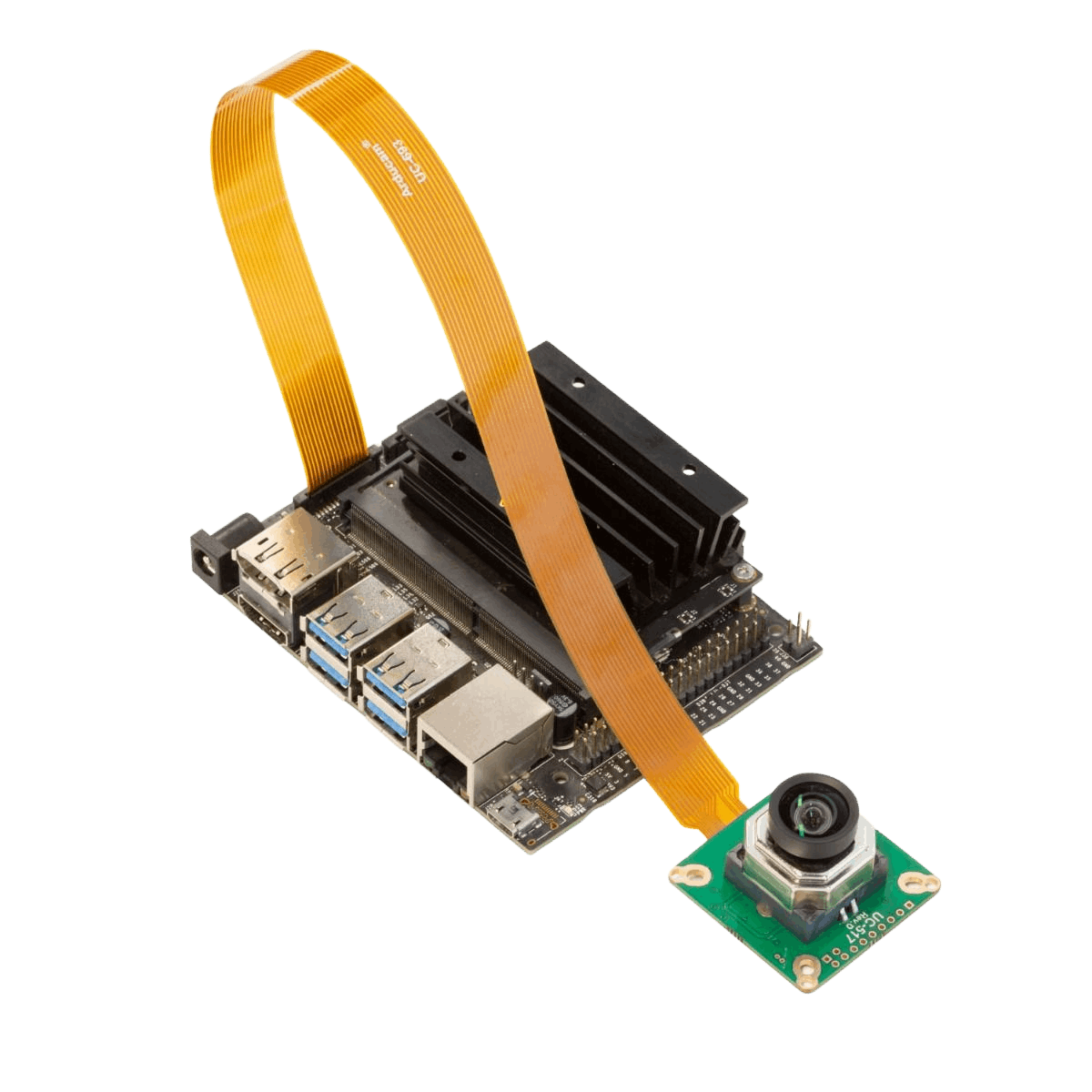

- Designed for NVIDIA® Jetson Nano: But works with Xavier NX, Orin NX, Orin Nano and AGX Orin
Are you looking for the Raspberry Pi version? See the B0272

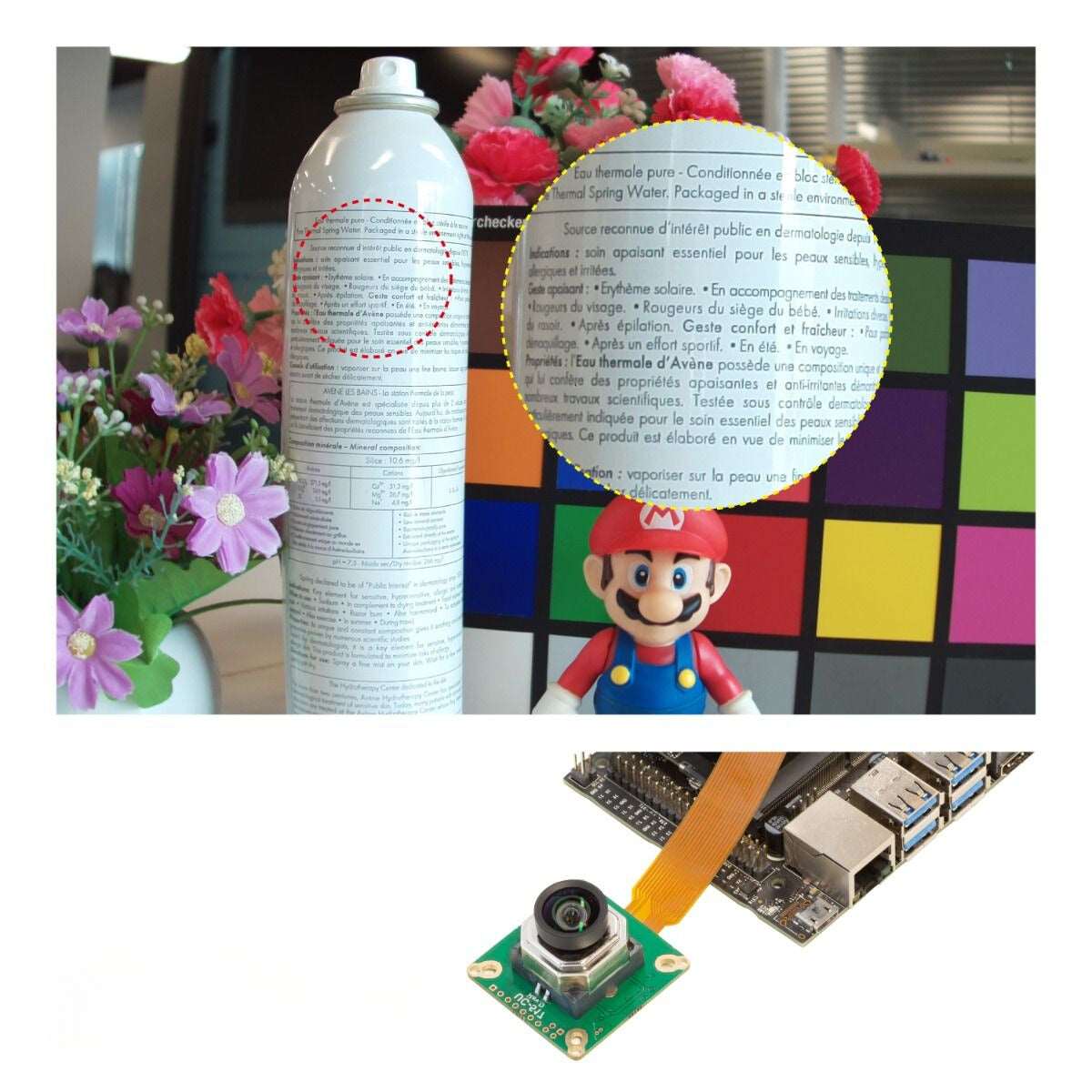

This Arducam High-Quality motorised focus camera module integrates a motor that can be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to control the focusing process of your HQ camera remotely. Other than its motorised focus, it offers the same picture quality and camera controls as the Raspberry Pi High-Quality camera. However, the Arducam High-Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.
Kernel Camera Driver
To ensure compatibility, it is important to refer to the Supported JetPack Version for Different NVIDIA Jetson Platforms as this camera is dependent on kernel drivers. Specifically, it requires one kernel version and one camera driver to function properly.
SUPPORTED PLATFORM DISCLAIMER
This camera is exclusively tailored for the official NVIDIA® Jetson™ Developer Kit by default, thereby lacking compatibility with third-party carrier boards.
Instructions for Orin Nano/NX
For the Orin Nano/Orin NX, a 22-22 pin FFC (CB023) is necessary. In the case of utilising an AGX Orin, an extra camera adapter (B0473, contact us or use our live chat to find out more) is mandatory.
Electrical & Mechanical Specification
| Hole Pitch | Sony IMX477 Sensor |
| Power Requirement |
With Motorised Motor: 3.3V/500mA Max |
|
Peak Current |
300mA |
