UniBrain

USB3.2 Quad Channel PCIe Host Adapter

SKU: 1242

Login to see the price

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Description

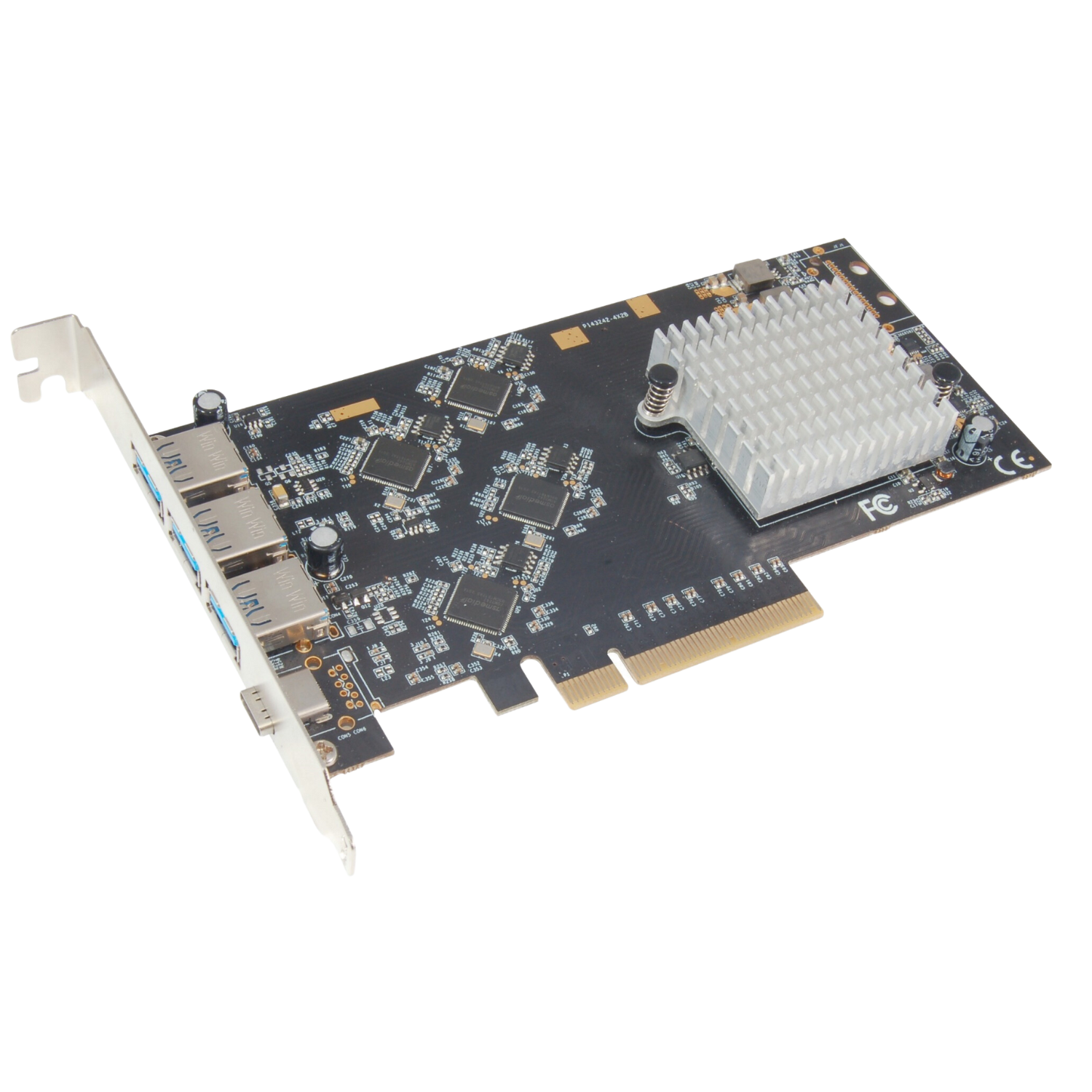

The USB 3.2 Quad Channel PCIe adapter, also called USB3.2 Quad Bus, delivers an impressive performance, offering a full 10 Gbps bandwidth on every USB Type-A port and a substantial 20 Gbps (Gen2 2×2) on a USB-C port. This means that, through a single PCI Express slot, it achieves optimal performance for high-end USB devices.

Key Features

  • PCIe Gen3 x8 standard profile form factor.
  • Four (4) downstream USB 3.2 ports: 3 x Type-A and 1 x Type-C.
  • Type-A ports support USB 3.2 Gen2 data rates of up to 10 Gbps.
  • Type-C port supports USB 3.2 Gen2 2×2 data rates of up to 20 Gbps.
  • Backwards compatible with USB 3.x, USB 2.0 devices.
  • Compliant with USB Attached SCSI Protocol Revision 1.0.
  • Support Multiple INs.
  • Over current protection and detection on downstream ports.
  • Supports USB hot plug and USB port power directly from PCIe slot.
  • CE/FCC/RoHS compliant.

Supported Operating Systems

  • Windows 10/11, Server 2016 or later
  • Linux 3.6.x or later

What is a Host Adapter?

A host adapter, sometimes called a host controller or a host bus adapter (HBA), is a hardware element that enables a computer or host system to connect to and communicate with peripheral devices or networks.
