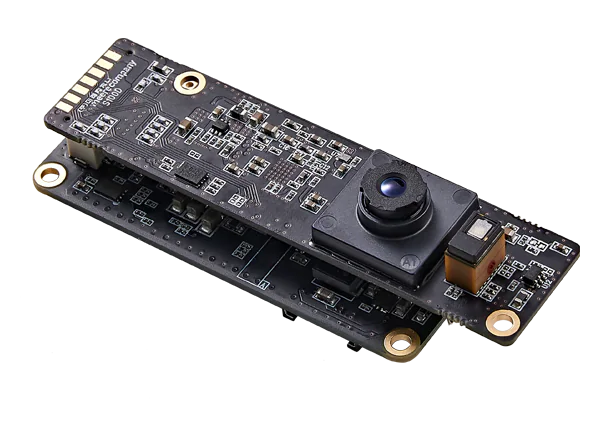

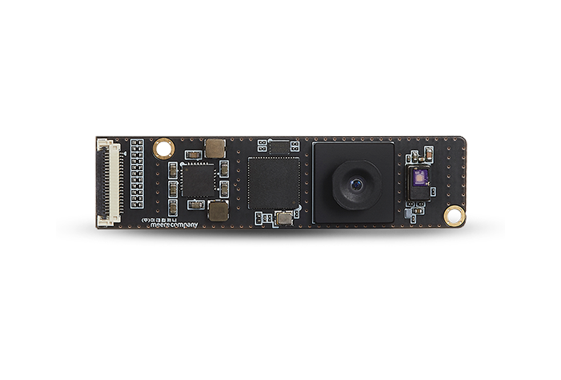

S100D ToF 3D Depth Camera

Overview

The Cube Eye S100D ToF 3D Depth Camera uses a laser diode illuminator and receiver to measure an object's distance in pixel units. Through a modulated light source, the camera illuminates the object or scene and calculates the phase shift between the emitted and reflected light to determine distance.

The S100D offers true VGA resolution and low power consumption in a compact design. With a 0.2m to 4m operating range and VGA (640 x 480) depth pixel count, this camera provides high-quality results in a compact and efficient package.

It is capable of reaching 7.5 to 30 fps and can create measurements from 25cm to as far as 4 metres in a package measuring just 60mm x 15mm x 10mm (MIPI dimension).

The Vertical-Cavity Surface-Emitting Laser (class 1) employed by this product transmits at a 940nm wavelength, lowering the impact of sunlight in outdoor settings.

Key Features

• High depth accuracy
• TRUE VGA Resolution
• Built-in Companion Chip
• Compact Design

Specification

Operating Range: 0.25 - 4.0m
Illuminator: VCSEL 940nm, 4W x 1ea
Depth Pixel Count: True VGA (640 x 480)
Field of View (H,V): 60°(H) x 45°(V)
Output Data (bit): Depth / Amplitude / Point Cloud
Accuracy: <±1% by distance

Interface

Data Interface: MIPI CSI-2, USB3.0
Frame Rate: 7.5 - 30 fps

Software (SDK)

USB Drivers: Windows(x64), Linux(x64)
API: C++, Python
Operating System: Linux/Windows/Android/ROS1/ROS2

Dimensions

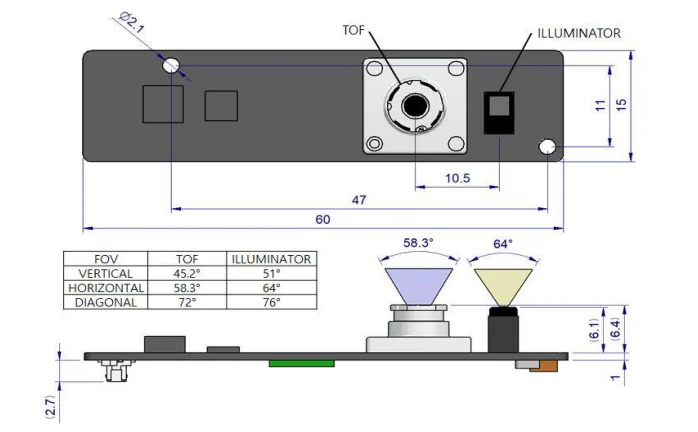

Dimension: MIPI: 60mm X 15mm X 10mm
Weight: MIPI: 4.9g / USB: 10.3g

Power

Power Consumption: 1.5W (Average) / 15W(Peak)
Input Power Voltage: 5 VDC
Operating Temperature: 0°C - 40°C
Ambient Lighting Conditions: Indoor and Outdoor
Eye Safety Certification: EC 60825-1:2014 (3rd Edition) Class 1

Usage examples

• Automotive - exterior safety or internal with gesture control
• Industrial - can be integrated into production monitoring systems
• Autonomous vehicles, robots, and drones - for collision avoidance
• Space - Free-flying robots in space stations

Contact us for volume pricing.
