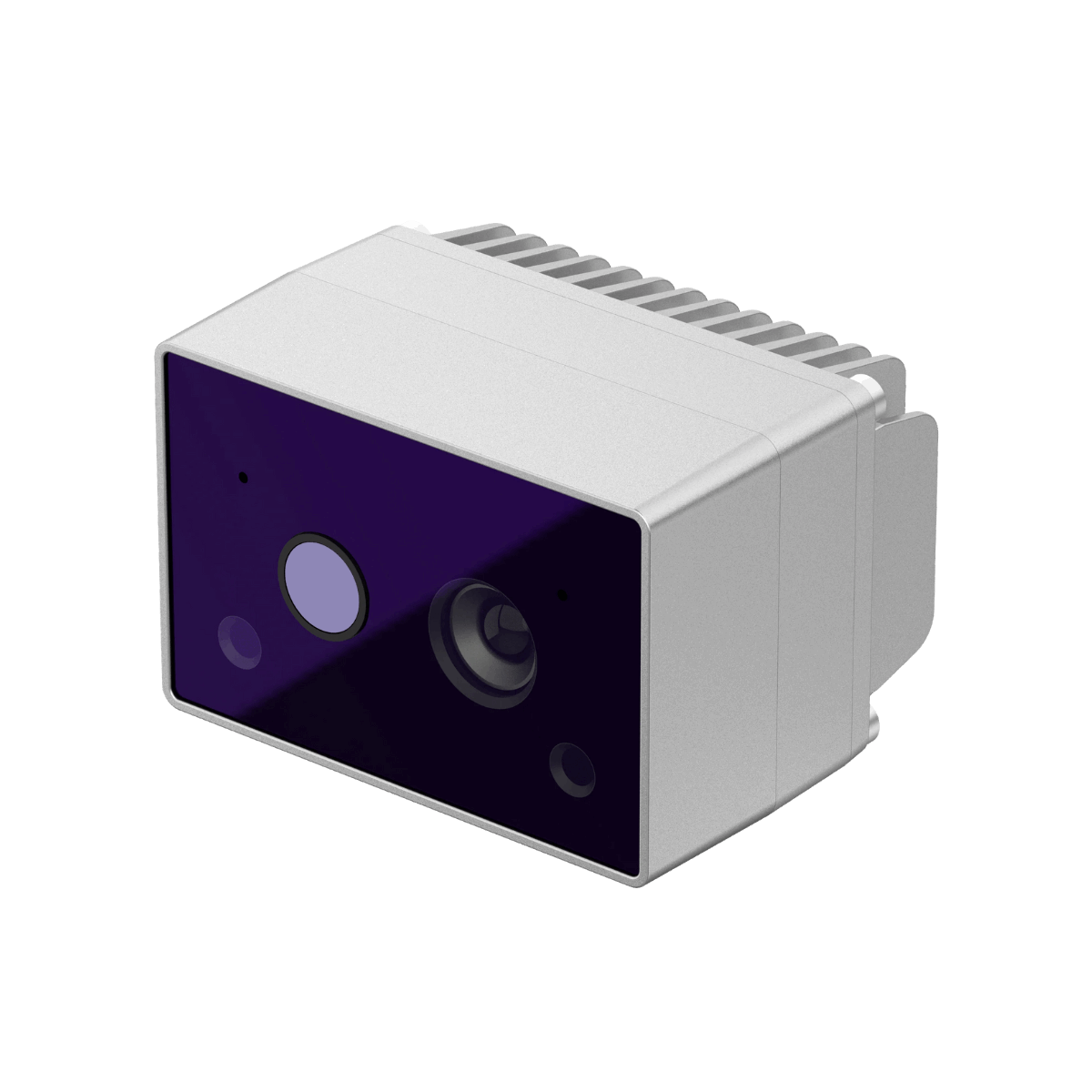

• OAK-T (OAK Thermal) product image

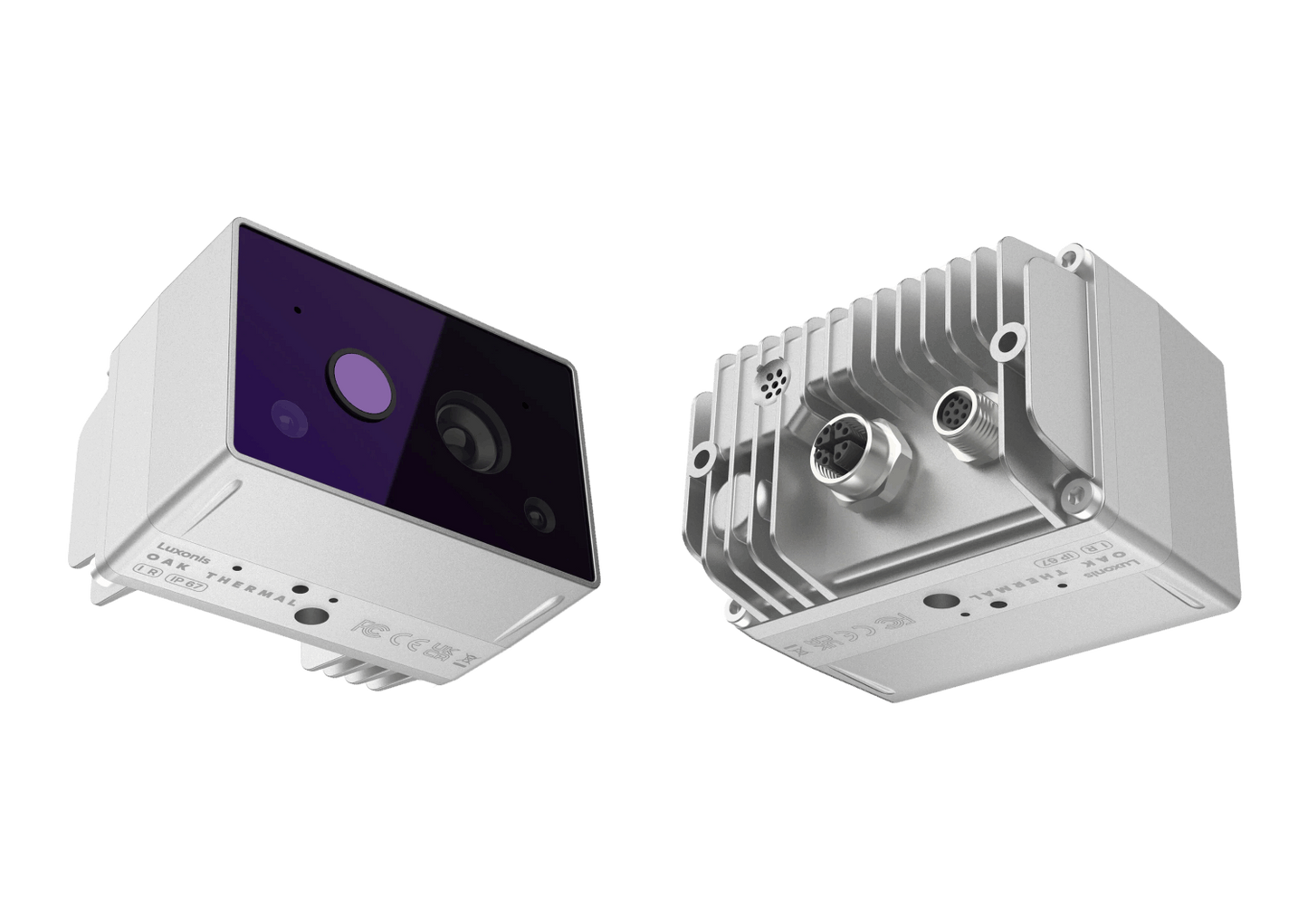

  • OAK-T product image front and back, displaying the I/O's

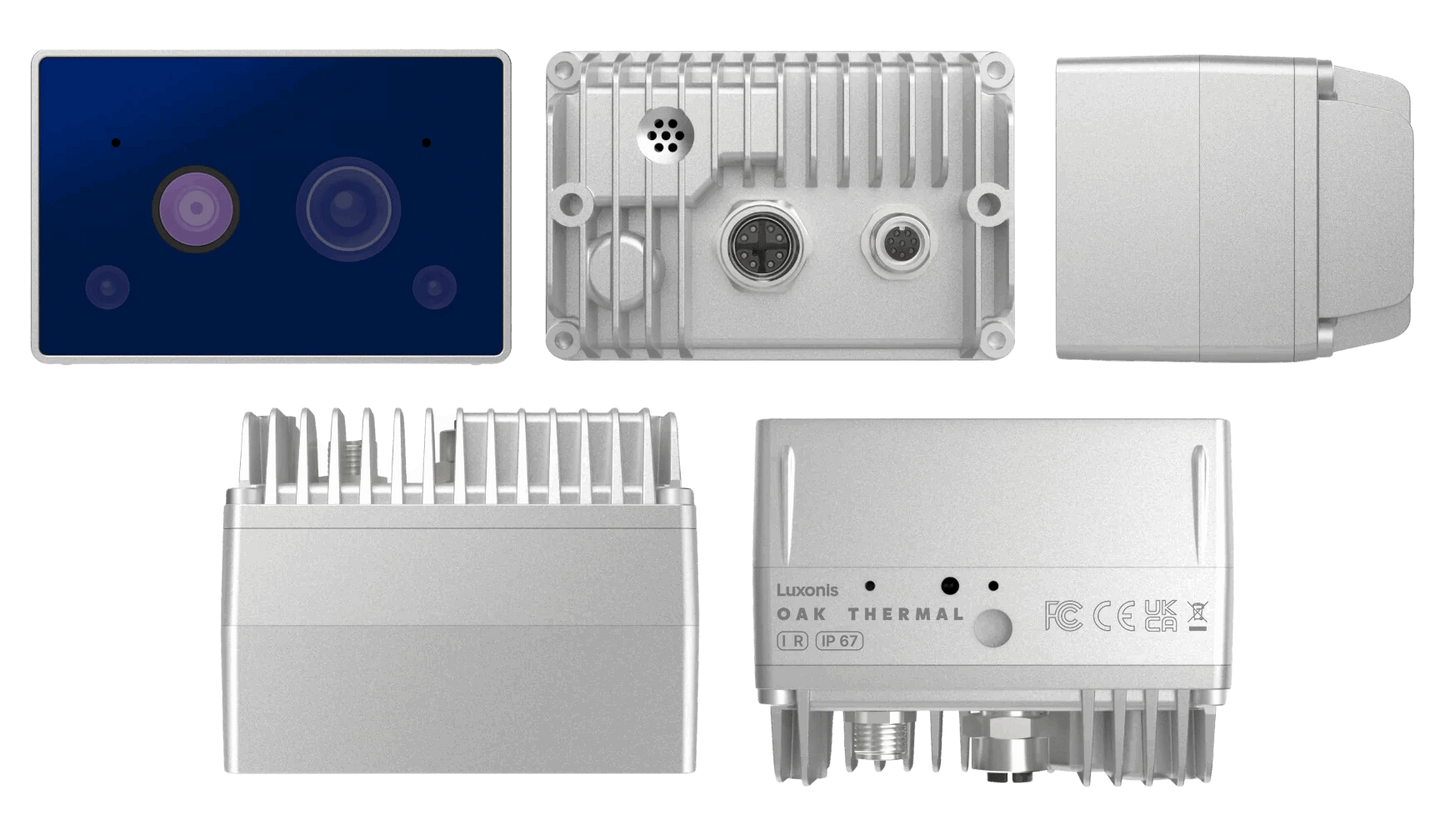

  • OAK-T viewed from all the visible angles
  • OAK Thermal sample image demonstration
1 5

Luxonis

OAK Thermal

SKU: OAK-T

£640.00 GBP
£640.00 GBP
Sale Sold out

Specification

OAK-T Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Introducing the OAK-T (OAK Thermal), Luxonis' first camera is equipped with a thermal and colour image sensor.

Through the fusion of thermal frames, colour frames, and AI models, an extensive array of applications can be created for use in a variety of different fields, such as:

  • Agriculture: Health crops, detection of irrigation issues, detection of pests, livestock health monitoring, etc.
  • Industrial: Detect overheating, detect leaks, detect fires, etc.
  • Security: Detect intruders (night vision), detect fires, etc.
  • Transportation: Detect pedestrians, vehicles, and bicycles for analytics and traffic optimisation.

By employing the OAK-SoM-Pro, the OAK Thermal is able to create an overall compact design. By incorporating the SoM, the design's dimensions are minimised, enabling a seamless and hassle-free installation or integration in any desired location. Additionally, the design is open-source, allowing for necessary adjustments to be made as needed.

Key Features

  • Connectivity: M12 PoE connector and M8 connector for IO connectivity
  • Thermal sensitivity: 50mK @ 25°C and 25Hz
  • Measurement range: -15°C - 150°C
  • Thermal Accuracy: ±2°C or ±2% (whichever is larger)
  • Sensor type: Uncooled VOx detector
  • Spectral range: 8-14µm
  • Operating temperature: -10°C - 75°C
  • IMU: BMI270
  • Dimension: 80x52x46mm
  • Weight: 297g (with enclosure)
Camera Specs
 Colour Thermal
Sensor
 IMX462 Tiny1-C
DFOV / HFOV / VFOV 95° / 84° / 45°
 111° / 90° / 65°
Resolution 2.1MP (1920x1080)
 256 x 192
Range/Focus 30cm - ∞ 30cm - ∞
Max Framerate 30 FPS 25 FPS
Pixel Size 2.9µm 12µm
F-number 1 ± 10% N/A
Effective Focal Length 3.9mm N/A
Lens Size 1/2.8" N/A

Thermal perception

The primary function of thermal cameras is to detect infrared radiation, which is emitted by objects in relation to their temperature. To effectively capture the infrared light emitted by the objects or scene being observed, a specialised lens capable of infrared (IR) detection is utilised. This lens is responsible for focusing the infrared light, which is then scanned by an array of infrared-detector elements ("pixels") in the camera.

Power consumption

The power consumption mainly depends on the workload of the chip, as the RVC2 consumes the majority of the power.

  • Base consumption + PoE circuitry + camera streaming: 3W - 3.5W
  • Thermal sensor: ≤1W
  • AI subsystem consumption: ≤1W
  • Stereo depth pipeline subsystem: ≤0.5W
  • Video Encoder subsystem: ≤0.5W

The overall power consumption can be ≤ ~ 6.5W when all the features are being used at 100% simultaneously. In order to decrease the power consumption, you have the option to lower the frames per second (FPS) of the entire pipeline. By doing so, the subsystems will not be fully utilised and will consume less power.

Package Includes

  • OAK-T camera
  • M12 plug to RJ45 cable, 2m
  • M8 plug male to male cable, 2m
  • Cleaning cloth
