OAK-FFC ToF 33D
SKU: OAK-FFC-ToF-33D
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Preorder now, available for early August 2023.

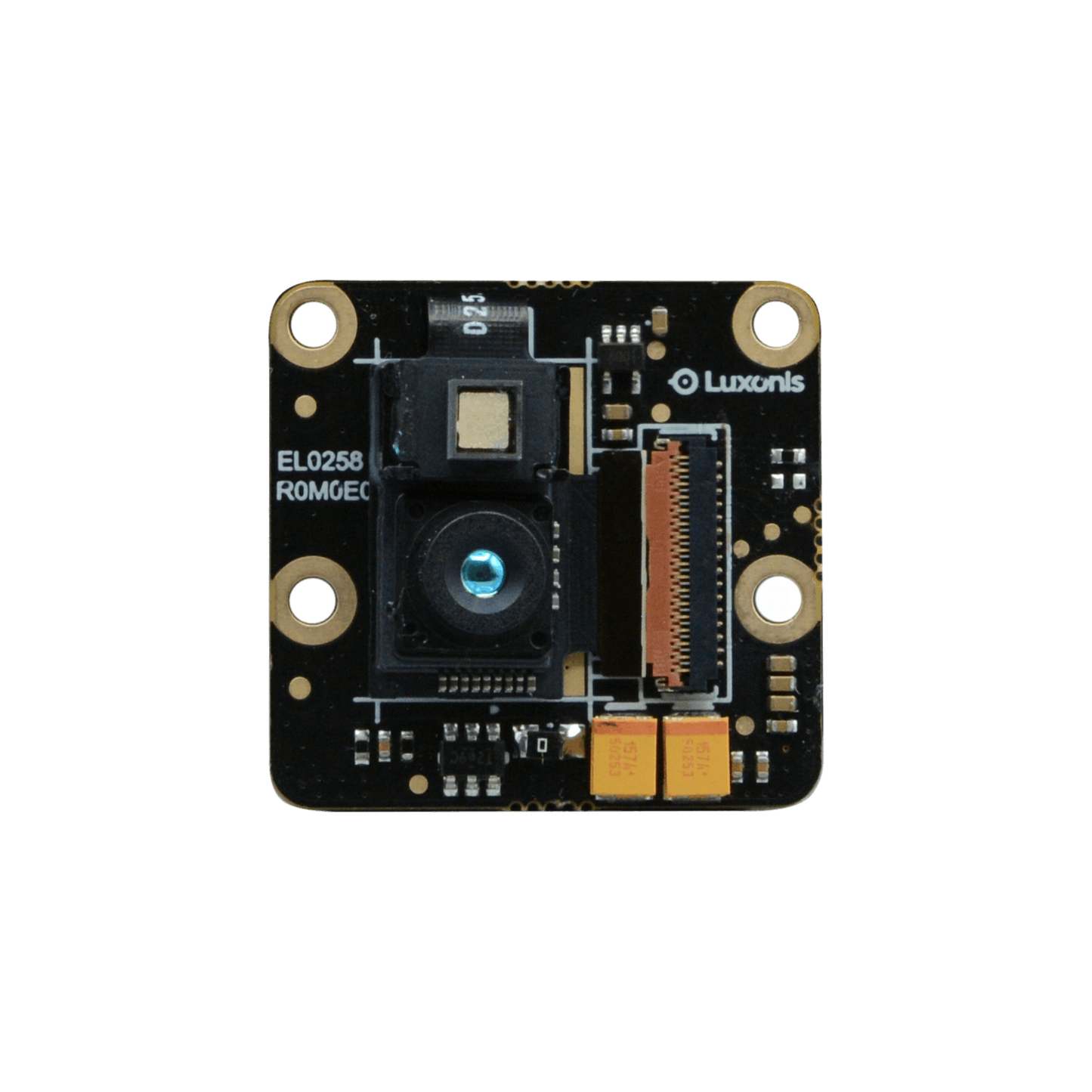

The OAK-FFC ToF 33D is a marvel of a carrier board specially created to accommodate a VGA resolution ToF (Time-of-Flight) sensor. It's designed for applications that demand high accuracy at short to medium ranges (up to 4 meters). 5V power, 4-lane MIPI, I2C, and other control signals are sent between this camera module and the controller baseboard through a 26-pin FFC.

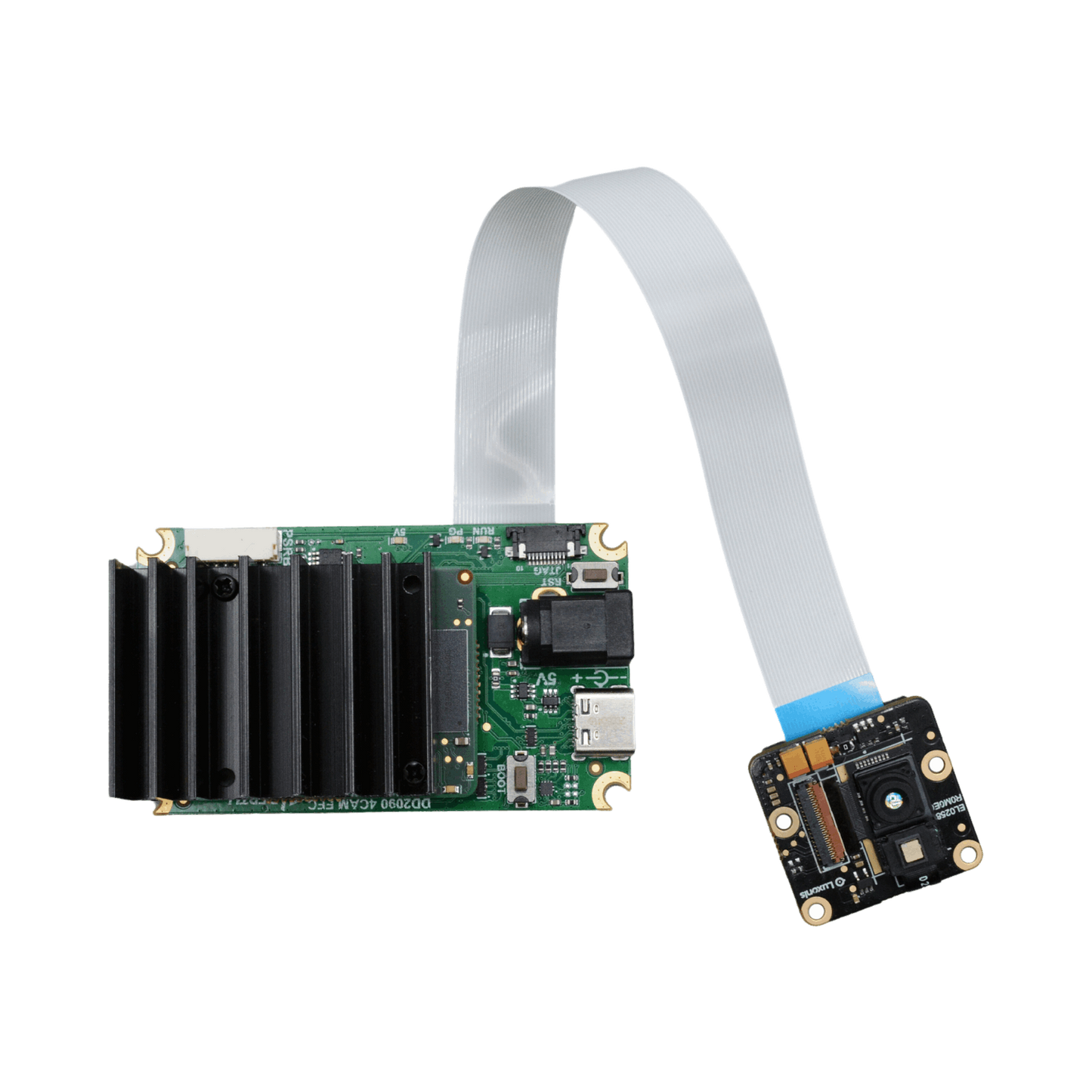

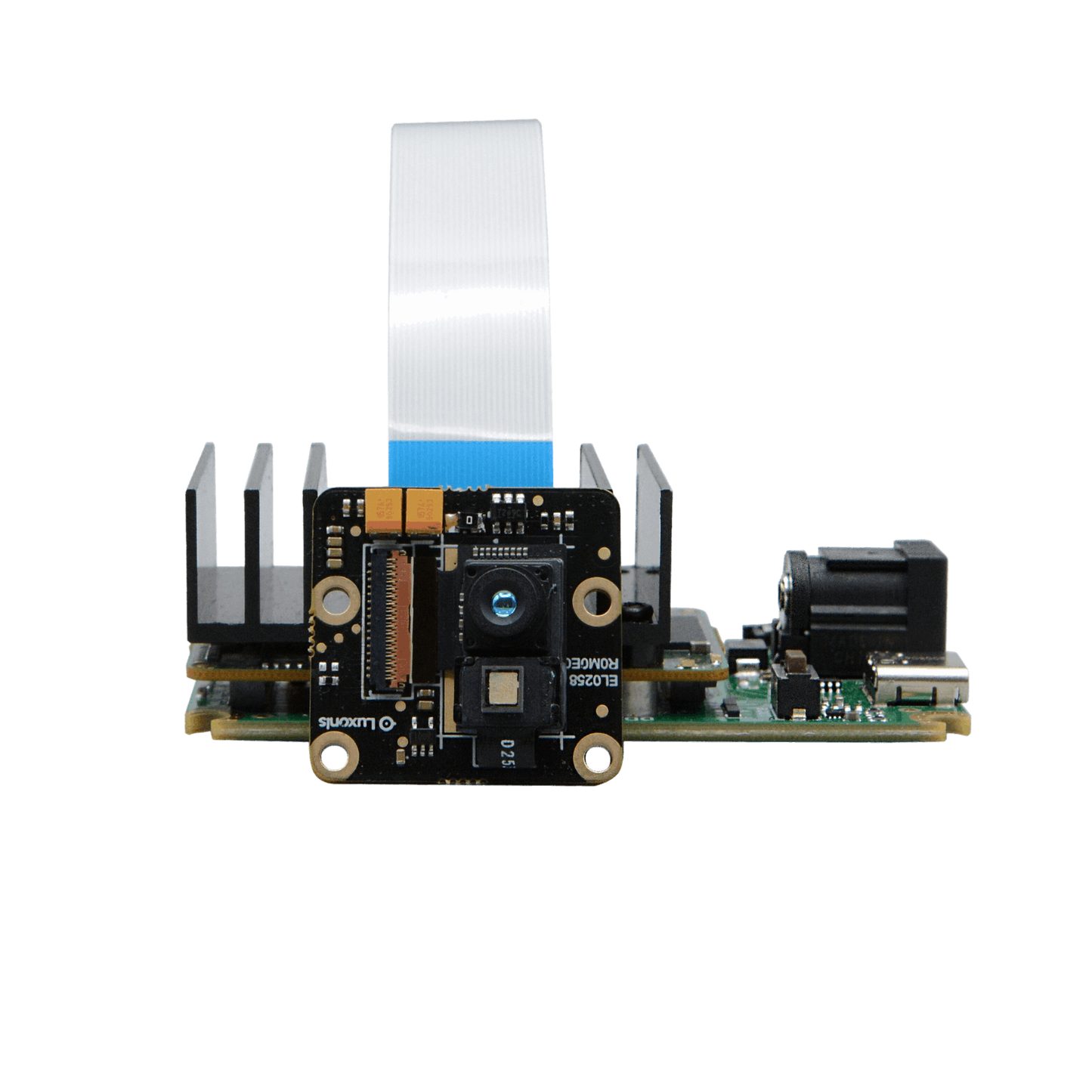

This OAK FFC module is compatible with any of the OAK FFC baseboards:
USB: OAK-FFC-3P, OAK-FFC-4P, OAK-FFC-6P
PoE: OAK-FFC-1P-PoE, OAK-FFC-4P-PoE
| Camera Specs | Stereo Pair / Colour | ToF |
|---|---|---|
| Sensor |
OV9782 (colour, PY074) | 33D ToF |
| Shutter | Global | N/A |
| DFOV / HFOV / VFOV |
89.5° / 80° / 55° | 82.3° / 70° / 54.7° |
| Resolution | 1MP (1280x800) | VGA (640x480) |
| Focus |
FF: 20cm - ∞ | 20cm - 5m |
| Max Framerate |
120 FPS (800P) | 30 FPS (VGA) |
| F-Number | 2.0 ±5% | 1.45 ± 5% |
|
Sensor Size |
1/4" | 1/3.2" |
| Distortion | < 1% | < 1.5% |
| Pixel Size | 3.0µm x 3.0µm | 7.0µm x 7.0µm |
