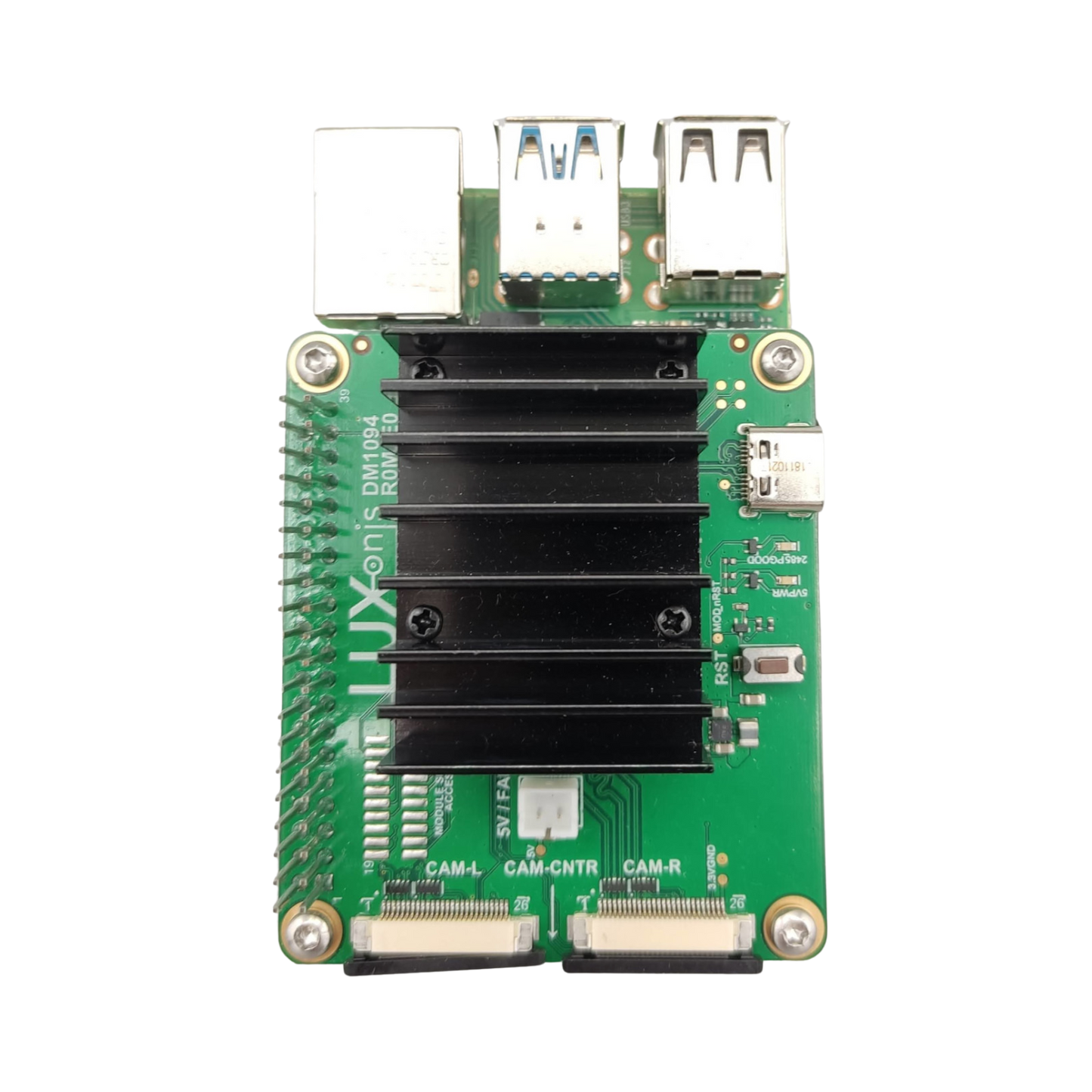

• OAK-FFC-RPi-Hat Close up image from above

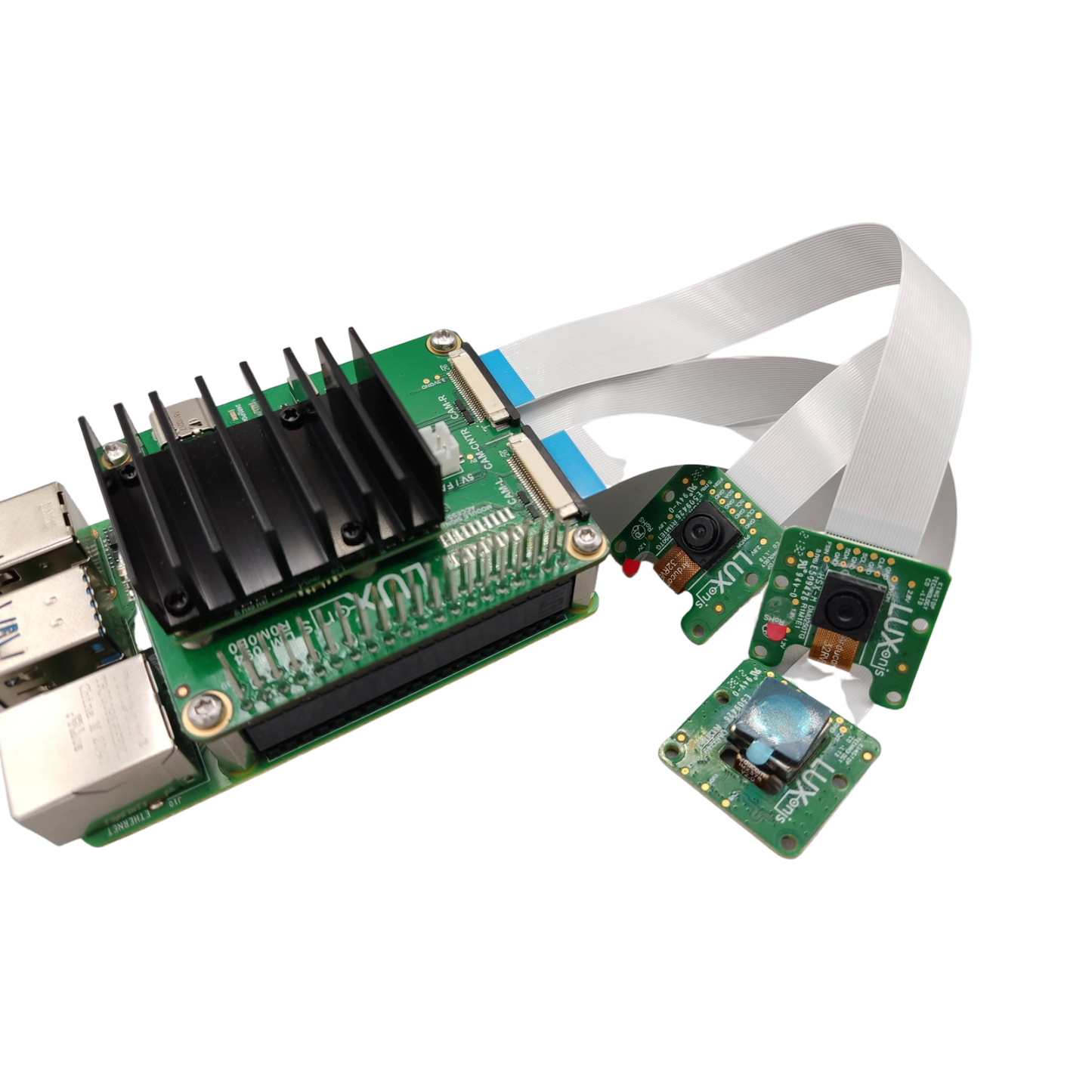

  • OAK-FFC-RPi-Hat Close up image from above with 3 cameras connected.

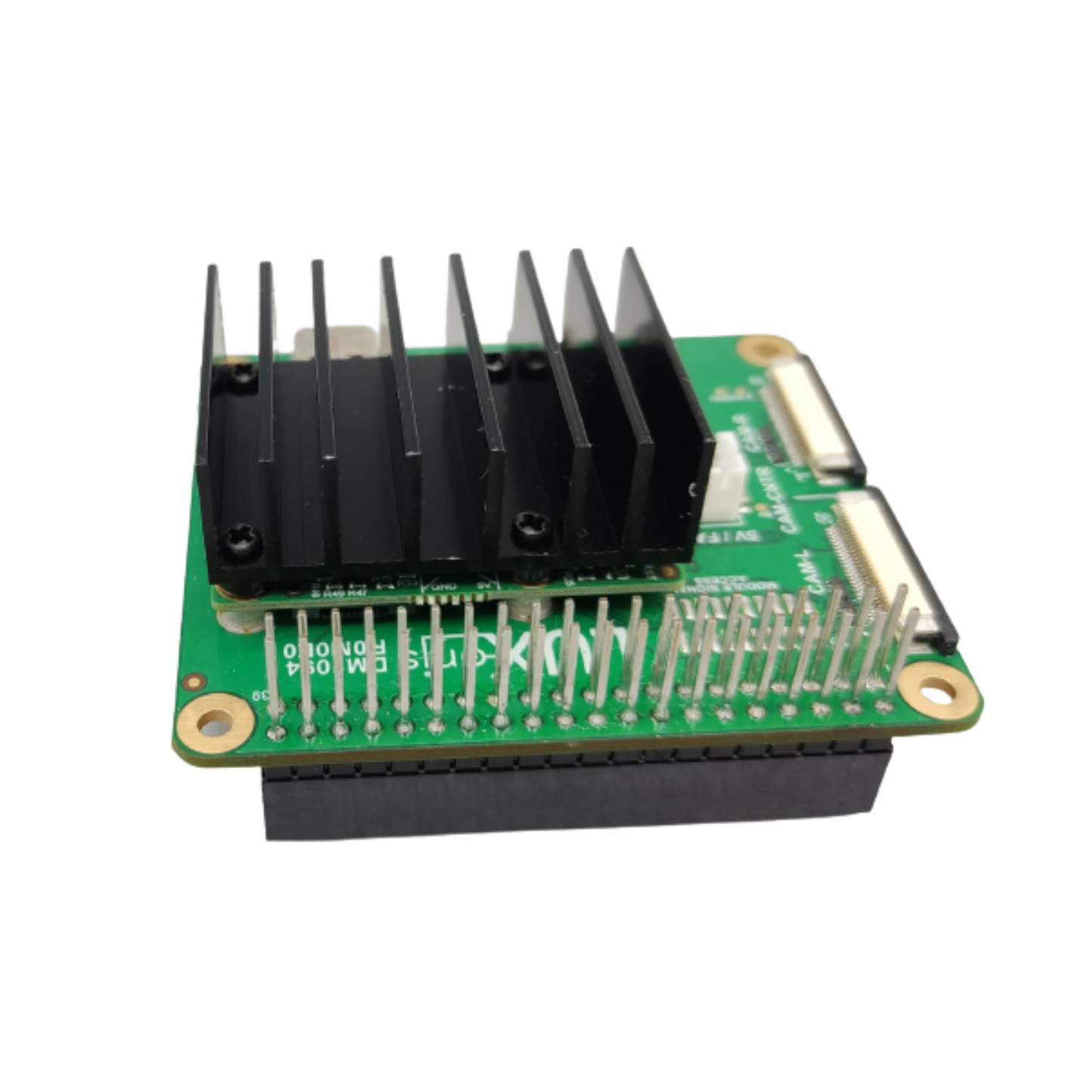

  • OAK-FFC-RPi-Hat image viewed from the side.
1 4

Luxonis

OAK-FFC RPi Hat

SKU: OAK-FFC-RPi-Hat

£213.00 GBP
£213.00 GBP
Sale Sold out

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Capable of displaying up to three FFC camera modules that best meet your project's requirements in terms of resolution, FPS, FOV, shutter type, and depth of focus can be connected to the OAK-FFC RPi Hat, a versatile and effective prototyping platform. Additionally, it offers computer vision and neural network inferencing capabilities on-device.

Key Features

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
  • Object tracking: 2D and 3D tracking with ObjectTracker node
