Luxonis

OAK-D W

SKU: OAK-D-W-IMX378

Sensor Type
Group 11 Contact Sales for Pricing

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

The second generation device comprises camera modules with a wider field of view, making it ideal for scenarios that demand coverage of expansive areas. This cutting-edge device is well-suited for various applications where a broad view is necessary to capture all the details.

Having a wide FOV enables you to capture a larger area in a single shot, which can be incredibly advantageous for various use cases such as:

  1. In multi-camera setups, a wide FOV can reduce the number of cameras required to cover the entire area.
  2. For Autonomous Mobile Robots (AMRs), a wide FOV is beneficial for covering a larger area and obtaining more features for localization and 3D mapping.
  3. Object tracking and counting applications can also benefit from a wide FOV, such as vehicles or people counting over a larger area.

Key Features:

  • 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
  • Run any AI model, even custom-architectured/built ones (models need to be converted)
  • Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
  • Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
  • Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
  • IMU (Either BMI270 6-axis or BNO086 9-axis sensor)
  • Object tracking: 2D and 3D tracking with ObjectTracker node
  • Dimensions: 97 x 29.5 x 22.9mm
  • Weight: 91g

Camera Specifications:


Central RGB Camera

Stereo Pair Cameras

Sensor

IMX378

OV9282

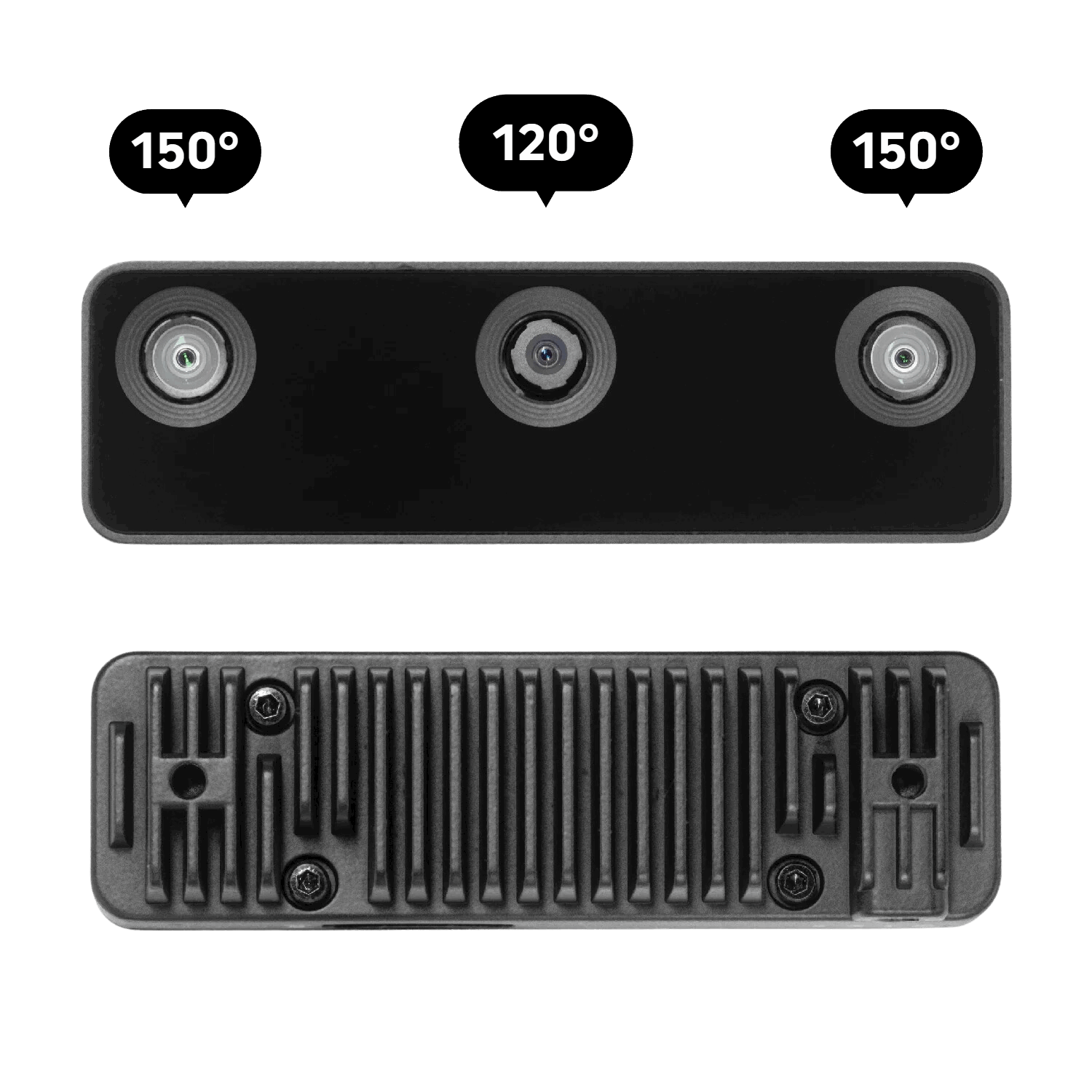

DFOV / HFOV / VFOV

120° / 95° / 70°

150° / 127° / 79.5°

Resolution

12MP (4032x3040)

1MP (1280x800)

Focus

FF: 60cm - ∞

FF: 18 cm - ∞

Max Framerate

60 FPS

120 FPS
