Integrating top-notch performance and budget-friendliness, this offering empowers users with the mighty capabilities of RVC2 core and DepthAI API, all in a wallet-friendly bundle. It earned the Best Camera Award from the AI and Vision Alliance in 2022.

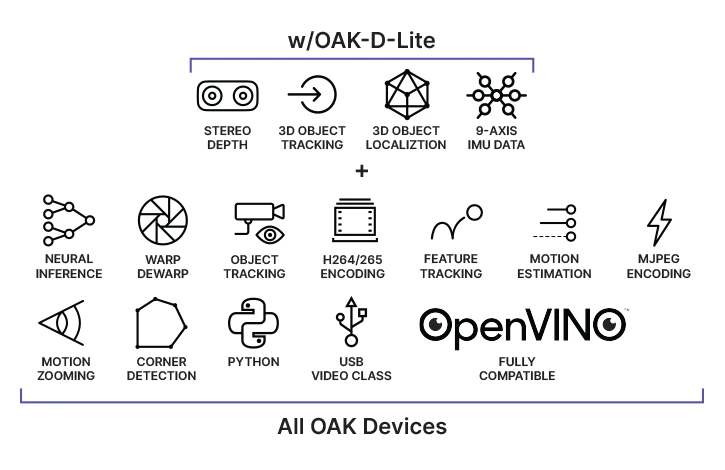

Key Features:
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- Run any AI model, even custom-architectured/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- Object tracking: 2D and 3D tracking with ObjectTracker node
- Dimensions: 91x28x17.5 mm
- Weight: 61g
Two variant options are available:
Auto-Focus - For capturing objects within the range of 8cm to 50cm from the device (refer to the video), it is advisable to utilise auto-focus cameras. However, if required, the DepthAI API can be employed to adjust the focus position to a specific setting manually.
Fixed-Focus - For applications that involve heavy vibrations, such as drones, lawnmowers, or vehicles (refer to the video), fixed-focus cameras are recommended to ensure optimal performance.
Central RGB Camera:
Auto-Focus |
Fixed-Focus |
|
Sensor |
IMX214 |
IMX214 |
DFOV / HFOV / VFOV |
81° / 69° / 54° |
81° / 69° / 54° |
Resolution |
13MP (4208x3120) |
13MP (4208x3120) |
Focus |
AF: 8cm - ∞ |
FF: 50cm - ∞ |
Max Framerate |
35 FPS |
35 FPS |
Stereo Pair Cameras:
Sensor |
OV7251 |
DFOV / HFOV / VFOV |
86° / 73° / 58° |
Resolution |
480P (640x480) |
Focus |
FF: 6.5cm - ∞ |
Max Framerate |
120 FPS |
