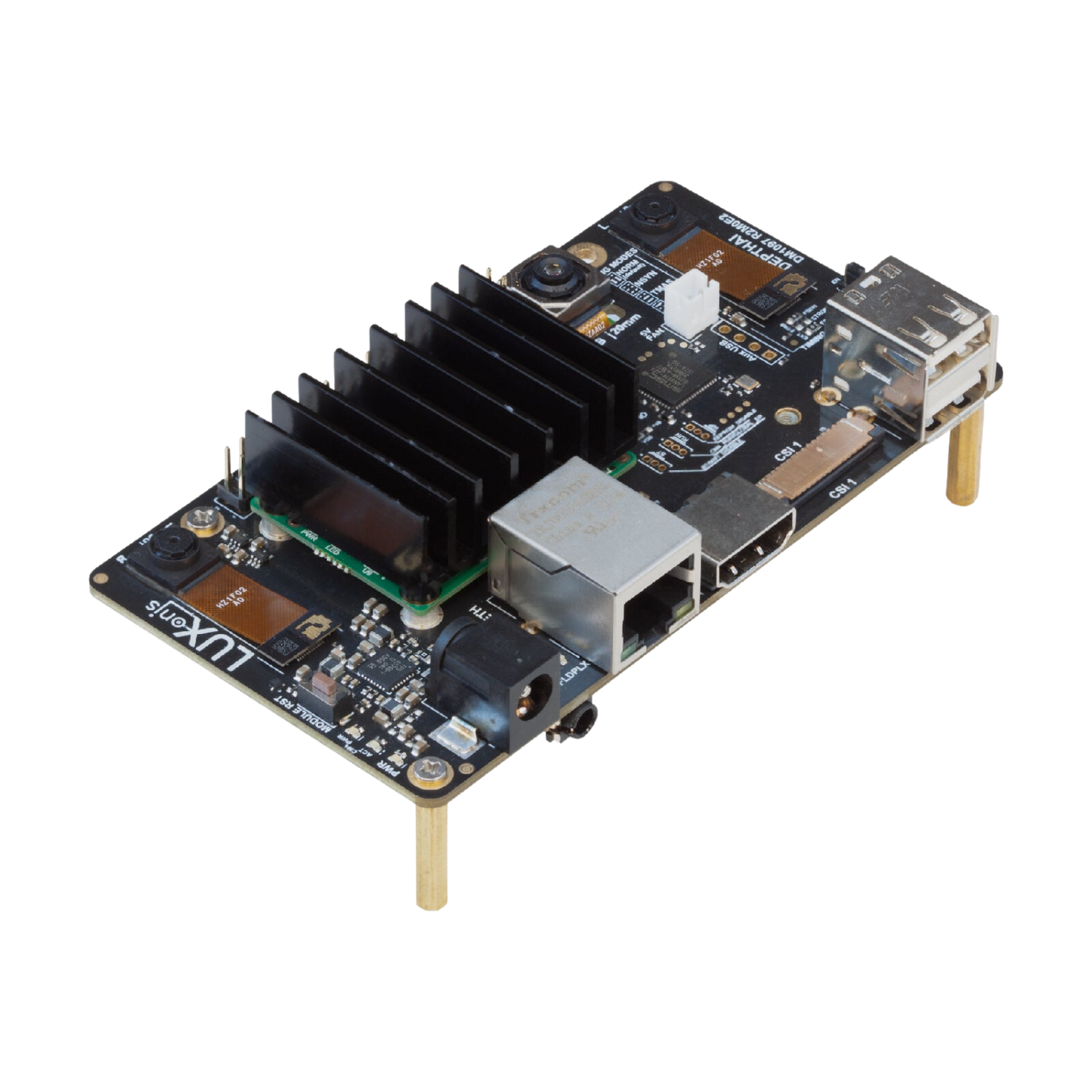

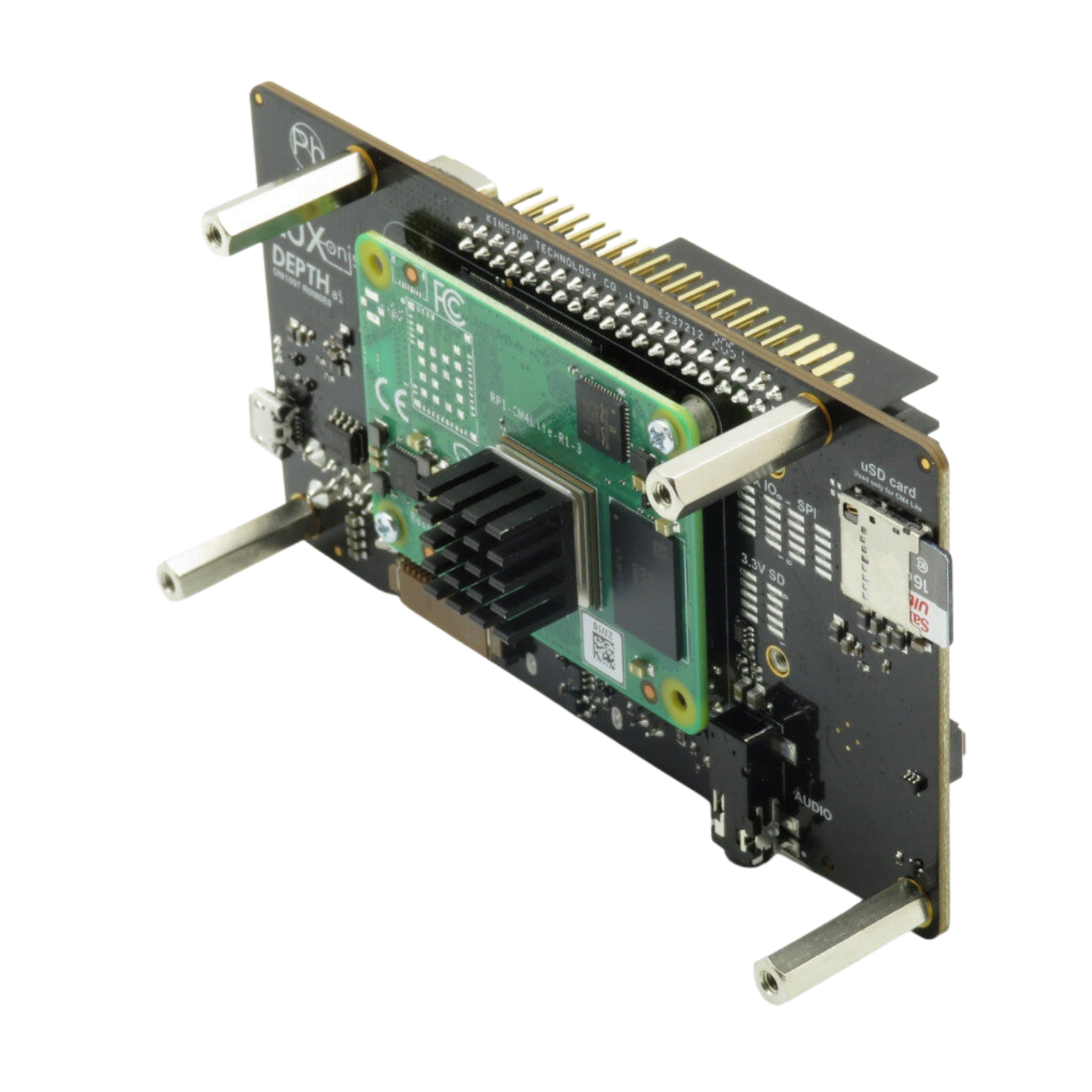

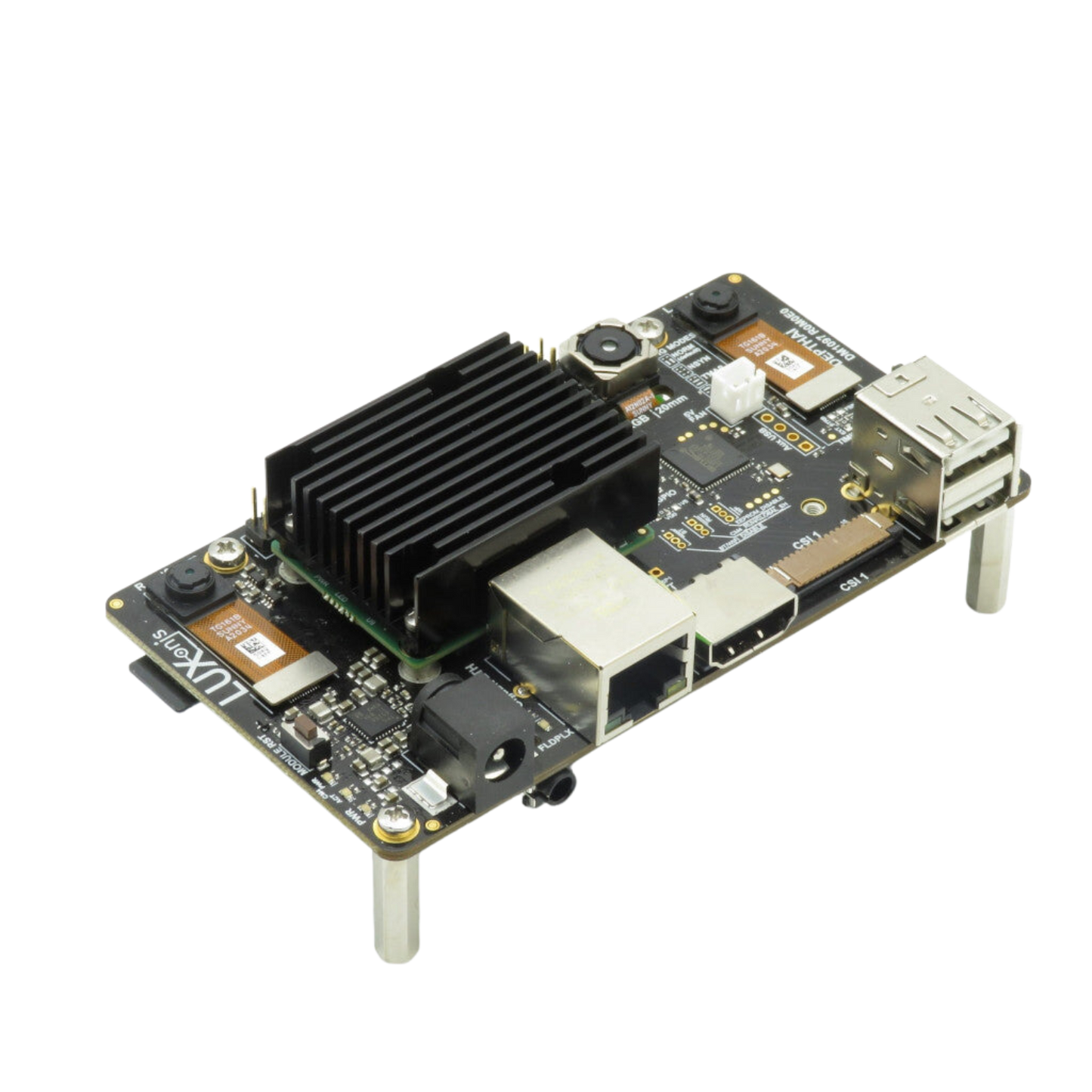

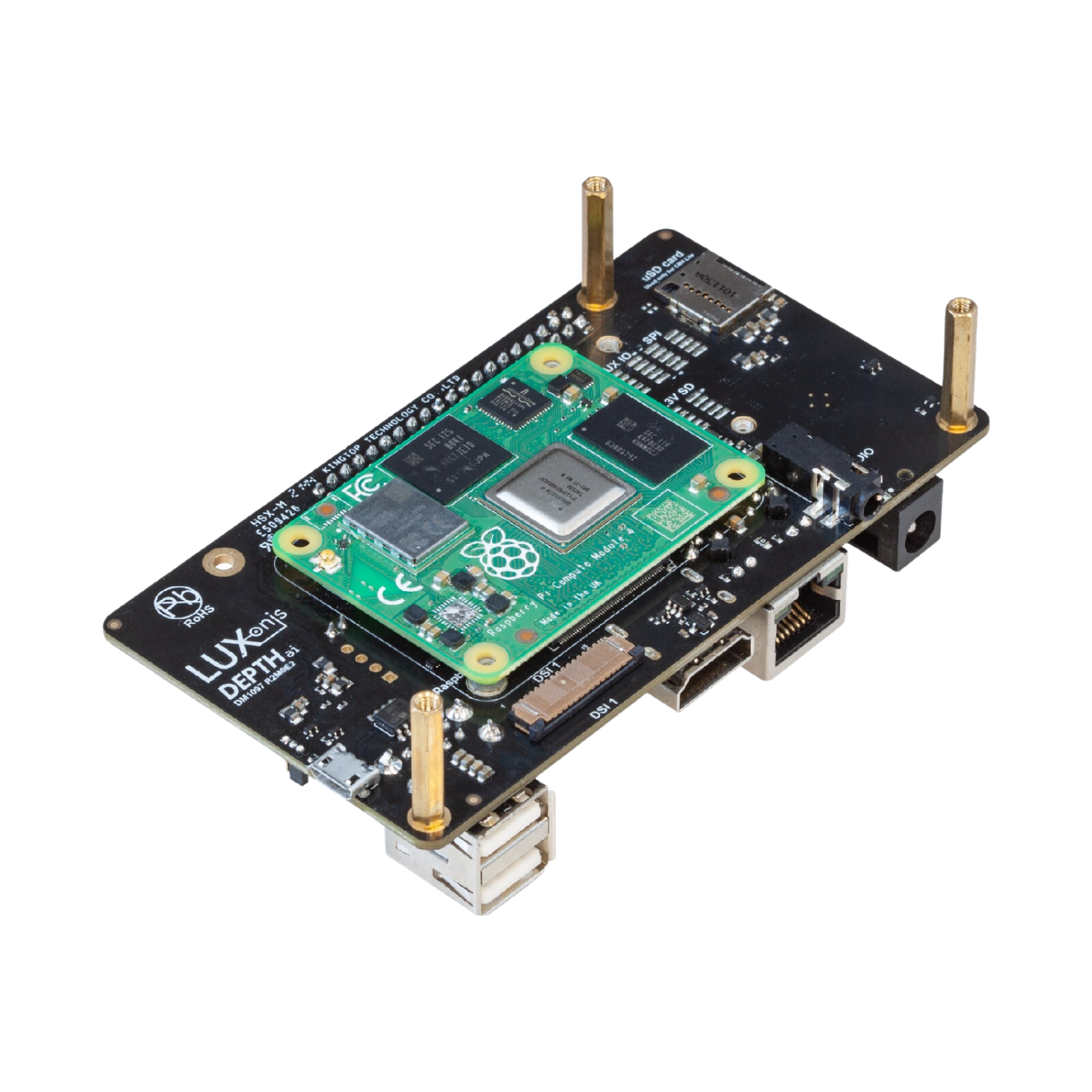

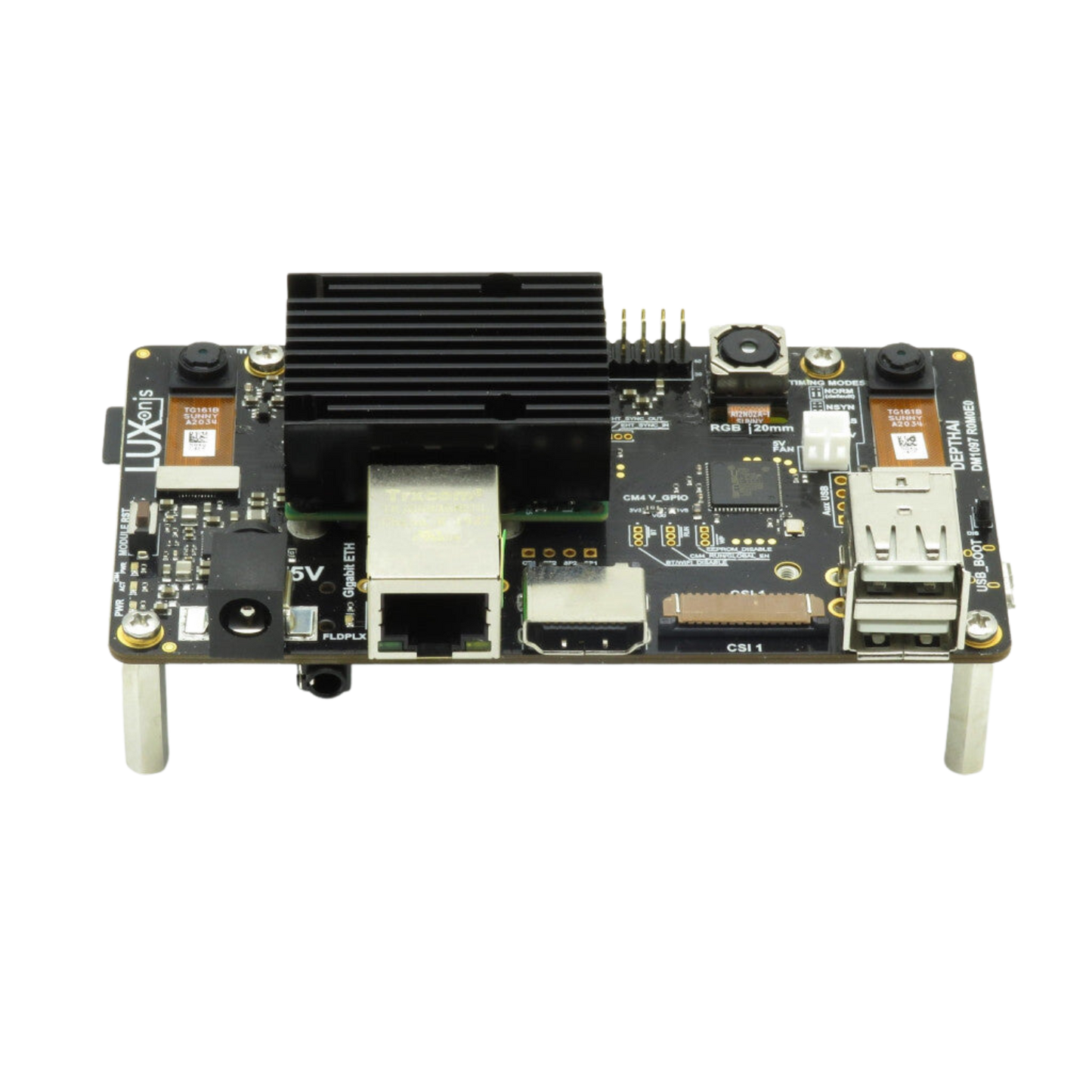

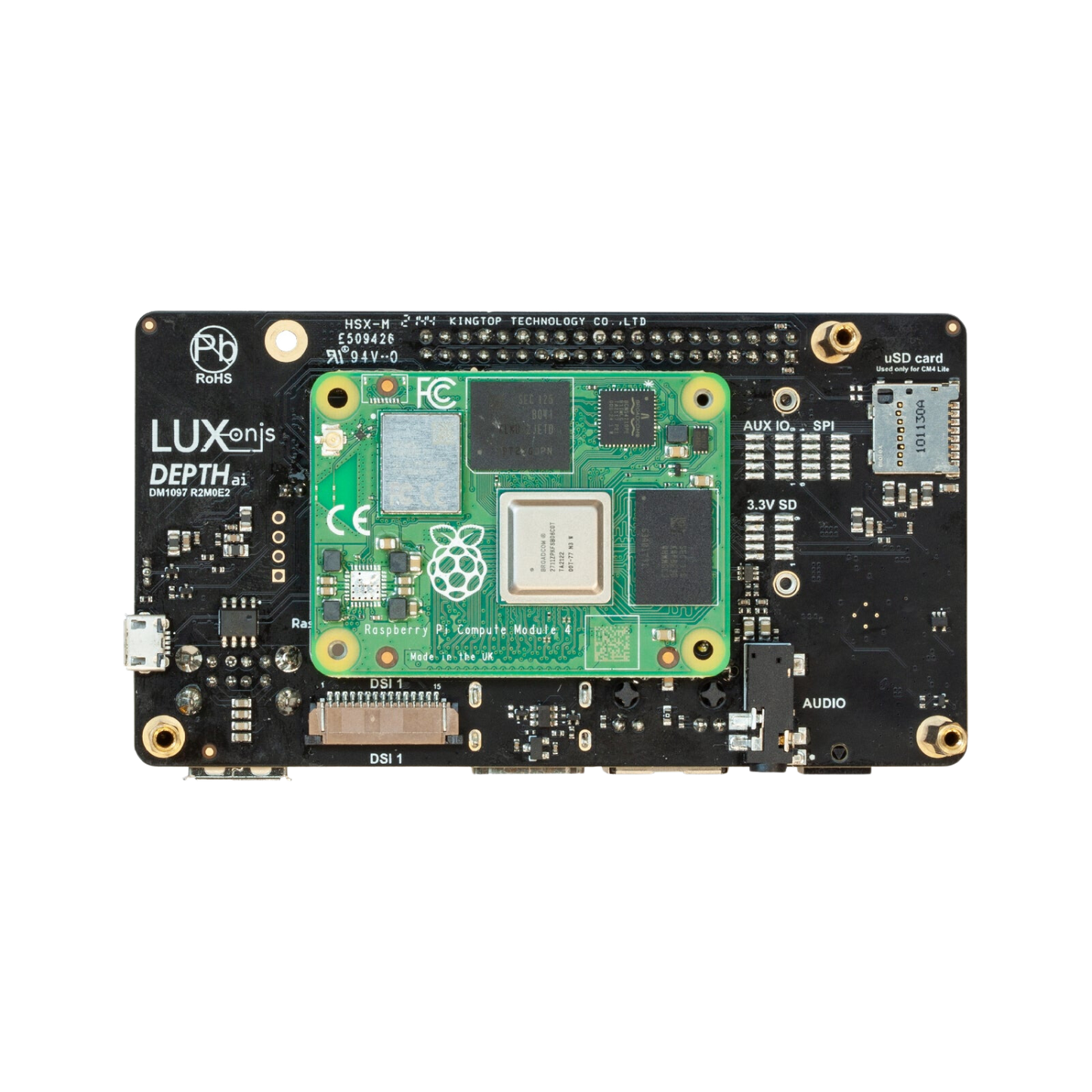

The OAK-D CM4 functions as a sophisticated host computer thanks to the powerful combination of OAK-D and the Raspberry Pi CM4 module. Its purpose is to assist developers with a robust platform for creating cutting-edge computer vision applications.
This camera is the ultimate solution for robotic vision, offering a human-like perception of the world through the combination of a stereo depth camera and a high-resolution colour camera. Its on-device neural network inferencing and computer vision capabilities further enhance its functionality and performance. An integrated Raspberry Pi CM4 acts as the host computer.
Key Features
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- CM4: Raspberry Pi acts as a host computer, which you can access via SSH/VNC. CM4 connects to the OAK-SOM, see OAK & RPi documentation for additional information.
- Run any AI model, even custom architectured/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- Object tracking: 2D and 3D tracking with ObjectTracker node
- Dimension: 110x60x27mm
- Weight: 106g
| Camera Specs | Colour Camera | Stereo Pair |
|---|---|---|
| Sensor |
IMX378 (PY004 AF, PY052 FF) | OV9282 (PY003) |
| Shutter | Rolling | Global |
| DFOV / HFOV / VFOV |
81° / 69° / 55° | 89° / 80° / 55° |
| Resolution | 12MP (4056x3040) | 1MP (1280x800) |
| Focus |
AF: 8cm - ∞, FF: 50cm - ∞ | FF: 19.6cm - ∞ |
| Max Framerate |
60 FPS | 120 FPS |
| F-Number | 1.8 ±5% | 2.0 ±5% |
|
Sensor Size |
1/2.3" | 1/4" |
| Distortion | < 1% AF, < 1.5% FF | < 1% |
| Pixel Size | 1.55µm x 1.55µm | 3.0µm x 3.0µm |
