Luxonis
OAK-1 Lite W
SKU: OAK-1-Lite-W
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

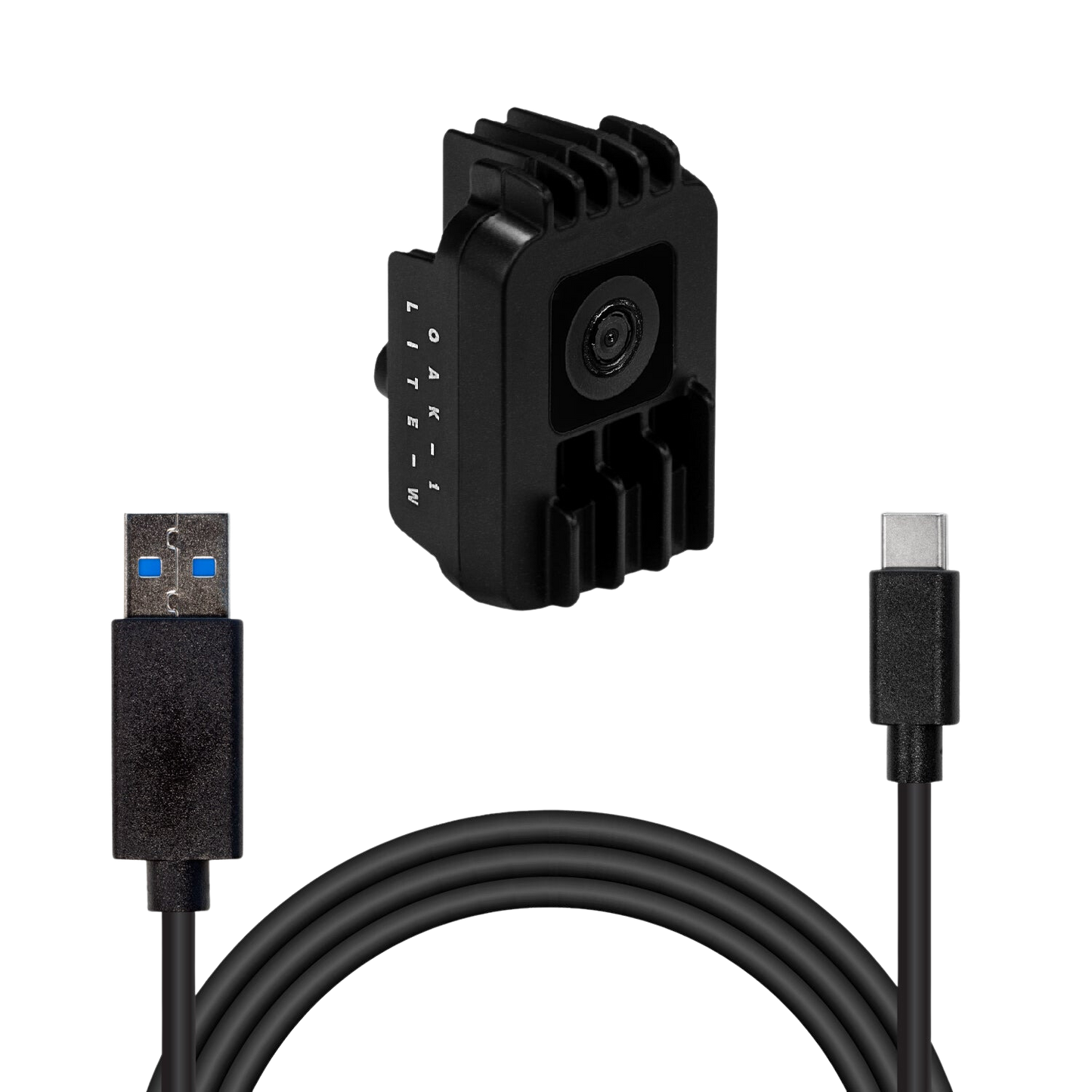

The 13MP camera module that was designed as a lightweight version of the OAK-1. It is an AI camera with built-in computer vision and neural network inferencing capabilities. It can take high-resolution pictures, run personalised AI models, and carry out complex computer vision operations. The USB-C provides both power and USB3 connectivity.
This version of the OAK-1 Series is unique in comparison to its original design due to its wide FOV that enables you to capture a larger area in a singular shot, which is specifically useful for:
-
Multi-camera setup to cut down on the number of cameras required to cover the area fully
- AMRs to obtain more features for localisation and 3D mapping, as well as to cover a bigger area
- Object tracking/counting, for example, counting people over a large vicinity or tracking vehicles
Key Features:
-
4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
-
Run any AI model, even custom-architectured/built ones (models need to be converted)
-
Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
-
Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
-
Object tracking: 2D tracking with ObjectTracker node
- USB2 / USB3 for power delivery and communication
- Dimension: 36x54.5x27.8 mm
- Weight: 53.1g
Looking for a camera with depth-sensing capabilities? View our full range of 3D Cameras.
Camera Module Specifications
Camera Specs |
Colour Camera |
---|---|
Sensor |
IMX214 (PY061) |
Shutter | Rolling |
DFOV / HFOV / VFOV |
117°/105°/88° |
Resolution | 13MP (4208x3120) |
Focus | Fixed-Focus: 50cm - ∞ |
Max Framerate | 35 FPS |
F Number | 2.2 ±5% |
Sensor Size |
1/3.1" |
Effective Focal Length | 2.62mm |
Distortion | < 11% |
Pixel Size | 1.12µm x 1.12µm |
