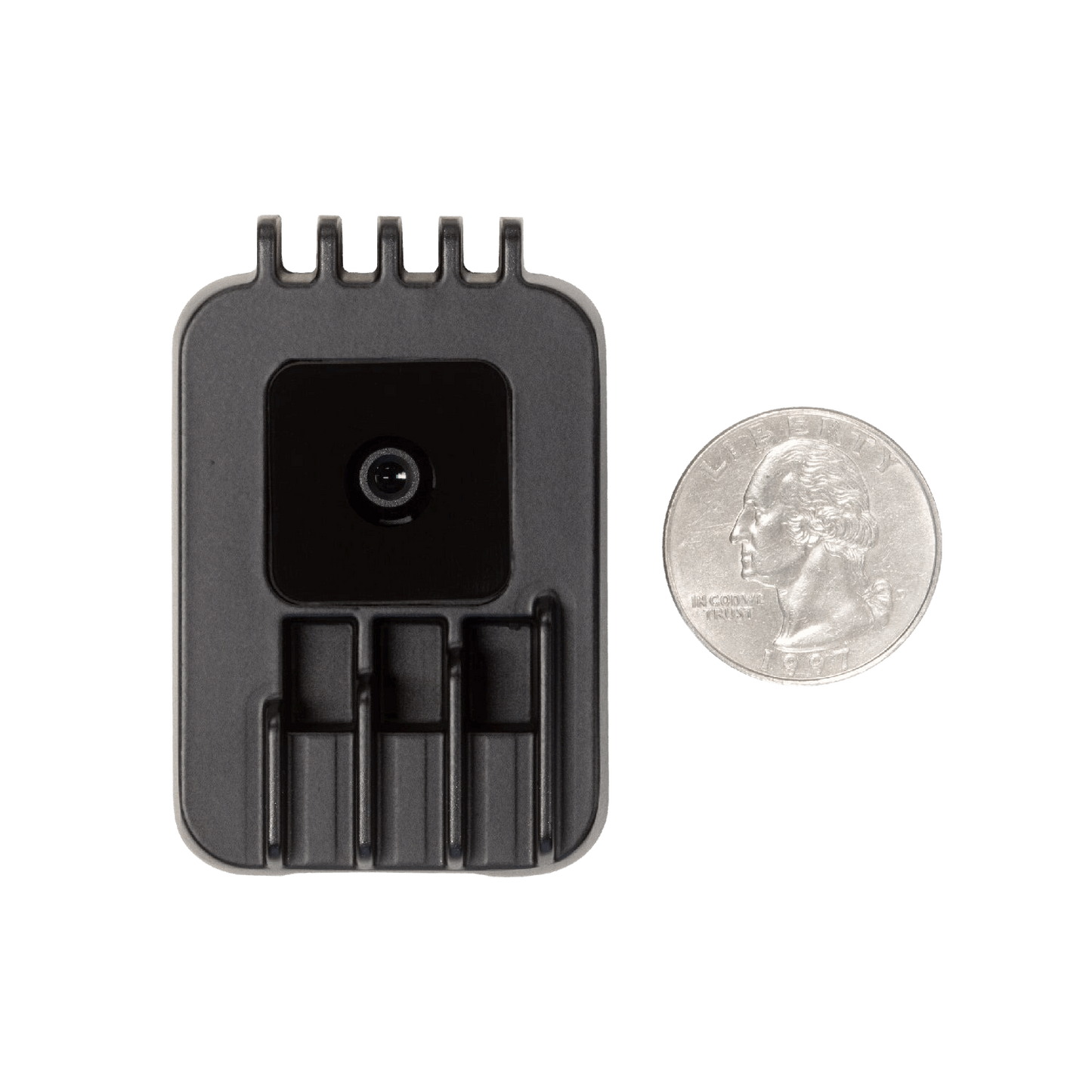

A 13MP camera module which was designed as a lightweight version of the OAK-1. It is an AI camera with built-in computer vision and neural network inferencing capabilities. It can take high-resolution pictures, run personalised AI models, and carry out complex computer vision operations. Both power and USB3 connectivity are provided by USB-C.
Key Features:
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- Run any AI model, even custom architectured/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG - 4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- Object tracking: 2D tracking with ObjectTracker node
- Dimension: 36x54.5x27.8 mm
- Weight: 53.1g
Looking for a camera with depth-sensing capabilities? View our full range of 3D Cameras.
Two variant options are available:
Auto-Focus - For capturing objects within the range of 8cm to 50cm from the device (refer to the video), it is advisable to utilise auto-focus cameras. However, if required, the DepthAI API can be employed to adjust the focus position to a specific setting manually.
Fixed-Focus - For applications that involve heavy vibrations, such as drones, lawnmowers, or vehicles (refer to the video), fixed-focus cameras are recommended to ensure optimal performance.
Auto-Focus |
Fixed-Focus |
|
---|---|---|
Sensor |
IMX214 |
IMX214 |
DFOV / HFOV / VFOV |
81° / 69° / 54° | 81° / 69° / 54° |
Resolution | 13MP (4208x3120) |
13MP (4208x3120) |
Focus |
AF: 8cm - ∞ | FF: 50cm - ∞ |
Max Framerate |
60 FPS | 60 FPS |
