Mech-Mind
Mech-Eye 3D Laser Profiler
SKU: Mech-Eye LNX-8030
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Pricing is not available. Please contact us if you would like to purchase via live chat or use our contact page to find out more.

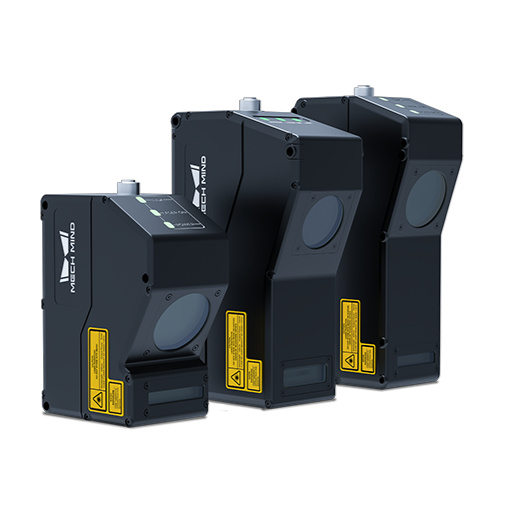

The Mech-Eye LNX-8000 series, Mech-Mind's leading 3D laser profiler, boasts a 4K resolution and an exceptionally high scan rate of up to 15kHz*, providing rapid and precise 3D data capture for small-scale features and defects. Tailored for industrial measurement and inspection purposes in the consumer electronics, electric vehicle (EV) battery, and automotive sectors.
IP67 Protection Rating
The LNX-8000 series contains a ruggedised enclosure with an IP67 protection rating designed to endure challenging industrial conditions encompassing dust, vibration, humidity, elevated temperatures, and more.
Single-Shot HDR
The single-shot HDR capability allows for scanning surfaces with varying reflectivity levels, encompassing both dark (low reflectivity) and reflective (high reflectivity) surfaces within a single exposure.
| Model | Mech-Eye LNX-8030 | Mech-Eye LNX-8080 | Mech-Eye LNX-8300 | |
| Data Points/Profile | 4096 | |||
| Scan Rate | 3.3–15 kHz | |||
| Reference Distance (RD) | 78 mm |
250 mm | 325 mm | |
| Measurement Range Z | 30 mm |
100 mm | 305 mm | |
| Measurement Range X | Near | 33 mm | 76 mm |
230 mm |
| RD | 35 mm | 89 mm | 310 mm |
|
| Far | 37 mm | 96 mm | 430 mm | |
| Resolution X | 9 µm | 23.5 µm | 105 µm | |
| Repeatability Z | 0.2 µm | 0.5 µm | 2 µm | |
| Linearity Z | ±0.02% of F.S. | |||
| Weight | Approx. 0.9 kg | Approx. 1.2 kg | Approx. 1.2 kg | |
| Dimensions | Approx. 133 × 61 × 102 mm | Approx. 182 × 63 × 112 mm | Approx. 195 × 61 × 109 mm | |
| Laser | Blue (405 nm, Class 2) | Blue (405 nm, Class 2M) | ||
| Lens Inclination |
30° |
22° | 19° | |
| Input Voltage | 24V DC |
|||
| Max. Input Power | 48W (25W for sensor head) | |||
| Communication Interface | Gigabit Ethernet | |||
| Encoder Input | Single-ended and differential encoders supported | |||
| Operating Temperature |
0–45℃ | |||
| Safety and EMC | CE/FCC/VCCI/KC/ISED/NRTL | |||
| IP Rating | IP67 | |||
| Cooling | passive | |||
