Scorpion Vision

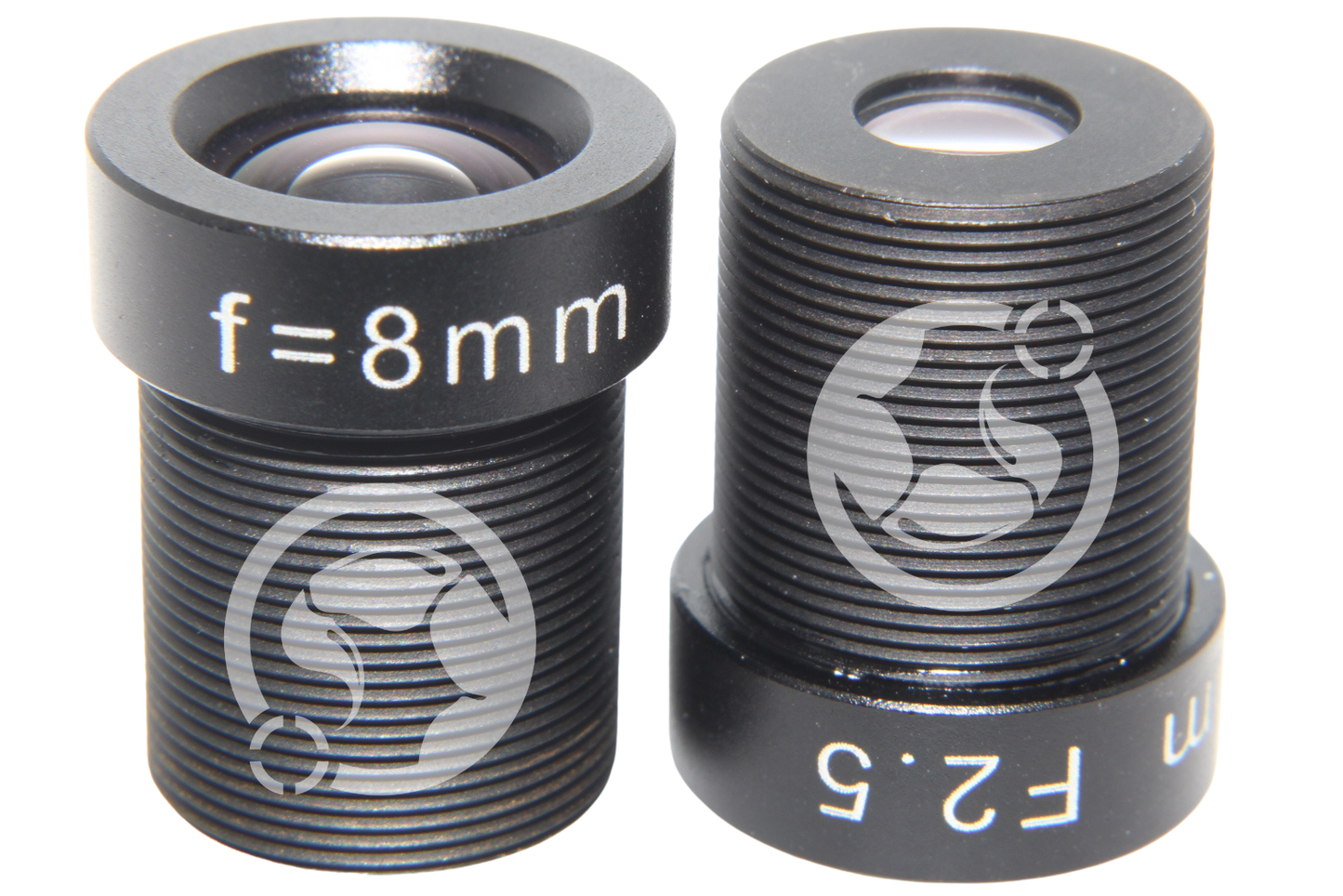

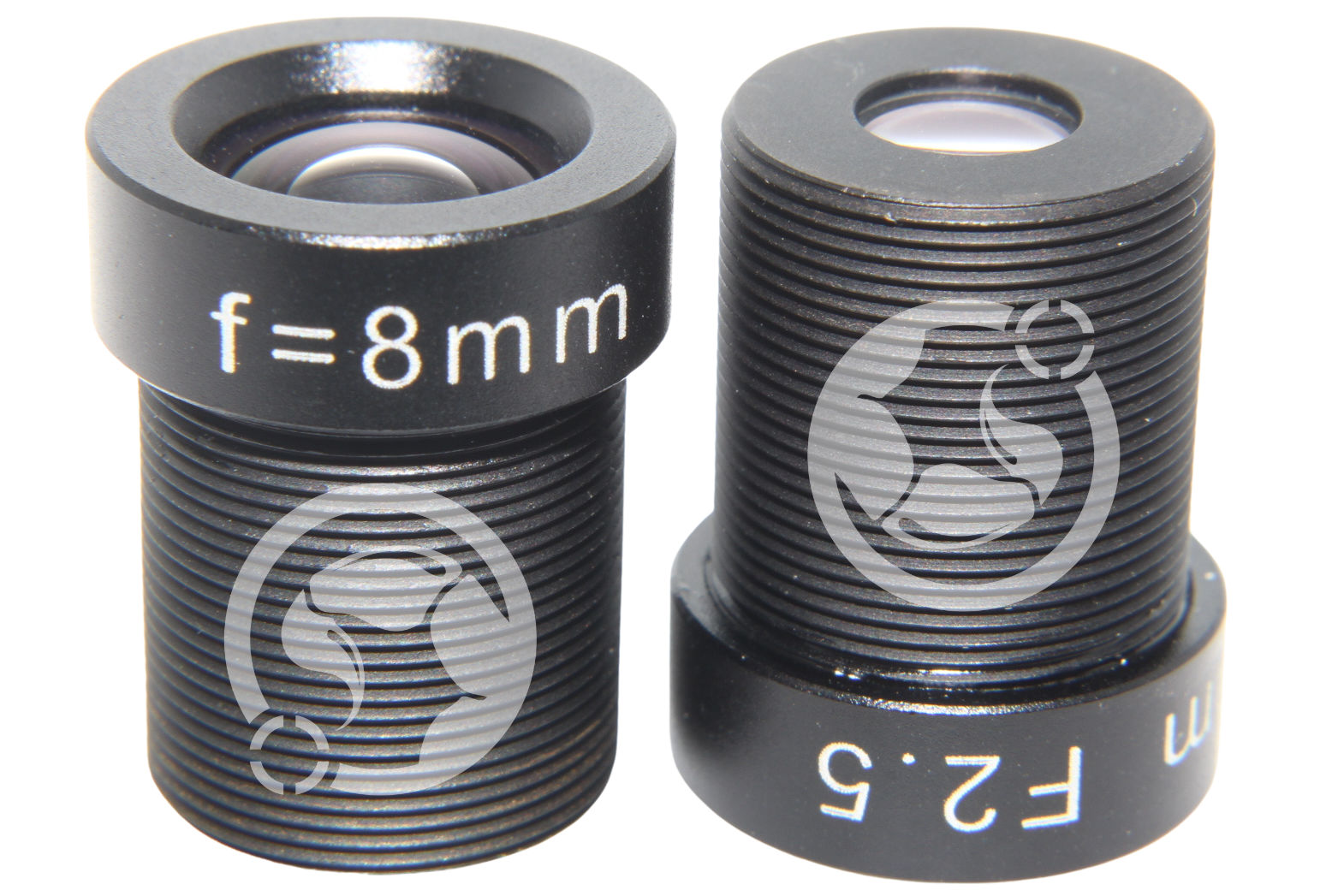

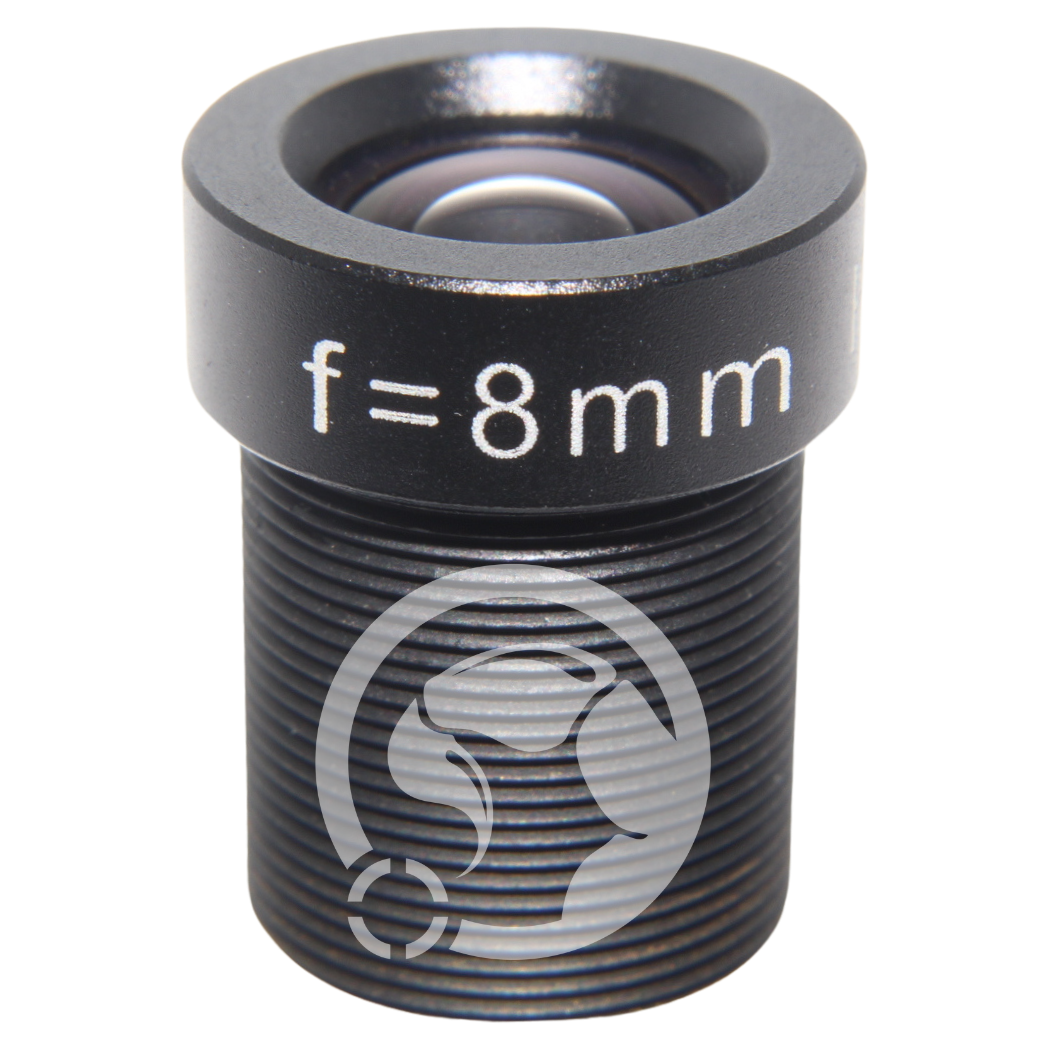

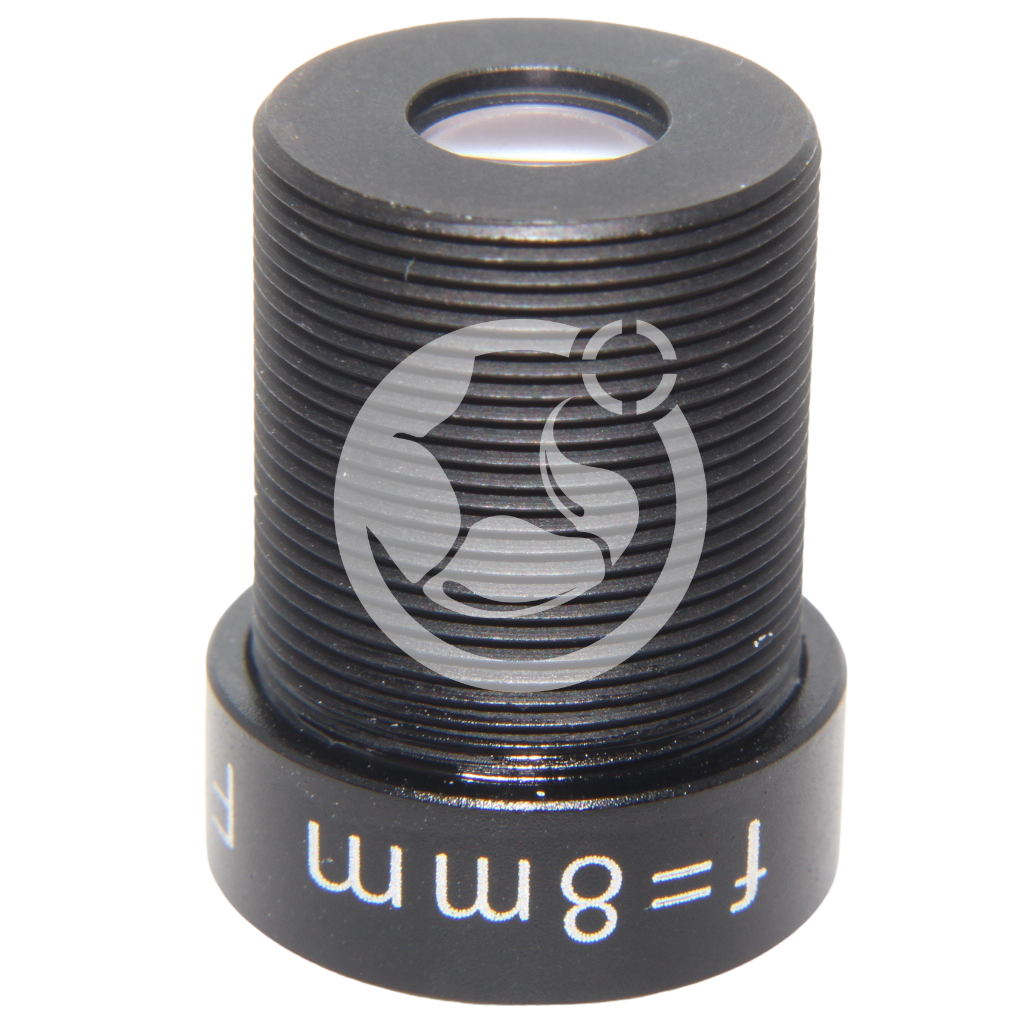

M12 Lens 8mm F2.5

SKU: SVL-0825MAC

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 8mm
  • F Number: F2.5
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Filter Size: n/a
  • Megapixel: 3MP
  • Horizontal Field of View: 48.7 Degrees
  • Distortion: <-0.25%
  • Back Focus: 7.91mm - 7.39mm
  • Working distance: 0.1 ~ 0.5m
  • Design Wavelength: 400-950nm

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 24mm from the lens. This is the minimum distance that this lens will focus.


In this next image, the sugar cube was 58mm from the lens.

The sugar cube measures 16mm x 14mm.


In this sample image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
This lens has a medium focal length and minimal distortion.
