Scorpion Vision

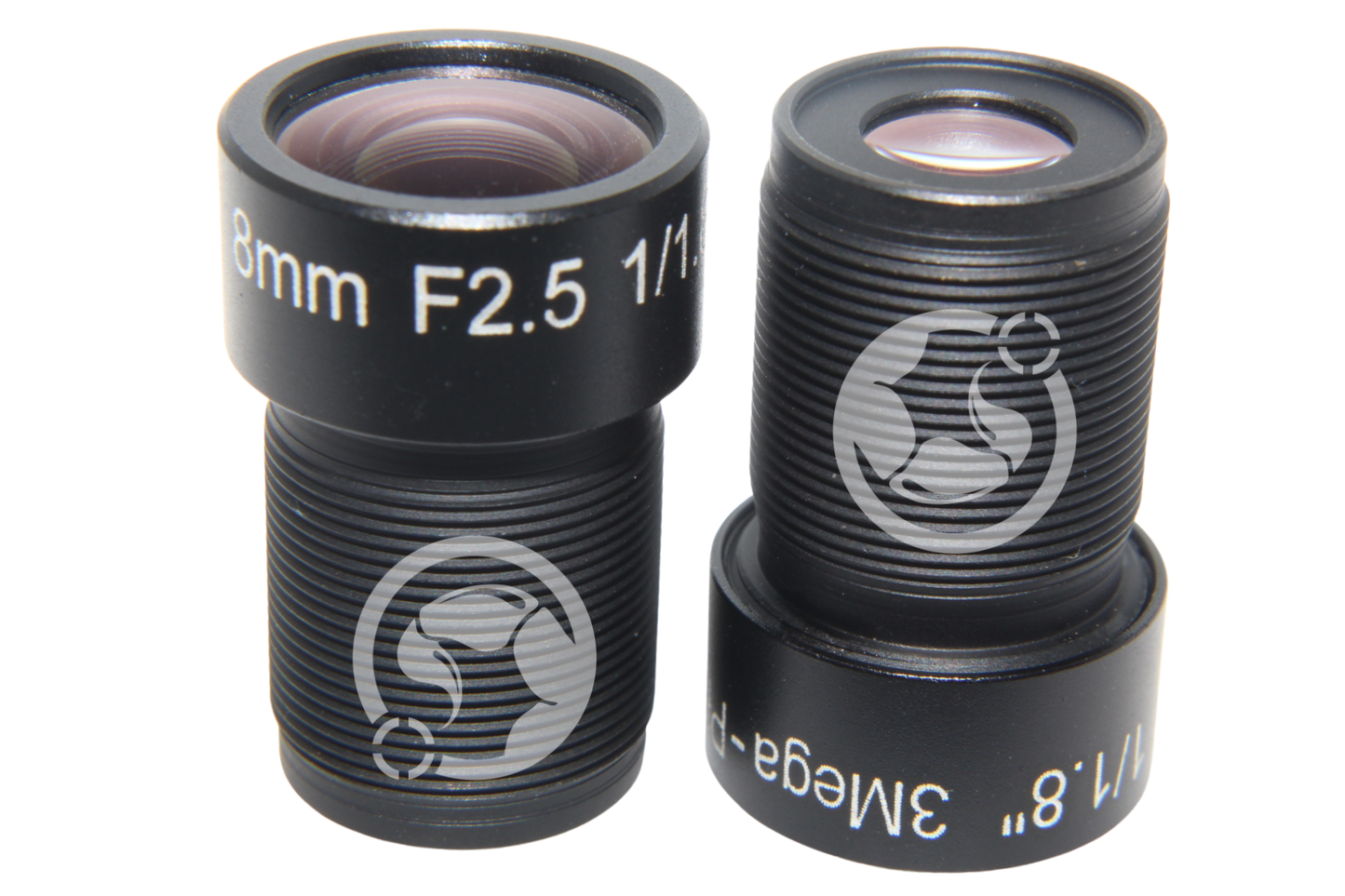

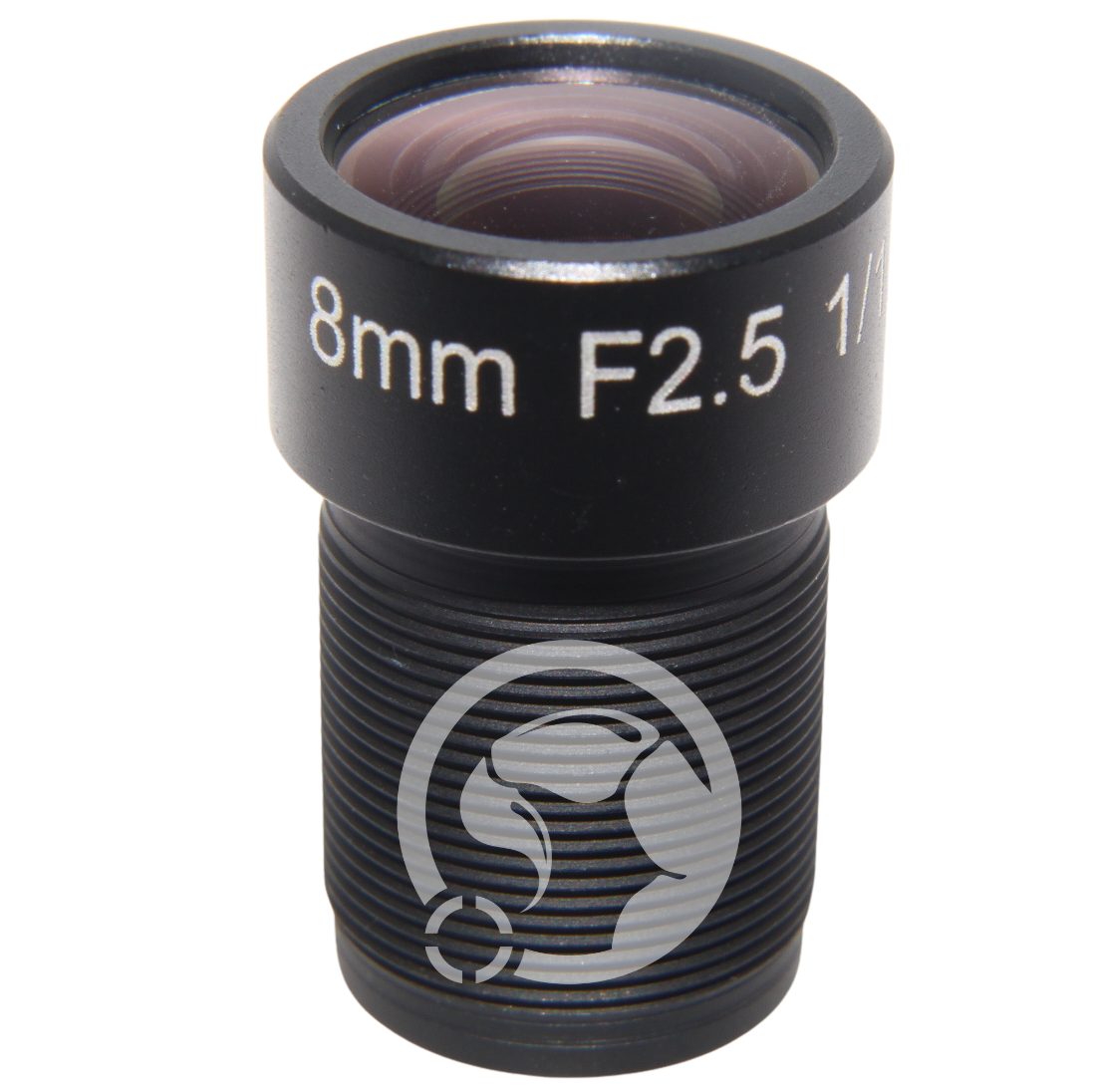

M12 Lens 8.5mm F2.5



Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact

Key Features

  • Focal Length: 8.5mm
  • F Number: F2.5
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Horizontal Field of View: 44.6 Degrees
  • Distortion: <-0.5%
  • Back Focus: 6.5mm
  • Working Distance: 0.1m -1m
  • Design Wavelength: 400-950nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 30mmdfk-afux236-m12-svl-0825smac-30mm.jpg

Object distance: 85mmdfk-afux236-m12-svl-0825smac-85mm.jpg

Object Distance: 258mmdfk-afux236-m12-svl-0825smac-258mm.jpg

Object distance: 546mmdfk-afux236-m12-svl-0825smac-546mm.jpg
