Scorpion Vision

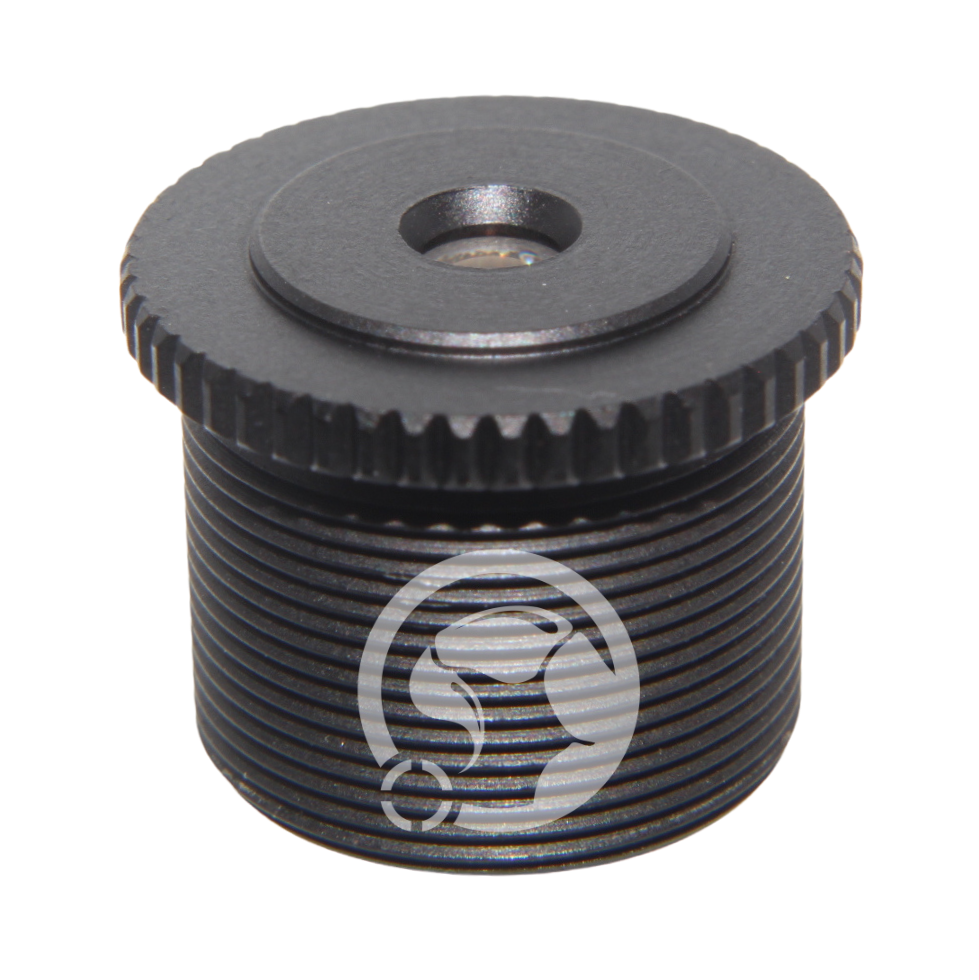

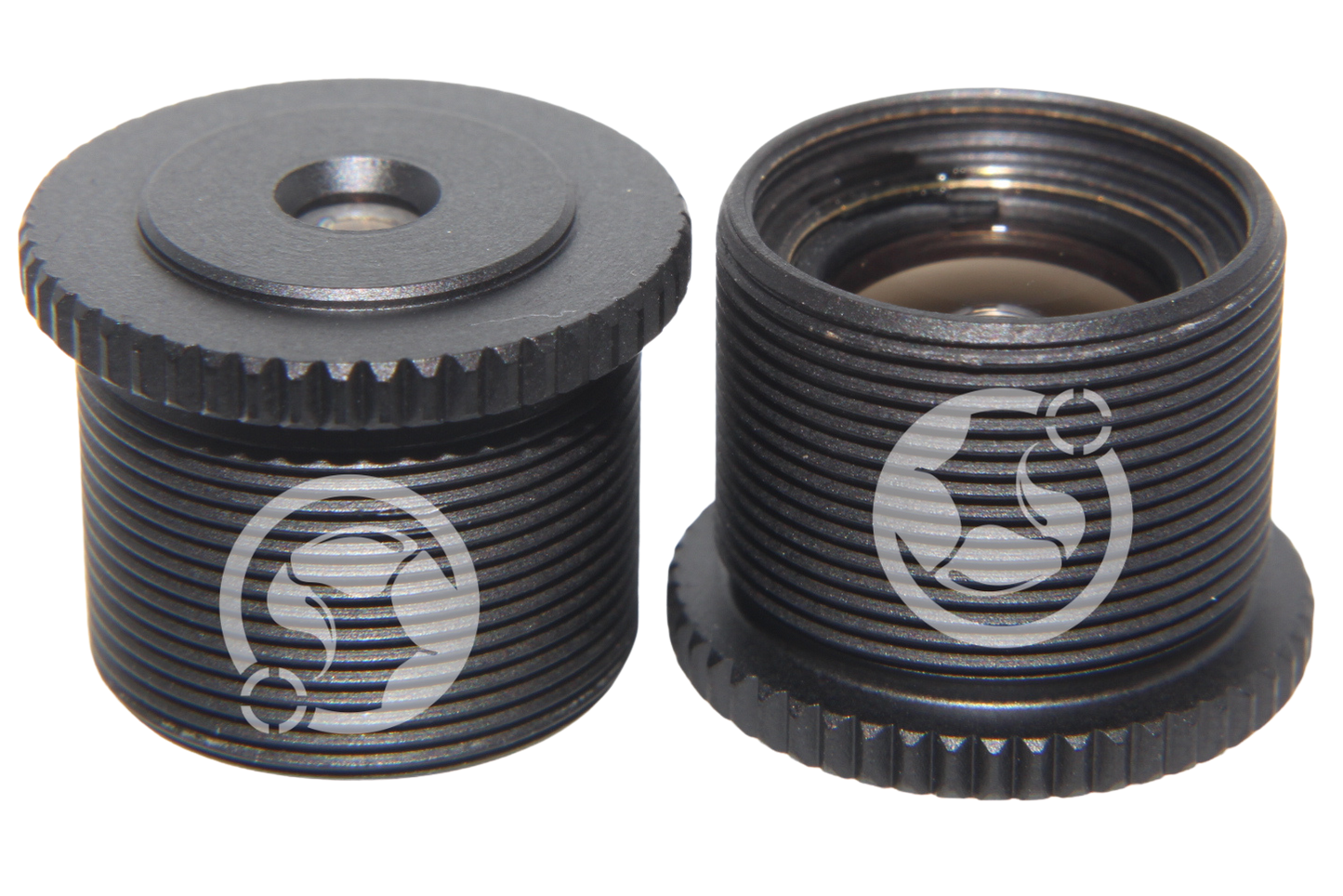

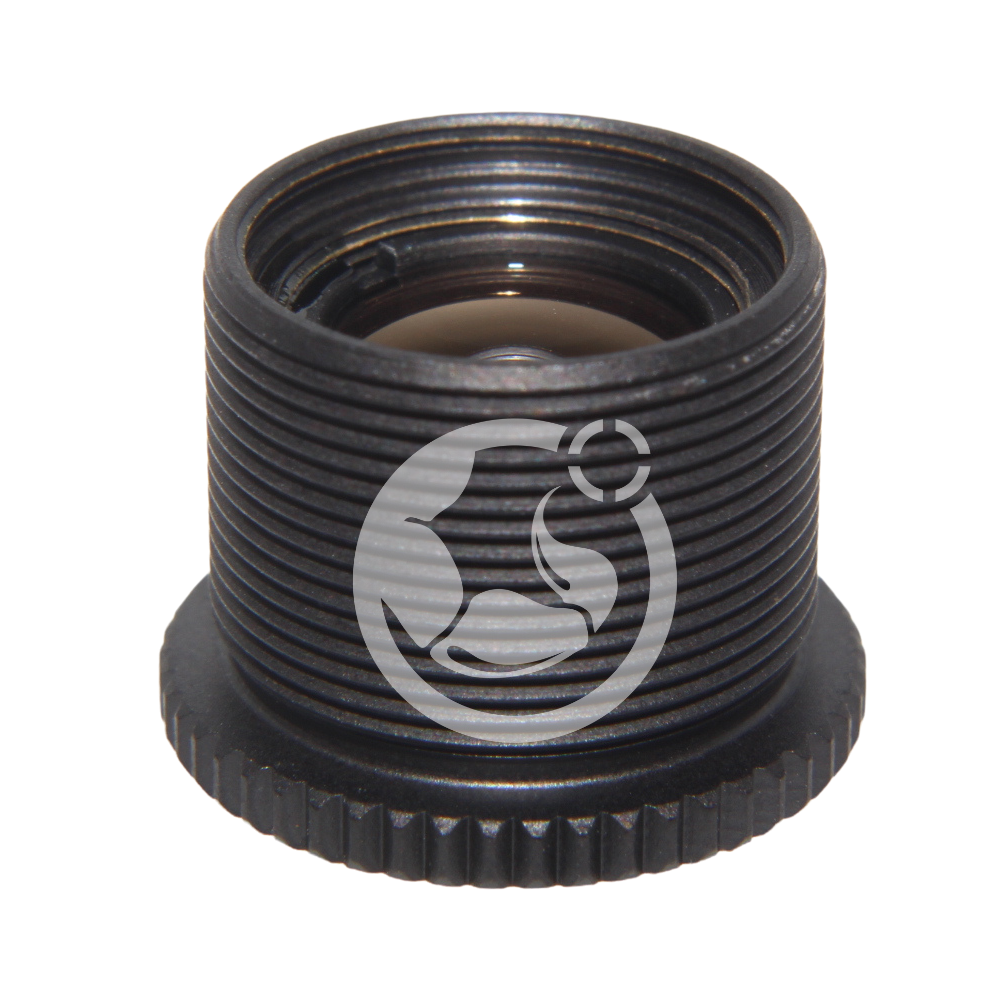

M12 Lens 8.42mm F3.0

SKU: SVL-IR08430B5M

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 8.42mm
  • F Number: F3.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Field of View (DxHxV):  56.5° x 47.9° x 33.1°
  • Distortion: <-1.5%
  • Back Focus: 2.79mm
  • Working Distance: 420mm
  • Wavelength: 400nm-900nm

Sample Images

This represents the full image size and ratio achieved using a 1/3" Aptina MT9V024 at a distance of approximately 30mm.



In this sample image, the sensor used was a 1/3" Aptina MT9V024. The coin was at a distance of approx. 23mm.


In this sample image, the penny (d=20.3mm) was at a distance of 3cm from the lens.
This is a telecentric lens which minimises distortion by reducing the field of view. Although not a designated macro lens, the lens also focuses very close to the subject.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 30mm from the lens and the second at 32mm. This lens has a very small F Number of F1.8 creating a narrow depth of field.
