Scorpion Vision

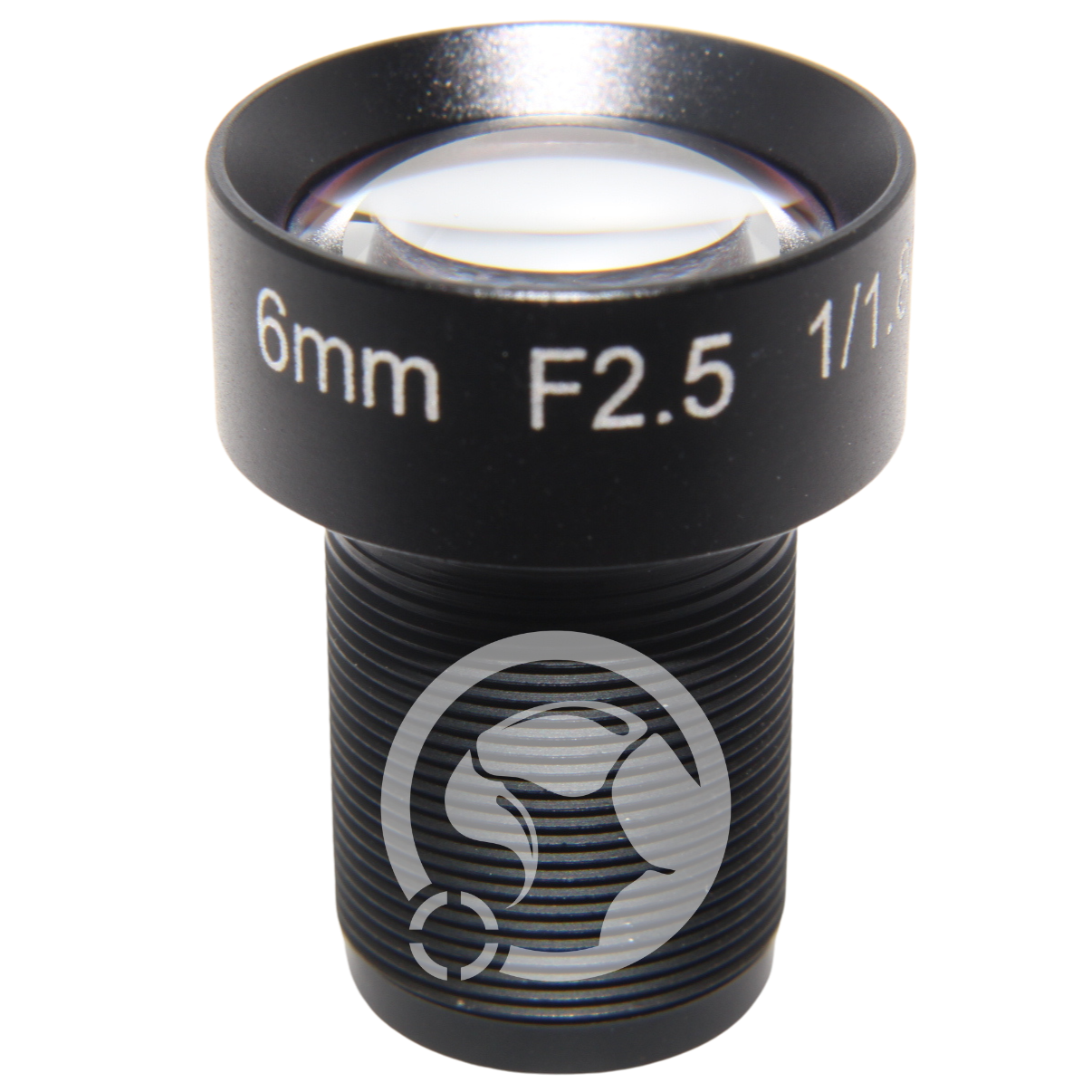

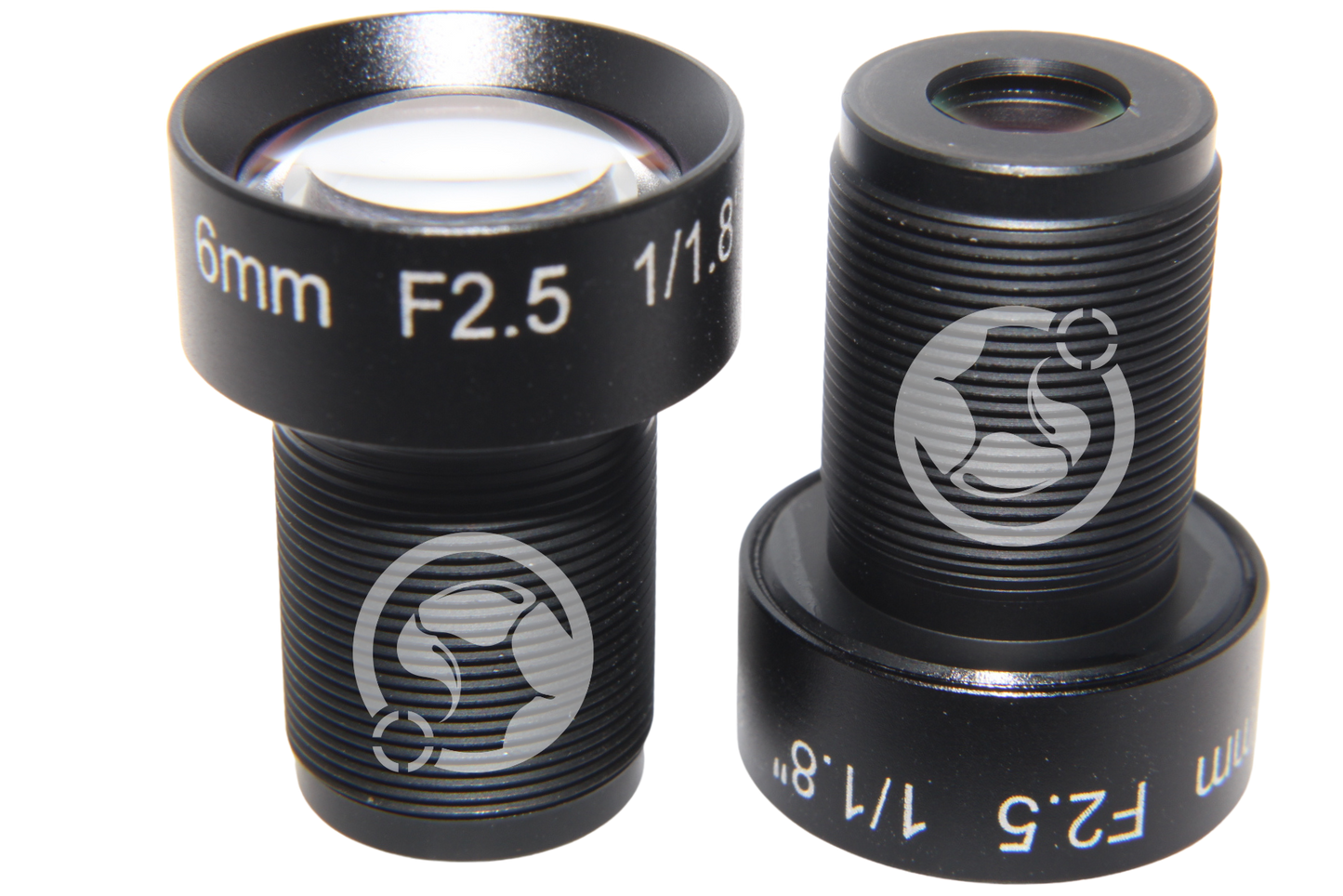

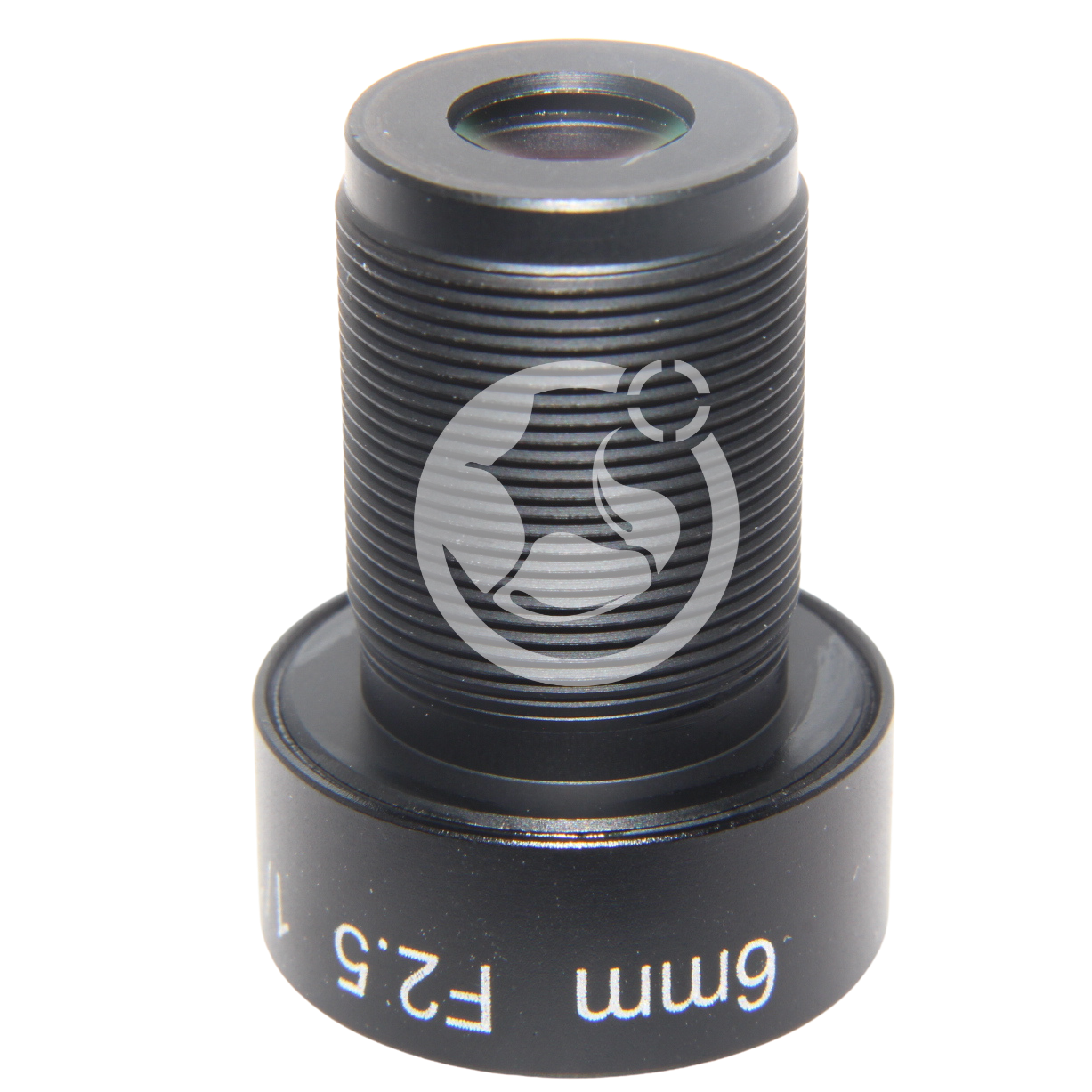

M12 Lens 6mm F2.5
SKU: SVL-0625SMAC
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 6mm
- F Number: F2.5
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Filter Size: n/a
- Megapixel: 3MP
- Horizontal Field of View: 61.2 Degrees
- Distortion: <-2.0%
- Back Focus: 7.402mm
- Working Distance: 0.1m - ∞
- Design Wavelength: 400-950nm
Sample Images
Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ
In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.
Minimum Object Distance: 38mm
Object Distance: 91mm
Object Distance: 260mm
