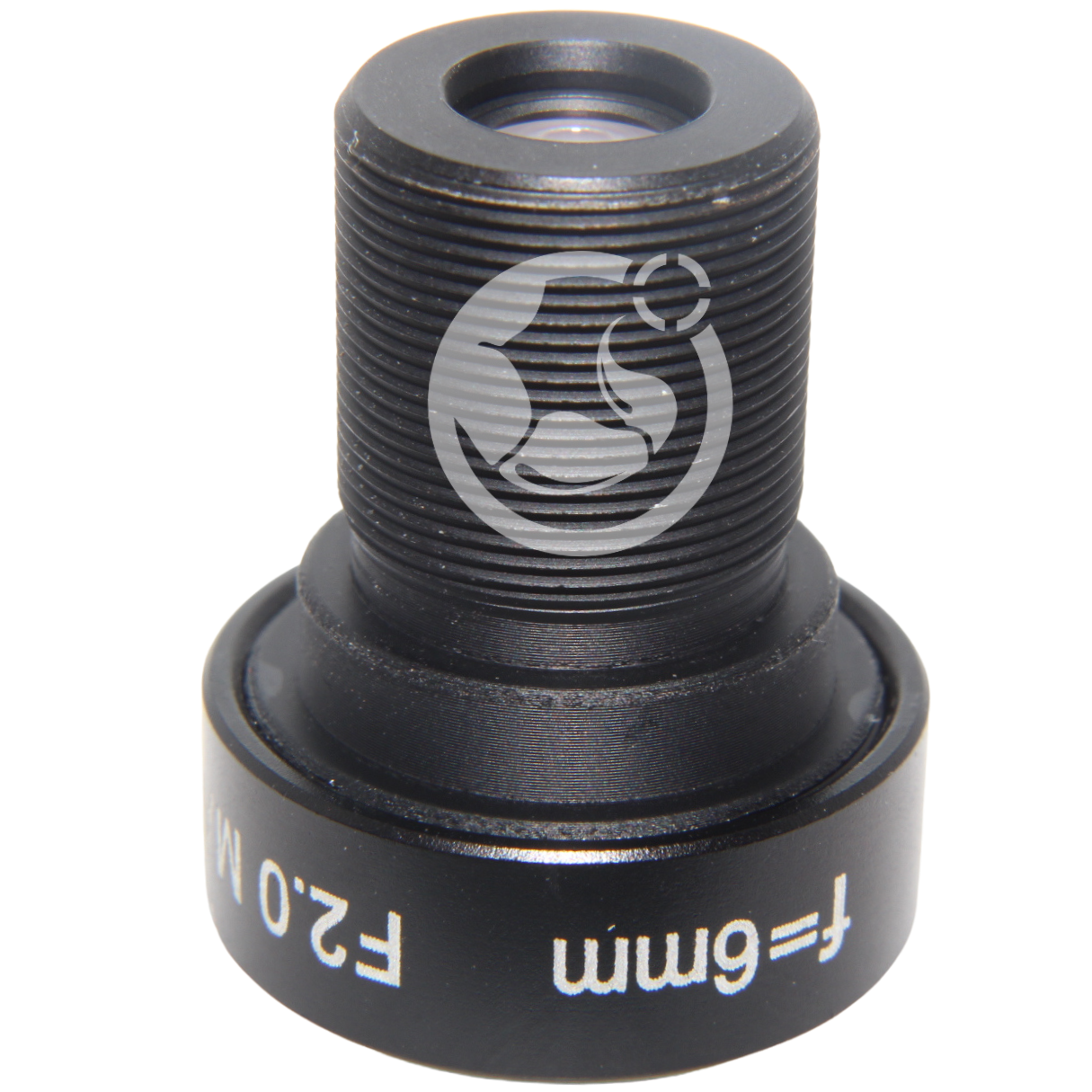

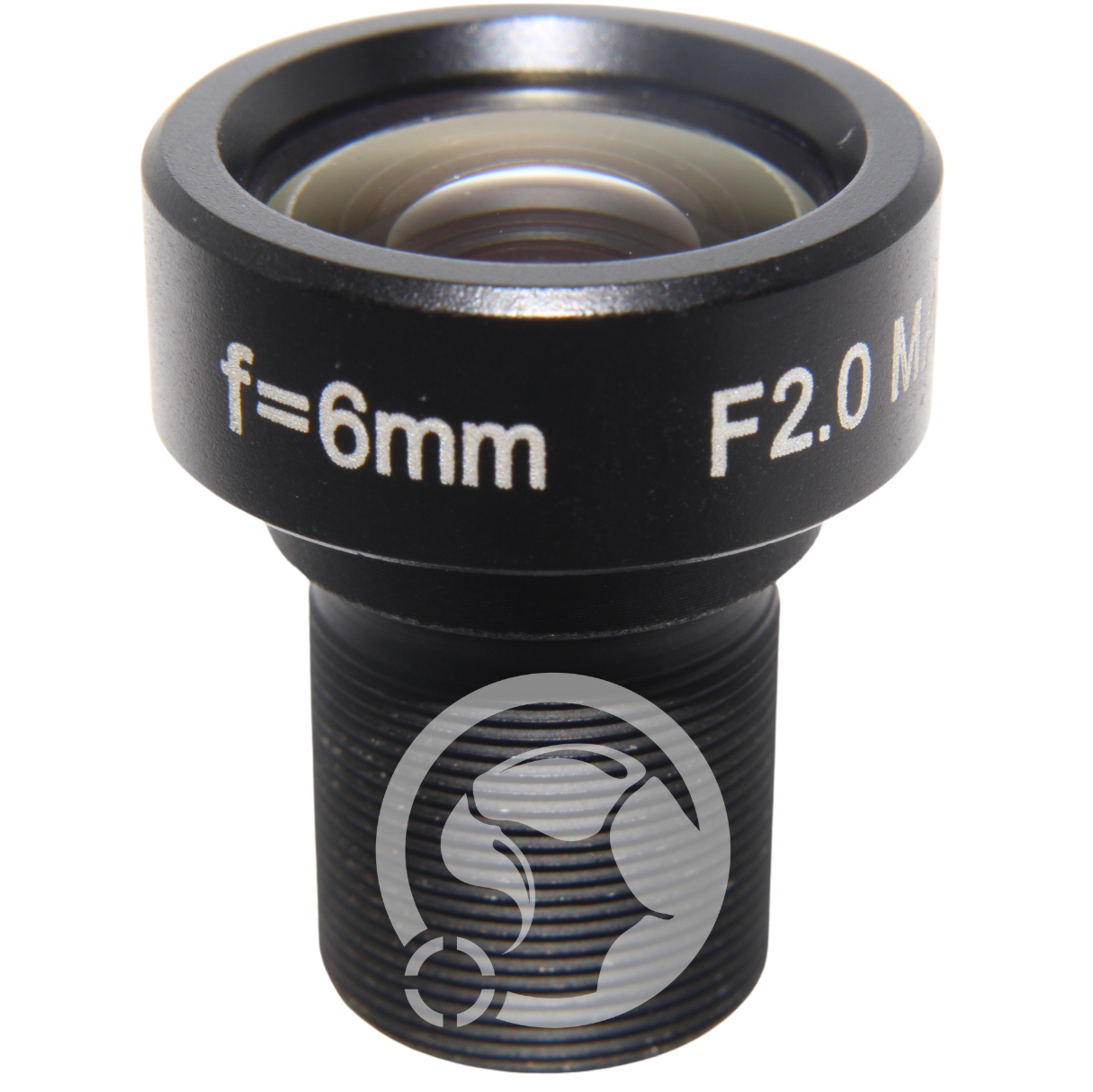

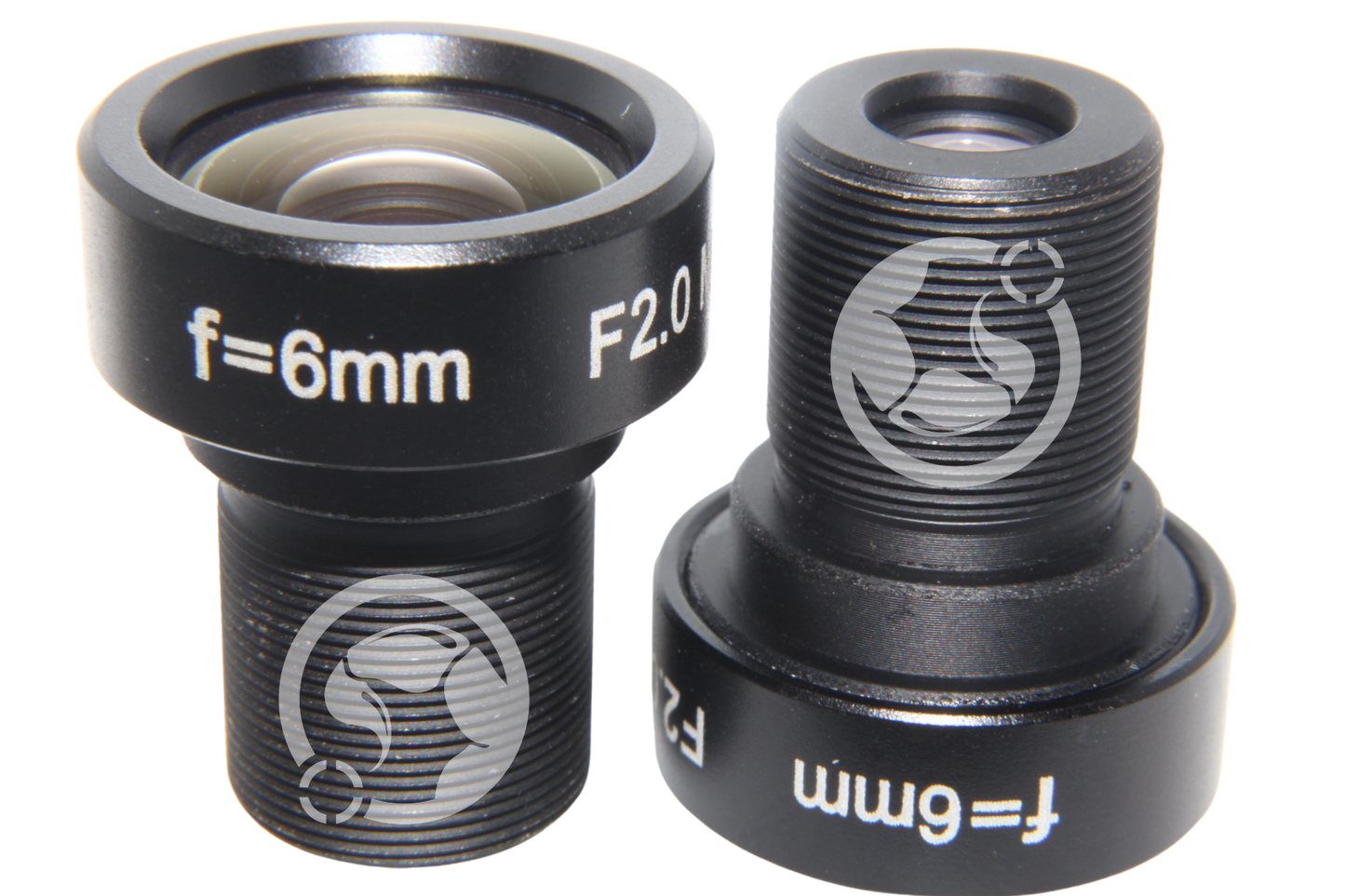

M12 Lens 6mm F2.0
SKU: SVL-0620MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 6mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Filter Size: n/a
- Megapixel: 2MP
- Horizontal Field of View: 66 Degrees
- Distortion: <6.5%
- Back Focus: 9.28mm
- Working Distance: 0.1m to infinity
- Design Wavelength: 400-950nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 18mm from the lens. This is the minimum distance that this lens will focus on.
In this next image, the sugar cube was 44mm from the lens.
The sugar cube is 16mm x 14mm.
In this next sample image, the penny (d=20.3mm) was at a distance of 8cm from the lens. This lens has a medium focal length and low distortion of the image. It also has macro functionality for close images.
In the next images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 12mm from the lens and the second at 24mm.
