Scorpion Vision

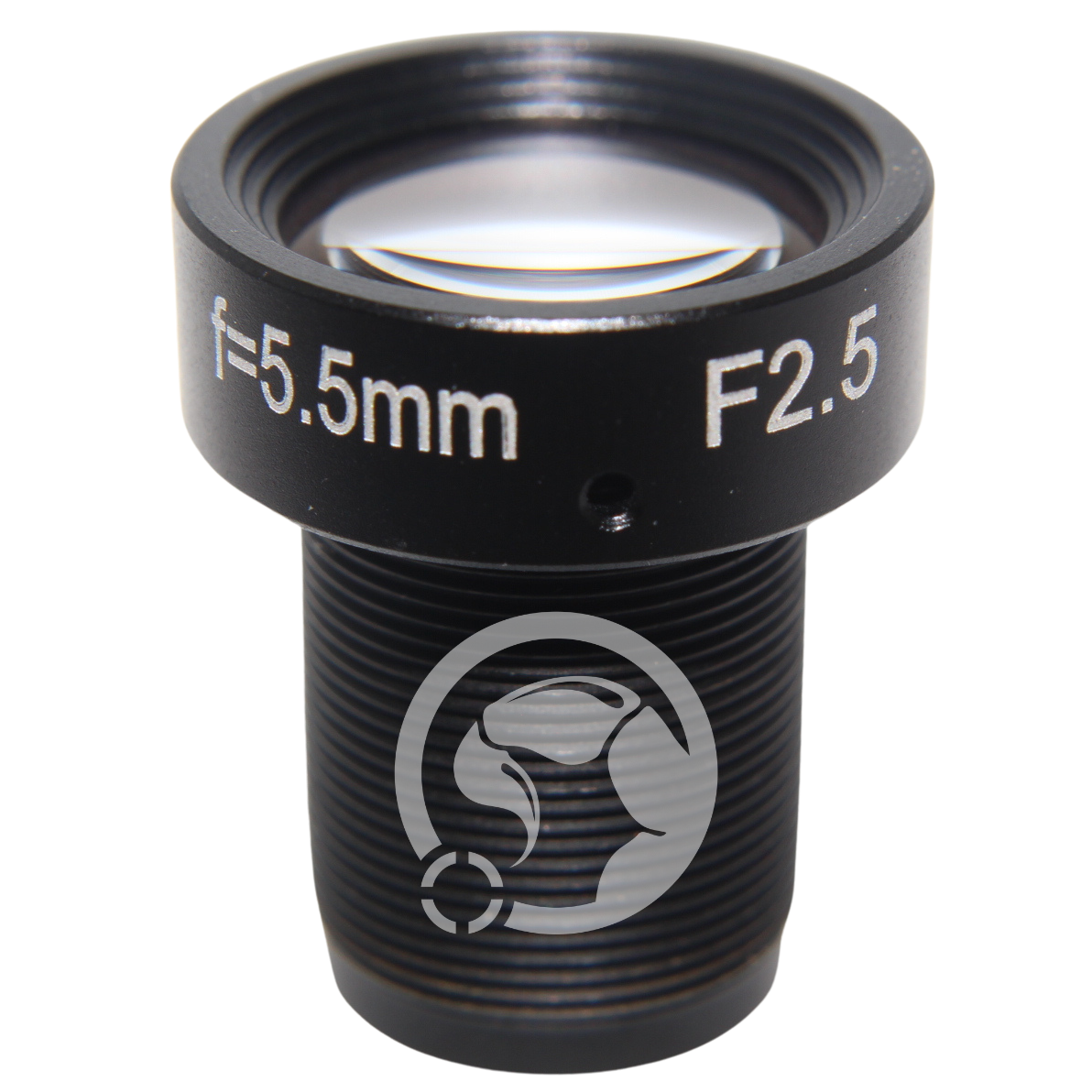

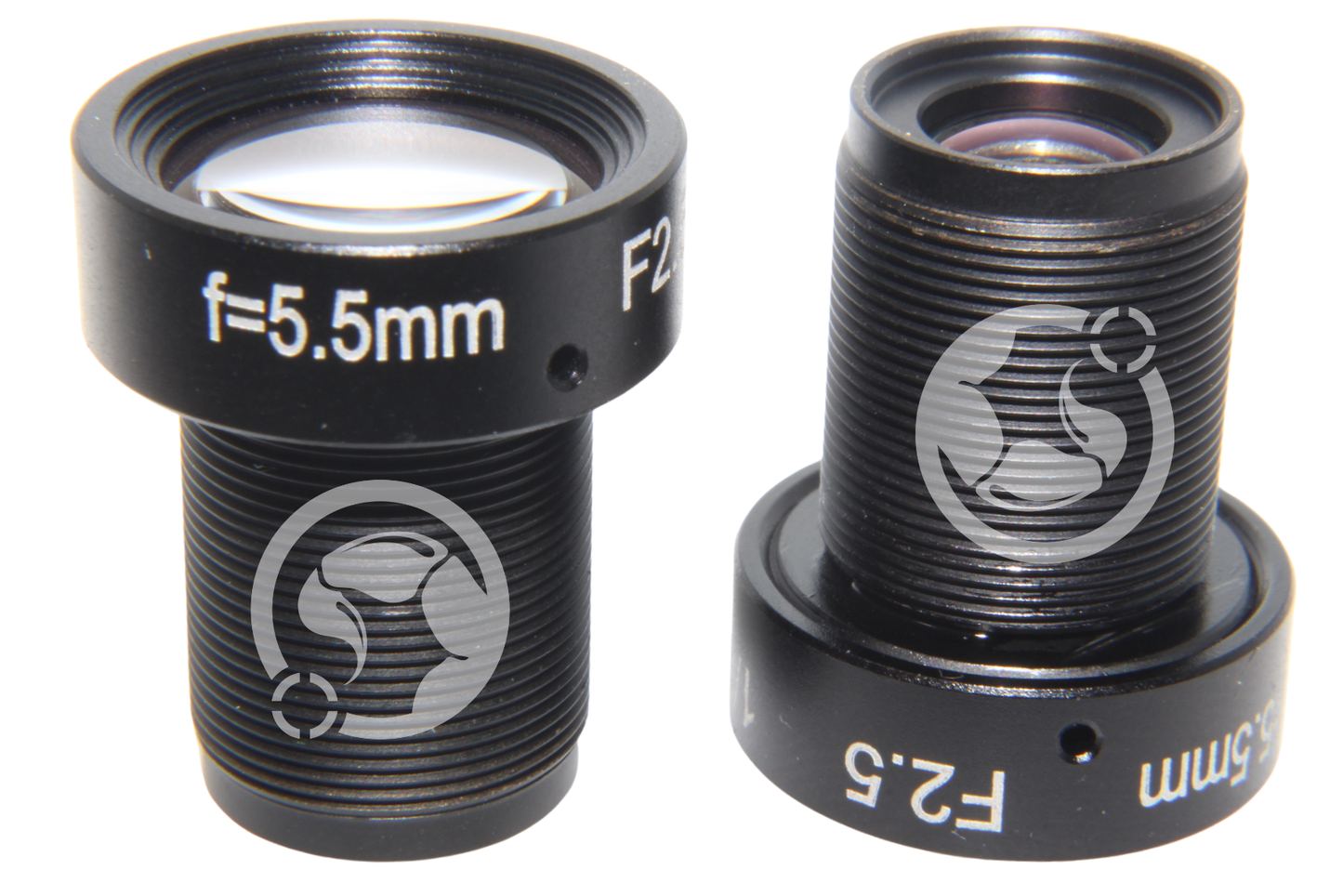

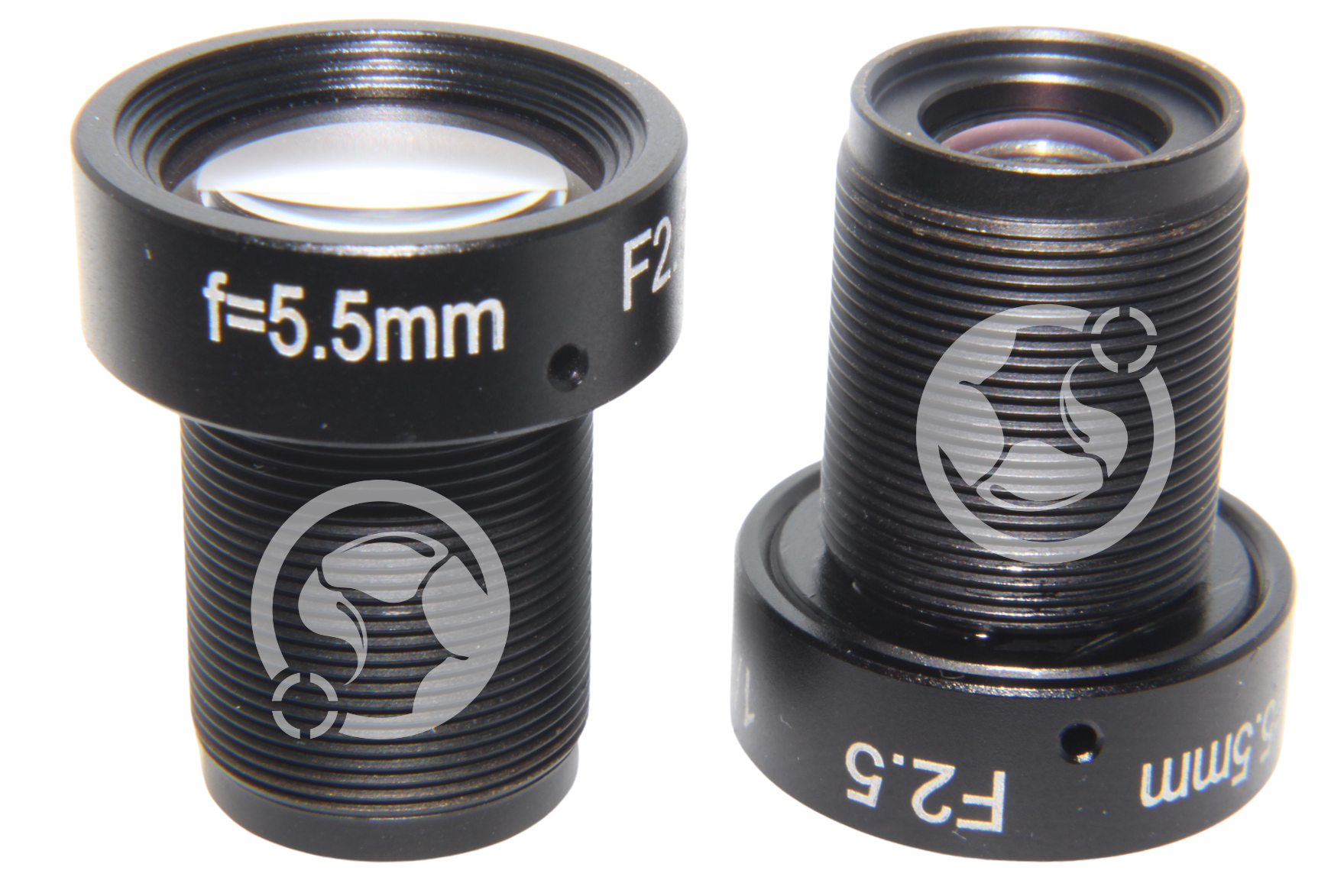

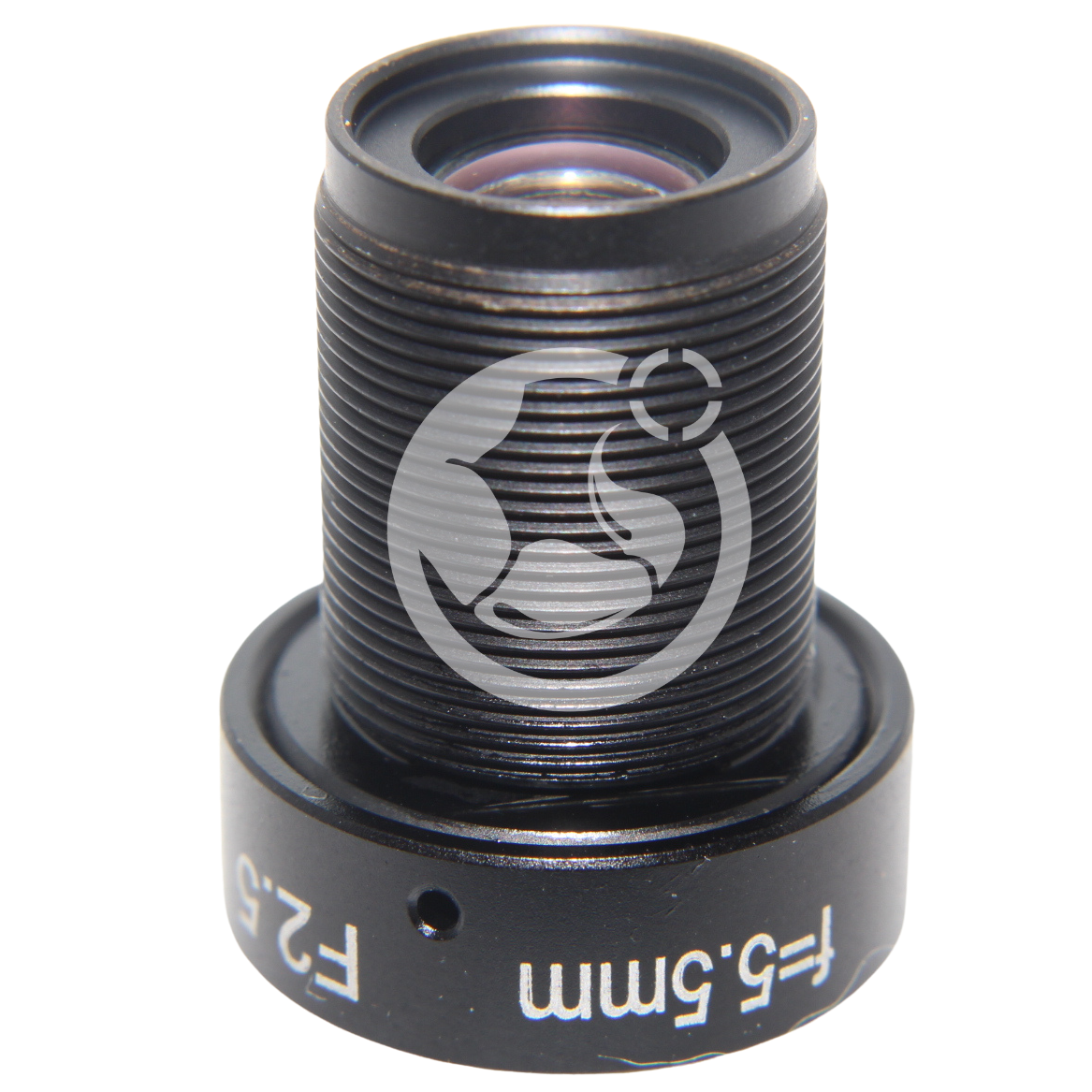

M12 Lens 5.5mm F2.5

SKU: SVL-05525FM


Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact

Key Features

  • Focal Length: 5.5mm
  • F Number: F2.5
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Filter Size: n/a
  • Megapixel: 3MP
  • Horizontal Field of View: 66.2 Degrees
  • Distortion: <-1.8%
  • Back Focus: 5.75mm
  • Working Distance: 0.3m -∞
  • Design Wavelength: 400-700nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 51mmdfk-afux236-m12-svl-05525fm-51mm.jpg

Object distance: 92mmdfk-afux236-m12-svl-05525fm-92mm.jpg

Object distance: 142mmdfk-afux236-m12-svl-05525fm-142mm.jpg

Object distance: 220mmdfk-afux236-m12-svl-05525fm-220mm.jpg
