M12 Lens 5.5mm F1.6
SKU: SVL-05516MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 5.5mm
- F Number: F1.6
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Filter Size: n/a
- Megapixel: 2MP
- Field of View (DxVxH): 75° x 55.1° x 69.1°
- Distortion: <2.1%
- Back Focus: 5.69mm
- Design Wave Length: 400-950nm
- Working distance: 0.1 - 0.5mm
- Wavelength: 400nm-950nmm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube is 15mm from the lens. This is the minimum distance that this macro lens will focus on.
In the image below the sugar cube is 26mm from the lens.
The size of the sugar cube is 16mm x 14mm.

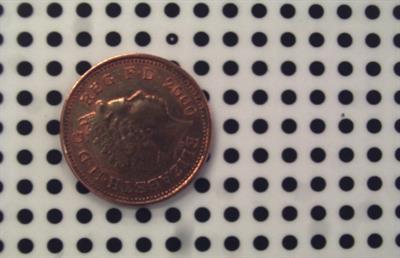

In this sample image, the penny (d=20.3mm) was at a distance of 8cm from the lens.
This lens has a medium focal length and low distortion.
The image below demonstrates the macro/close-up capability of this lens. The distance from the lens glass to the target is about 7mm.
