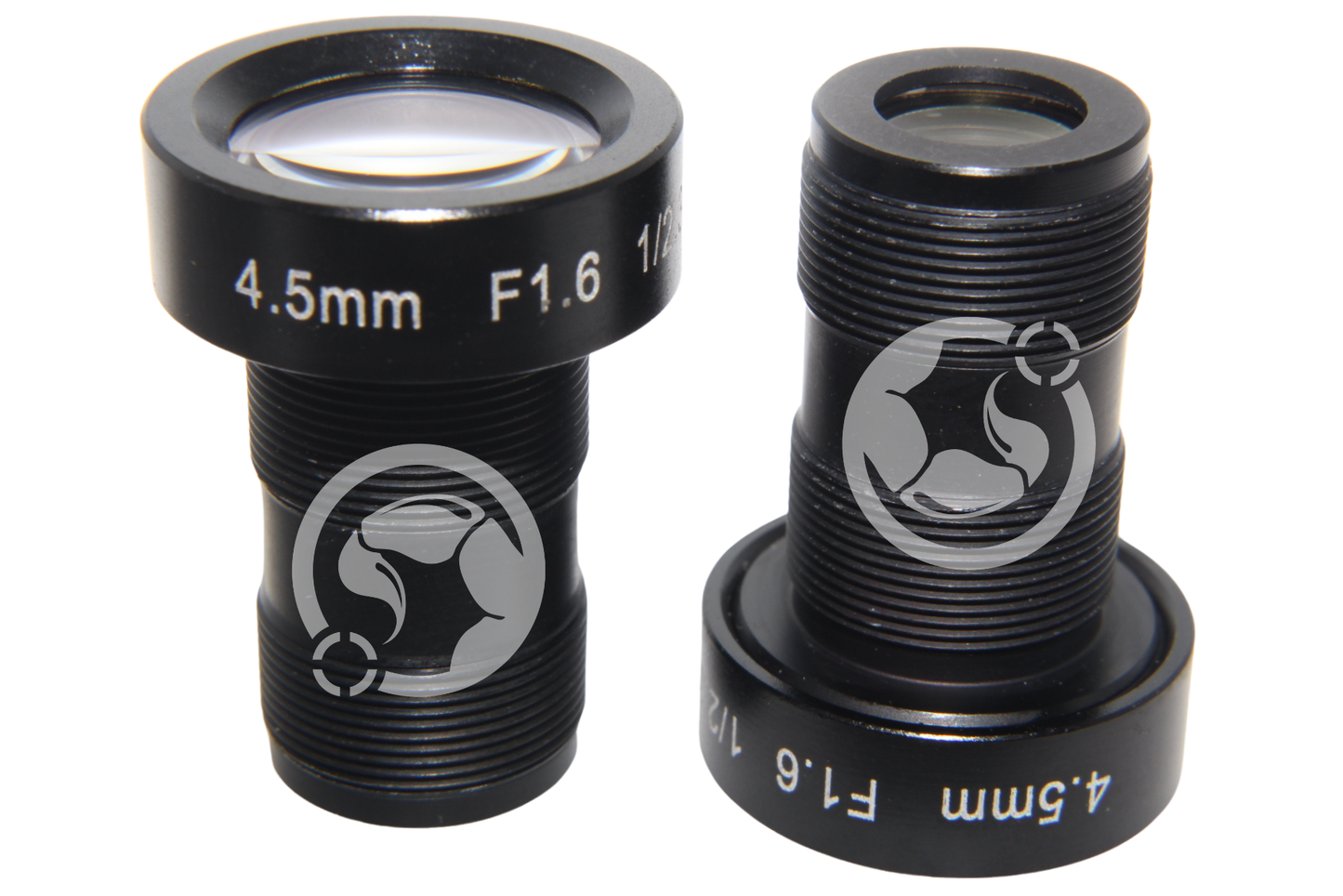

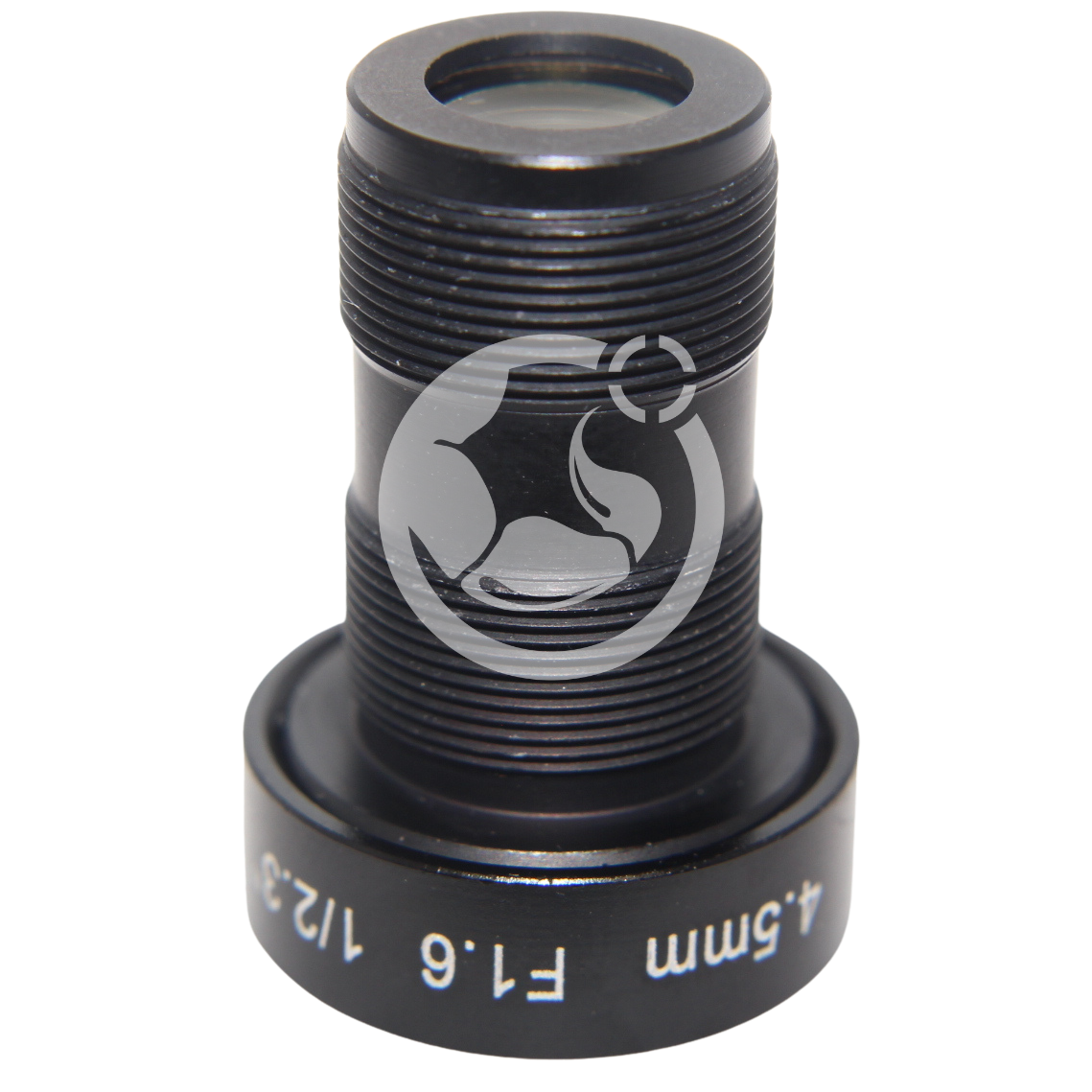

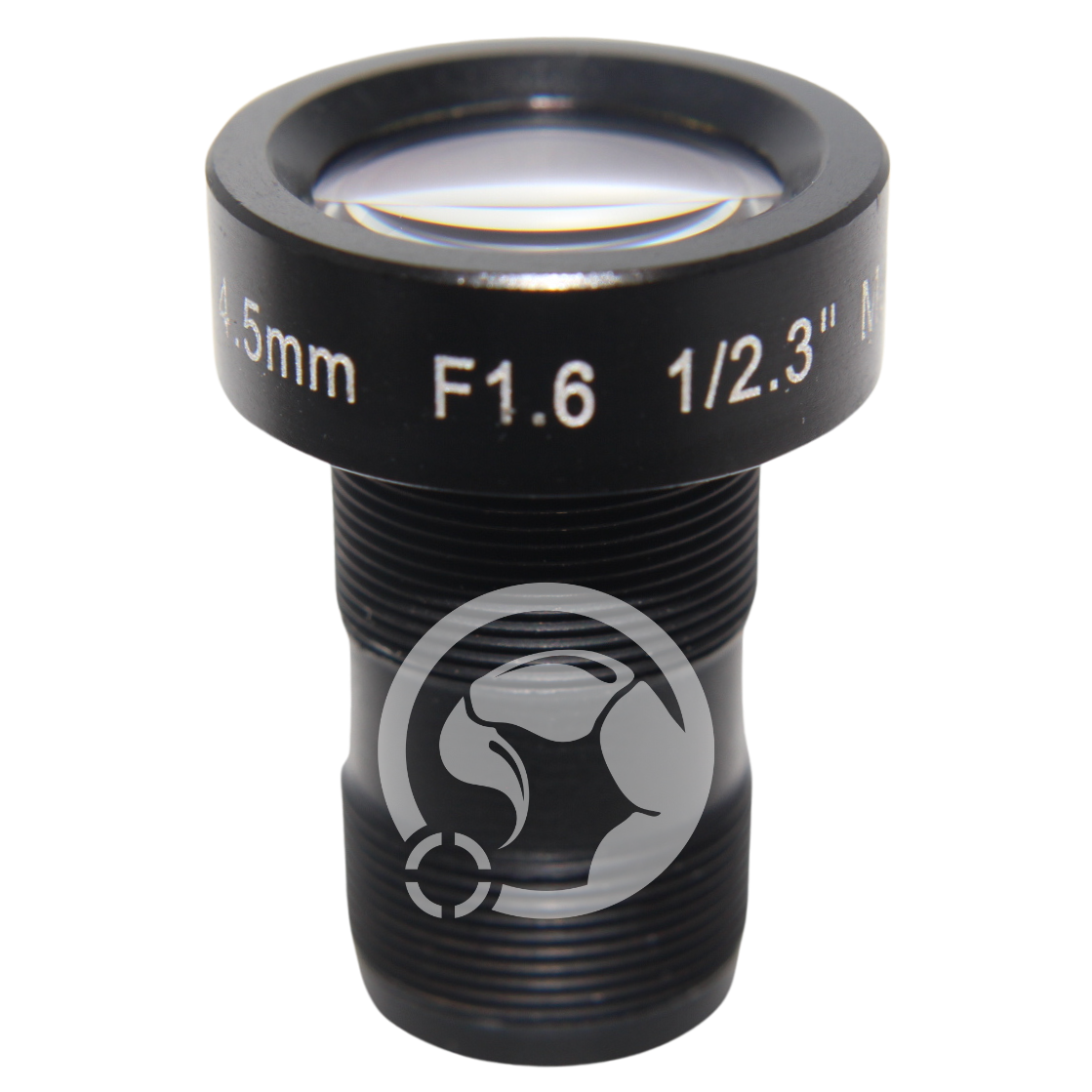

M12 Lens 4.5mm F1.6
SKU: SVL-04516MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 4.5mm
- F Number: F1.6
- Iris: Non-adjustable
- Mount: M12
- Format: 1/2.3"
- Filter Size: n/a
- Megapixel: 2MP
- Horizontal Field of View: 69.7 Degrees
- Distortion: <-3.5%
- Back Focus: 3mm
- Working distance: ∞ ~ 0.1m
- Wavelength: 400nm-950nm
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 8mm from the lens. This is the minimum distance that this lens will focus on.
In the next image, the sugar cube is 47mm from the lens.
The sugar cube measures 16mm x 14mm.
In this below sample image, the penny (d=20.3mm) was at a distance of 8cm from the lens. This lens has a short focal length for close images and low distortion.
Images below demonstrate the macro capability of this lens and how it can be used (in this case) for imaging the texture of a cleaning cloth.
In these next images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 4mm from the lens and the second at 7mm. This lens has a very small F Number of F1.6 creating a narrow depth of field.
