Scorpion Vision

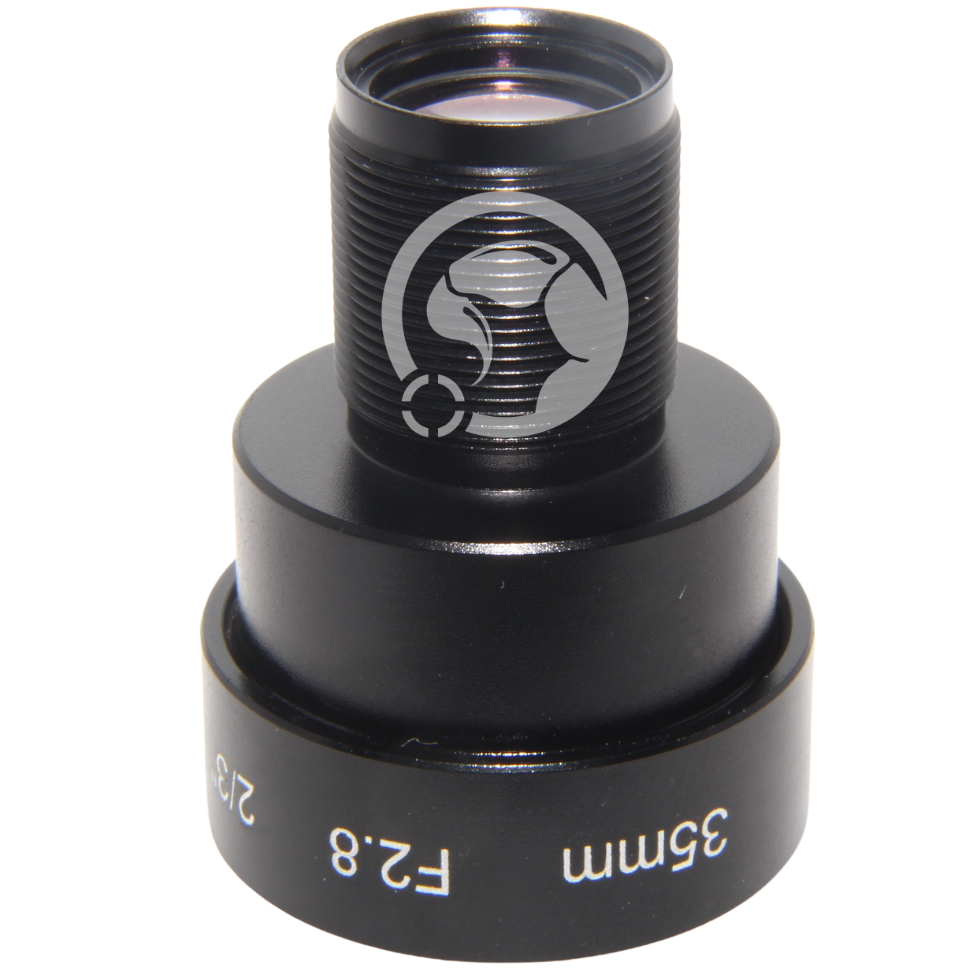

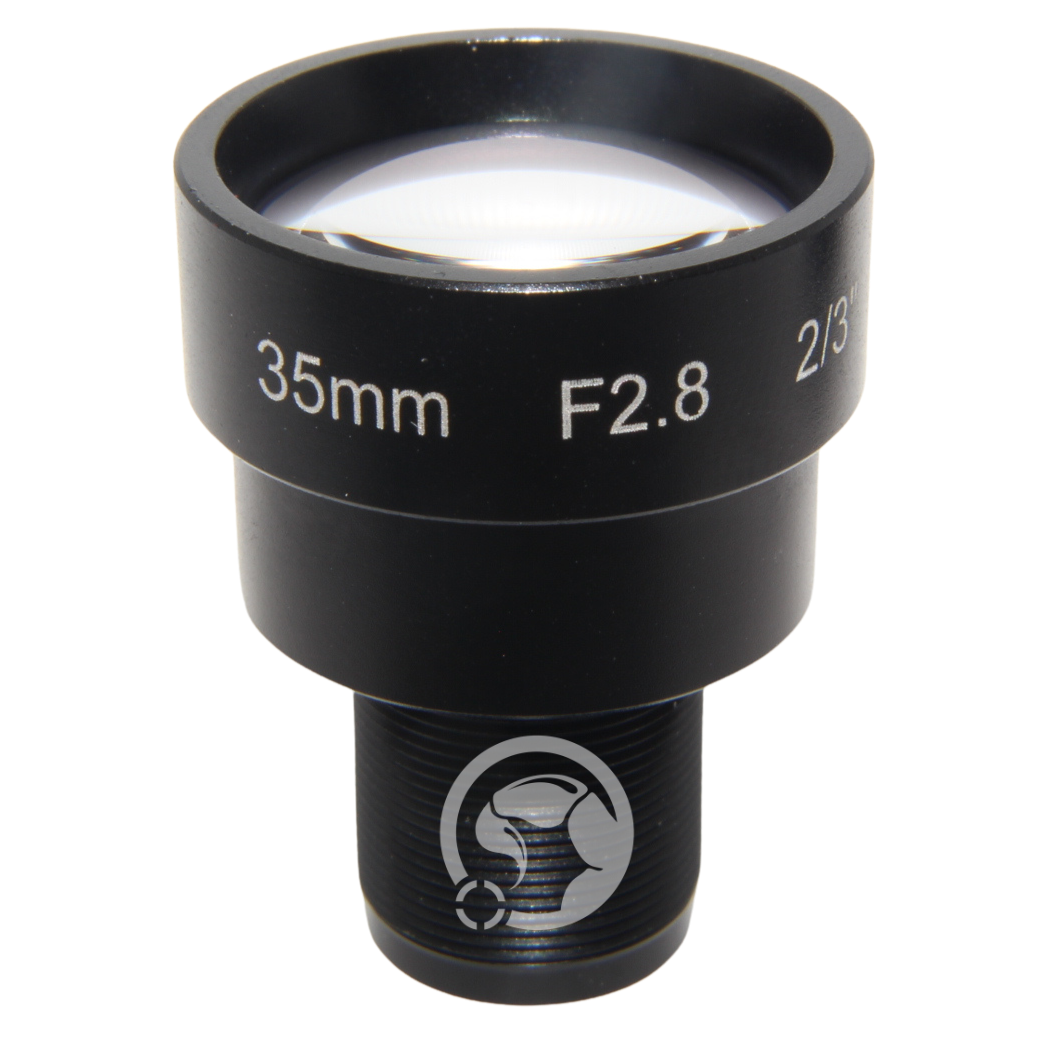

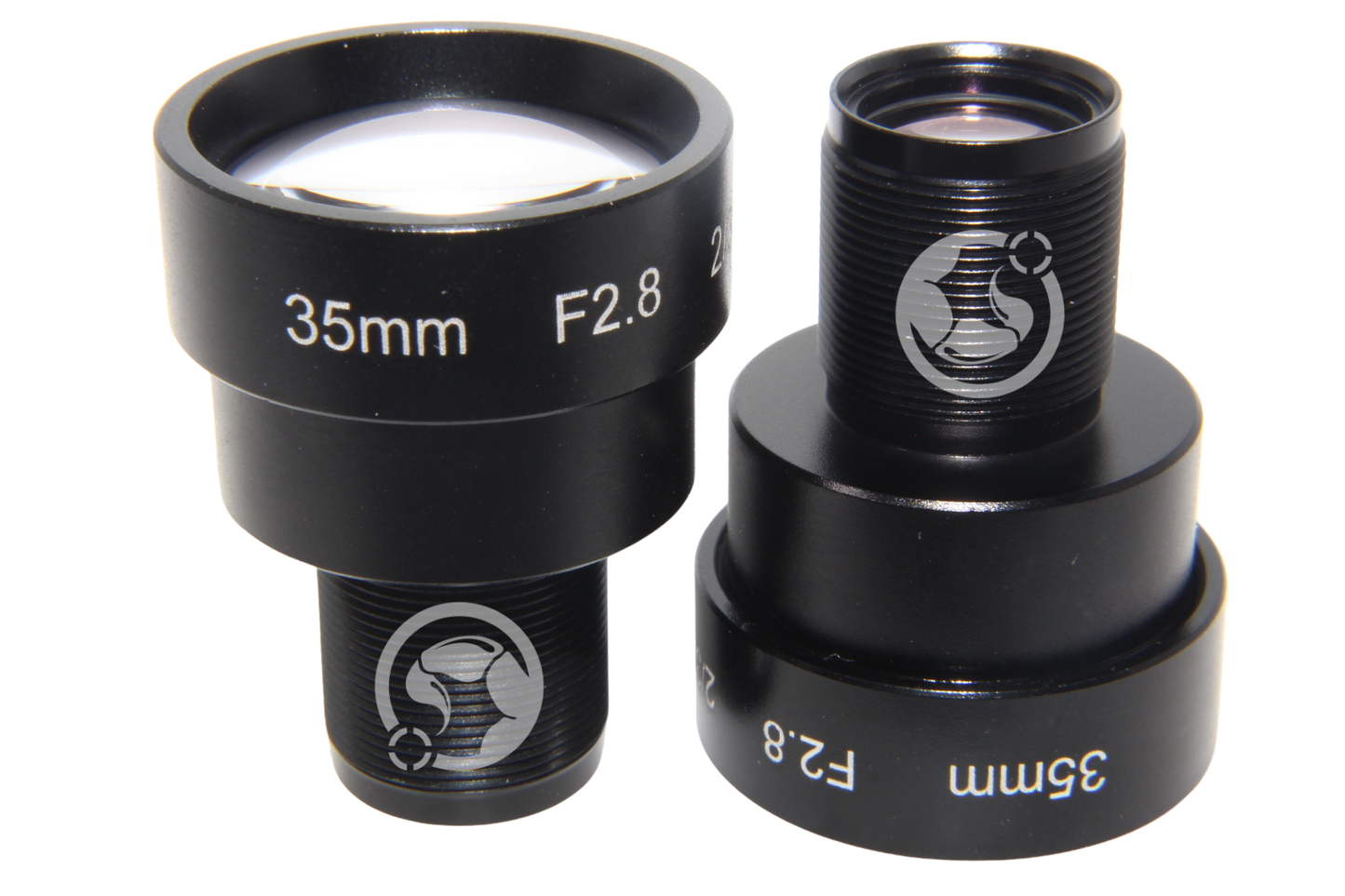

M12 Lens 35mm F2.8

SKU: SVL-F3528MAC

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 35mm
  • F Number: F2.8
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 2/3"
  • Filter Size: n/a
  • Megapixel: 10MP
  • Horizontal Field of View: 14.36 Degrees
  • Distortion: <-0.35%
  • Back Focus: 20.56mm
  • Working Distance: 0.3m - ∞
  • Design Wavelength: 400-950nm

Sample Images

In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 380mm from the lens and the second at 395mm. This lens has a small F Number of F2.8 creating a narrow depth of field.
