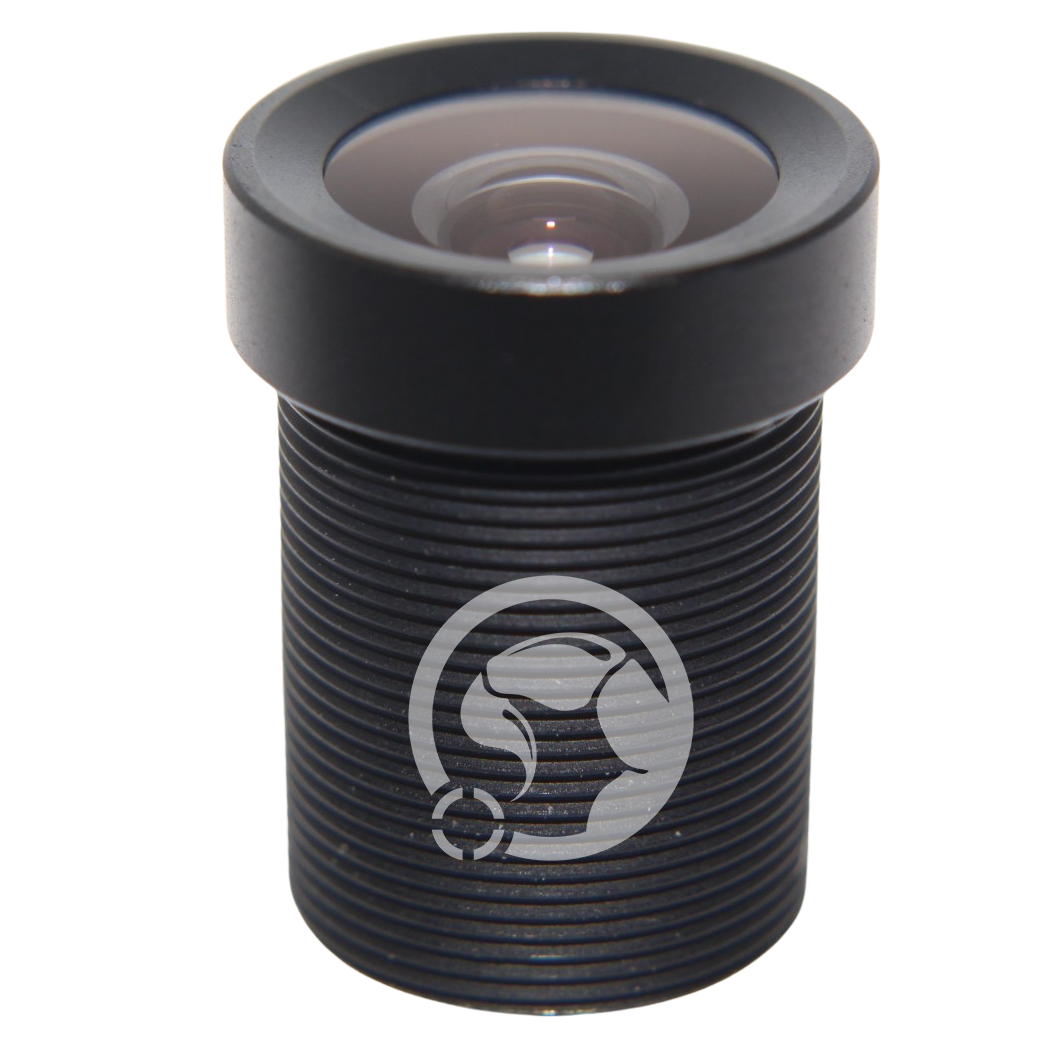

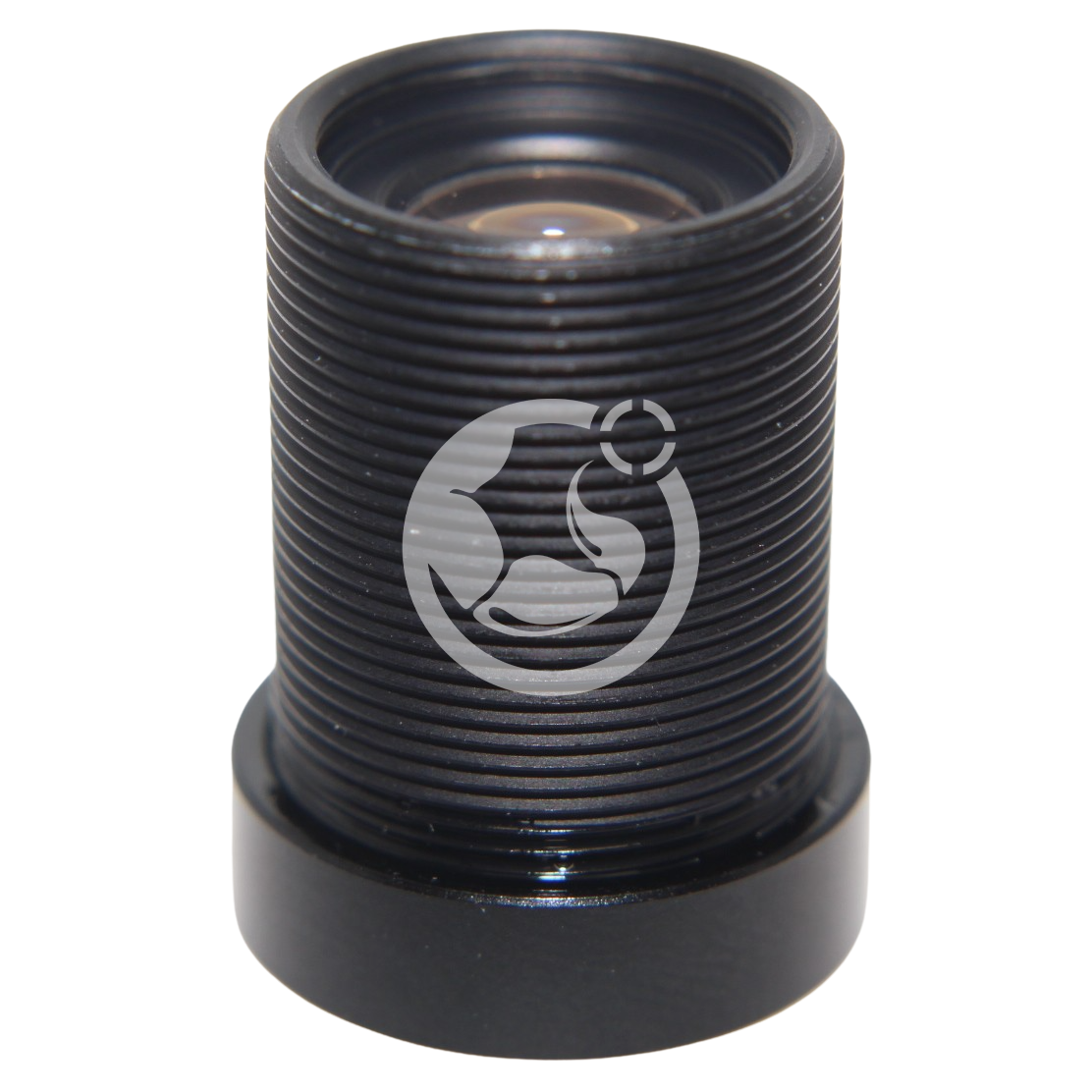

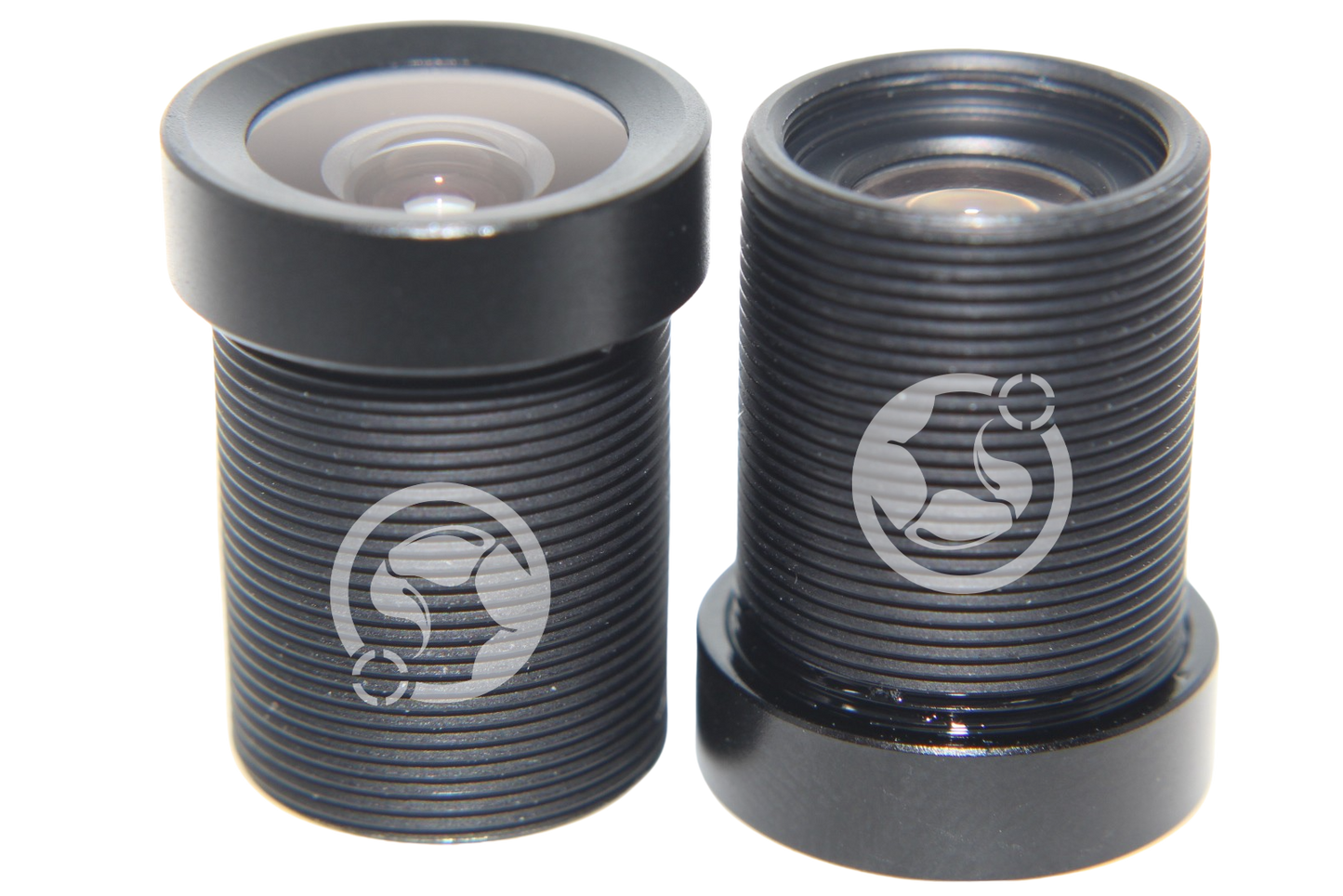

M12 Lens 3.6mm F1.8
SKU: SVL-IR03618B5M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 3.6mm
- F Number: F1.8
- Iris: Non-adjustable
- Mount: M12
- Format: 1/2.5"
- Filter Size: n/a
- Megapixel: 5MP
- Angle of View (D x V x H): 132 x 69.8 x 96.4 Degrees
- Distortion: <-56%
- Back Focus: 7mm
- Wavelength: 400nm-900nm
The Chief Ray Angle (CRA) for SVl-IR03618B5M is 11.7°.
Sample Images
Sensor: 1/3" Aptina MT9V024
In the below image, the sugar cube is 29mm from the lens. This is the minimum distance at which the entire cube remains in focus.
The sugar cube measures 16mm x 14mm.
The coin is at a distance of approx 18mm.
In this next image, the coin is at a distance of 142mm.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 11mm from the lens and the second at 27mm. This lens has a very small F Number of F1.8 creating a narrow depth of field.
