Scorpion Vision

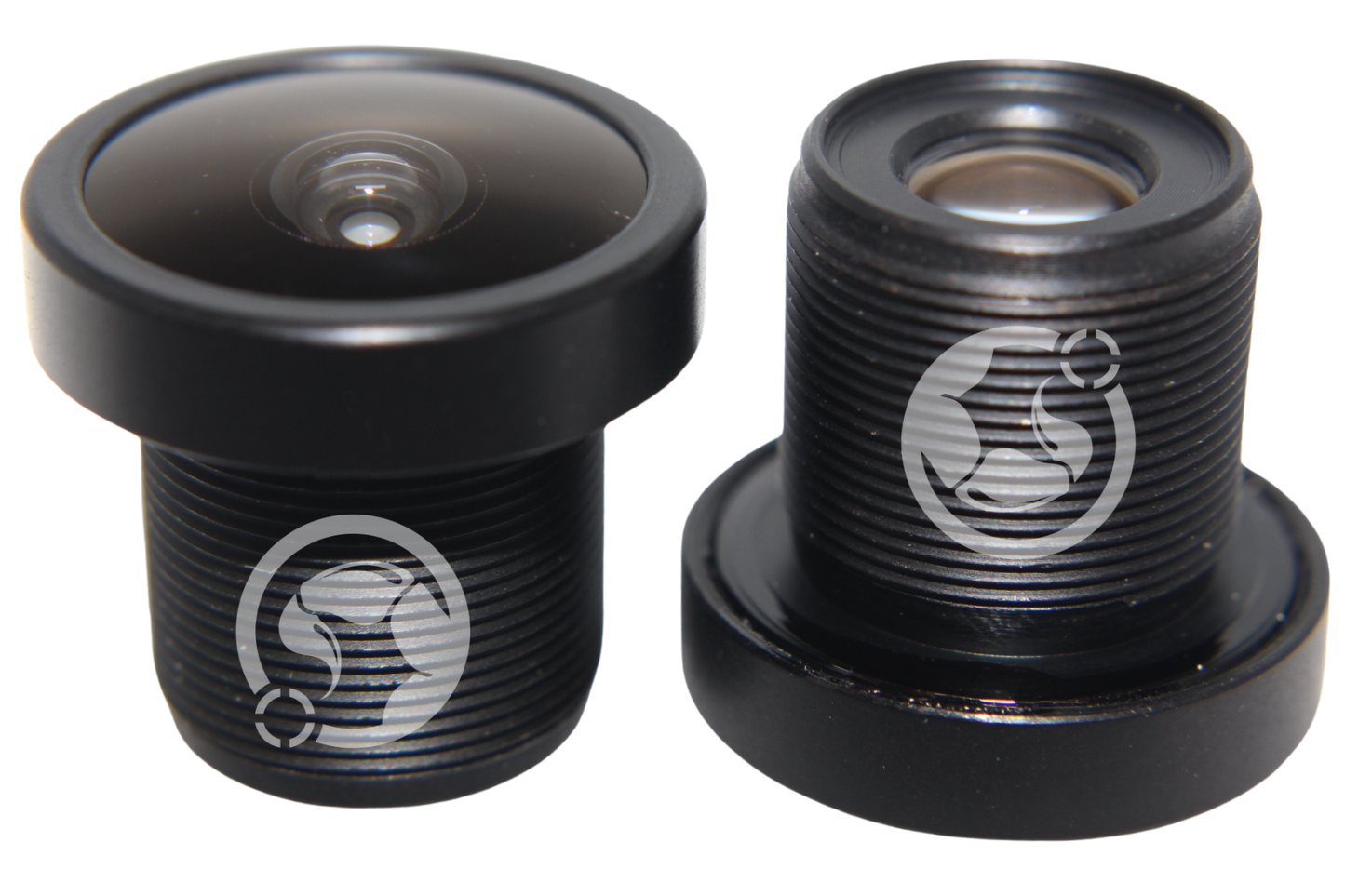

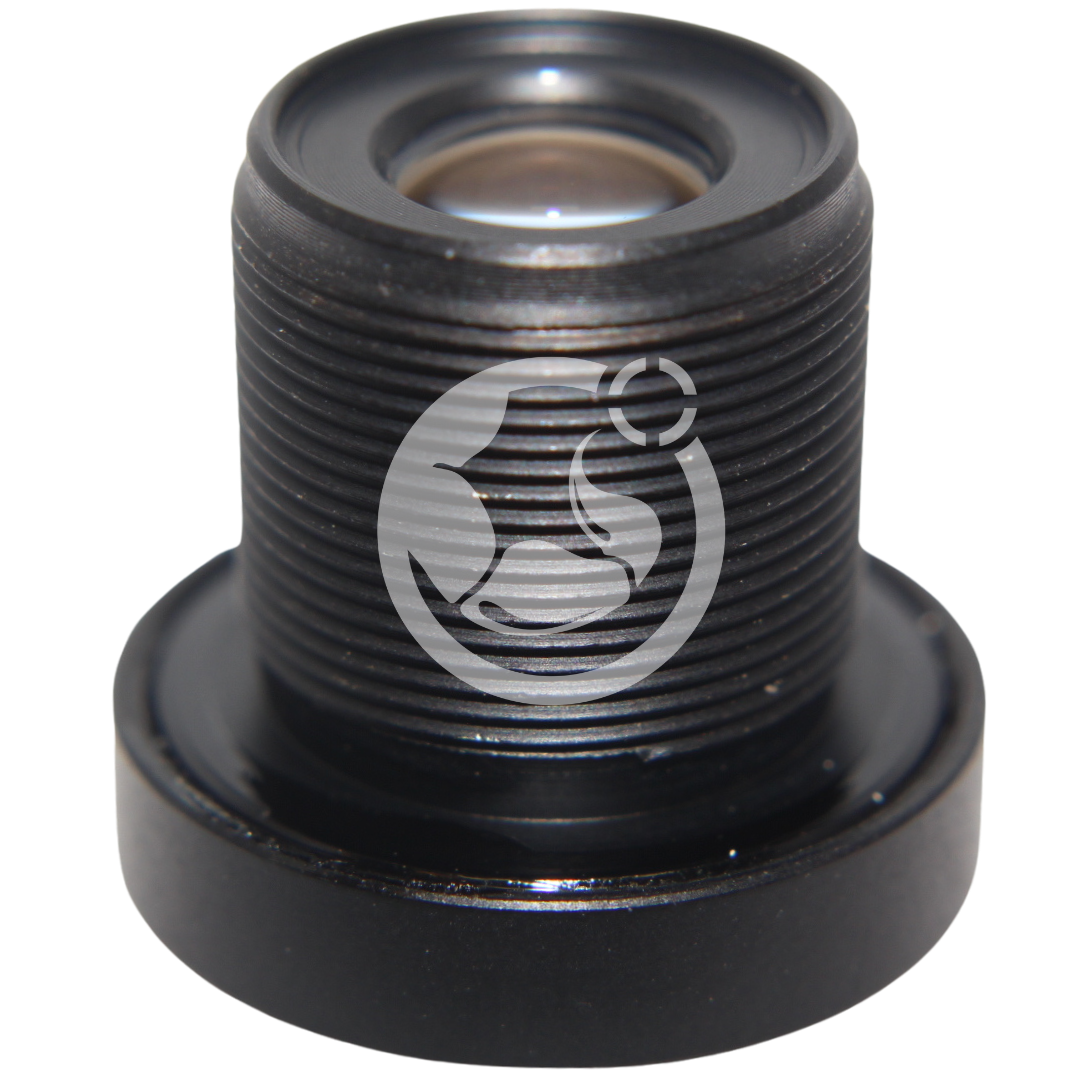

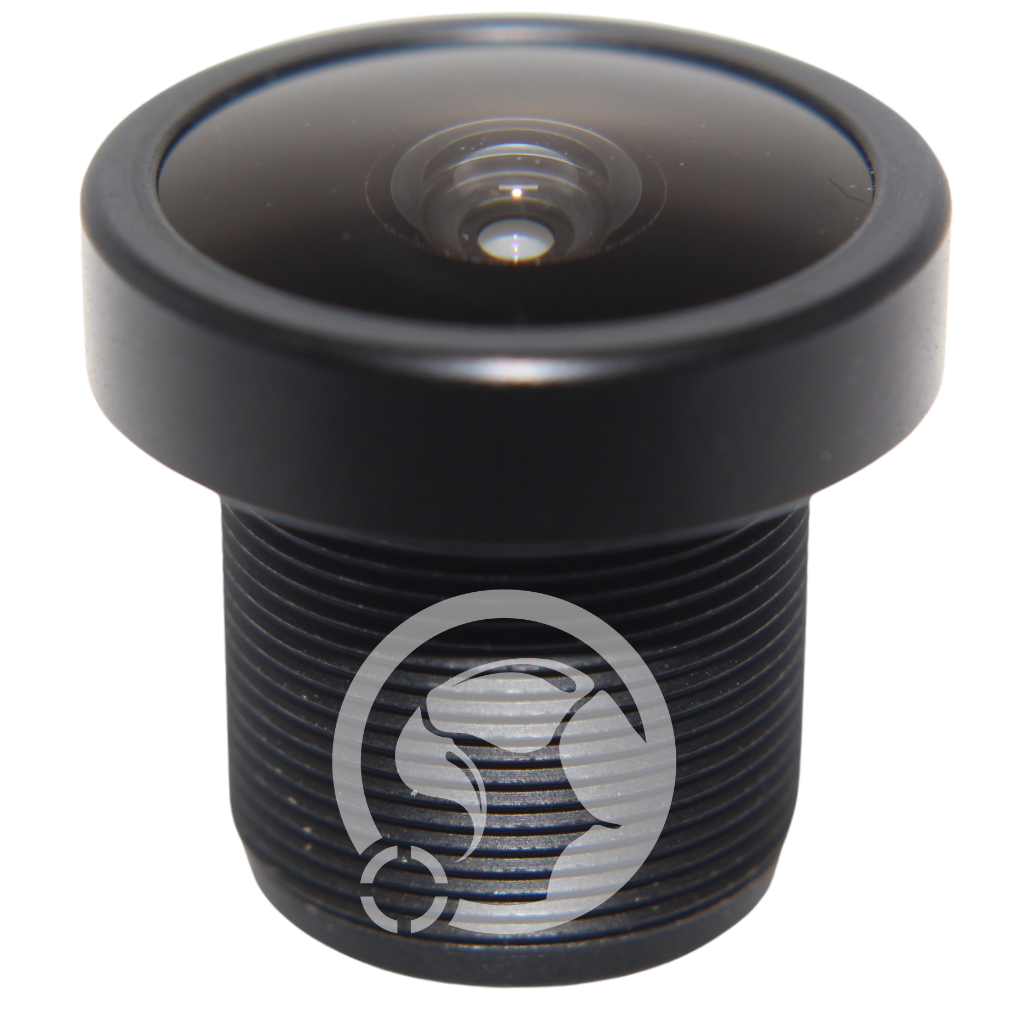

M12 Lens 2.8mm F2.0

SKU: SVL-IR02820B5M

Specification

Shipping & Returns

Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.

Returns

Key Features

  • Focal Length: 3.09mm
  • F Number: F2.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/2.3"
  • Filter Size: n/a
  • Megapixel: 5MP
  • Horizontal Field of View: 120 Degrees
  • Distortion: <-86%
  • Back Focus: 5.0mm
  • Wavelength: 400nm-900nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 1mmdfk-afux236-m12-svl-ir02820b5m-1mm.jpg


Object distance: 14mmdfk-afux236-m12-svl-ir02820b5m-14mm.jpg


Object distance: 98mmdfk-afux236-m12-svl-ir02820b5m-98mm.jpg


Object distance: 192mmdfk-afux236-m12-svl-ir02820b5m-192mm.jpg


Object distance: 291mmdfk-afux236-m12-svl-ir02820b5m-291mm.jpg
