Scorpion Vision

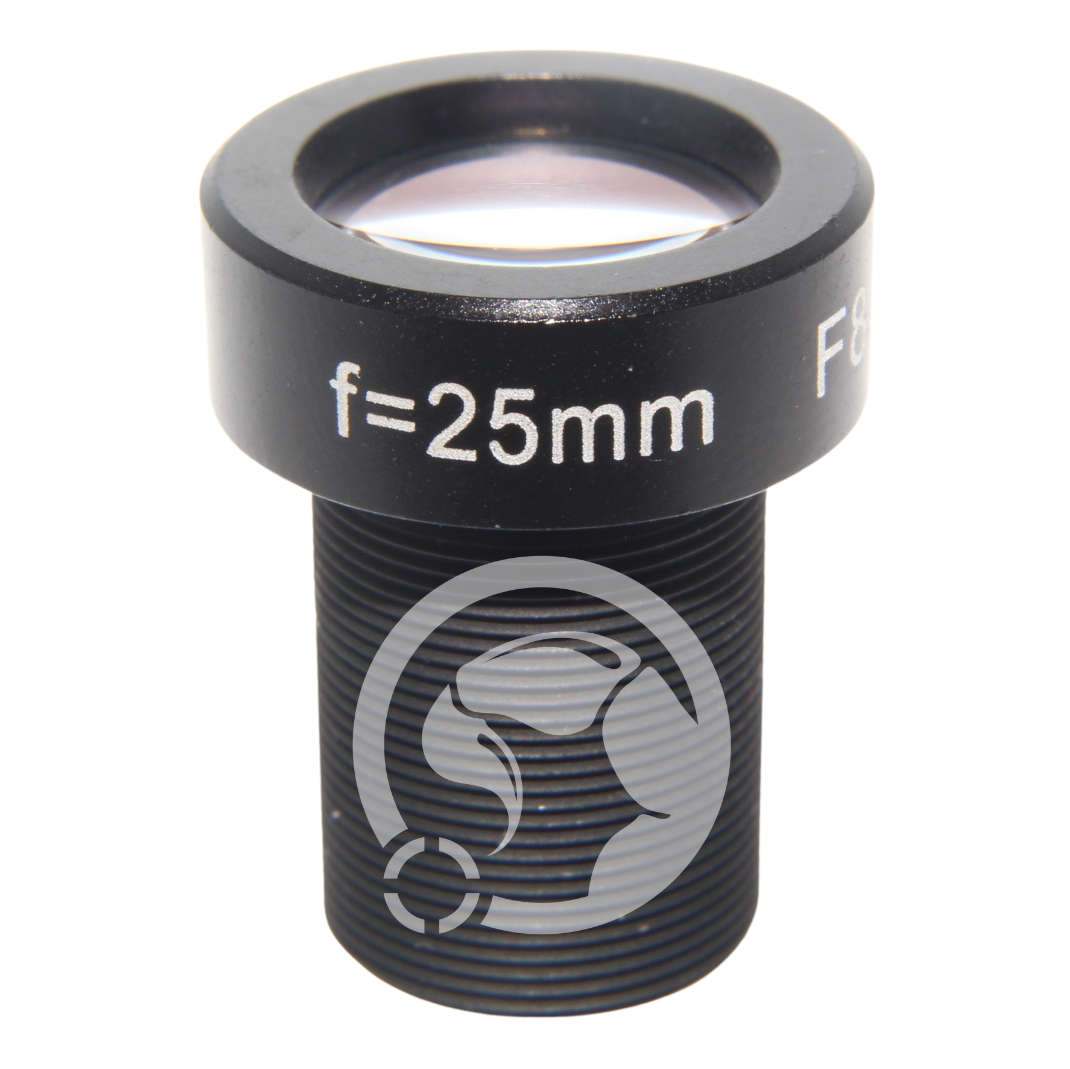

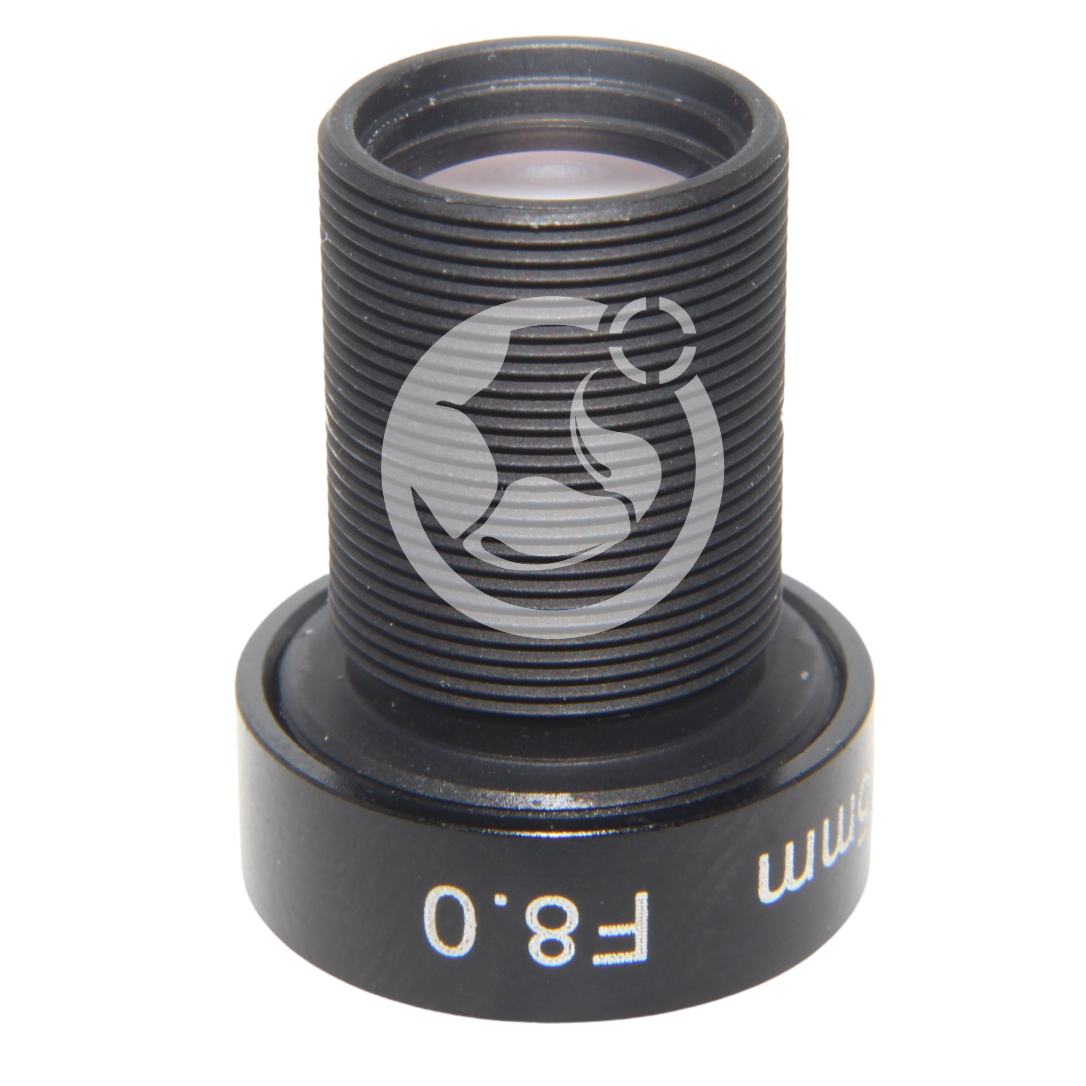

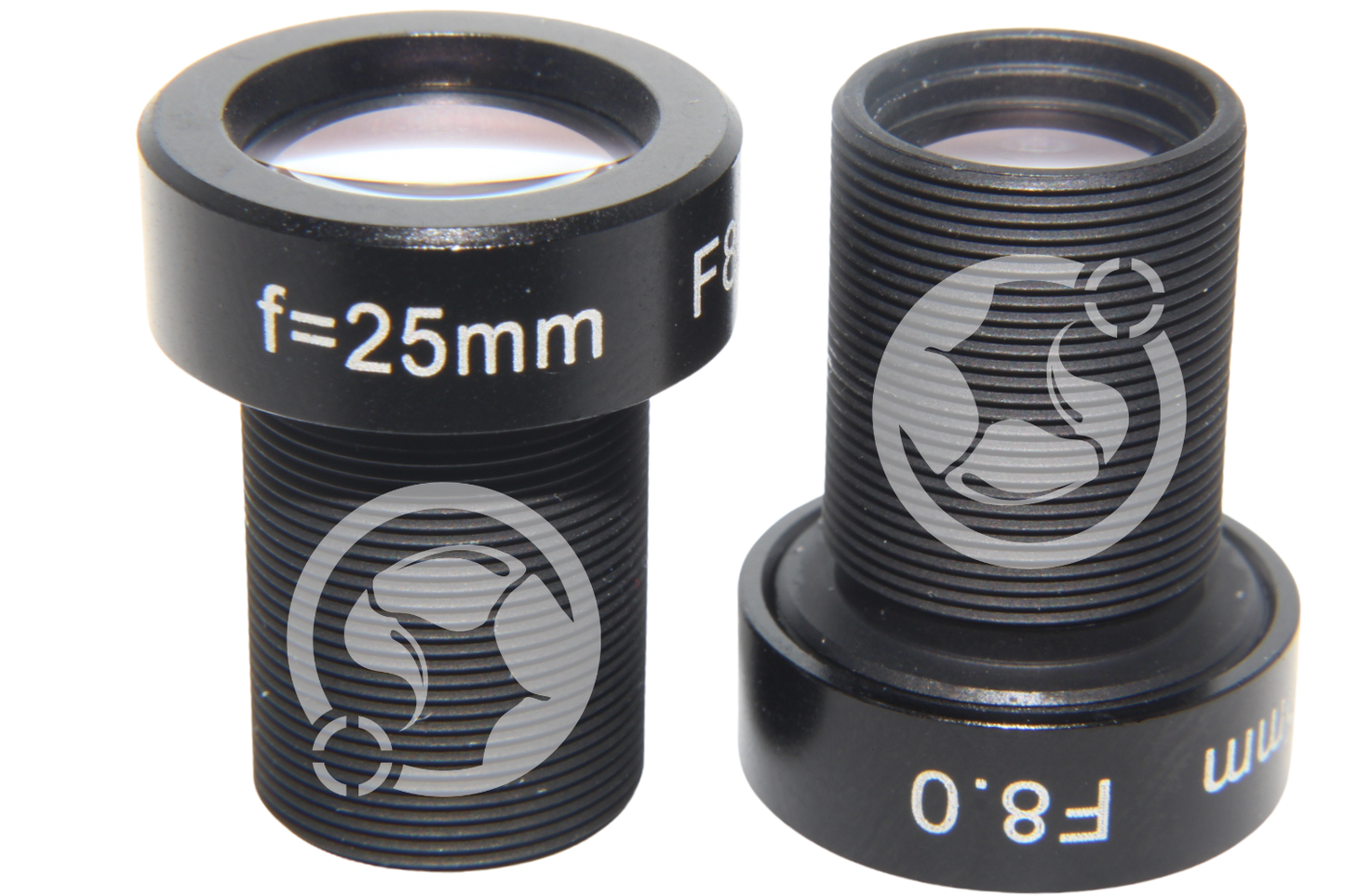

M12 Lens 25mm F8.0

SKU: SVL-2580MAC

Specification

Shipping & Returns

Shipping

Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.

Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.

Returns

If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision

Key Features

  • Focal Length: 25mm
  • F Number: F8.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 2/3"
  • Filter Size: n/a
  • Megapixel: 10MP
  • Horizontal Field of View: 17.94 Degrees
  • Distortion: <0.5%
  • Back Focus: 8.37mm
  • Working distance: 0.1 ~ 0.5m
  • Design Wavelength: 400-950nm
  • Operating Temperature: -20° C~+65° C
  • CRA: 12.23°

Sample Images

Sensor: 1/3" Aptina MT9V024

In the image below the sugar cube was 243mm from the lens. This is the minimum distance that this lens will focus on with this camera.

The sugar cube measures 16mm x 14mm.


In the below sample image, the penny (d=20.3mm) was at a distance of 45cm from the lens.


This lens has a very large focal length and minimal distortion.


In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 218mm from the lens and the second at 234mm. This lens has a large F Number of f8.0 creating a large depth of field.
