Scorpion Vision

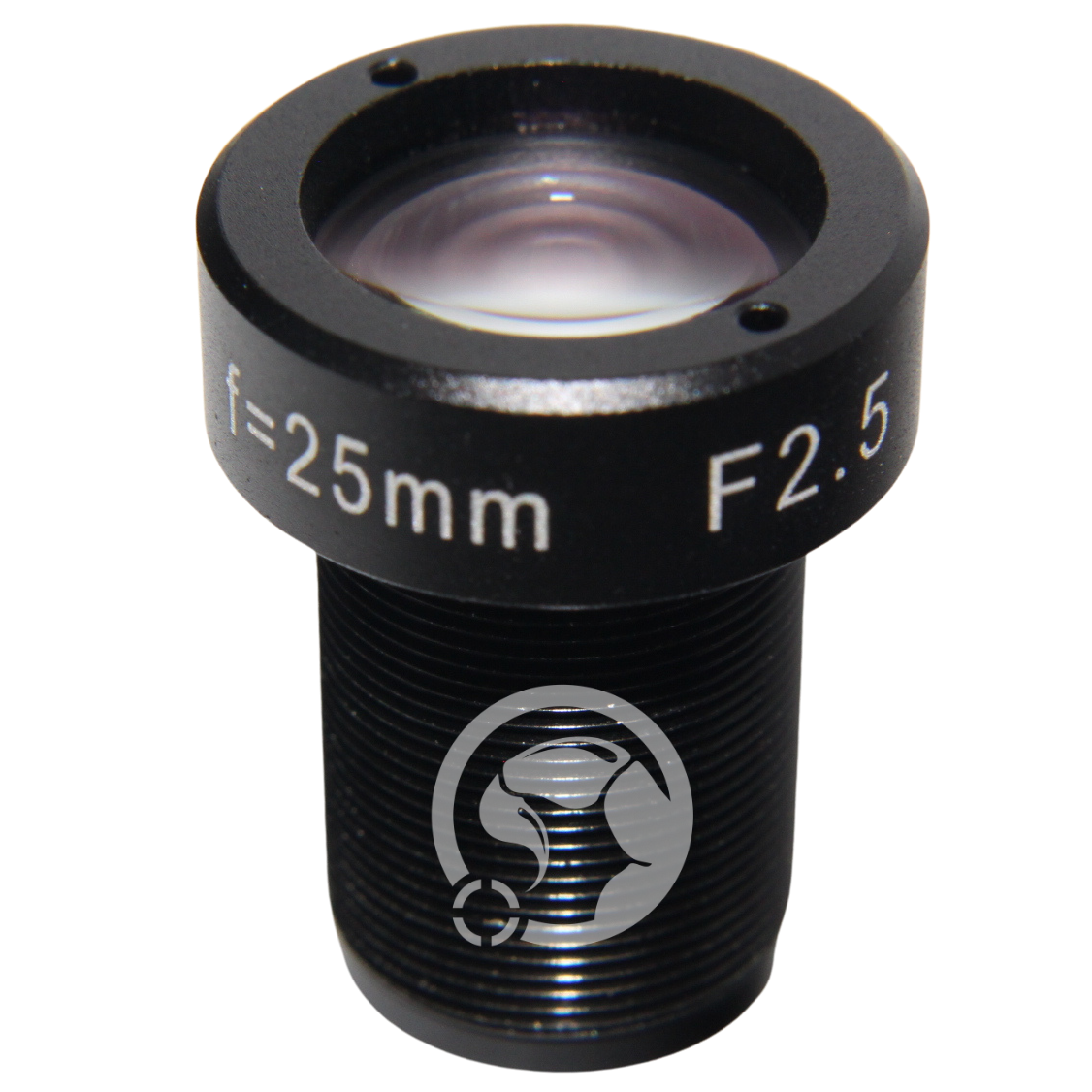

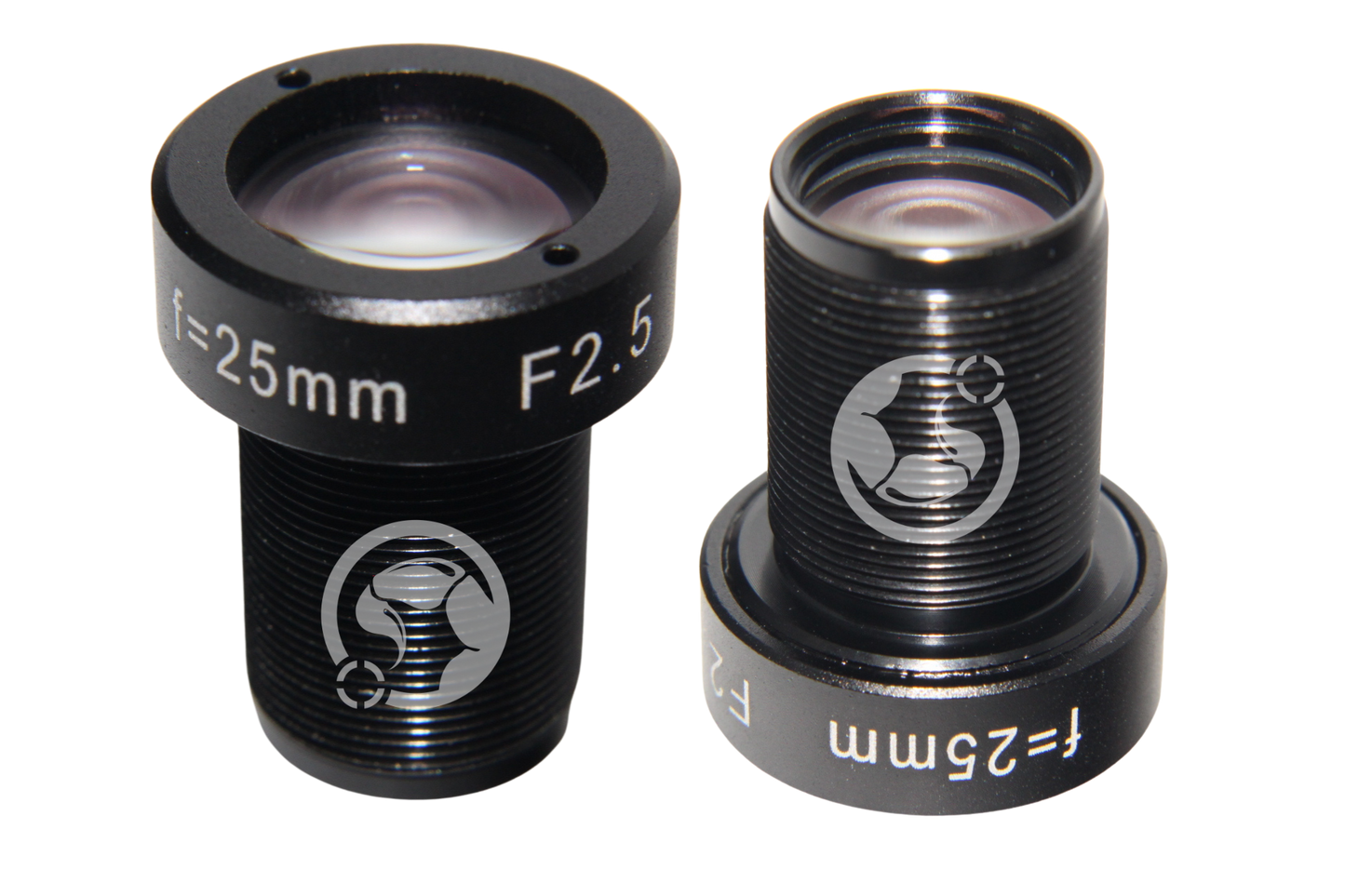

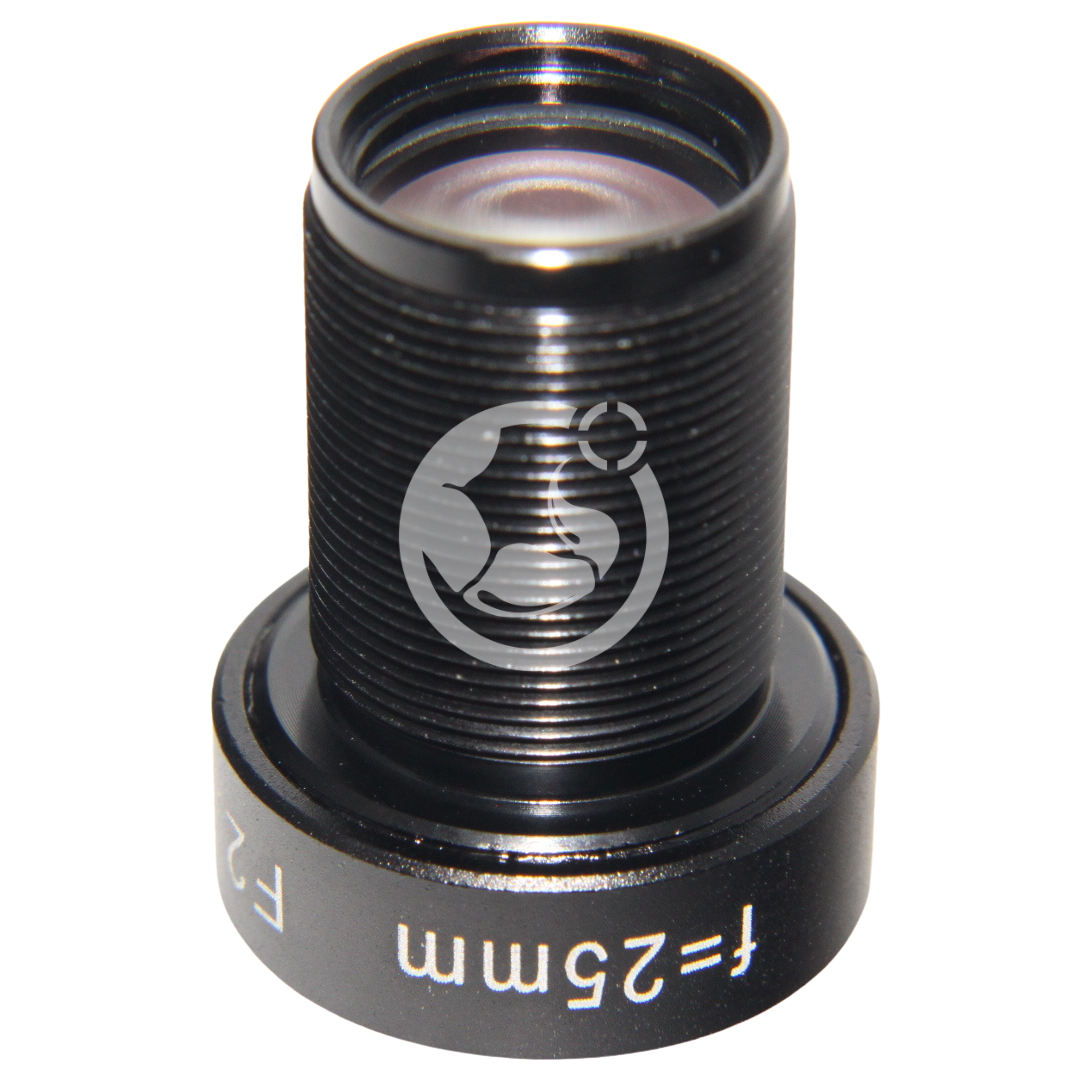

M12 Lens 25mm F2.5
SKU: SVL-2525MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 25mm
- F Number: F2.5
- Iris: Non-adjustable
- Mount: M12
- Format: 2/3"
- Filter Size: n/a
- Megapixel: 10MP
- Horizontal Field of View: 17.94 Degrees
- Distortion: <0.5%
- Back Focus: 8.37mm
- Working distance: 0.1 ~ 0.5m
- Design Wavelength: 400-950nm
- Operating Temperature: -20° C~+65° C
- CRA: 12.23°
Sample Images
In the image below the sugar cube was 465mm from the lens. This is the minimum distance that this lens will focus on with this camera.
The sugar cube measures 16mm x 14mm.
In this sample image, the penny (d=20.3mm) was at a distance of 45cm from the lens. The sensor used was a 1/3" Aptina MT9V024.
This lens has a very large focal length and minimal distortion.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 218mm from the lens and the second at 234mm. This lens has a small F Number of F2.5 creating a narrow depth of field.
The following image is an image of sugar granules, taken with a 6MP sensor at an operating distance of 170mm.
