Scorpion Vision

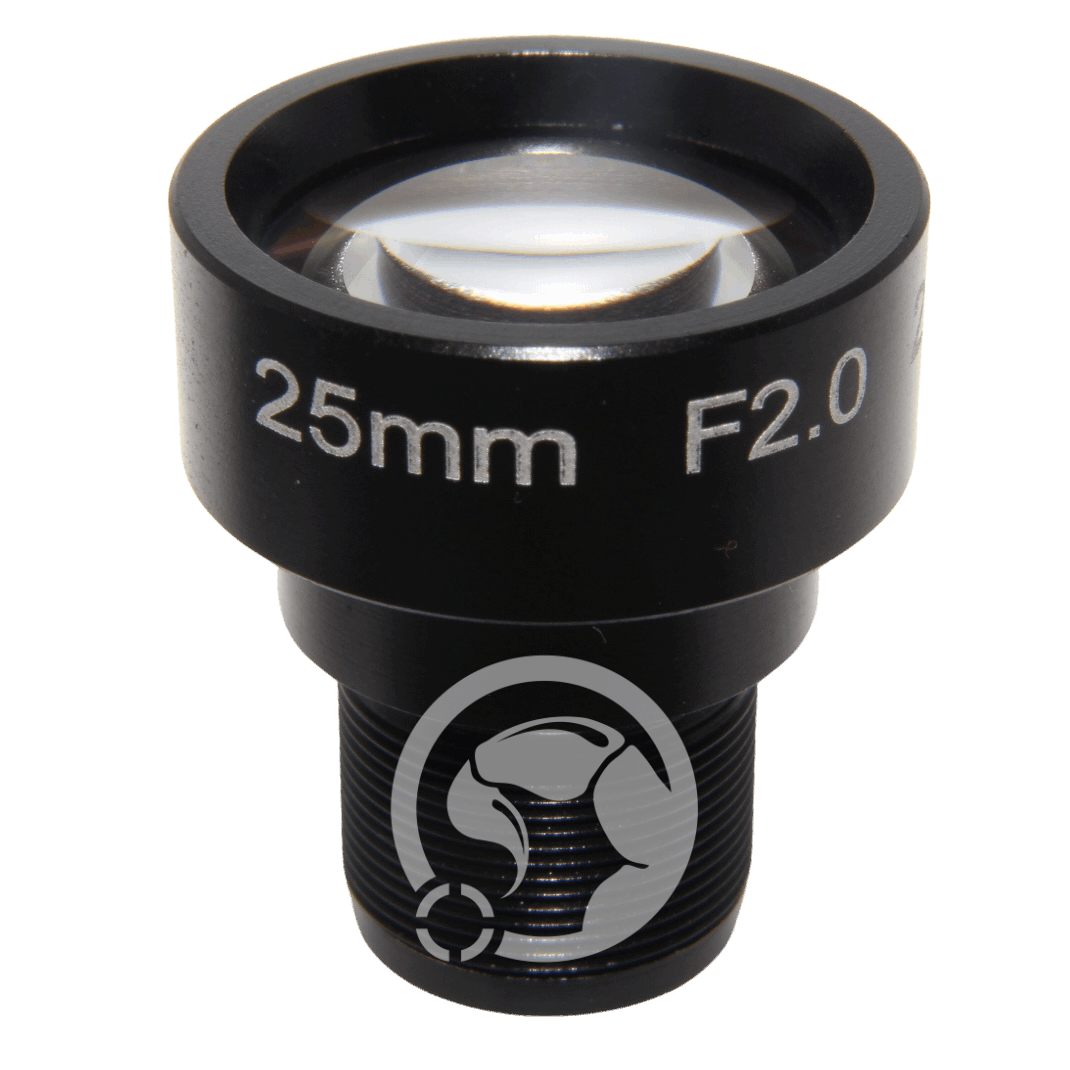

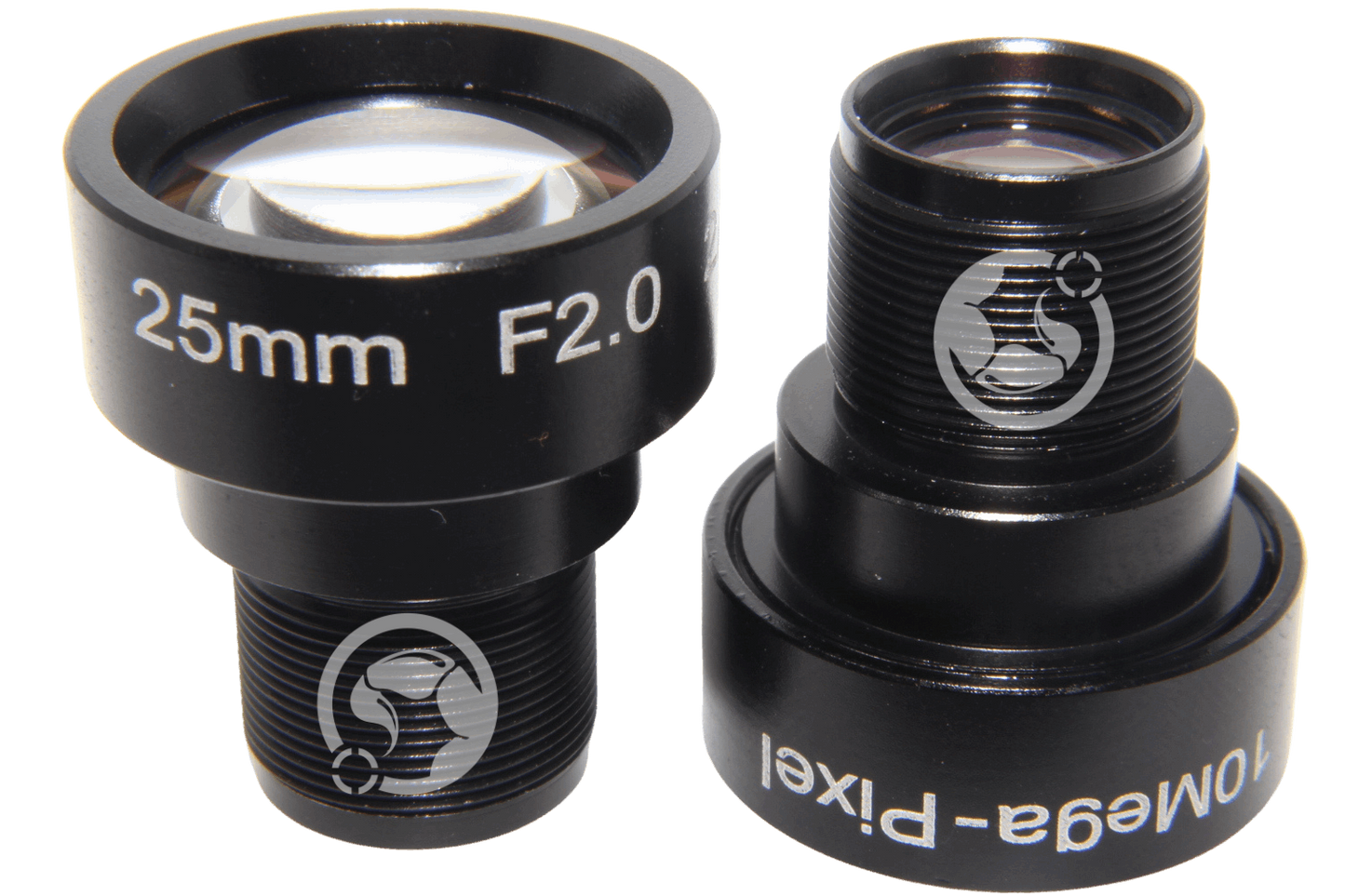

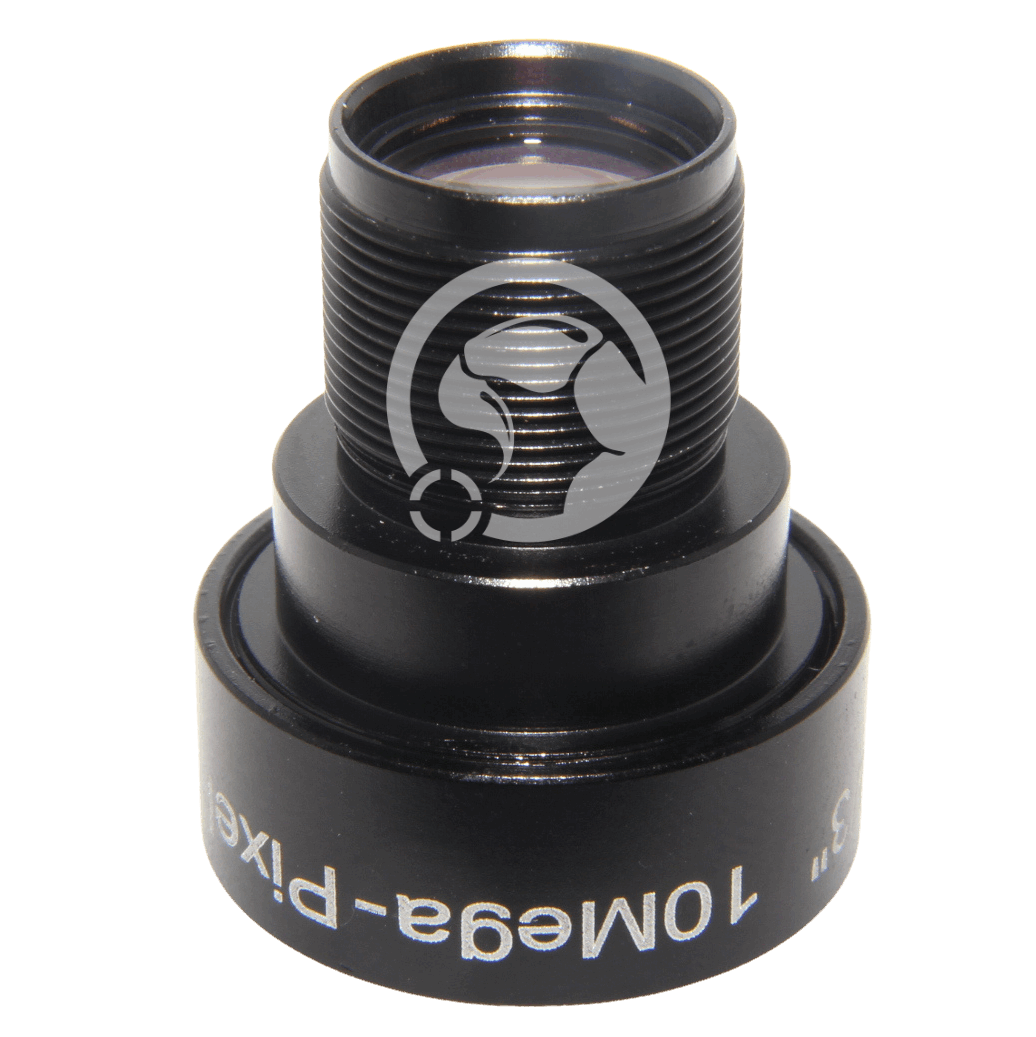

M12 Lens 25mm F2.0



Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact

Key Features

  • Focal Length: 25mm
  • F Number: F2.0
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 2/3"
  • Filter Size: n/a
  • Megapixel: 10MP
  • Horizontal Field of View: 20 Degrees
  • Distortion: <-0.17%
  • Back Focus: 8.47mm
  • Working Distance: 0.7m - ∞
  • Design Wavelength: 400-950nm
  • Dimension: 23.1mm


Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 405mmdfk-afux236-m12-svl-f2520fm-1-405mm.jpg

Object distance: 535mmdfk-afux236-m12-svl-f2520fm-1-535mm.jpg

Object distance: 731mmdfk-afux236-m12-svl-f2520fm-1-731mm.jpg

Object distance: 852mmdfk-afux236-m12-svl-f2520fm-1-852mm.jpg
