Scorpion Vision

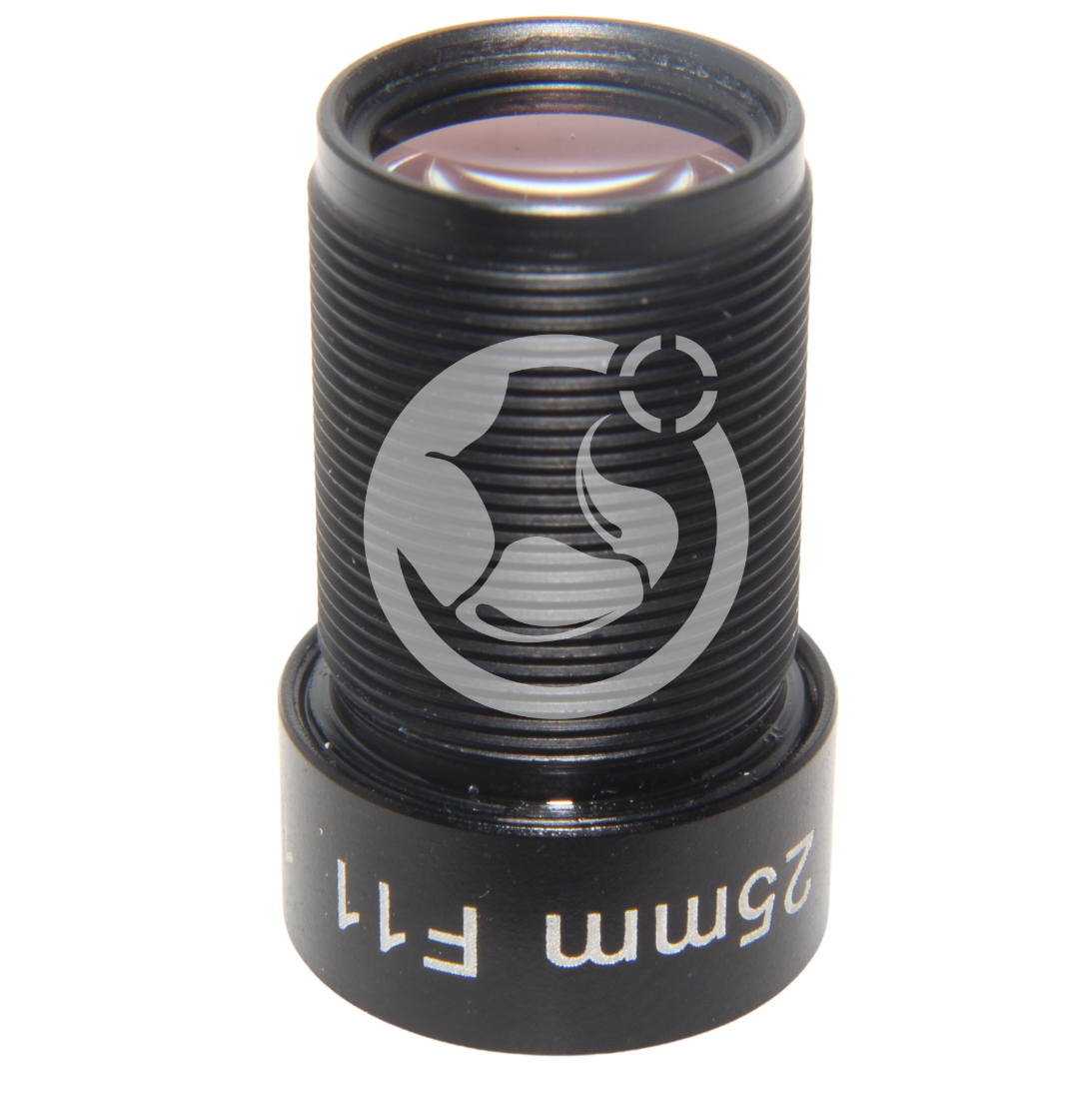

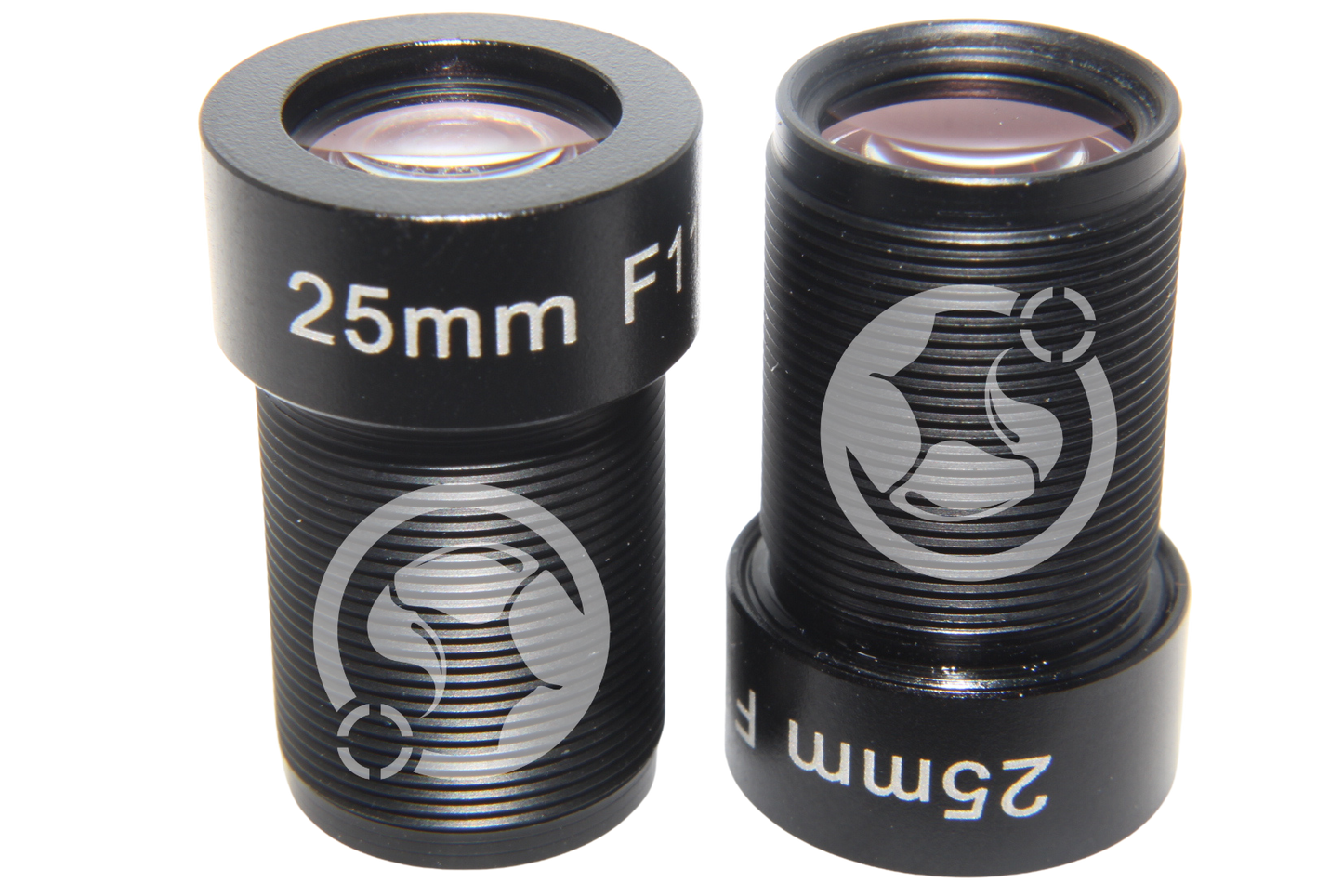

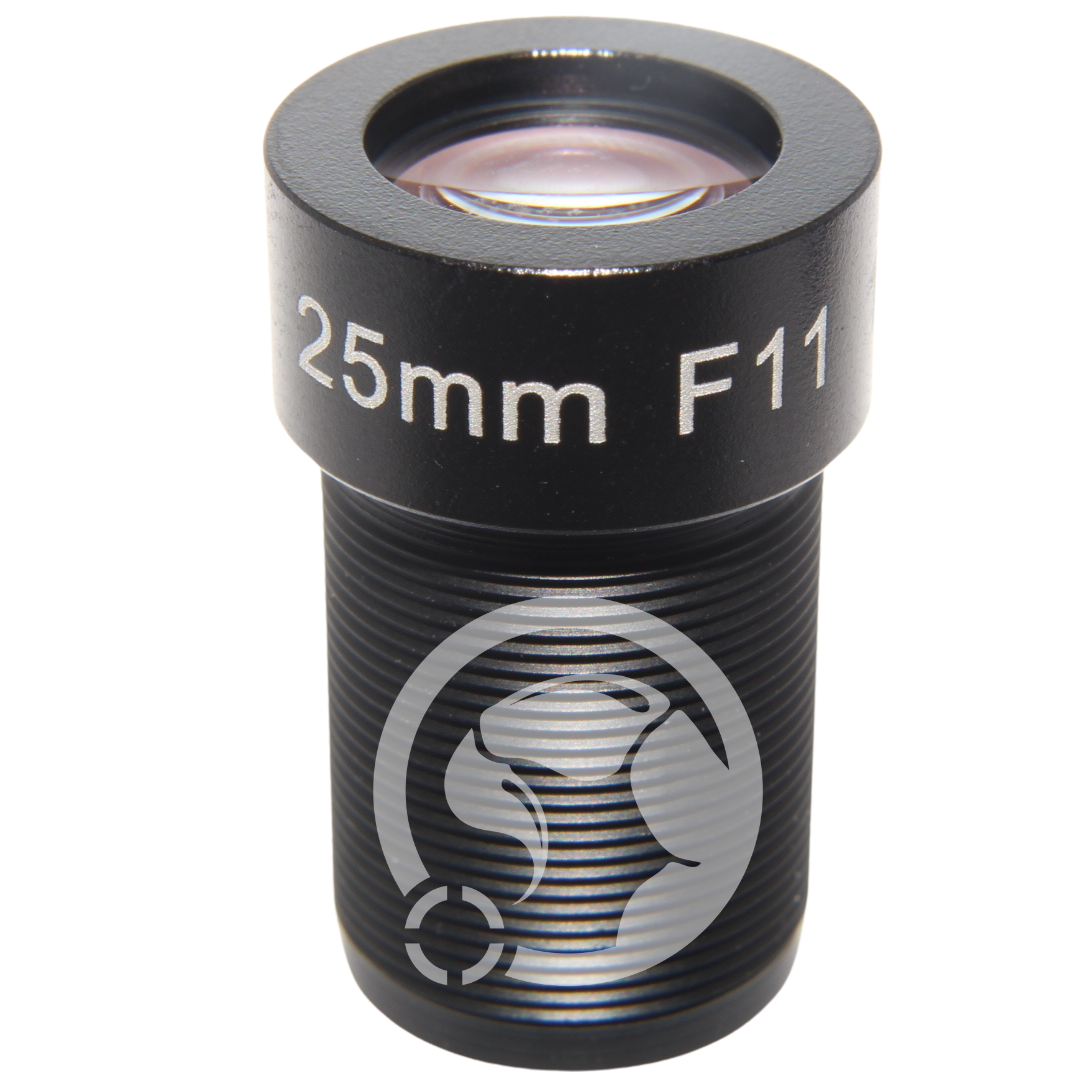

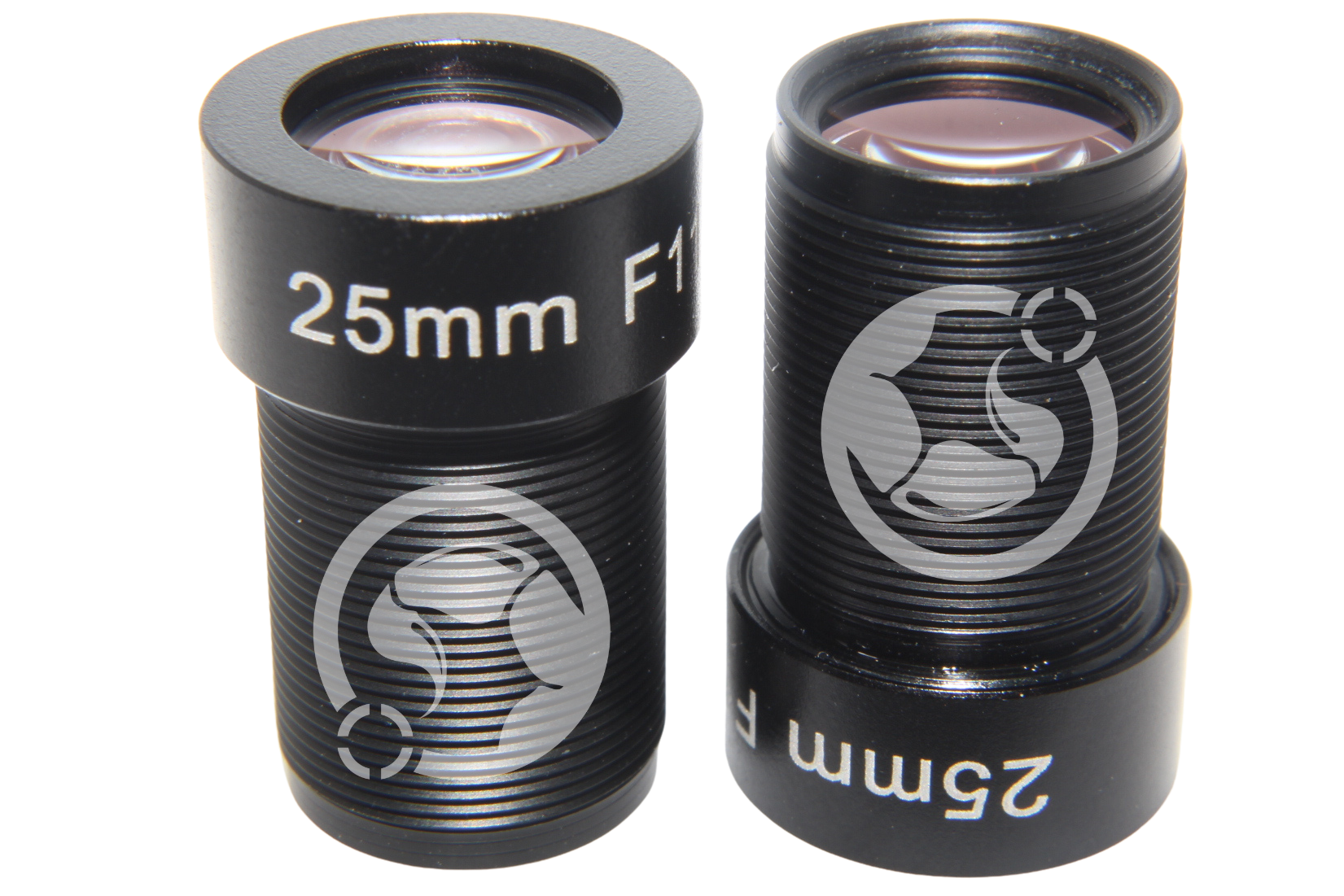

M12 Lens 25mm F11.0



Shipping & Returns

Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.


Key Features

  • Focal Length: 25mm
  • F Number: F11
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/1.8"
  • Megapixel: 3MP
  • Horizontal Field of View: 15 Degrees
  • Distortion: <0.1%
  • Back Focus: 6.13mm
  • Working Distance: 0.1m -1m
  • Design Wavelength: 400-950nm
  • Operating Temperature: -20° C ~ +65° C
  • CRA: 6.55°

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 211mmdfk-afux236-m12-svl-2511smac-211mm.jpg

Object distance: 285mmdfk-afux236-m12-svl-2511smac-285mm.jpg

Object distance: 435mmdfk-afux236-m12-svl-2511smac-435mm.jpg

Object distance: 577mmdfk-afux236-m12-svl-2511smac-577mm.jpg
