Scorpion Vision

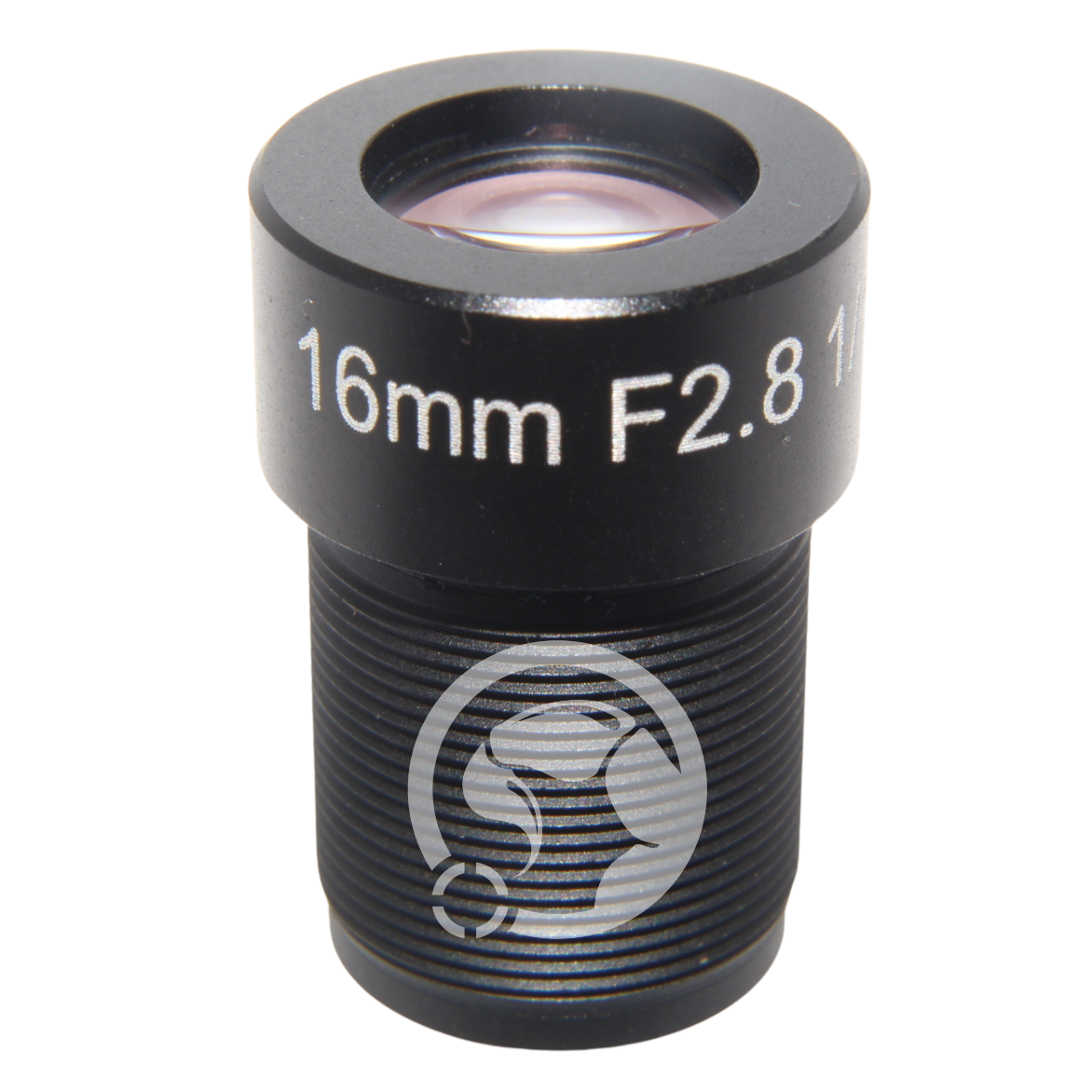

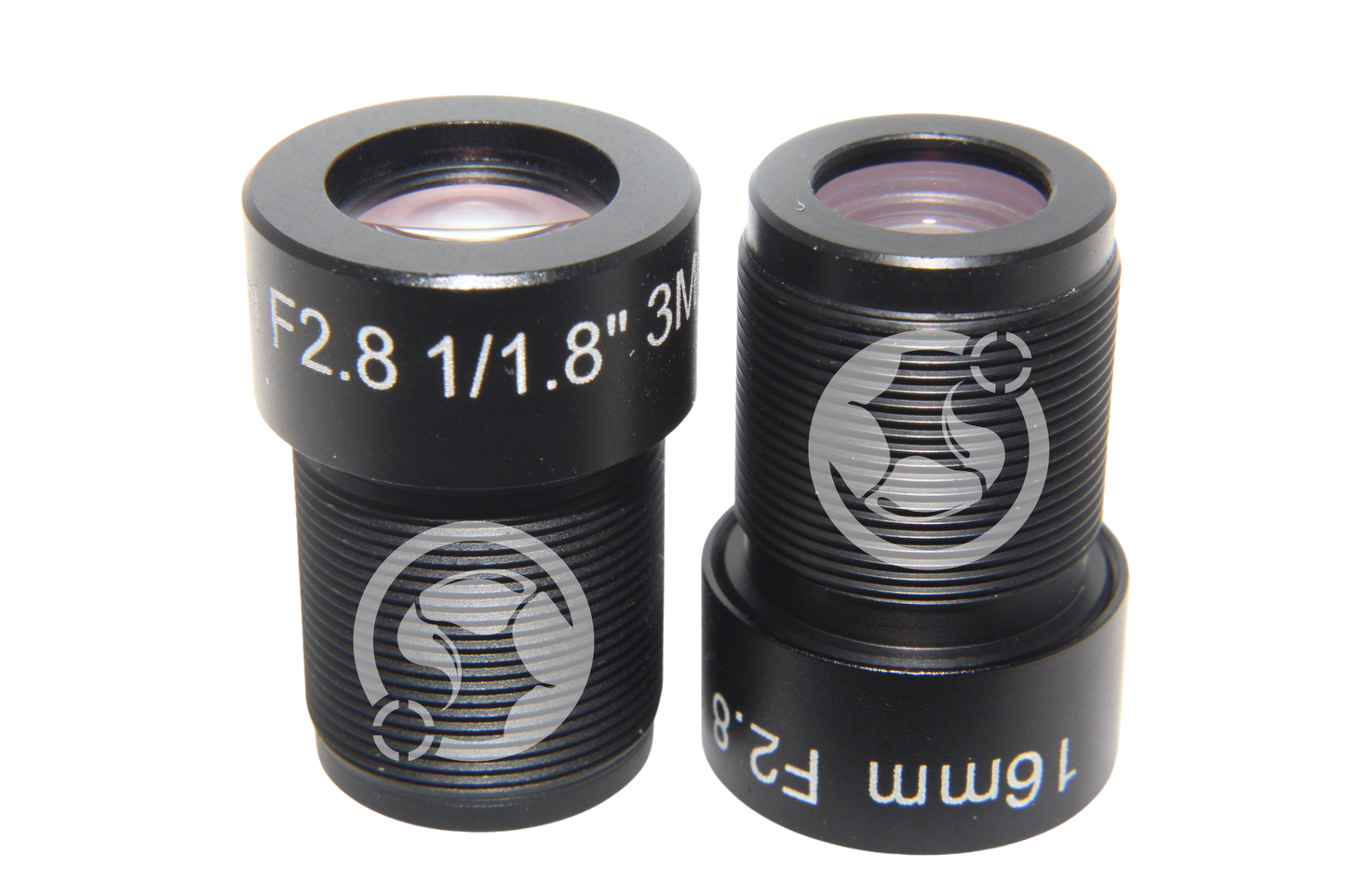

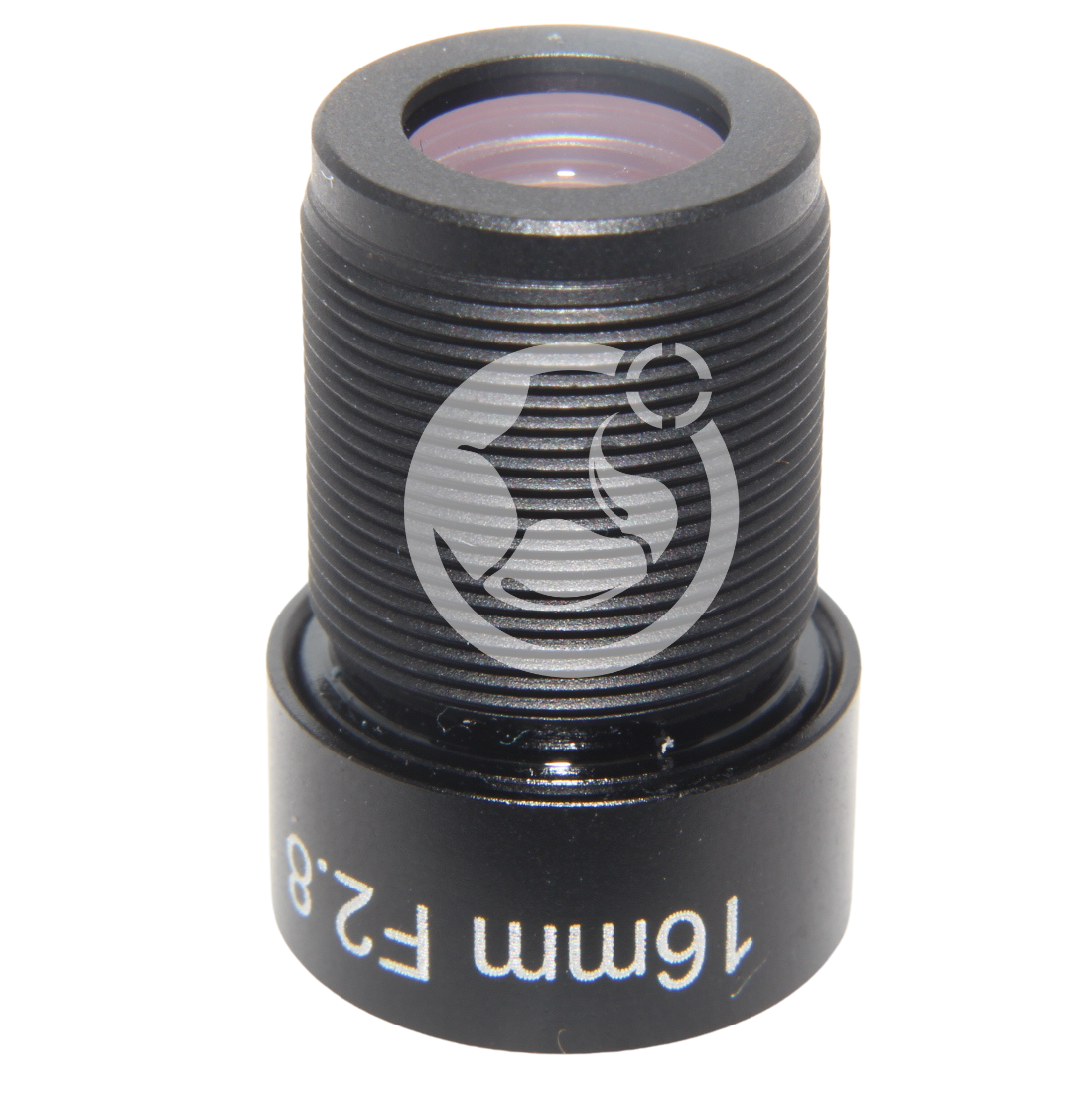

M12 Lens 16mm F2.8
SKU: SVL-1628SMAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
Key Features
- Focal Length: 16mm
- F Number: F2.8
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Megapixel: 3MP
- Horizontal Field of View: 21.95 Degrees
- Distortion: <-0.4%
- Back Focus: 5.39mm
- Working Distance: 0.1m - ∞
- Design Wavelength: 400-950nm
- Operating Temperature: -20° C ~ +65° C
- CRA: 13.67°
Sample Images
Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ
In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.
Minimum object distance: 111mm
Object distance: 254mm
Object distance: 547mm
