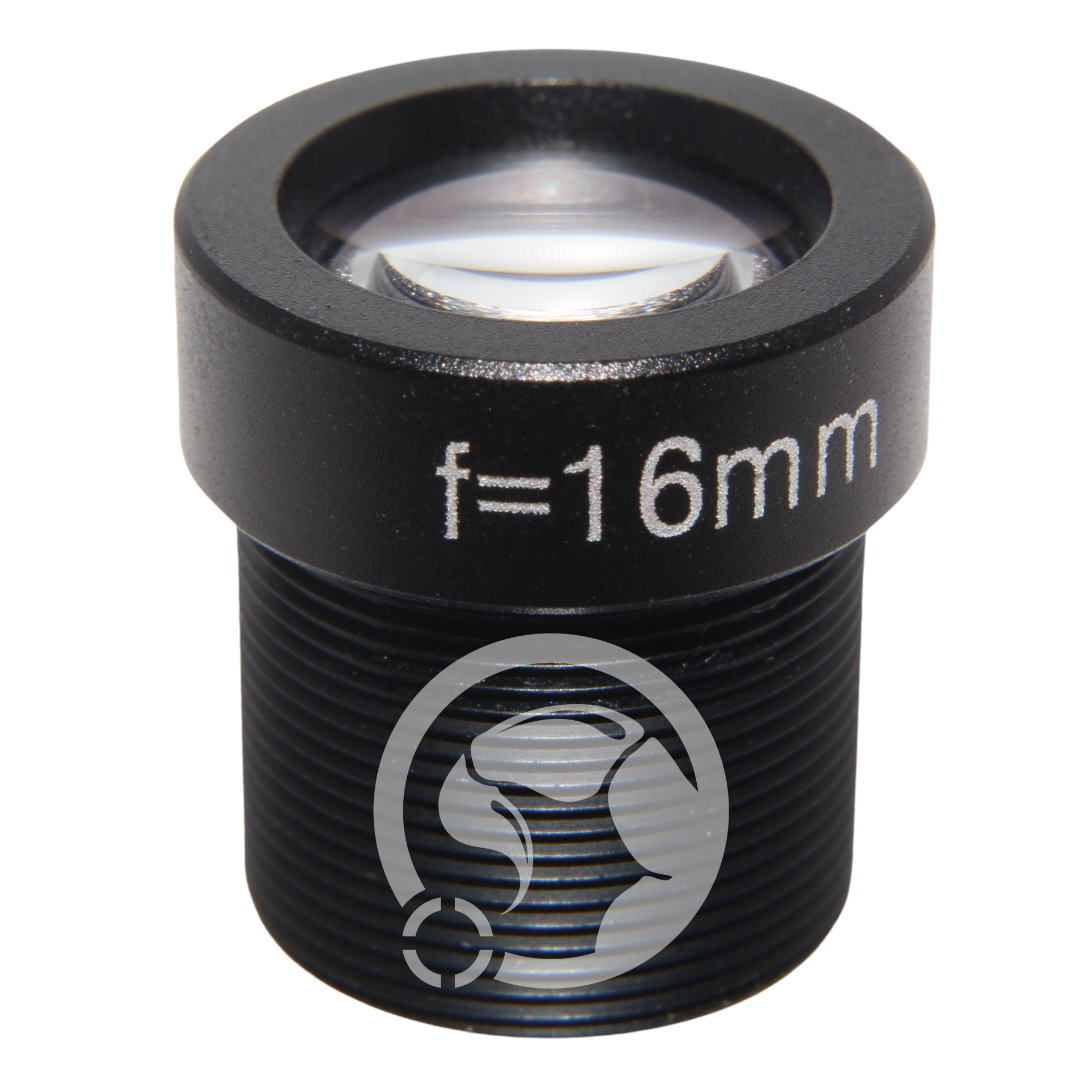

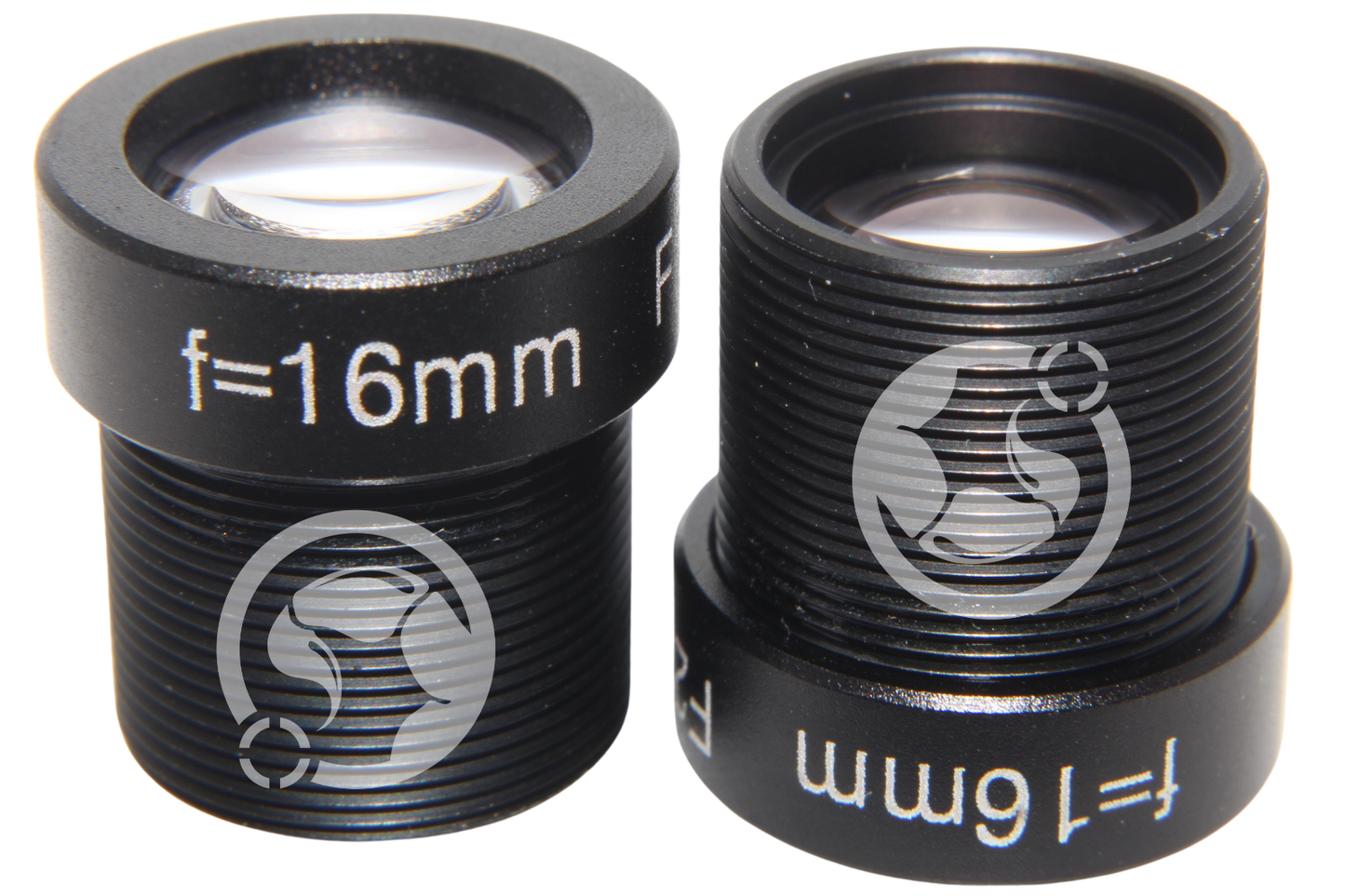

M12 Lens 16mm F2.2
SKU: SVL-1622MAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 16mm
- F Number: F2.2
- Iris: Non-adjustable
- Mount: M12
- Format: 2/3"
- Filter Size: n/a
- Megapixel: 10MP
- Horizontal Field of View: 26.3 Degrees
- Distortion: <2.5%
- Back Focus: 7.09mm
- Working distance: 0.1 ~ 0.5m
- Design Wavelength: 400-950nm
- Operating Temperature: -20° C~+65° C
- CRA - 17.34°
Sample Images
Sensor: 1/3" Aptina MT9V024.
In the image below the sugar cube was 63mm from the lens. This is the minimum distance that this lens will focus on.
In the next image, the sugar cube was 120mm from the lens.
The sugar cube measures 16mm x 14mm.
In this next sample image, the penny (d=20.3mm) was at a distance of 45cm from the lens.
This lens has a large focal length and low distortion.
In these next images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 56mm from the lens and the second at 58mm. This lens has a small F Number of F2.2 creating a narrow depth of field.
