Scorpion Vision

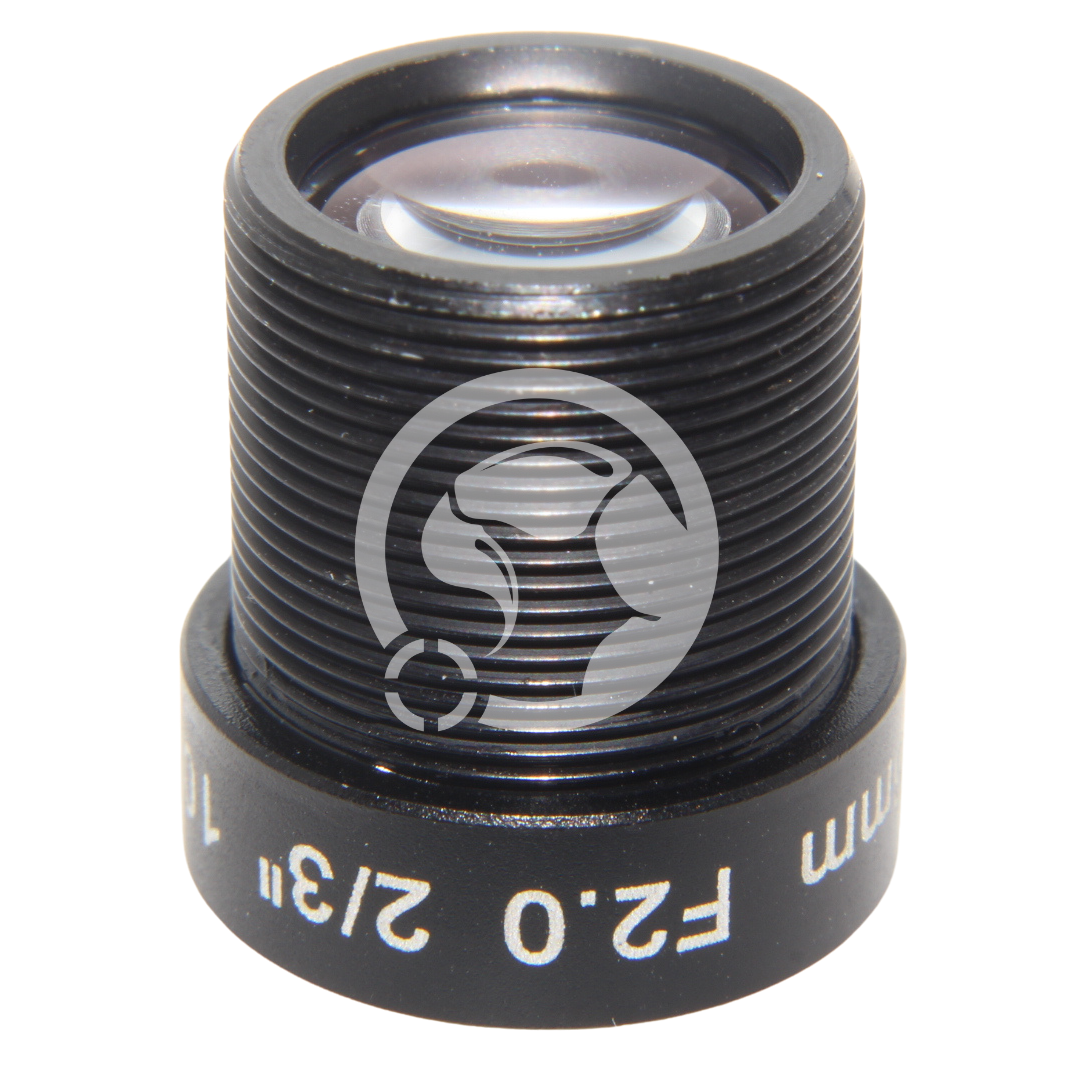

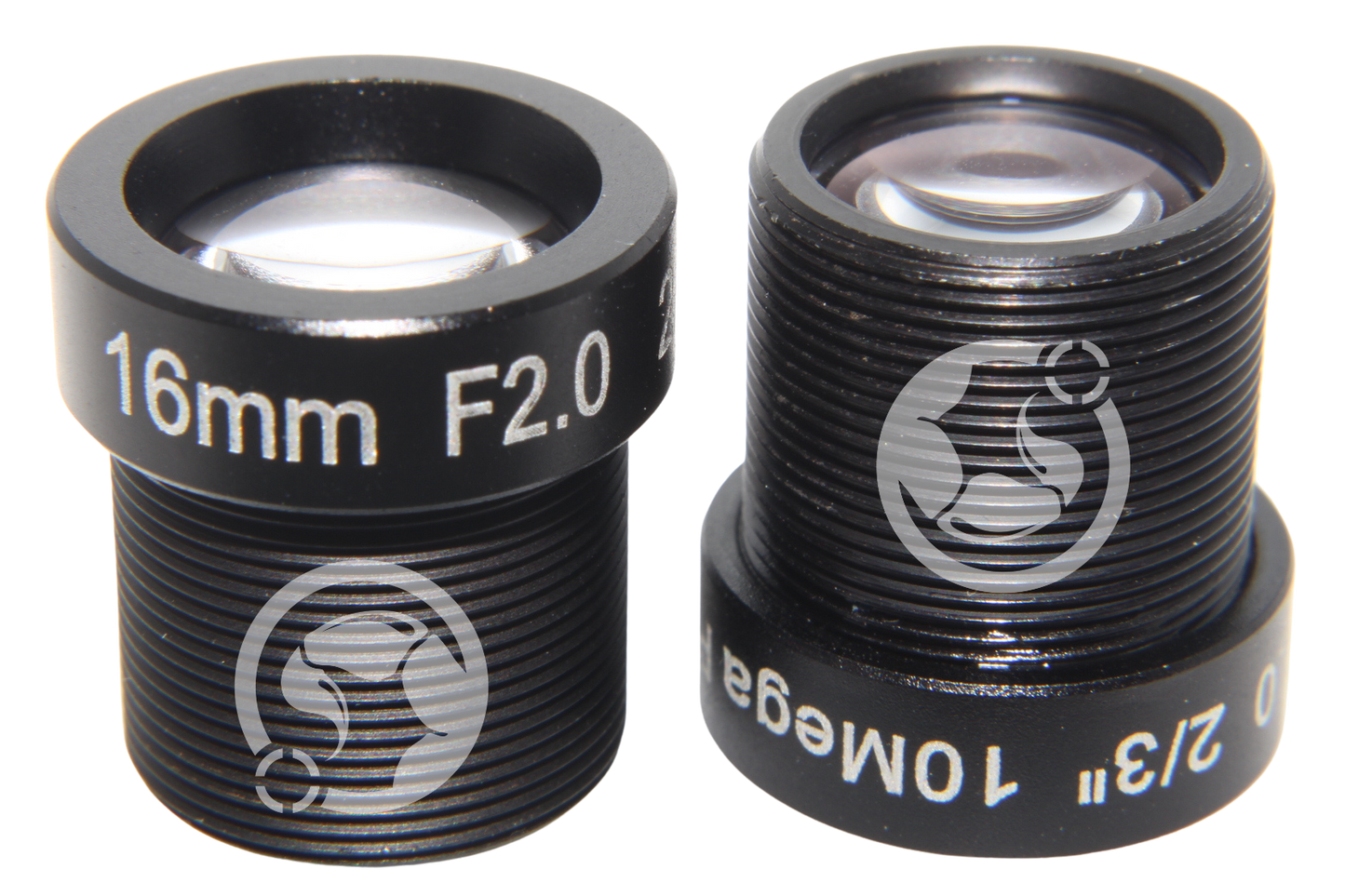

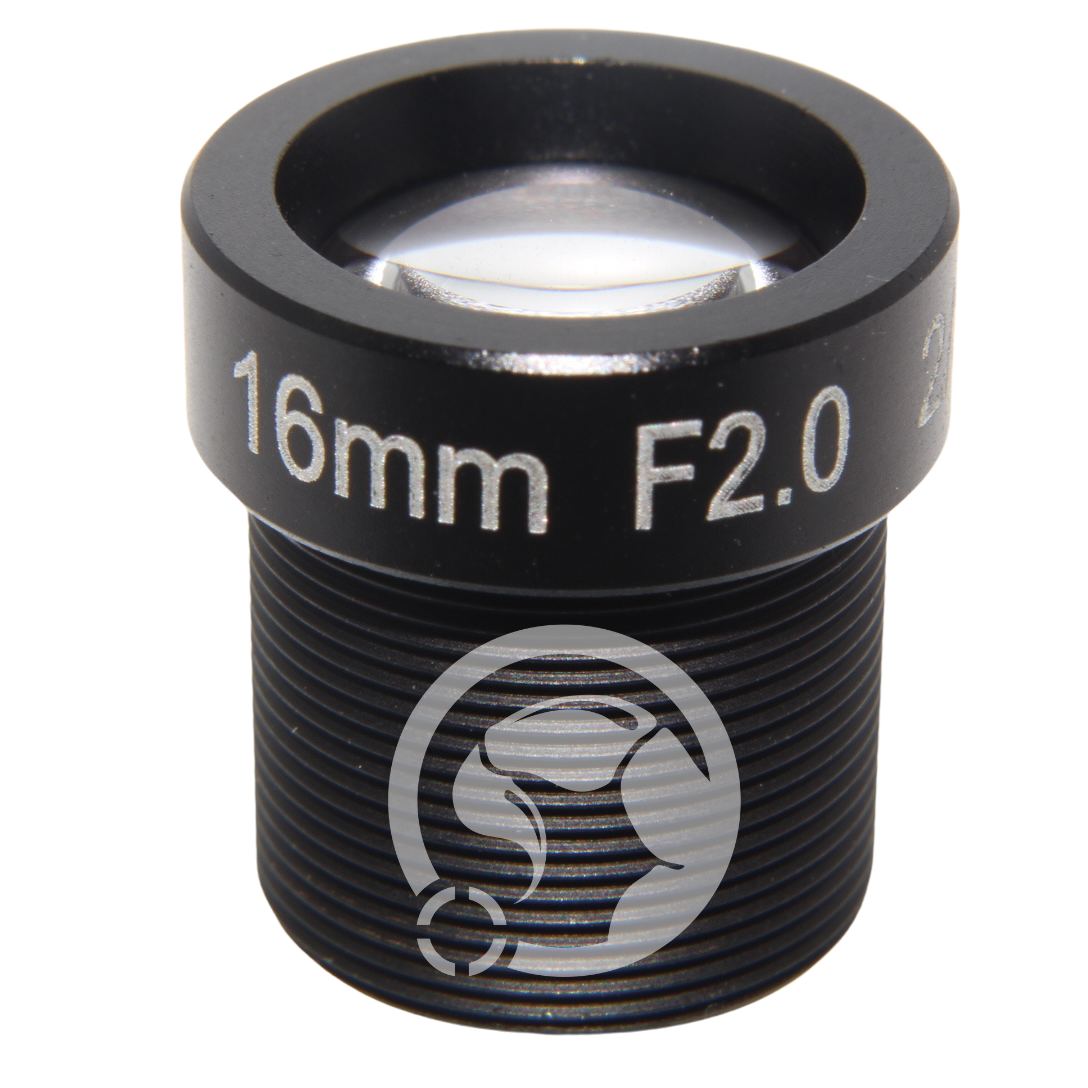

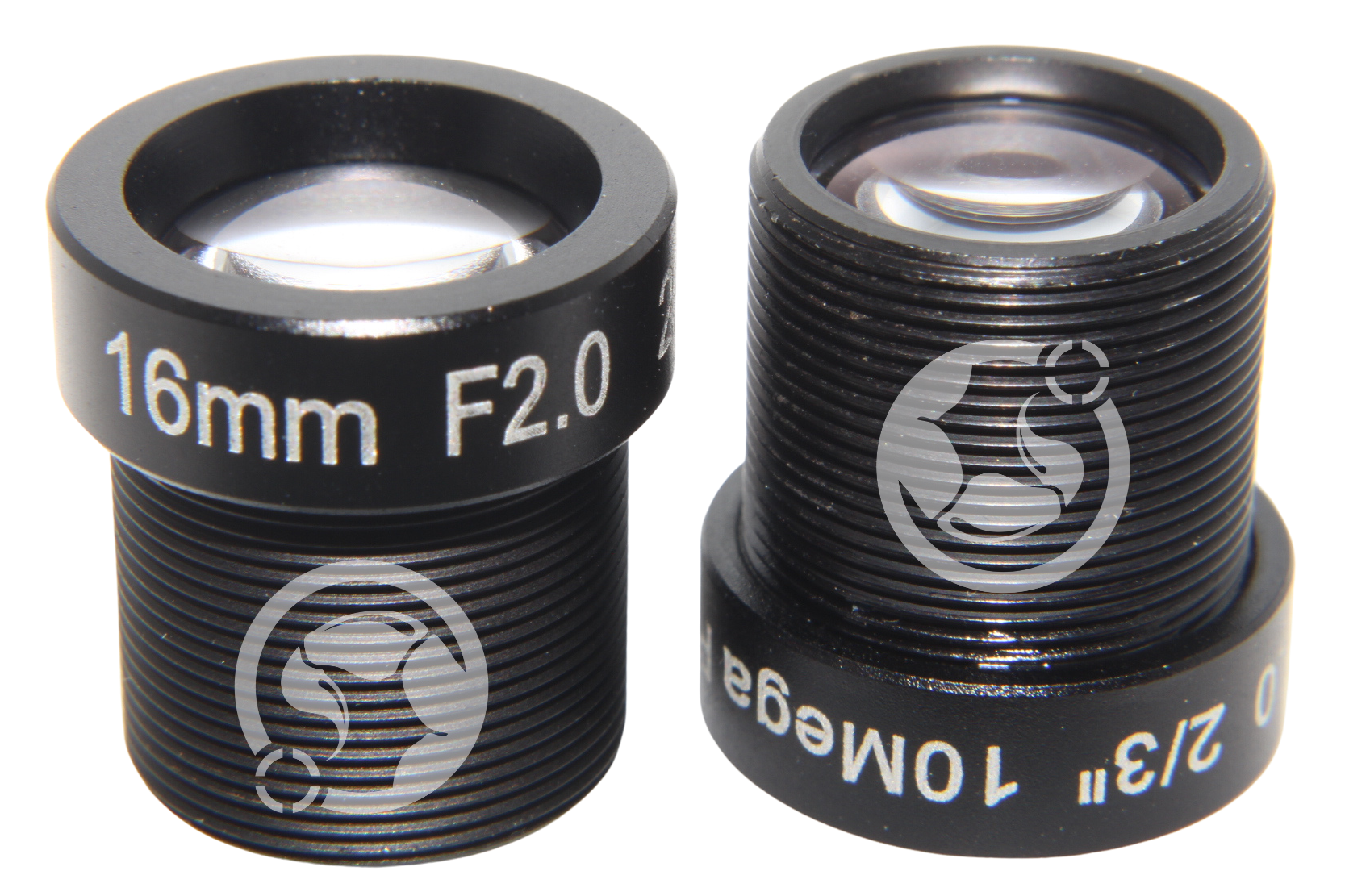

M12 Lens 16mm F2.0
SKU: SVL-F1620FM
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 16mm
- F Number: F2.0
- Iris: Non-adjustable
- Mount: M12
- Format: 2/3"
- Filter Size: n/a
- Megapixel: 10MP
- Horizontal Field of View: 29.48 Degrees
- Distortion: <-2.8%
- Back Focus: 4.22mm
- Working distance: ∞ ~ 0.2m
- Wavelength: 400nm-950nmm
Sample Images
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 56mm from the lens and the second at 58mm. This lens has a small F Number of F2.0 creating a narrow depth of field.
