Scorpion Vision

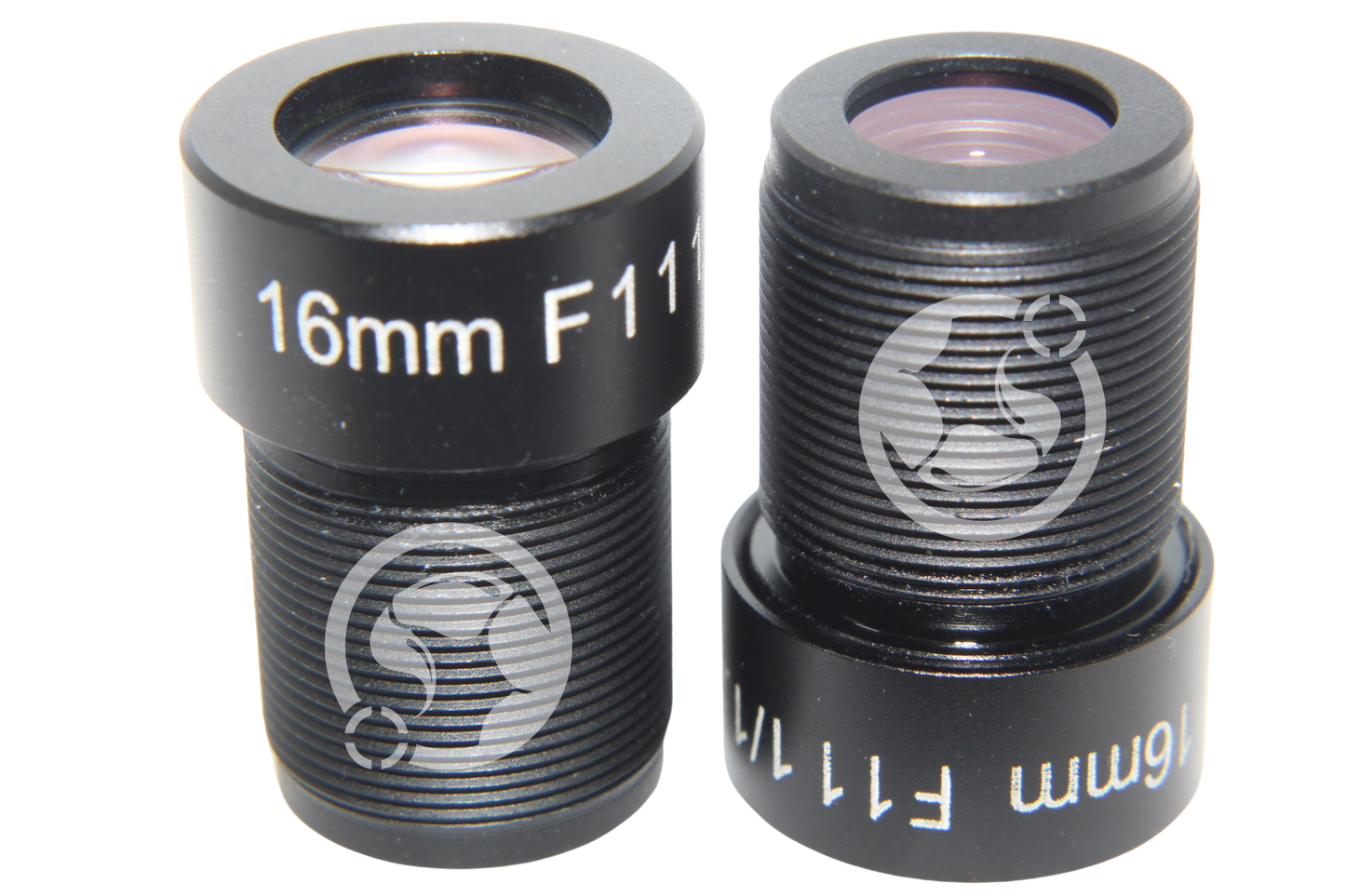

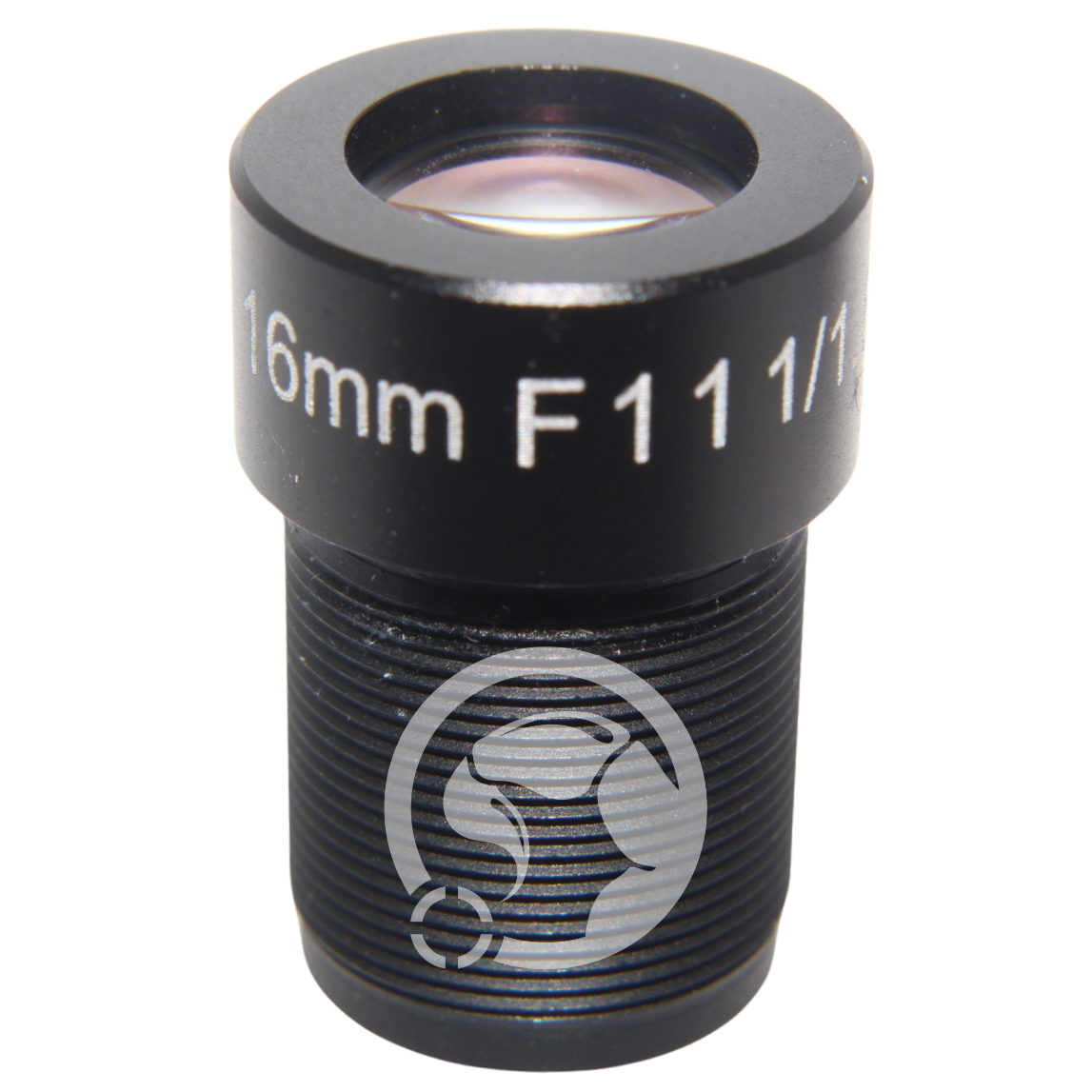

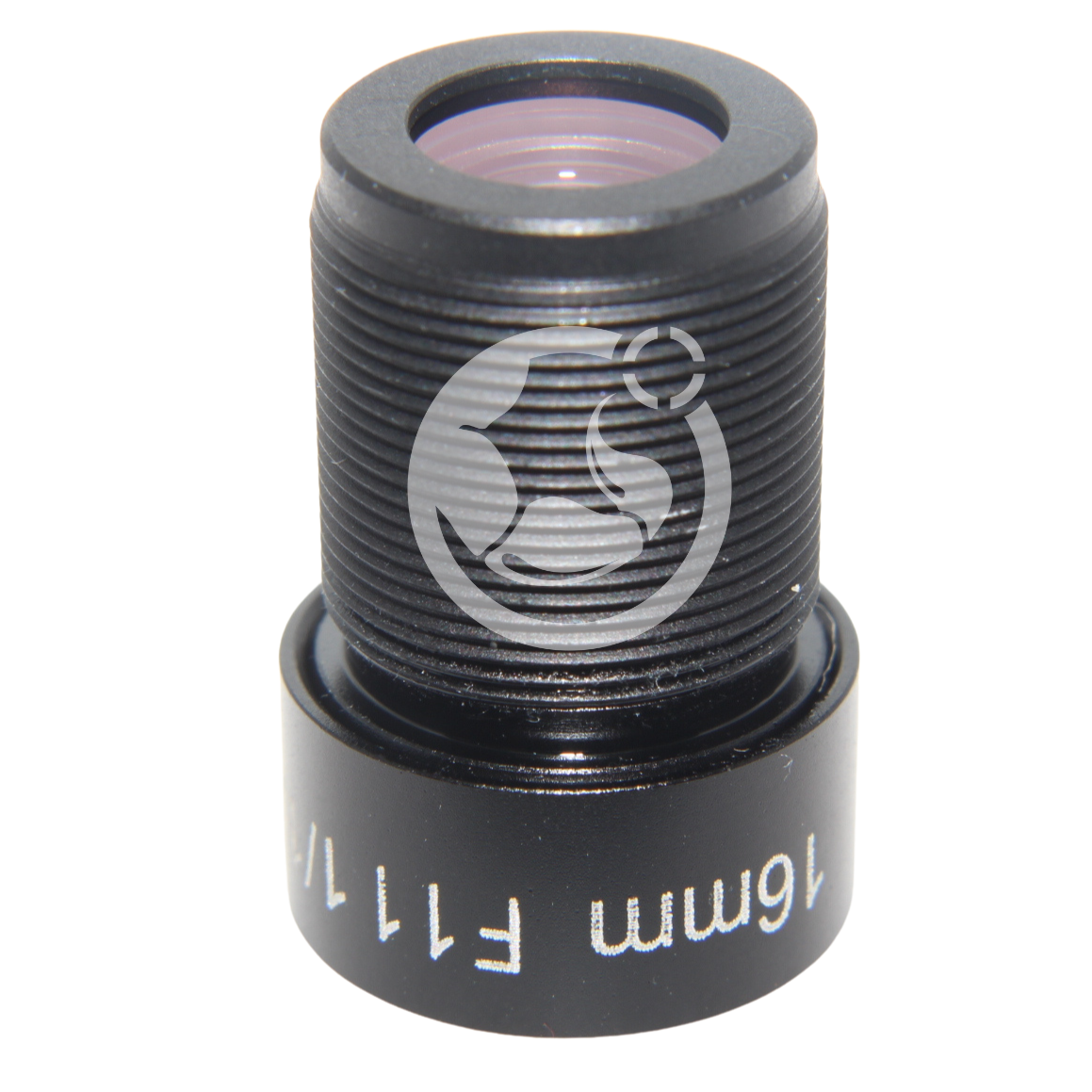

M12 Lens 16mm F11.0
SKU: SVL-1611SMAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Taxes may apply to your order depending on the shipping destination. Please note that the customer is responsible for any applicable taxes and duties. Goods are shipped with incoterms DAP.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 16mm
- F Number: F11
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Megapixel: 3MP
- Horizontal Field of View: 22.4 Degrees
- Distortion: <-0.1%
- Back Focus: 5.197mm
- Working Distance: 0.1m - ∞
- Design Wavelength: 400-950nm
- Operating Temperature: -20° C ~ +65° C
- CRA: 13.85°
Sample Images
Sensor: 1/3" Aptina MT9V024
In the image below the sugar cube was 100mm from the lens. This is the minimum distance that this lens will focus. The sugar cube is 16mm x 14mm.
