Scorpion Vision

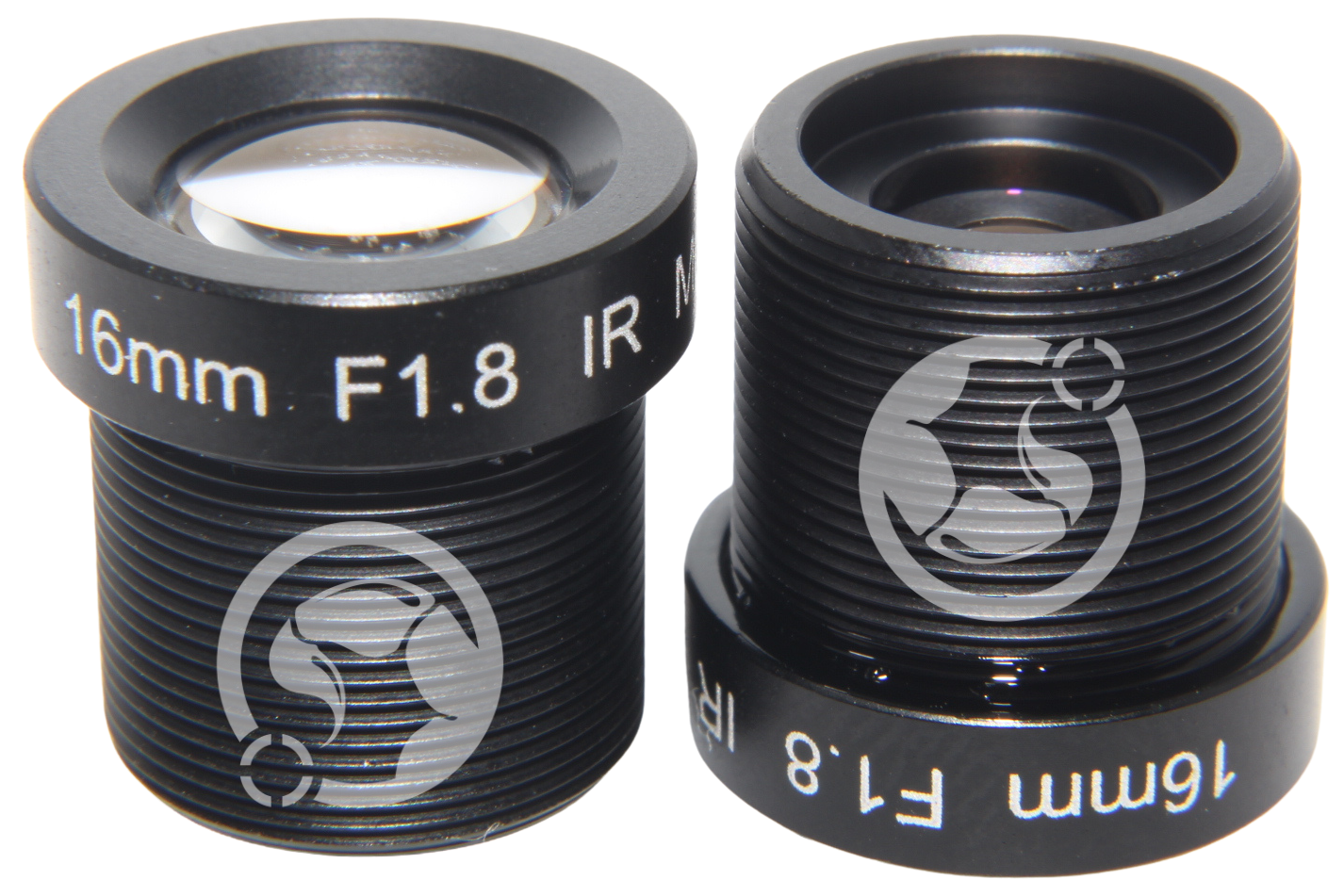

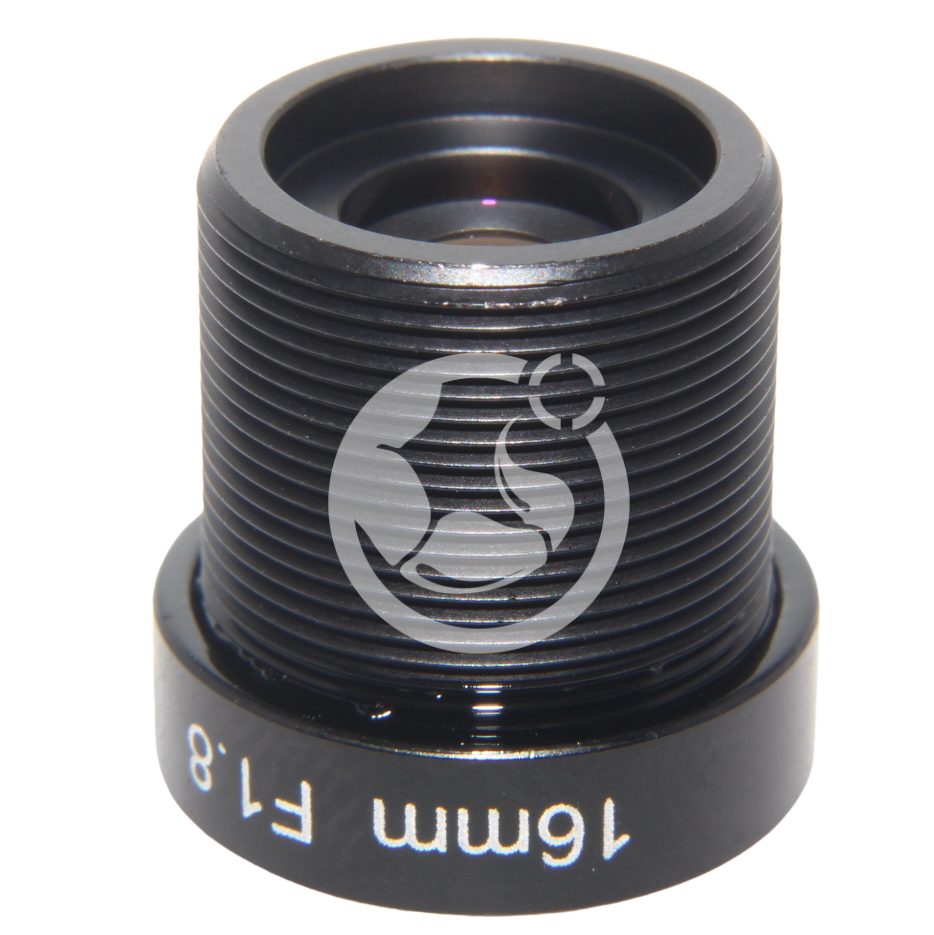

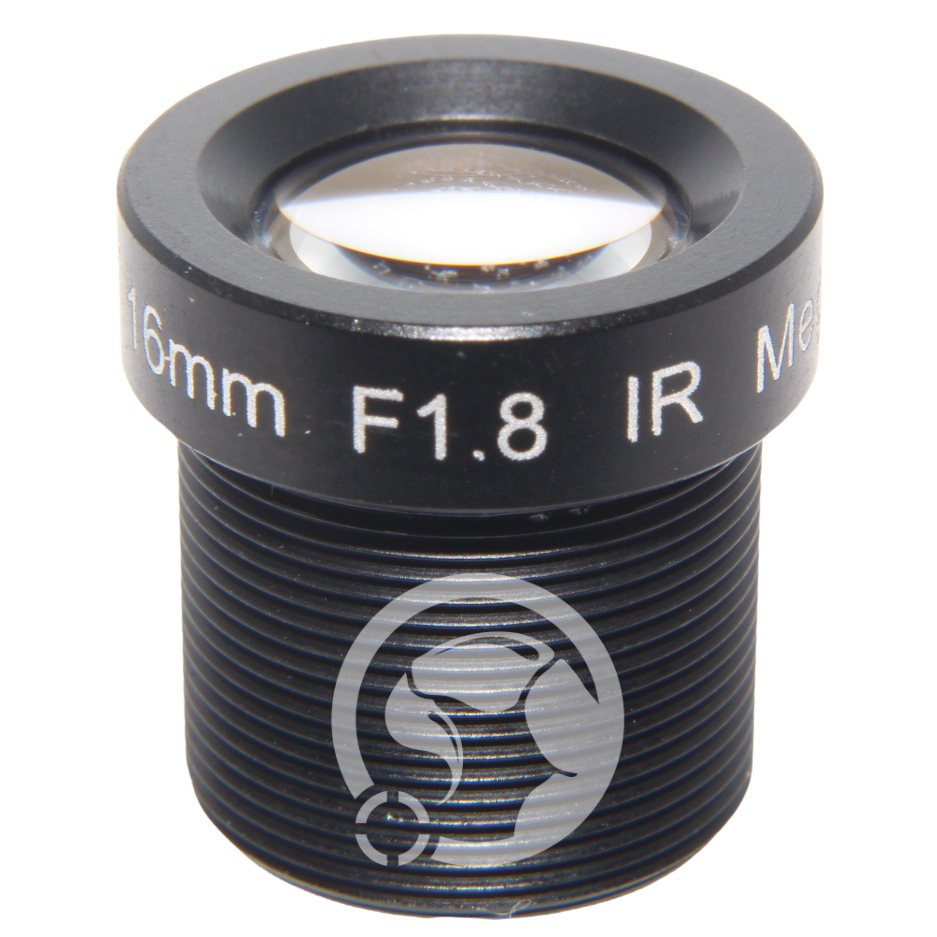

M12 Lens 16mm F1.8



Shipping & Returns


Free shipping to all UK addresses (subject to a minimum order value of £20).

Standard shipping to all other destinations - select destination on checkout to get pricing.


If you would like to return or have any questions about your returning your item, please contact

Key Features

  • Focal Length: 16mm
  • F Number: F1.8
  • Iris: Non-adjustable
  • Mount: M12
  • Format: 1/3"
  • Filter Size: n/a
  • Megapixel: 2MP
  • Horizontal Field of View: 16.5 Degrees
  • Distortion: <+0.5%
  • Back Focus: 6.57mm
  • Wavelength: 400nm - 900nm

Sample Images

Sensor: 1/2.8 inch Sony CMOS sensor IMX236LQJ

In the images below, the screw measures 26mm in length and 12mm in diameter at the screw head.

Minimum object distance: 179mmdfk-afux236-m12-svl-ir1618b2m-179mm.jpg

Object distance: 313mmdfk-afux236-m12-svl-ir1618b2m-313mm.jpg

Object distance: 507mmdfk-afux236-m12-svl-ir1618b2m-507mm.jpg
