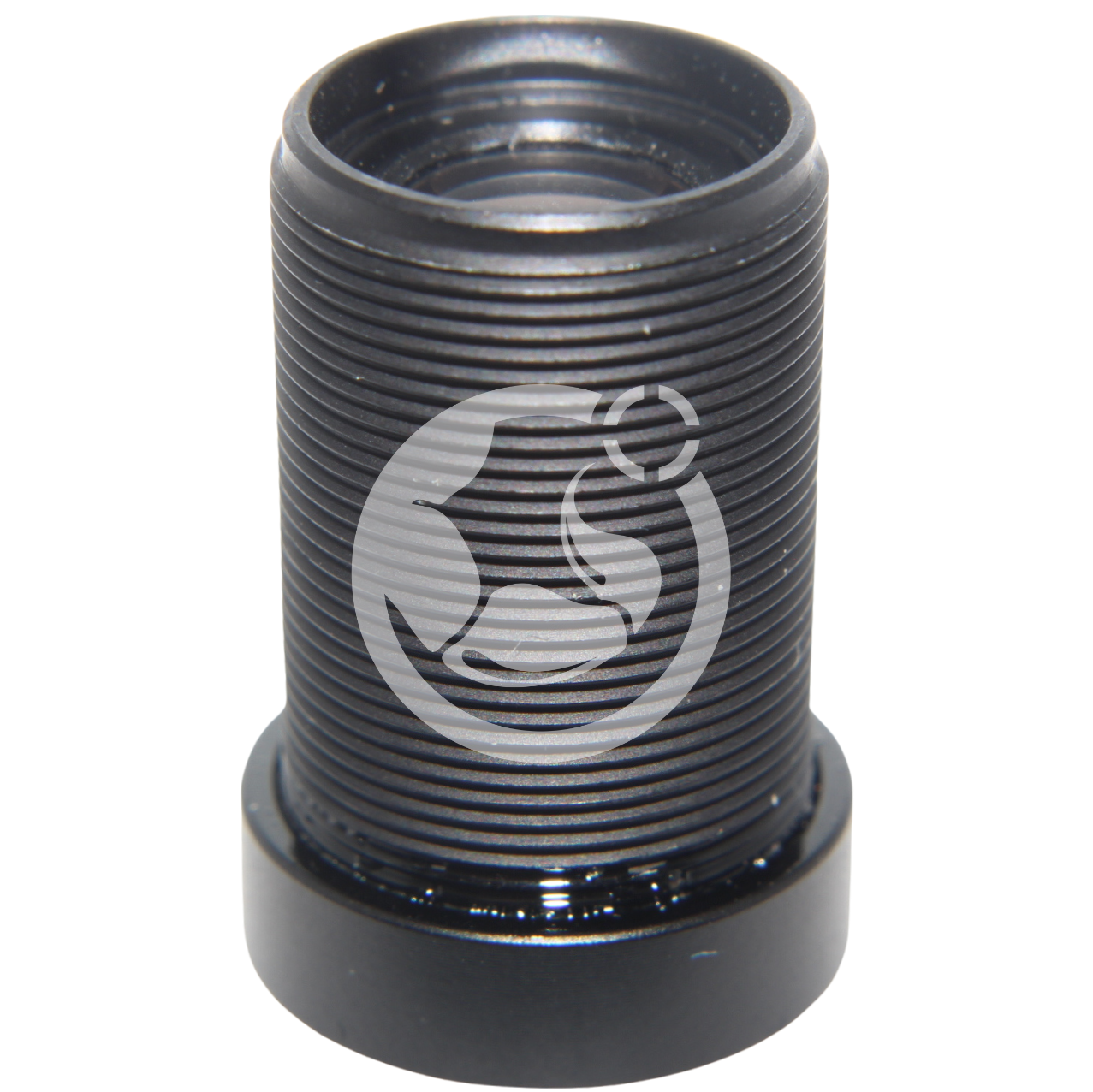

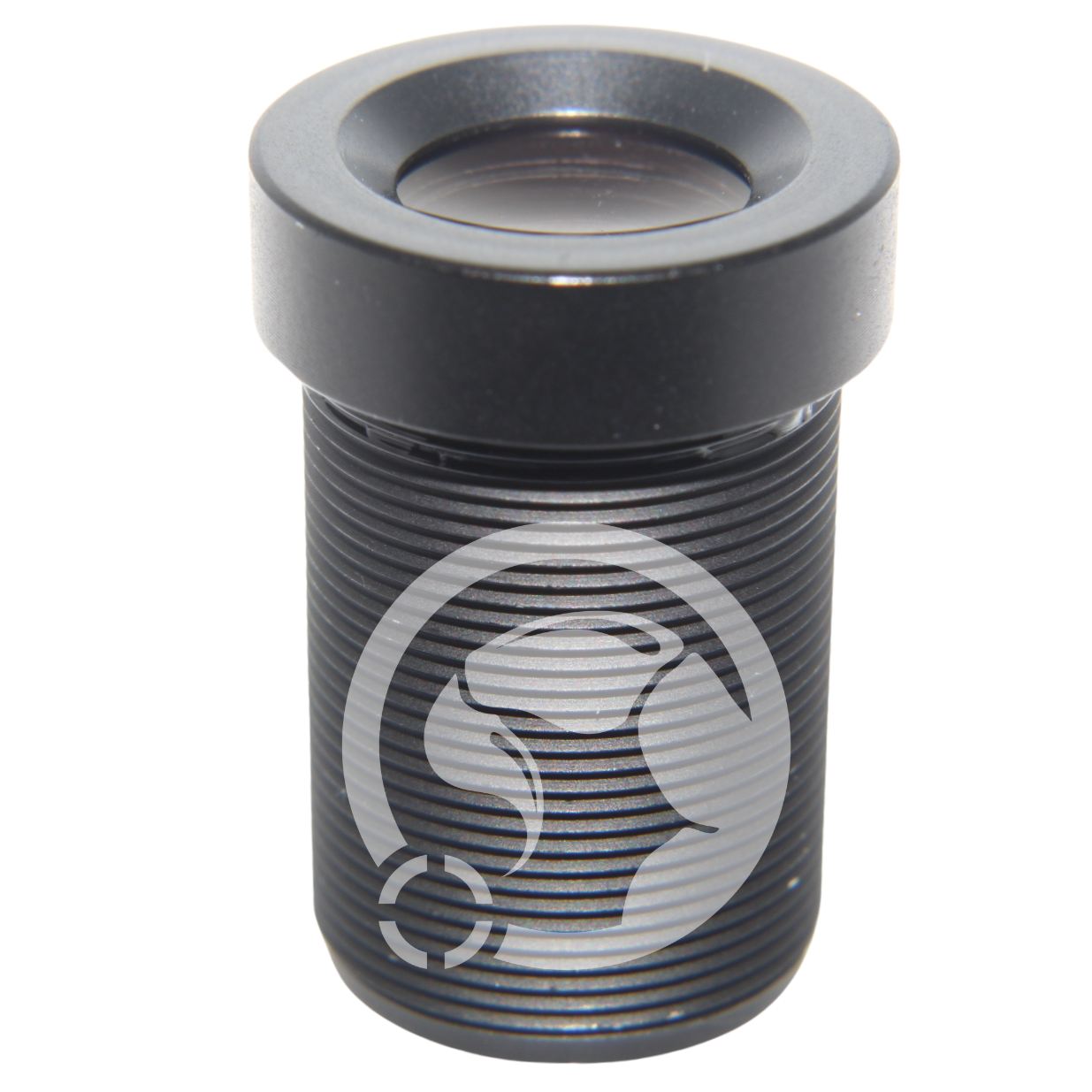

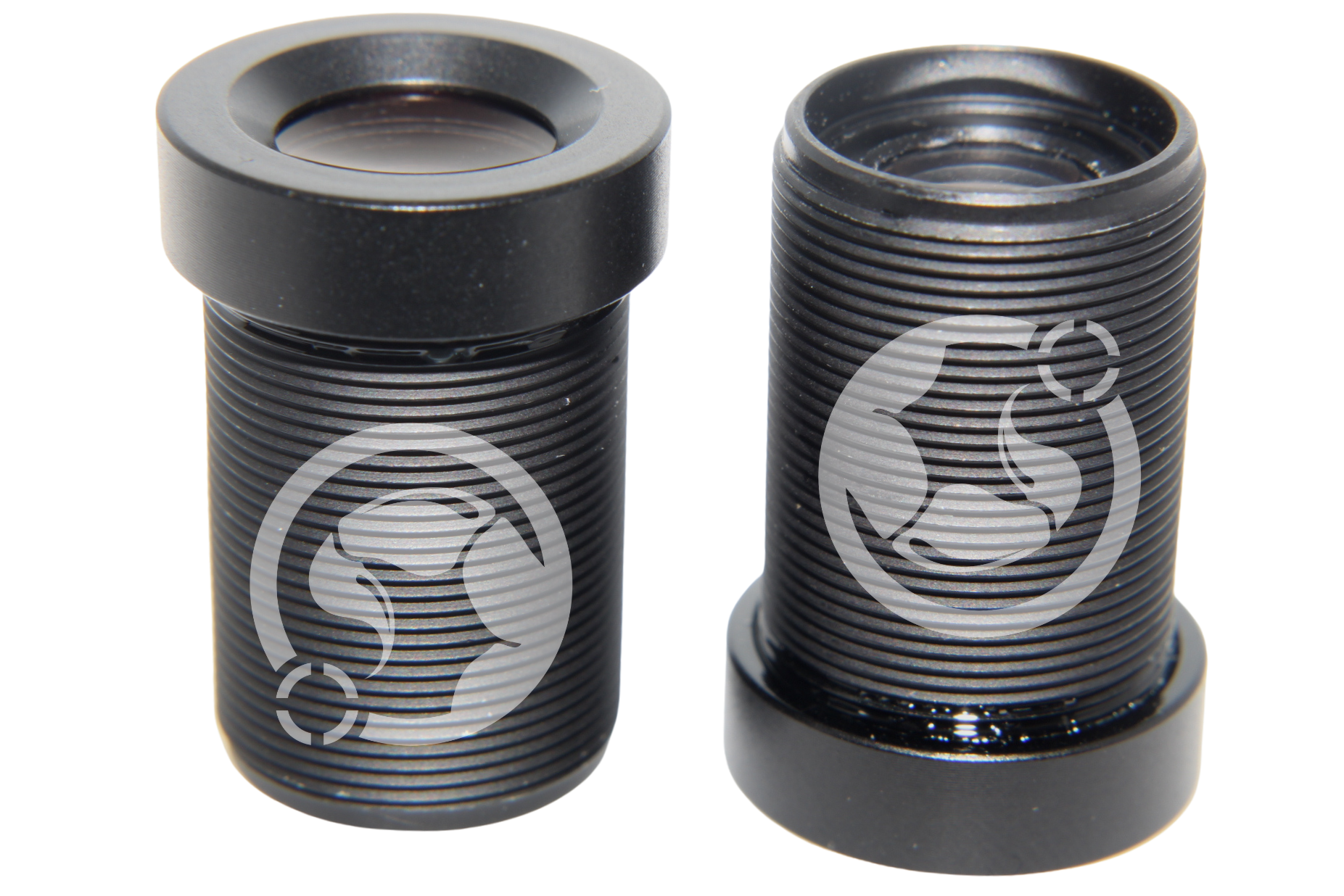

M12 Lens 12mm F5.0
SKU: SVL-IR1250B2M
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses. Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 12mm
- F Number: F5.0
- Iris: Non-adjustable
- Mount: M12
- Format: 1/2.7"
- Filter Size: n/a
- Megapixel: 2MP
- Horizontal Field of View: 23 Degrees
- Distortion: <-2.5%
- Back Focus: 6mm
- Wavelength: 400nm - 900nm
Sample Images
Sensor: 1/3" Aptina MT9V024.
In the below image, the sugar cube is 88mm from the lens. This is the minimum distance at which the entire cube remains in focus.
The sugar cube measures 16mm x 14mm.
The coin was at a distance of approx. 57mm.
In this image, the penny (d=20.3mm) was at a distance of 20cm from the lens.
The large focal length of this lens enables a close image that is sharp and has very minor distortion.
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 48mm from the lens and the second at 60mm. This lens has a medium F Number of f5.0 creating a reasonable depth of field while still allowing a good amount of light to reach the sensor.
