Scorpion Vision

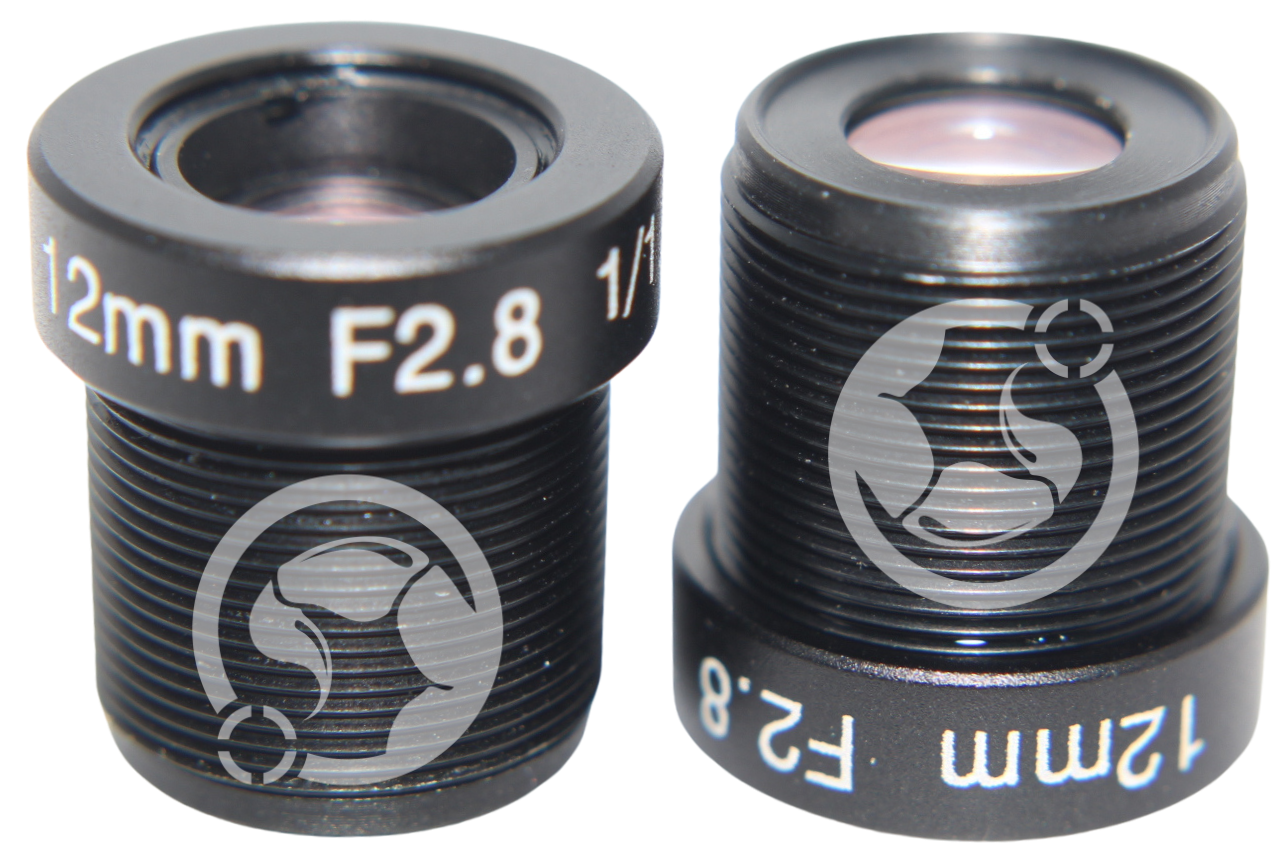

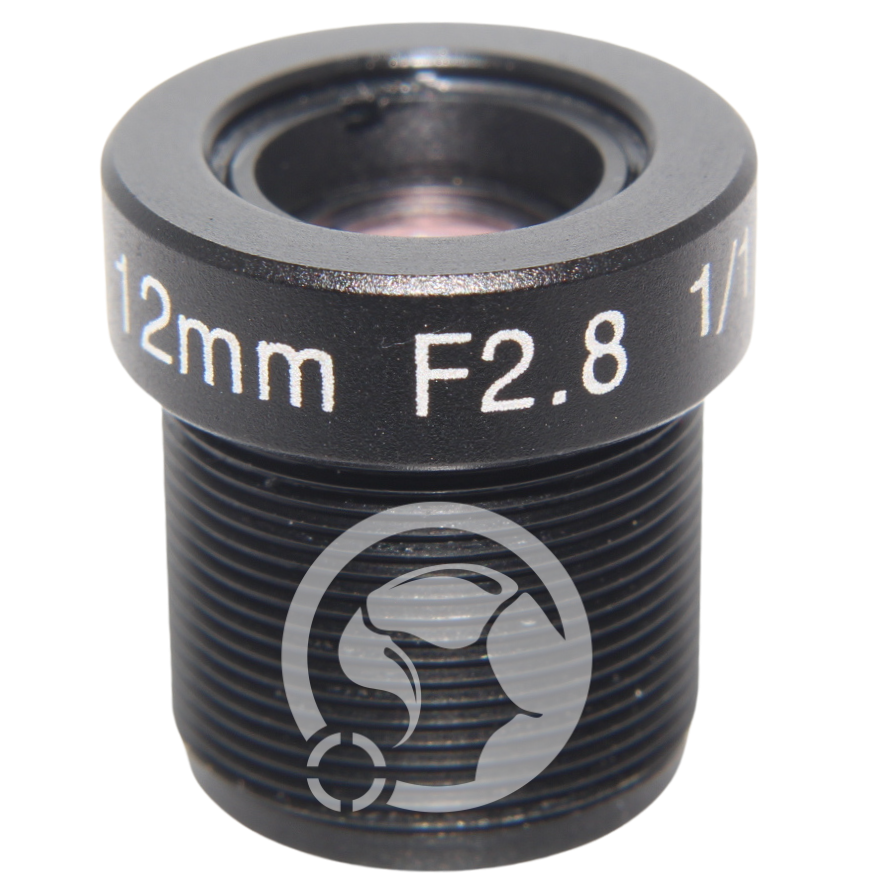

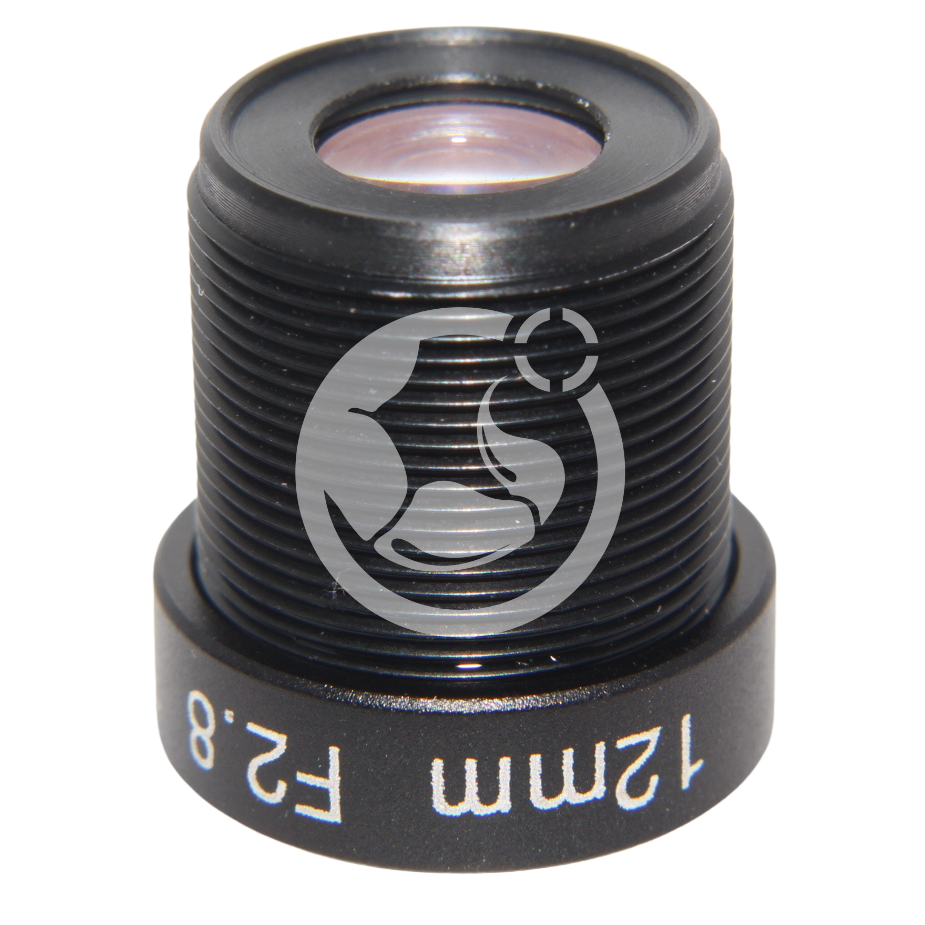

M12 Lens 12mm F2.8
SKU: SVL-1228SMAC
Couldn't load pickup availability
Specification
Specification
Shipping & Returns
Shipping & Returns
Shipping
Free shipping to all UK addresses (subject to a minimum order value of £20).
Standard shipping to all other destinations - select destination on checkout to get pricing.
Returns
If you would like to return or have any questions about your returning your item, please contact returns@scorpion.vision
Key Features
- Focal Length: 12mm
- F Number: F2.8
- Iris: Non-adjustable
- Mount: M12
- Format: 1/1.8"
- Filter Size: n/a
- Megapixel: 3MP
- Horizontal Field of View: 30.6 Degrees
- Distortion: <-0.2%
- Back Focus: 6.48mm
- Working Distance: 0.1m - ∞
- Design wavelength: 400-950nm
- Operating Temperature: -20° C ~ +65° C
- CRA - 15.53°
Sample Images
In these sample images, the sensor used was a 1/4" Sony ICX618. The first image is focused at a distance of 47mm from the lens and the second at 64mm. This lens has a small F Number of f2.8 creating a narrow depth of field.
